2021 HYUNDAI I20 Owners Manual

6-89
06
VOLUME (VOL + / VOL -) (1)
• Move the VOLUME toggle switch up to
increase volume.
• Move the VOLUME toggle switch
down to decrease volume.
SEEK/PRESET ( / ) (2)
If the SEEK/PRESET toggle switch is
moved up or down and held for 0.8
second or more, it will function in the
following modes.
RADIO mode
It will function as the AUTO SEEK select
switch. It will SEEK until you release the
switch.
MEDIA mode
It will function as the FF/REW switch
(except in Bluetooth audio mode).
If the SEEK/PRESET toggle switch is
moved up or down, it will function in the
following modes.
RADIO mode
It will function as the PRESET STATION
UP/DOWN switch.
MEDIA mode
It will function as the TRACK UP/ DOWN
switch.
MODE () (3)
Press the MODE button to select RADIO/
MEDIA/Bluetooth Audio, etc.
MUTE () (4, if equipped)
• Press the button to mute the sound.
• Press the button again to activate the
sound.
• During a call, press to turn off the
microphone.
i Information
Detailed information for audio control
buttons are described in the following
pages in this chapter.
Infotainment system (if equipped)
If your vehicle is equipped with
additional navigation, please refer to the
infotainment system manual separately
supplied.

6-90
Convenient features
Voice recognition (if equipped)
OBI3050052OBI3050052
A wide range of infotainment functions
can be commanded with voice
recognition (1).
If your vehicle is equipped with
additional navigation, please refer to the
infotainment system manual separately
supplied.
Bluetooth® Wireless Technology
hands-free (if equipped)
OBI3050051OBI3050051
OBI3050050OBI3050050
You can use the phone wirelessly
by using the Bluetooth® Wireless
Technology.
(1) Call / Answer button
(2) Call end button
(3) Microphone
• Audio : For detailed information, refer
to “AUDIO” in this chapter.
• Navigation : Detailed information for
the Bluetooth® Wireless Technology
hands-free is described in the manual
supplied separately.
Depending on the car model above
layout may be vary.

6-91
06

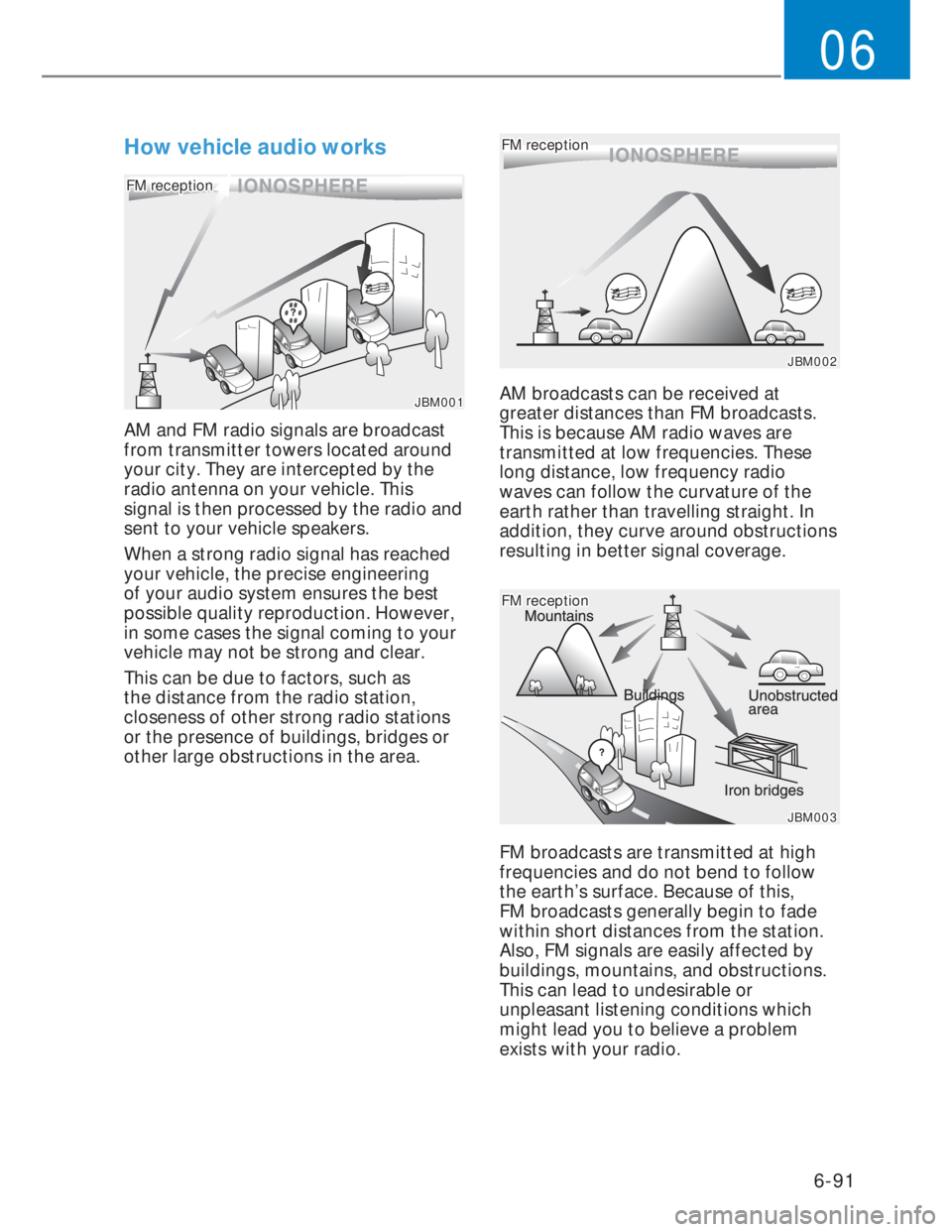

How vehicle audio works
FM receptionFM reception
JBM001JBM001
AM and FM radio signals are broadcast
from transmitter towers located around
your city. They are intercepted by the
radio antenna on your vehicle. This
signal is then processed by the radio and
sent to your vehicle speakers.
When a strong radio signal has reached
your vehicle, the precise engineering
of your audio system ensures the best
possible quality reproduction. However,
in some cases the signal coming to your
vehicle may not be strong and clear.
This can be due to factors, such as
the distance from the radio station,
closeness of other strong radio stations
or the presence of buildings, bridges or
other large obstructions in the area.
FM receptionFM reception
JBM002JBM002

AM broadcasts can be received at
greater distances than FM broadcasts.
This is because AM radio waves are
transmitted at low frequencies. These
long distance, low frequency radio
waves can follow the curvature of the
earth rather than travelling straight. In
addition, they curve around obstructions
resulting in better signal coverage.
FM receptionFM reception
JBM003JBM003
FM broadcasts are transmitted at high
frequencies and do not bend to follow
the earth’s surface. Because of this,
FM broadcasts generally begin to fade
within short distances from the station.
Also, FM signals are easily affected by
buildings, mountains, and obstructions.
This can lead to undesirable or
unpleasant listening conditions which
might lead you to believe a problem
exists with your radio.

6-92
Convenient features
The following conditions are normal and
do not indicate radio trouble:
FM receptionFM reception
JBM004JBM004
• Fading - As your vehicle moves away
from the radio station, the signal will
weaken and sound will begin to fade.
When this occurs, we suggest that you
select another stronger station.
• Flutter/Static - Weak FM signals
or large obstructions between the
transmitter and your radio can disturb
the signal causing static or fluttering
noises to occur. Reducing the treble
level may lessen this effect until the
disturbance clears.
FM receptionFM reception
OJF045311LOJF045311L
• Multi-Path Cancellation - Radio signals
being received from several directions
can cause distortion or fluttering.
This can be caused by a direct and
reflected signal from the same station,
or by signals from two stations with
close frequencies. If this occurs, select
another station until the condition has
passed.
Using a cellular phone or a two-way
radio
When a cellular phone is used inside
the vehicle, noise may be produced
from the audio system. This does not
mean that something is wrong with the
audio equipment. In such a case, use
the cellular phone at a place as far as
possible from the audio equipment.
NOTICE
When using a communication system
such as a cellular phone or a radio set
inside the vehicle, a separate external
antenna must be fitted. When a cellular
phone or a radio set is used with an
internal antenna alone, it may interfere
with the vehicle’s electrical system and
adversely affect safe operation of the
vehicle.
While listening to the radio, if devices
such as laptop charger are connected
to the socket, it may generate noise.

6-93
06
WARNING
Do not use a cellular phone while
driving. Stop at a safe location to use a
cellular phone.
Bluetooth® Wireless
Technology
The Bluetooth® word mark and logos
are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such
marks by HYUNDAI is under license.
Other trademarks and trade names are
those of their respective owners.
A
Bluetooth® Wireless Technology
enabled cell phone is required to use
Bluetooth® Wireless Technology.

6-94
Convenient features
System layout – control panel
(With Bluetooth® Wireless Technology)
$8',2

6-95
06
(With Bluetooth® Wireless Technology)
(5) PHONE button
• Press to start connecting a mobile
phone via Bluetooth.
• After a Bluetooth phone connection
is made, press to access the
Bluetooth phone menu.
(6) FAV button
• While listening to the radio, press to
move to next page of the preset list.
(7) PWR button/VOL knob
• Press to turn the system on or off.
• Turn to the left or right to adjust the
system sound volume.(8) Number buttons (1 RPT~ 4 BACK)
• While listening to the radio, press to
listen to a saved radio station.
• While listening to the radio, press
and hold to save the current radio
station to the preset.
• In the USB/Bluetooth audio modes,
press the [1 RPT] button to change
the repeat mode. Press the [2 SHFL]
button to change the shuffle mode.
• Press the [4 BACK] button to return
to the previous screen (except for
the radio preset list).
ÃThe system’s actual appearance and layout may differ depending on the car model
and specification.

6-96
Convenient features
System layout – steering wheel
remote control
(Bluetooth® equipped model)
ÃThe system’s actual appearance and
layout may differ depending on the
car model and specification.
(1) MUTE button
• Press to mute or unmute the
system.
• During a call, press to mute or
unmute the microphone.
• While playing media, press to pause
or resume playback. (if equipped)
(2) MODE button
• Press to switch between radio and
media modes.
• If no media is connected, each time
this is pressed, it toggles between
the radio modes (FM X AM X FM).
• Press and hold to turn the system
on or off.
(3) Volume lever
• Push up or down to adjust the
volume.(4) Up/Down lever
• Change the station/track/file.
• While listening to the radio, push
to listen to the previous/next saved
radio station.
• While listening to the radio, push
and hold to search for a station.
• While playing media, push and hold
to rewind or fast forward (except for
the Bluetooth audio mode).
• While playing media push to listen
to the previous/next song.
(5) Call/Answer button
• Press to start connecting a mobile
phone via Bluetooth.
• After a Bluetooth phone connection
is made, press to access your call
history. Press and hold to dial the
most recent phone number. When
a call comes in, press to answer the
call.
• During a call, press to switch
between the active call and the held
call. Press and hold to switch the
call between the system and the
mobile phone.
• In 3-way call, swaps between calls.
(6) Call end button
• When a call comes in, reject the call.
• During a call, end the call.
