2021 HYUNDAI ELANTRA HYBRID Owners Manual

Vehicle Information
2-12
Recommended SAE Viscosity
Number
CAUTION
Always be sure to clean the area around
any filler plug, drain plug, or dipstick
before checking or draining any
lubricant. This is especially important
in dusty or sandy areas and when the
vehicle is used on unpaved roads.
Cleaning the plug and dipstick areas
will prevent dirt and grit from entering
the engine and other mechanisms that
could be damaged.Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and
cold weather performance, however,
higher viscosity engine oils are required
for satisfactory lubrication in hot
weather.
Using oils of any viscosity other than
those recommended could result in
engine damage.
When choosing an oil, consider the
range of temperature your vehicle will be
operated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature °C
-30 -20 -10 0 10 20 30 40 50
(°F) -10 0 20 40 60 80 100 120
Engine Oil *
1Gasoline 1.6 GDi HEV0W-20/5W-30
*1 : Requires grade engine oil. If a
lower grade engine oil(mineral oil including Semi-synthetic) is used, then the engine oil
and oil filter must be replaced as indicated severe maintenance condition.
An engine oil displaying this American Petroleum Institute(API)
Certification Mark conforms to the International Lubricant Specification
Advisory Committee (ILSAC). It is recommended to only use engine oils
that uphold this API Certification Mark.

02
2-13

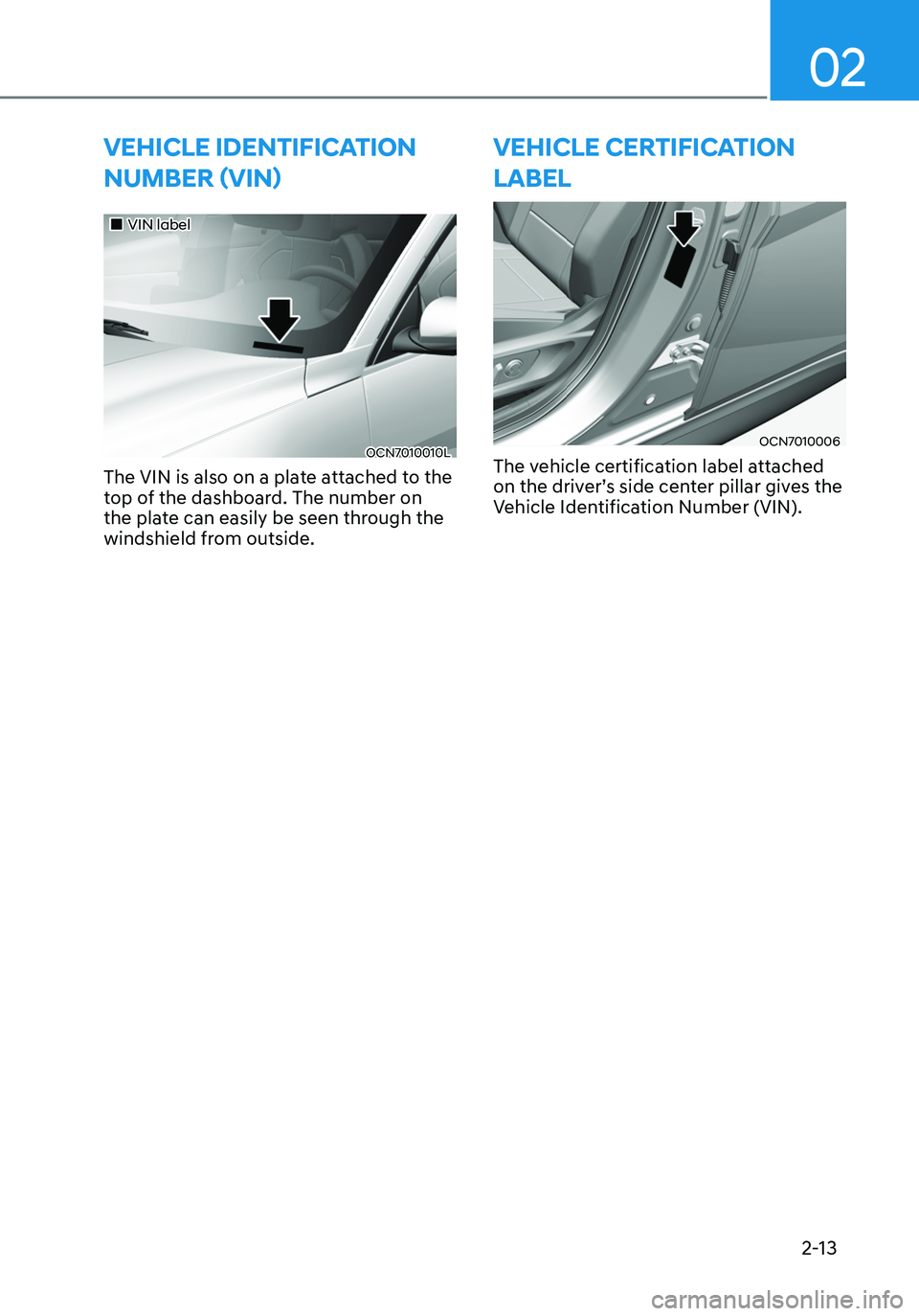

VEHICLE IDENTIFICATION
NUMBER (VIN)
„„VIN label
OCN7010010L
The VIN is also on a plate attached to the
top of the dashboard. The number on
the plate can easily be seen through the
windshield from outside.
VEHICLE CERTIFICATION
LABEL
OCN7010006
The vehicle certification label attached
on the driver’s side center pillar gives the
Vehicle Identification Number (VIN).

Vehicle Information2-14

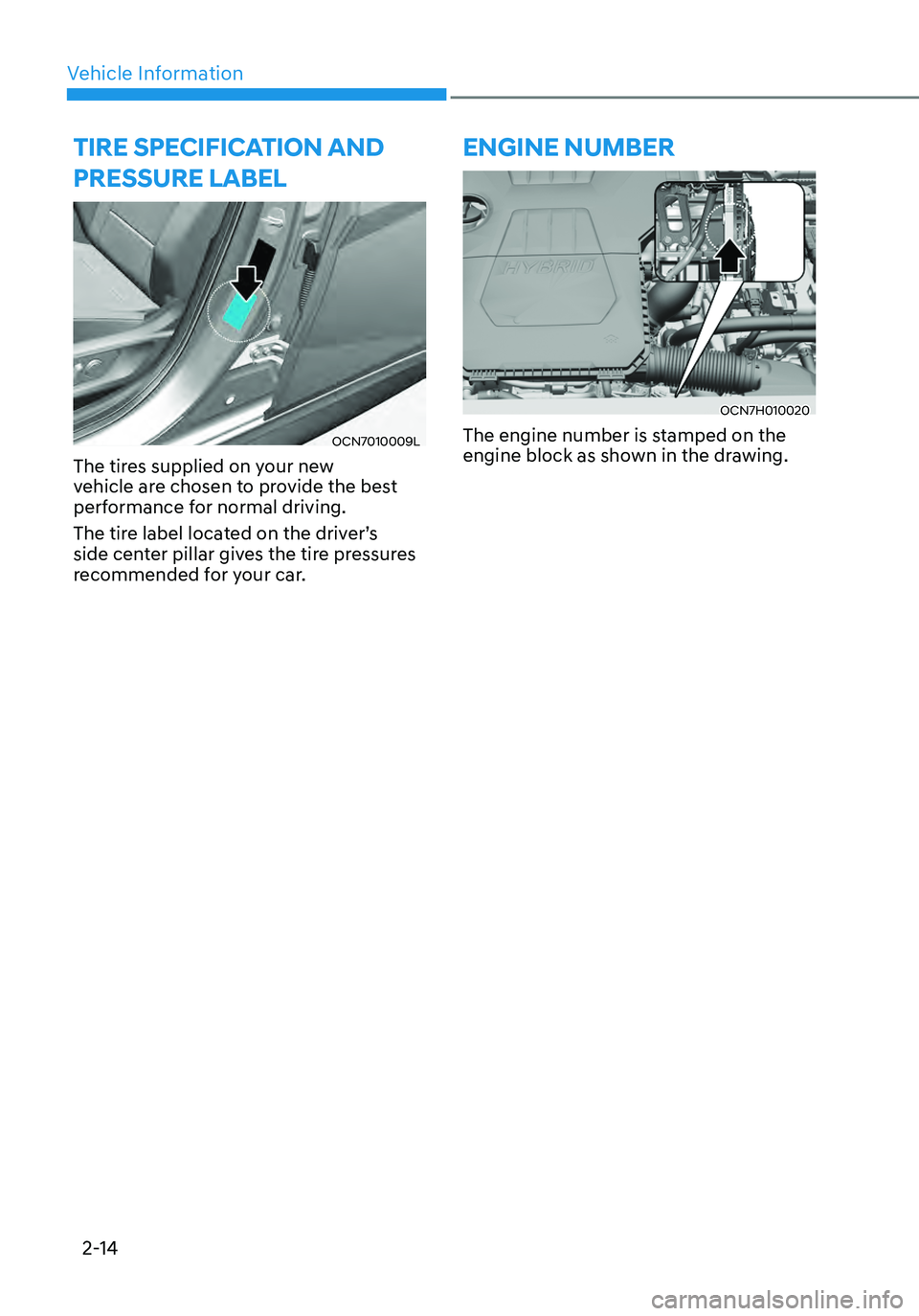

TIRE SPECIFICATION AND
PRESSURE LABEL
OCN7010009L
The tires supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your car.
ENGINE NUMBER
OCN7H010020
The engine number is stamped on the
engine block as shown in the drawing.

02
2-15

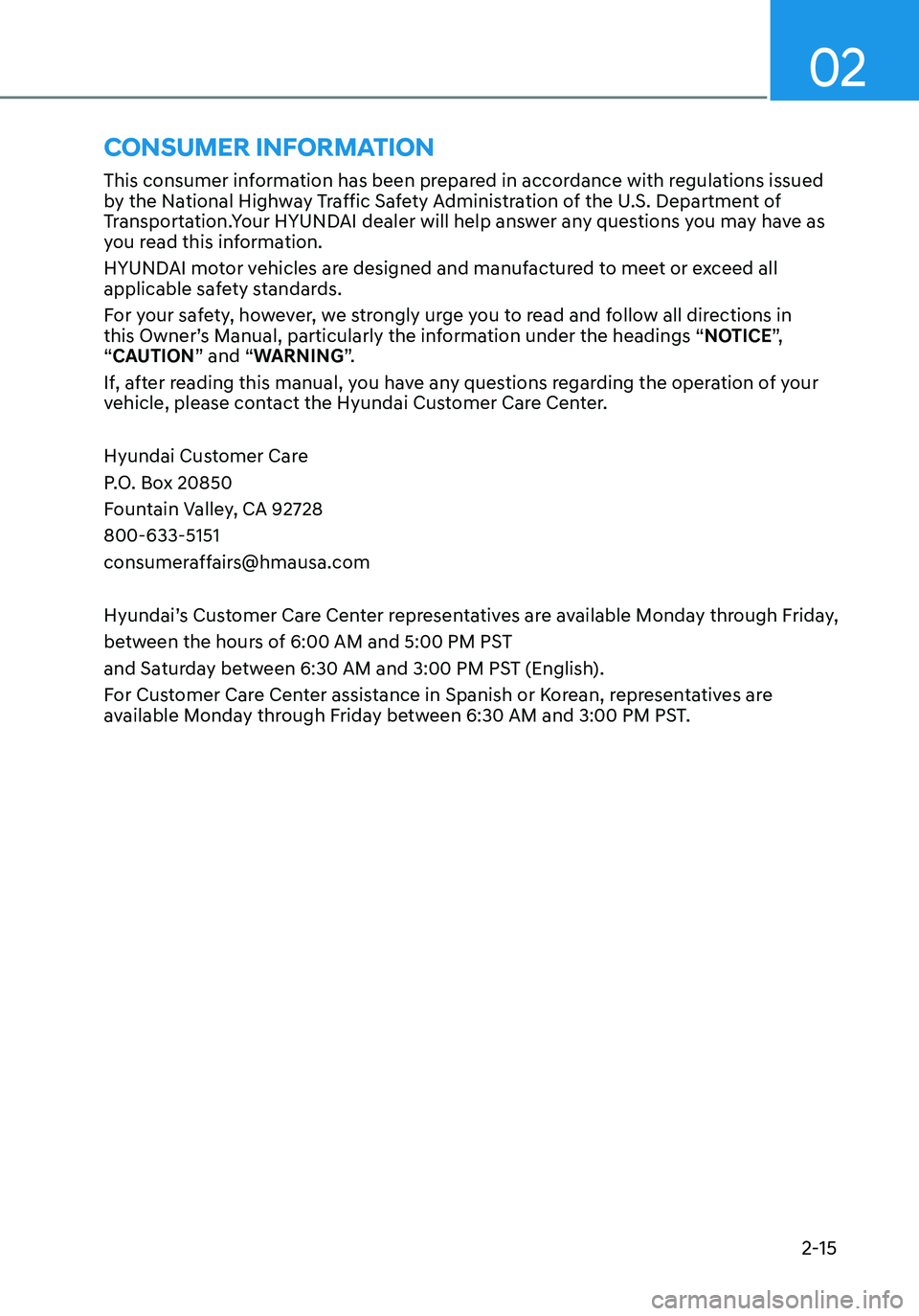

CONSUMER INFORMATION
This consumer information has been prepared in accordance with regulations issued
by the National Highway Traffic Safety Administration of the U.S. Department of
Transportation.Your HYUNDAI dealer will help answer any questions you may have as
you read this information.
HYUNDAI motor vehicles are designed and manufactured to meet or exceed all
applicable safety standards.
For your safety, however, we strongly urge you to read and follow all directions in
this Owner’s Manual, particularly the information under the headings “NOTICE”,
“CAUTION” and “WARNING”.
If, after reading this manual, you have any questions regarding the operation of your
vehicle, please contact the Hyundai Customer Care Center.
Hyundai Customer Care
P.O. Box 20850
Fountain Valley, CA 92728
800-633-5151
[email protected]
Hyundai’s Customer Care Center representatives are available Monday through Friday,
between the hours of 6:00 AM and 5:00 PM PST
and Saturday between 6:30 AM and 3:00 PM PST (English).
For Customer Care Center assistance in Spanish or Korean, representatives are
available Monday through Friday between 6:30 AM and 3:00 PM PST.

Vehicle Information
2-16

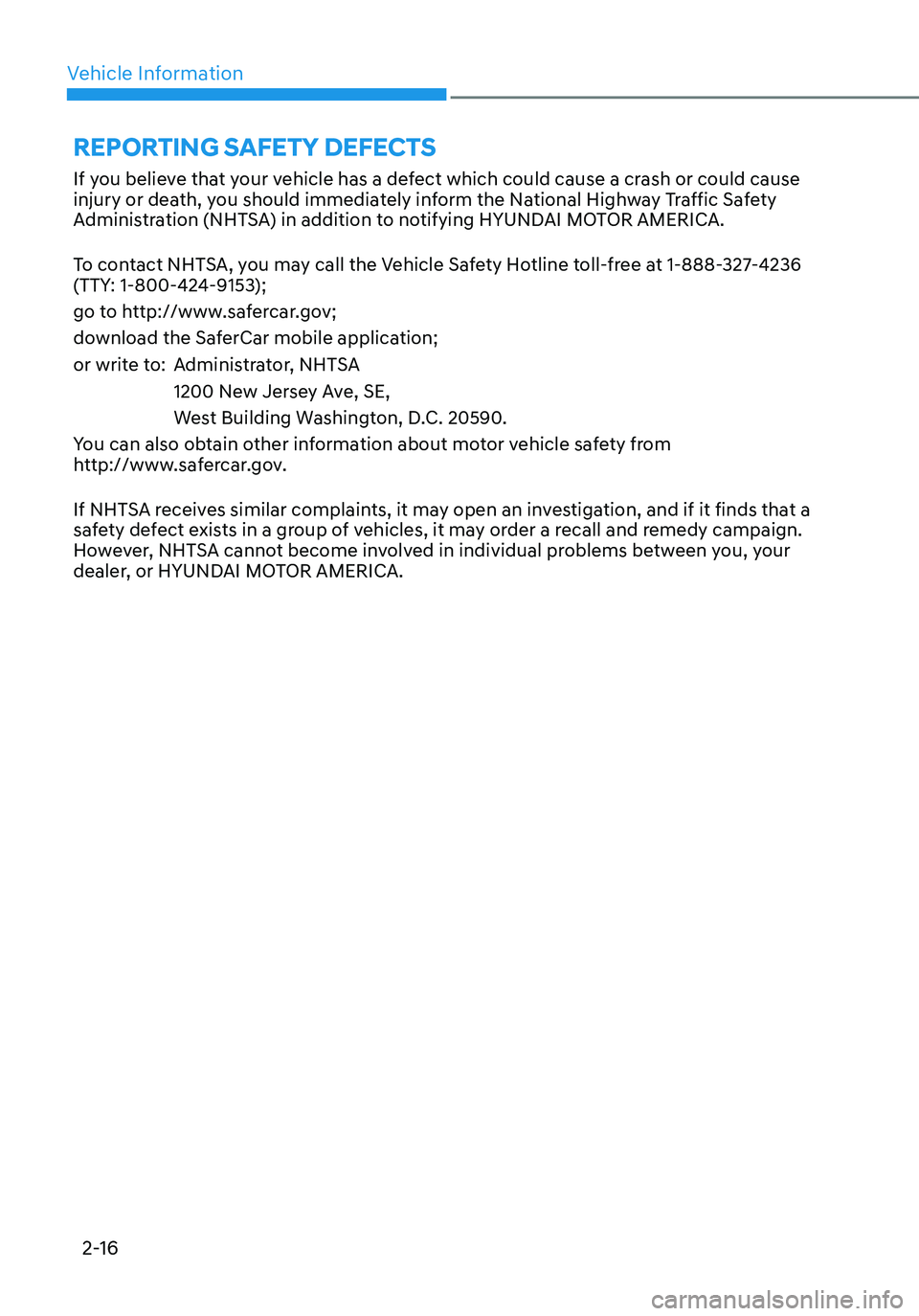

REPORTING SAFETY DEFECTS
If you believe that your vehicle has a defect which could cause a crash or could cause
injury or death, you should immediately inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notifying HYUNDAI MOTOR AMERICA.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236
(TTY: 1-800-424-9153);
go to http://www.safercar.gov;
download the SaferCar mobile application;
or write to:Administrator, NHTSA
1200 New Jersey Ave, SE,
West Building Washington, D.C. 20590.
You can also obtain other information about motor vehicle safety from
http://www.safercar.gov.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a
safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
However, NHTSA cannot become involved in individual problems between you, your
dealer, or HYUNDAI MOTOR AMERICA.

Safety System
3.Seats & Safety System
3
Important Safety Precautions .......................................................................3-2Always Wear Your Seat Belt ........................................................................\
.............3-2
Restrain All Children ........................................................................\
.........................3-2
Air Bag Hazards ........................................................................\
................................3-2
Driver Distraction ........................................................................\
.............................3-2
Control Your Speed ........................................................................\
..........................3-2
Keep Your Vehicle in Safe Condition .......................................................................3-2
Seats ........................................................................\
.......................................3-3Safety Precautions ........................................................................\
...........................3-4
Front Seats ........................................................................\
........................................3-5
Rear Seats ........................................................................\
........................................3-10
Head Restraints ........................................................................\
................................3-11
Seat Warmers ........................................................................\
..................................3-15
Air ventilation seat ........................................................................\
........................... 3-17
Seat Belts ........................................................................\
...............................3-18Seat Belt Safety Precautions ........................................................................\
..........3-18
Seat Belt Warning Light ........................................................................\
..................3-19
Seat Belt Restraint System ........................................................................\
.............3-19
Additional Seat Belt Safety Precautions ...............................................................3-24
Care of Seat Belts ........................................................................\
...........................3-26
Child Restraint System (CRS) ......................................................................3-27Children Always in the Rear ........................................................................\
............3-27
Selecting a Child Restraint System (CRS) .............................................................3-28
Installing a Child Restraint System (CRS) .............................................................3-29
Air Bag - Advanced Supplemental Restraint System ................................3-36Where Are the Air Bags? ........................................................................\
................3-38
How Does the Air Bag System Operate? ................................................................3-41
What to Expect After an Air Bag Inflates ..............................................................3-44
Occupant Classification System (OCS) .................................................................3-45
Why Didn’t My Air Bag Go Off in a Collision? ........................................................3-51
SRS Care
........................................................................\
.........................................3-55
Additional Safety Precautions ........................................................................\
.......3-56
Air Bag Warning Labels ........................................................................\
..................3-56
This chapter provides you with important information about how to protect yourself and your passengers. It explains how to properly use your seats and seat belts, and how your air bags work.
Additionally, this chapter explains how to properly restrain infants and children in your vehicle.

3-2
You will find many safety precautions
and recommendations throughout this
section, and throughout this manual.
The safety precautions in this section are
among the most important.
Always Wear Your Seat Belt
A seat belt is your best protection in all
types of accidents. Air bags are designed
to supplement seat belts, not replace
them. So even though your vehicle is
equipped with air bags, ALWAYS make
sure you and your passengers wear your
seat belts, and wear them properly.
Restrain All Children
All children under age 13 should ride
in your vehicle properly restrained in a
rear seat, not the front seat. Infants and
small children should be restrained in
an appropriate child restraint. Larger
children should use a booster seat with
the lap/shoulder belt until they can use
the seat belt properly without a booster
seat.
Air Bag Hazards
While air bags can save lives, they can
also cause serious or fatal injuries to
occupants who sit too close to them, or
who are not properly restrained. Infants,
young children, and shorter adults are at
the greatest risk of being injured by an
inflating air bag. Follow all instructions
and warnings in this manual.
Driver Distraction
Driver distraction presents a serious and
potentially deadly danger, especially for
inexperienced drivers. Safety should be
the first concern when behind the wheel,
and drivers need to be aware of the wide
array of potential distractions, such as
drowsiness, reaching for objects, eating,
personal grooming, other passengers,
and using cellular phones.Drivers can become distracted when
they take their eyes and attention off
the road or their hands off the wheel to
focus on activities other than driving. To
reduce your risk of distraction or getting
into an accident:
•
ALWAYS set up your mobile devices
(i.e., MP3 players, phones, navigation
units, etc.) when your vehicle is
parked or safely stopped.
• ONLY use your mobile device when
allowed by laws and when conditions
permit safe use. NEVER text or email
while driving. Most states have laws
prohibiting drivers from texting. Some
states and cities also prohibit drivers
from using handheld phones.
• NEVER let the use of a mobile device
distract you from driving. You have a
responsibility to your passengers and
others on the road to always drive
safely, with your hands on the wheel
as well as your eyes and attention on
the road.
Control Your Speed
Excessive speed is a major factor in crash
injuries and deaths. Generally, the higher
the speed, the greater the risk, but
serious injuries can also occur at lower
speeds. Never drive faster than is safe
for current conditions, regardless of the
maximum speed posted.
Keep Your Vehicle in Safe
Condition
Having a tire blowout or a mechanical
failure can be extremely hazardous. To
reduce the possibility of such problems,
check your tire pressures and condition
frequently, and perform all regularly
scheduled maintenance.
IMPORTANT SAFETY PRECAUTIONS
Seats & Safety System

3-3
03

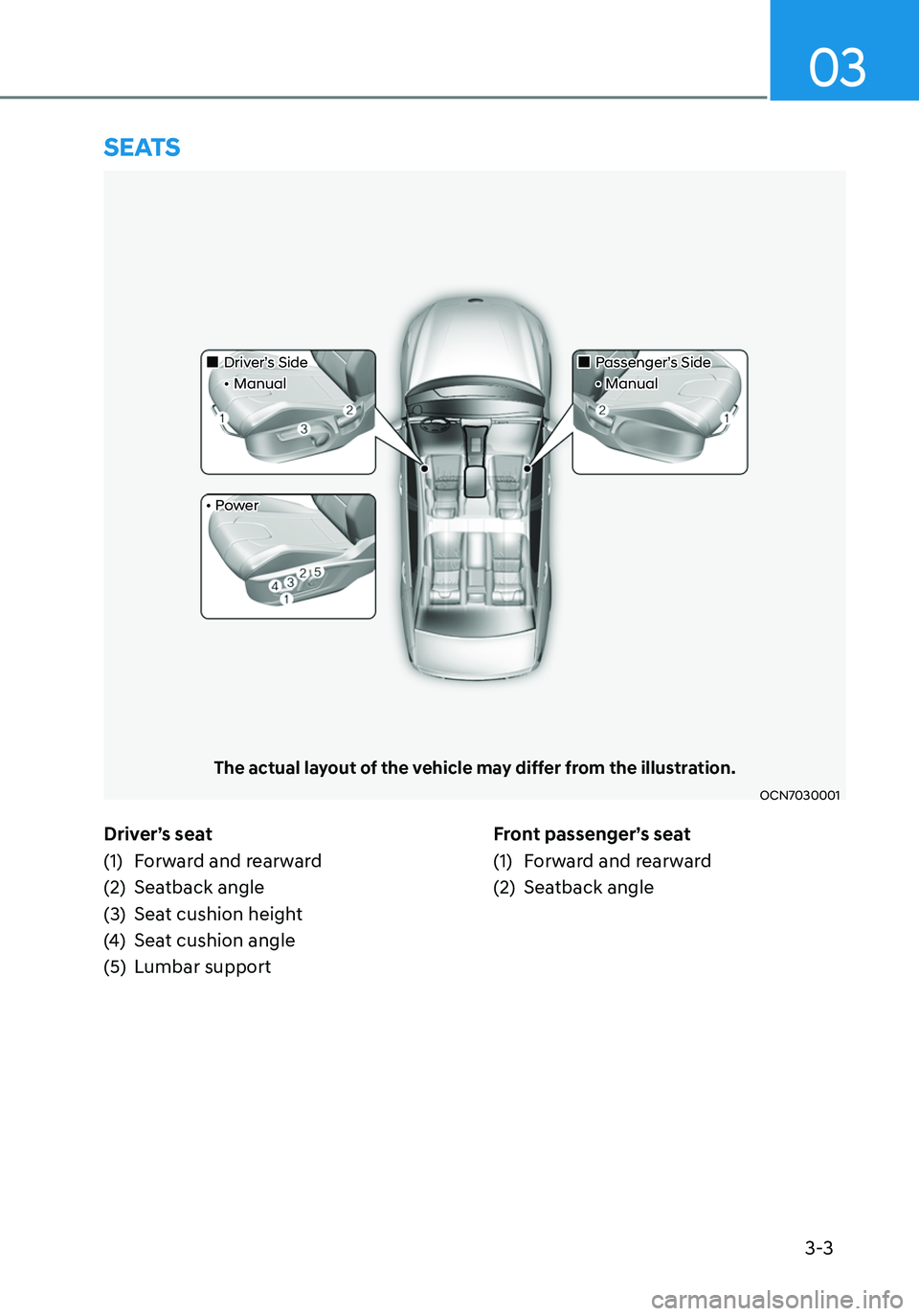

Driver’s seat
(1) Forward and rearward
(2) Seatback angle
(3) Seat cushion height
(4) Seat cushion angle
(5) Lumbar supportFront passenger’s seat
(1) Forward and rearward
(2) Seatback angle
SEATS
OCN7030001
The actual layout of the vehicle may differ from the illustration.
„„Driver’s Side • Manual„„Passenger’s Side • Manual
• Power
