2021 HONDA CLARITY FUEL CELL lights

508
Handling the Unexpected
If the 12-Volt Battery Is Dead
Turn off the power to electric devices, such as audio and lights. Turn off the power
system, then open the hood.1.Connect the first jump er cable to your
vehicle’s 12-volt battery + terminal.
2. Connect the other end of the first jumper
cable to the booster battery + terminal.
u If you use a booster battery, only use a
12-volt booster battery.
u When using an automotive battery
charger, select a charging voltage lower
than 15-volt. Check the charger manual
for the proper setting.
3. Connect the second jumper cable to the
booster battery - terminal.
■Jump Starting Procedure1If the 12-Volt Battery Is Dead
Securely attach the jumper cables clips so that they
do not come off when the power system vibrates.
Also be careful not to ta ngle the jumper cables or
allow the cable ends to touch each other while
attaching or detaching the jumper cables.
12-volt Battery performa nce degrades in cold
conditions and may prevent the power system from
starting.
3WARNING
A 12-volt battery can explode if you do not
follow the correct procedure, seriously
injuring anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the 12-volt battery.
Booster Battery
21 CLARITY FCV CSS-31TRT6400_02.book 508 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

511Continued
Handling the Unexpected

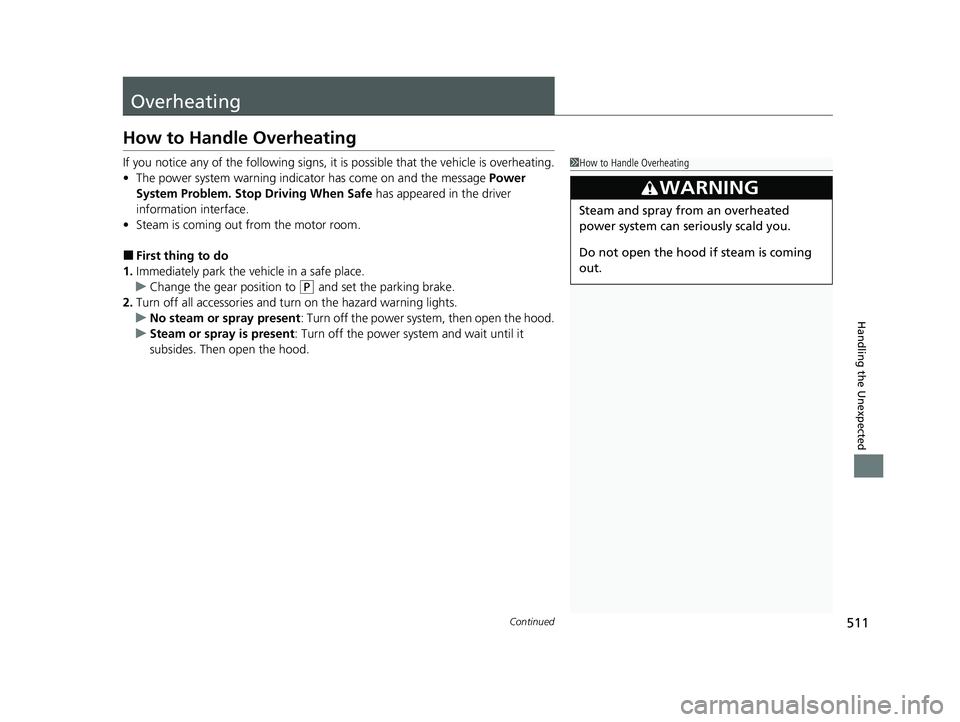

Overheating
How to Handle Overheating
If you notice any of the following signs, it is possible that the vehicle is overheating.
• The power system warning indicator has come on and the message Power
System Problem. Stop Driving When Safe has appeared in the driver
information interface.
• Steam is coming out from the motor room.
■First thing to do
1. Immediately park the vehicle in a safe place.
u Change the gear position to
(P and set the parking brake.
2. Turn off all accessories and turn on the hazard warning lights.
u No steam or spray present : Turn off the power system, then open the hood.
u Steam or spray is present : Turn off the power system and wait until it
subsides. Then open the hood.
1 How to Handle Overheating
3WARNING
Steam and spray from an overheated
power system can seriously scald you.
Do not open the hood if steam is coming
out.
21 CLARITY FCV CSS-31TRT6400_02.book 511 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

527
uuFusesuInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1.Set the power mode to VEHICLE OFF
(LOCK). Turn headlights and all accessories
off.
2. Check the fuses on the battery in the motor
compartment.
u If the fuse is blown, have it replaced by
an authorized Honda Clarity Fuel Cell
dealer.
3. Remove the fuse box cover.
4. Check the large fuse in the motor
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw, and
replace it with a new one.
5. Inspect the small fuses in the motor
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller, and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage. 2 Fuse Locations P. 520
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.
There is a fuse puller on the back of the cover of the
motor compartment fuse box A.
12-Volt Battery
Blown Fuse
Fuse Puller
21 CLARITY FCV CSS-31TRT6400_02.book 527 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

532
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelCLARITY FUEL CELL
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.9 – 15.7 oz (395 – 445 g)
Lubricant TypeSE-A2 (POE)
Quantity 7.63 – 9.46 cu-in (125 – 155 cc)
■ Fuel
*1: A measured value when refueled at a hydrogen station with 70
MPa (10,153 psig) of supply pressure compliant with the SAE
(J2601) fueling protocol.
■Washer Fluid
Fuel requirementCompressed hydrogen gas
Hydrogen supply
pressure 70 MPa (10,153 psig) (at 59°F [15°C])
Hydrogen filling
amount*1Approximately 11 lbs (5 kg) (at 70 MPa
[10,153 psig])
Hydrogen tanks
capacity 37.3 US gal (141.3 L) (at 70 MPa
[10,153 psig])
Tank Capacity1.43 US qt (1.35 L)
■
Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Front Turn Signal LightsLED
Front Side Marker Lights LED
Parking/Daytime Running LightsLED
Taillights/Rear Side Marker Lights LED
Brake LightsLED
Taillights LED
Back-Up LightsLED
Rear Turn Signal Lights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsFront and Rear Map LightsLEDFront and Rear Ambient LightsLEDVanity Mirror Lights1.4 WCenter Console LightLEDGlove Box LightLEDFront Foot LightsLEDTrunk LightLED
21 CLARITY FCV CSS-31TRT6400_02.book 532 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

544
Index
B
Battery12-Volt .................................................... 479
12-Volt Battery Charging System Indicator .......................................... 92, 515
Charging (12-Volt Battery) ....................... 480
High Voltage ........................................... 422
If the 12-Volt Battery Is Dead ................... 508
Maintenance (Checking the 12-Volt Battery) .................................................. 479
Maintenance (Replacing).......................... 481
Belts (Seat) .................................................. 48
Beverage Holders ...................................... 184
Bluetooth ® Audio ..................................... 262
Bluetooth ® HandsFreeLink ®................... 331
Booster Seats (For Children) ....................... 84
Brake System ............................................. 427
Anti-lock Brake System (ABS) ................... 433
Automatic Brake Hold.............................. 431
Brake Assist System ................................. 434
Fluid ........................................................ 463
Foot Brake ............................................... 430
Indicator (Red) ......................................... 517
Parking Brake .......................................... 427
Brake System (Amber)
Indicator .................................................... 90
Brake System (Red) Indicator ...................................... 88, 89, 516
Brightness Control (Head-Up Display) ..... 167
Brightness Control (Instrument Panel) .... 166Bulb Replacement
.................................... 465
Brake/Taillights and Rear Side Marker
Lights .................................................... 466
Front Turn Signal and Front Side Marker Lights .................................................... 465
Headlights ............................................... 465
High-Mount Brake Light .......................... 466
Parking/Daytime Running Lights .............. 465
Rear License Plate Lights .......................... 466
Taillights and Back-Up Lights ................... 466
Taillights/Rear Side Marker, Brake and
Rear Turn Signal Lights .......................... 466
Bulb Specifications ................................... 532
C
Carrying Cargo................................. 367, 369
Certification Label .................................... 534
Changing Bulbs ........................................ 465
Characteristics of Fuel Cell Vehicles .......... 11
Charging System Indicator ....................... 515
Child Safety ................................................. 72
Childproof Door Locks............................. 146
Child Seat .................................................... 72
Booster Seats ............................................ 84
Child Seat for Infants................................. 74
Child Seat for Small Children ..................... 75
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 79
Larger Children ......................................... 83
Rear-facing Child Seat ............................... 74 Selecting a Child Seat ............................... 76
Using a Tether .......................................... 81
Childproof Door Locks ............................. 146
Cleaning the Exterior ............................... 485
Cleaning the Interior ............................... 483
Climate Control System ........................... 190
Changing the Mode................................ 192
Defrosting the Windshield and
Windows .............................................. 194
Dust and Pollen Filter .............................. 482
Sensors ................................................... 198
Using Automatic Climate Control............ 190
Clock ......................................................... 134
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 435
Coat Hook ................................................ 187
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 435
Console Compartment ............................. 183
Controls .................................................... 133
Coolant ..................................................... 461
Adding to the Radiator ........................... 462
Adding to the Reserve Tank .................... 461
Overheating ............................................ 511
Creeping (Transmission) .......................... 376
Cup Holders .............................................. 184
Customer Service Information ................ 541
Customized Features ....................... 128, 302
21 CLARITY FCV CSS-31TRT6400_02.book 544 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

545
Index
D
Daytime Running Lights.......................... 163
Dead Battery (12-Volt) ............................. 508
Defrosting the Windshield and Windows ................................................. 194
Devices that Emit Radio Waves ............... 535
Dimming Headlights .............................................. 160
Rearview Mirror ...................................... 172
Directional Signals (Turn Signal) ............. 159
Display Button .......................................... 207
Door Mirrors ............................................. 173
Doors ........................................................ 135
Auto Door Locking.................................. 147
Auto Door Unlocking .............................. 147
Door Open Message ................................. 47
Keys........................................................ 135
Locking/Unlocking the Doors from the Inside .............................................. 28, 144
Locking/Unlocking the Doors from the Outside ................................................. 137
Lockout Prevention System ..................... 143
DOT Tire Quality Grading ........................ 473
Driver Information Interface ................... 121
Driver’s Knee Airbag .................................. 63
Driving ...................................................... 365
Braking ................................................... 427
Shifting Gear .......................................... 377
Transmission ........................................... 376
Turning on the Power ............................. 372
Driving Position Memory System ............ 169Dust and Pollen Filter
............................... 482
E
Eco Assist® System ...................................... 24
Eco Drive Display ...................................... 127
Elapsed Time ............................................. 124
Electric Power Steering (EPS) System Indicator ............................................ 95, 516
Electronic Stability Control (ESC) ............. 415
Emergency ................................................ 528
EPS (Electric Power Steering) System ........ 95
Exterior Care (Cleaning) ........................... 485
Exterior Mirrors ........................................ 173
F
FC System in Extreme Cold-weather
Conditions ............................................... 423
Features ..................................................... 199
Filters Dust and Pollen ....................................... 482
Flat Tire ..................................................... 492
Floor Mats ................................................. 484
Fluids Brake ....................................................... 463
Coolant ................................................... 461
Transmission ............................................ 463
Windshield Washer .................................. 464
FM/AM Radio ............................................ 238
Foot Brake ................................................. 430 Front Airbags (SRS)
..................................... 58
Front Seat Heaters .................................... 188
Front Seats ................................................ 174
Adjusting ................................................ 174
Front Sensor Camera ................................ 385
Fuel ...................................................... 35, 447
Economy ................................................. 450
Gauge ..................................................... 118
How to Handle Leaked Hydrogen Gas ..... 513
Hydrogen Leak Indicator............................ 92
Instant Fuel Economy .............................. 124
Low Fuel Indicator ..................................... 92
Range ..................................................... 118
Refueling................................................. 447
Requirement ................................... 447, 532
Fuel Cell Power Generation Monitor ...... 126
Fuel Cell Vehicle Precautions ..................... 14
Fuel Economy ........................................... 450
Fuel Fill Door .............................................. 35
Fuses .......................................................... 520
Inspecting and Changing......................... 527
Locations......................................... 520, 522
G
Gauges ...................................................... 118
Gear Position Indicator ...................... 93, 379
Gear Shift Positions Transmission ........................................... 377
Glass (care) ........................................ 483, 486
Glove Box .................................................. 182
21 CLARITY FCV CSS-31TRT6400_02.book 545 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

546
Index
H
Handling the Unexpected........................ 491
HandsFreeLink® (HFL)............................... 331
Automatic Import of Cellular Phonebook
and Call History ..................................... 344
Displaying Messages ................................ 358
HFL Buttons ............................................. 331
HFL Menus .............................................. 334
HFL Status Display.................................... 333
In Case of Emergency .............................. 362
Limitations for Manua l Operation ............ 333
Making a Call .......................................... 352
Options During a Call .............................. 355
Phone Setup ............................................ 339
Phonebook Phonetic M odification ........... 348
Receiving a Call ....................................... 355
Receiving a Text Message/E-mail .............. 356
Ring Tone ................................................ 343
Selecting a Mail Account ......................... 357
Speed Dial ............................................... 345
To Set Up Text Message/E-mail Options ... 342
Hazard Warning Button ............................... 6
HD Radio
TM................................................ 238
Head Restraints ......................................... 176
Headlights ................................................. 160
Aiming .................................................... 465
Automatic Operation ............................... 161
Dimming ......................................... 160, 163
Operating ................................................ 160
Head-Up Display ....................................... 129
Brightness Control ................................... 167 Heated Door Mirror
................................. 168
Heaters (Seat) ........................................... 188
HFL (HandsFreeLink ®)............................... 331
High Beam Indicator .................................. 98
High Voltage Battery ............................... 422
Hill Start Assist System ............................. 374
HomeLink ® Universal Transceiver ............ 328
Honda App License Agreement .............. 286
Honda Sensing ®........................................ 36
HondaLink ®............................................. 264
I
Identification Numbers
Motor, and Transmission ......................... 534
Vehicle Identification ............................... 534
Illumination Control Buttons ........................................... 166, 167
Immobilizer System .................................. 151
Indicator.................................................... 98
Indicators .................................................... 88
12-Volt Battery Charging System ....... 92, 515
Adaptive Cruise Control (ACC) with Low Speed Follow ......................... 101, 391
Anti-lock Brake System (ABS)..................... 94
Automatic Brake Hold ....................... 89, 431
Automatic Brake Hold System ........... 89, 431
Collision Mitigati on Braking System
TM
(CMBSTM) ....................................... 102, 103
Electric Power Steering (EPS) System .. 95, 516
Gear Position............................................. 93 High Beam ................................................ 98
Hydrogen Leak.......................................... 92
Immobilizer System ................................... 98
Lane Keeping Assist System
(LKAS) ........................................... 102, 410
Lights On .................................................. 98
Low Fuel ................................................... 92
Low Tire Pressure/TPMS ............ 96, 418, 420
Parking Brake and Brake System (Amber) .. 90
Parking Brake and Brake System (Red) ..................... 88, 89, 516, 517
POWER SYSTEM ....................................... 91
READY ...................................................... 92
Road Departure Mitigation (RDM) ........... 100
Seat Belt Reminder .............................. 50, 94
Security System Alarm............................... 99
SPORT Mode..................................... 99, 383
Supplemental Restraint System ........... 68, 95
System Message ....................................... 97
Transmission System ................................. 93
Turn Signal and Hazard Warning ............... 98
Vehicle Stability Assist
TM (VSA ®)
System ............................................ 95, 415
VSA ® OFF .......................................... 95, 416
Information .............................................. 531
Instant Fuel Economy .............................. 124
Instrument Panel ........................................ 87
Brightness Control .................................. 166
Interior Lights ........................................... 180
Interior Rearview Mirror ......................... 172
21 CLARITY FCV CSS-31TRT6400_02.book 546 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

547
Index
Inverter Coolant....................................... 461
Adding to the Radiator ........................... 462
Adding to the Reserve Tank .................... 461
Overheating ............................................ 511
iPod ........................................................... 250
J
Jacking Points ........................................... 504
Jump Starting ........................................... 508
K
Key Number Tag ...................................... 136
Keyless Lockout Prevention ..................... 143
Keys ........................................................... 135
Lockout Prevention ................................. 143
Number Tag............................................ 136
Rear Door Won’t Open ........................... 146
Remote Transmitter ................................ 141
Types and Functions................................ 135
L
Lane Keeping Assist System (LKAS) ........ 408
LaneWatchTM............................................ 425
Language (HFL) ........................................ 333
LATCH (Child Seats) ................................... 77
Lights ................................................ 160, 465
Automatic............................................... 161
Bulb Replacement ................................... 465
Daytime Running Lights .......................... 163 High Beam Indicator .................................. 98
Interior .................................................... 180
Light Switches ......................................... 160
Lights On Indicator .................................... 98
Turn Signals ............................................. 159
Load Limits ................................................ 369
Locking/Unlocking .................................... 135
Auto Door Locking/Unlocking .................. 147
Childproof Door Locks ............................. 146
From Inside .............................................. 144
From Outside ........................................... 137
Keys ........................................................ 135
Using a Key ............................................. 142
Lockout Prevention System ...................... 143
Low Battery Charge (12-Volt) .................. 515
Low Smart Entry Remote Signal Strength .................................................. 136
Lower Anchors ............................................ 77
Luggage (Maximum Load Limit) ............. 369
M
Maintenance............................................. 451
12-Volt Battery ........................................ 479
Brake Fluid .............................................. 463
Cleaning .................................................. 483
Climate Control System ........................... 482
Coolant ................................................... 461
Maintenance Minder
TM............................ 455
Precautions .............................................. 452
Radiator .................................................. 462 Remote Transmitter ................................. 481
Replacing Light Bulbs .............................. 465
Safety...................................................... 453
Service Items ........................................... 457
Tires ........................................................ 470
Transmission Fluid ................................... 463
Under the Hood ...................................... 459
Map Lights ................................................ 181
Maximum Load Limit ............................... 369
Meters, Gauges ......................................... 118
Mirrors ...................................................... 172
Adjusting ................................................ 172
Door ....................................................... 173
Exterior ................................................... 173
Interior Rearview ..................................... 172
Modifications (and Accessories) .............. 489
Motor ........................................................ 534
Coolant ................................................... 461
If the 12-Volt Battery Is Dead................... 508
MP3 ........................................................... 259
Multi-View Rear Camera .......................... 445
N
Numbers (Identification).......................... 534
O
Odometer................................................. 123
Open Source Licenses ............................... 300
21 CLARITY FCV CSS-31TRT6400_02.book 547 ページ ２０２０年９月２５日　金曜日　午 後３時１５分
