2021 GENESIS G70 Owner's Manual

7-57
7
Maintenance
Headlamp, Parking Lamp,
Daytime Running Light, Turn
Signal Lamp and Side Marker
Type A
(1) Headlamp (Low)
(2) Headlamp (High)
(3) Turn signal lamp
(4) Daytime running light (DRL) &
Parking lamp
(5) Side marker• Always handle them carefully, and
avoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids.
• Never touch the glass with bare
hands. Residual oil may cause the
bulb to overheat and burst when lit.
• A bulb should be operated only
when installed in a headlamp.
• If a bulb becomes damaged or
cracked, replace it immediately
and carefully dispose of it.
•Handle halogen bulbs with
care. Halogen bulbs contain
pressurized gas that will pro-
duce flying pieces of glass that
could cause injuries if broken.
•Wear eye protection when
changing a bulb. Allow the
bulb to cool down before han-
dling it.
WARNING
OIG076039
OIK077070N

7-58
Maintenance
Headlamp (High)
1. Open the hood.
2. Disconnect the negative battery
cable.
3. Remove the headlamp bulb cover
by turning it counterclockwise.
4. Disconnect the headlamp bulb
socket-connector.
5. Remove the bulb-socket from the
headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
6. Install a new headlamp bulb into
the bulb-socket.7. Push the bulb-socket into the
headlamp assembly and turn the
bulb-socket clockwise.
8. Connect the headlamp bulb sock-
et-connector.
9. Install the headlamp bulb cover by
turning it clockwise.
Headlamp (Low)
1. Disconnect the negative battery
cable.
2. Remove the service cover (1)
under the wheel housing by push-
ing out the retainer clip with a slim
tool. If it is difficult to remove the
service cover because of the tire,
steer the tire inward.
OIK077062N
OIK077073N

7-59
7
Maintenance
3. Remove the bulb cover by turning
it counterclockwise.
4. Disconnect the bulb socket-con-
nector.5. Remove the bulb-socket from the
headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
6. Install a new bulb into the bulb-
socket.
7. Push the bulb-socket into the
headlamp assembly and turn the
bulb-socket clockwise.
8. Install the bulb cover by turning it
clockwise.
Information
The headlamp aiming should be
adjusted after an accident or after the
headlamp assembly is reinstalled at an
authorized retailer of Genesis Branded
products.
Turn signal
1. Open the hood.
2. Disconnect the negative battery
cable.
3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
i
OIK077063LOIK077072N
OIK077071N

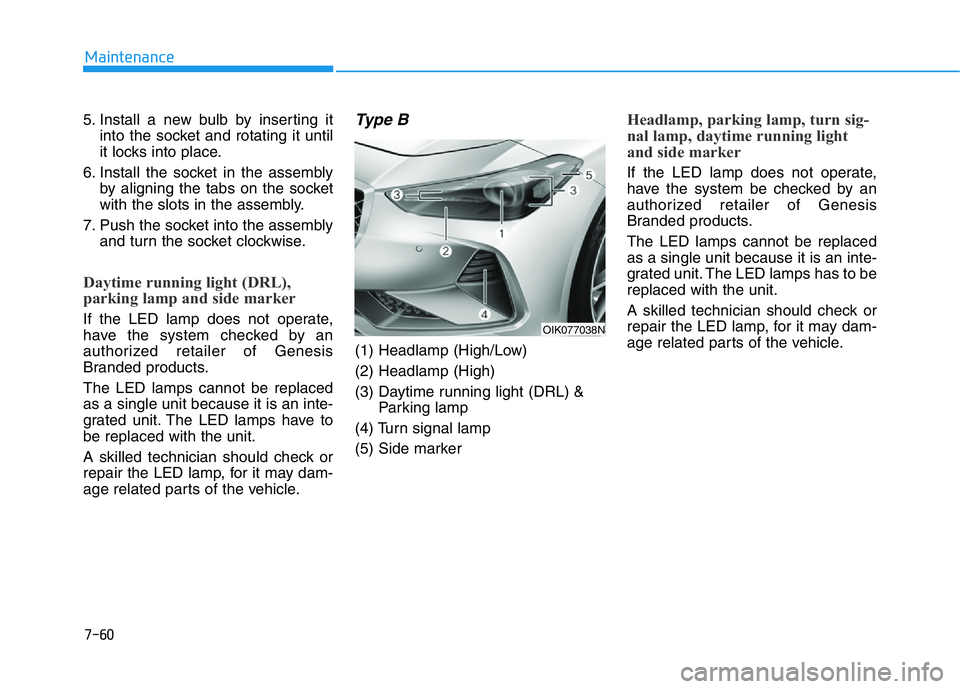

7-60
Maintenance
5. Install a new bulb by inserting it
into the socket and rotating it until
it locks into place.
6. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
7. Push the socket into the assembly
and turn the socket clockwise.
Daytime running light (DRL),
parking lamp and side marker
If the LED lamp does not operate,
have the system checked by an
authorized retailer of Genesis
Branded products.
The LED lamps cannot be replaced
as a single unit because it is an inte-
grated unit. The LED lamps have to
be replaced with the unit.
A skilled technician should check or
repair the LED lamp, for it may dam-
age related parts of the vehicle.
Type B
(1) Headlamp (High/Low)
(2) Headlamp (High)
(3) Daytime running light (DRL) &
Parking lamp
(4) Turn signal lamp
(5) Side marker
Headlamp, parking lamp, turn sig-
nal lamp, daytime running light
and side marker
If the LED lamp does not operate,
have the system be checked by an
authorized retailer of Genesis
Branded products.
The LED lamps cannot be replaced
as a single unit because it is an inte-
grated unit. The LED lamps has to be
replaced with the unit.
A skilled technician should check or
repair the LED lamp, for it may dam-
age related parts of the vehicle.
OIK077038N

7-61
7
Maintenance
Side Repeater Lamp
Replacement
If the LED lamp does not operate,
have the system be checked by an
authorized retailer of Genesis
Branded products.
The LED lamps cannot be replaced
as a single unit because it is an inte-
grated unit. The LED lamps has to be
replaced with the unit.
A skilled technician should check or
repair the LED lamp, for it may dam-
age related parts of the vehicle.
Rear Combination Light Bulb
Replacement
(1) Stop/Tail lamp
(2) Stop lamp
(3) Turn signal lamp
(4) Back-up lamp
(5) Side marker
Stop/Tail lamp, stop lamp and side
marker
If the LED lamp does not operate,
have the system be checked by an
authorized retailer of Genesis
Branded products.
The LED lamps cannot be replaced
as a single unit because it is an inte-
grated unit. The LED lamps has to be
replaced with the unit.
A skilled technician should check or
repair the LED lamp, for it may dam-
age related parts of the vehicle.
OIK077039NOIK047081

7-62
Maintenance
Turn signal lamp and back-up lamp
1. Turn the engine off.
2. Open the trunk.
3. Remove the service cover by turn-
ing the lock (1) counterclockwise.4. Remove the connector (1).
5. Remove the 4 nuts (2).
6. Remove the rear combination
lamp assembly from the body of
the vehicle.
Information
When removing the nut, be careful
not to drop it on the floor as it is
extremely difficult to find. Use a mag-
netic pick up tool to find the nut if nec-
essary. 7. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
8. - Turn signal lamp (A)
Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
- Back-up lamp (B)
Remove the bulb by pulling it
straight out.
i
OIK077061LOIK077065LOIK077060L

7-63
7
Maintenance
9. - Turn signal lamp (A)
Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
- Back-up lamp (B)
Insert a new bulb by pushing it in
into the socket.
10. Install the socket into the assem-
bly by aligning the tabs on the
socket with the slots in the
assembly. Push the socket into
the assembly and turn the socket
clockwise.
11. Reinstall the lamp assembly to
the body of the vehicle.High Mounted Stop Lamp
Replacement
If the high mounted stop lamp (LED)
(1) does not operate, have the sys-
tem be checked by an authorized
retailer of Genesis Branded prod-
ucts.
The LED lamps cannot be replaced
as a single unit because it is an inte-
grated unit. The LED lamps has to be
replaced with the unit.
A skilled technician should check or
repair the LED lamp, for it may dam-
age related parts of the vehicle.
License Plate Light
Replacement
If the license plate lamp (LED) (1)
does not operate, have the system
be checked by an authorized retailer
of Genesis Branded products.
The LED lamps cannot be replaced
as a single unit because it is an inte-
grated unit. The LED lamps has to be
replaced with the unit.
A skilled technician should check or
repair the LED lamp, for it may dam-
age related parts of the vehicle.
OIK077040OIK077041

7-64
Maintenance
Interior Light Replacement
Map lamp
If the map lamp (LED) (1) does not
operate, have the system be
checked by an authorized retailer of
Genesis Branded products.
The LED lamps cannot be replaced
as a single unit because it is an inte-
grated unit. The LED lamps has to be
replaced with the unit.
A skilled technician should check or
repair the LED lamp, for it may dam-
age related parts of the vehicle.
Room lamp
If the room lamp (LED) (1) does not
operate, have the system be
checked by an authorized retailer of
Genesis Branded products.
The LED lamps cannot be replaced
as a single unit because it is an inte-
grated unit. The LED lamps has to be
replaced with the unit.
A skilled technician should check or
repair the LED lamp, for it may dam-
age related parts of the vehicle.
Vanity mirror lamp
If the vanity mirror lamp (LED) (1)
does not operate, have the system
be checked by an authorized retailer
of Genesis Branded products.
The LED lamps cannot be replaced
as a single unit because it is an inte-
grated unit. The LED lamps has to be
replaced with the unit.
A skilled technician should check or
repair the LED lamp, for it may dam-
age related parts of the vehicle.
OIK077043OIK077050
OIK077042
