2021 GENESIS G70 Owner's Manual

5-56
Driving your vehicle
6. During vehicle launching, continue
to depress the accelerator pedal
to keep the Launch Control sys-
tem active until desired duration.
The message "Launch Control
Active" will appear in the cluster
LCD display.
To deactivate (end) Launch
Control, release the accelerator
pedal.Constant use of Launch Control
can put enormous stress on the
vehicle resulting in premature
wear of related components.
Limited Use of Launch Control
Launch control not available due to
high transmission temperature
A warning message will pop up on
the cluster LCD display if the trans-
mission fluid temperature is above a
certain level while using Launch
Control. Also, Launch Control will be
automatically deactivated.
If this occurs, the driver should cool
down the transmission fluid tempera-
ture by driving the vehicle at a con-
stant speed over 37 mph (60 km/h).
NOTICE
OIK057073L
•The Launch Control system is
intended for use at a closed
race track and not intended
for use on public roads. It will
not compensate for driver's
who are inexperienced or lack
familiarity with the race track.
•Do not use Launch Control
during break-in period of the
vehicle.
CAUTION
OIK057181N

5-57
Driving your vehicle
5

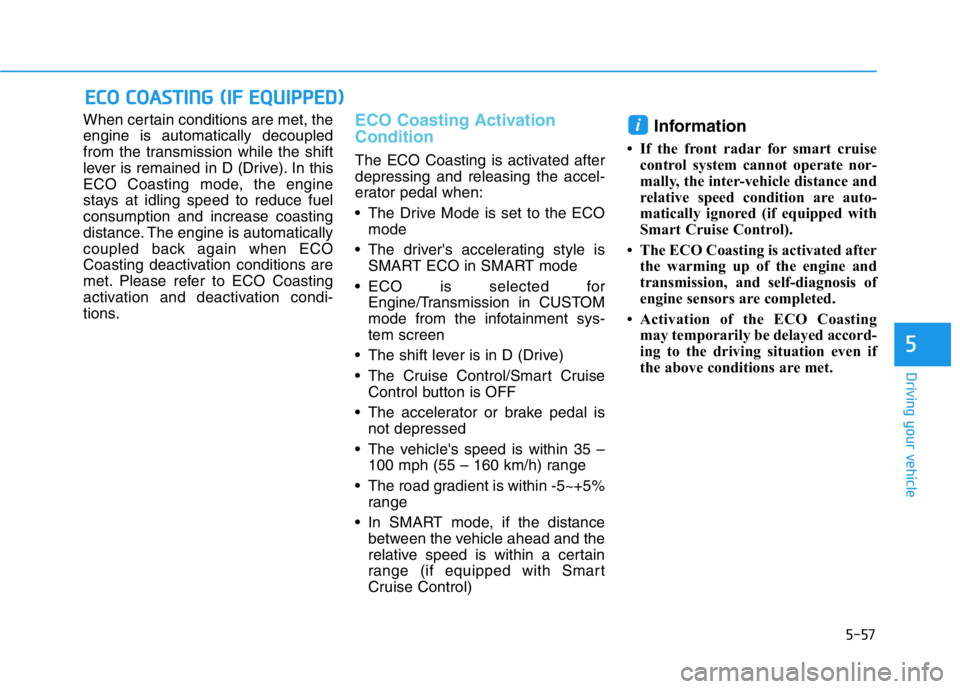

When certain conditions are met, the
engine is automatically decoupled
from the transmission while the shift
lever is remained in D (Drive). In this
ECO Coasting mode, the engine
stays at idling speed to reduce fuel
consumption and increase coasting
distance. The engine is automatically
coupled back again when ECO
Coasting deactivation conditions are
met. Please refer to ECO Coasting
activation and deactivation condi-
tions.ECO Coasting Activation
Condition
The ECO Coasting is activated after
depressing and releasing the accel-
erator pedal when:
• The Drive Mode is set to the ECO
mode
• The driver's accelerating style is
SMART ECO in SMART mode
• ECO is selected for
Engine/Transmission in CUSTOM
mode from the infotainment sys-
tem screen
• The shift lever is in D (Drive)
• The Cruise Control/Smart Cruise
Control button is OFF
• The accelerator or brake pedal is
not depressed
• The vehicle's speed is within 35 –
100 mph (55 – 160 km/h) range
• The road gradient is within -5~+5%
range
• In SMART mode, if the distance
between the vehicle ahead and the
relative speed is within a certain
range (if equipped with Smart
Cruise Control)
Information
• If the front radar for smart cruise
control system cannot operate nor-
mally, the inter-vehicle distance and
relative speed condition are auto-
matically ignored (if equipped with
Smart Cruise Control).
• The ECO Coasting is activated after
the warming up of the engine and
transmission, and self-diagnosis of
engine sensors are completed.
• Activation of the ECO Coasting
may temporarily be delayed accord-
ing to the driving situation even if
the above conditions are met.
i
ECO COASTING (IF EQUIPPED)

5-58
Driving your vehicle
ECO Coasting Deactivation
Condition
The ECO Coasting is deactivated
while the function is in activation
when:
• The Drive Mode is set to the COM-
FORT or SPORT mode
• The driver's accelerating style is
SMART COMFORT or SMART
SPORT in SMART mode
• The Cruise Control/Smart Cruise
Control button is ON (the cruise
indicator is ON)
• The vehicle's speed exceeds 35 –
100 mph (55 – 160 km/h) range
• The road gradient is under -5% or
over +5%
• If the distance between the vehicle
ahead is too close or the relative
speed changes momentarily in
SMART mode
• If lane change is predicated in
SMART mode (e.g. the turn signal
is turned ON or a LKA warning
appears due to steering wheel
control, etc.)
Information
It is recommended to deactivate the
ECO Coasting function if you are
driving under frequently stop-and-go
condition. Change the Drive Mode to
COMFORT or SPORT mode or deac-
tivate the ECO Coasting mode from
the infotainment system screen.
Setting ECO Coasting
Function
Select 'Settings →Vehicle settings
→ Coasting' on the infotainment sys-
tem screen. Turn the function ON
and the ECO Coasting function will
activate.
i
OIK057150L

5-59
Driving your vehicle
ECO Coasting Activation
Indicator
When the ECO Coasting function is
activated 'Coasting' illuminates on
the top of the instrument cluster.• If the accelerator pedal is
depressed quickly while ECO
Coasting function is in activa-
tion, the sense of acceleration
occurs after the engagement of
the clutch inside the transmis-
sion. And you may feel a delay in
acceleration compare to the sit-
uation when the ECO Coasting
function is not in activation.
• Do not operate the infotainment
system screen to turn ON/OFF
the ECO Coasting function while
driving.
The driver may be distracted
and be dangerous.
NOTICE
5OIK057151L

5-60
Driving your vehicle
The ISG system is to help reduce the
fuel consumption by automatically
shutting down the engine, when the
vehicle is at a standstill (i.e. red stop
light, stop sign, and traffic jam).
The engine is automatically started
upon satisfying the starting condi-
tions.
The ISG system is always active,
when the engine is running.
Information
When the engine is automatically
started by the ISG system, some warn-
ing lights (i.e. ABS, ESC, ESC OFF,
EPS, and parking brake warning
light) may illuminate for a few sec-
onds due to the low battery voltage.
However, it does not indicate a mal-
function with the ISG system.
To Activate the ISG System
Prerequisite for activation
The ISG system operates in the fol-
lowing situations.
• The driver's seatbelt is fastened
• The driver's door and hood are
closed
• The brake vacuum pressure is
adequate
• The battery sensor is activated and
the battery is sufficiently charged
• Outside temperature is not too low
or too high
• The vehicle is driven over a con-
stant speed and stops
• The climate control system satis-
fies the conditions
• The vehicle is sufficiently warmed
up
• The incline is gradual
• The steering wheel is turned less
than 180 degrees and then the
vehicle stops
Information
The ISG system is not
activated, when the pre-
requisites to activate the
ISG system are unsatis-
fied. In this case, the ISG OFF but-
ton indicator illuminates, and the
auto stop indicator ( ) illuminates
in yellow on the instrument cluster.
• When the above indicator remains
illuminated on the instrument clus-
ter, we recommend that you have
the IGS system checked by an
authorized retailer of Genesis
Branded products.
i
i
ISG (IDLE STOP AND GO) SYSTEM (IF EQUIPPED)
•

5-61
Driving your vehicle
5
Auto stop
To stop the engine in idle stop mode
1. Decrease the vehicle speed to 0
km/h.
2. Depress the brake pedal with the
shift lever in D (Drive) or N
(Neutral).
The auto stop indicator ( ) illumi-
nates in green on the instrument
cluster, when the engine stops.
Information
The driving speed must reach at least
5 mph (8 km/h) after an idle stop to
stop the engine in idle stop mode
again.In auto stop mode, when the driver
opens the hood, the ISG system will
be deactivated.
When the system is deactivated:
The ISG OFF button indicator illumi-
nates.The message, "Auto Stop is Off!.
Start vehicle manually", appears on
the LCD display with a beep sound.
At this time, restart the vehicle man-
ually by depressing the brake pedal
with the vehicle shifted to P (Park) or
N (Neutral). But for your safety,
restart the vehicle in the P (Park)
position.
i
OIK057018N
OIK057019N
OIK057173N

5-62
Driving your vehicle
Auto start
To restart the engine in the auto
stop mode
• Release the brake pedal.
- When Auto Hold (if equipped with
EPB (Electronic Parking Brake))
is activated, if you release the
brake pedal, the engine will be in
the auto stop state. However, if
you depress the accelerator
pedal, the engine will start again.
The auto stop indicator ( ) goes
OFF on the instrument cluster, when
the engine is restarted.
The engine is automatically restart-
ed in the following situations.
• The brake vacuum pressure is low
• The engine has stopped for about
5 minutes
• The air conditioning is ON with the
fan speed set to the highest posi-
tion
• The front defroster is ON
• The battery is weak
• The cooling and heating perform-
ance of the climate control system
is unsatisfactory
• The vehicle is shifted to P (Park)
when Auto Hold is activated
• The door is opened or the seatbelt
is unfastened when Auto Hold is
activated
• The EPB switch is pressed when
Auto Hold is activated
The auto stop indicator ( ) blinks
in green for 5 seconds on the instru-
ment cluster.
The auto start is temporarily deac-
tivated in the following situations.
• When the shift lever is shifted from
N (Neutral) to R (Reverse), D
(Drive) or Manual shift mode with-
out the brake pedal depressed. A
message "Press brake pedal for
Auto Start" will appear on the LCD
display. To activate auto start,
depress the brake pedal.
OIK057086N

5-63
Driving your vehicle
5
To Deactivate the ISG System
• Press the ISG OFF button to deac-
tivate the ISG system. Then, the
ISG OFF button indicator illumi-
nates.
• Press the ISG OFF button again to
reactivate the ISG system. Then,
the ISG OFF button indicator turns
OFF.
ISG System Malfunction
The ISG system may not operate:
When there is a malfunction with the
ISG sensors or the ISG system.
The followings occur, when there is
a malfunction with the ISG system:
• The auto stop indicator ( ) will
blink in yellow on the instrument
cluster.
• The light on the ISG OFF button
will illuminate.
Information
• When you cannot turn OFF the ISG
OFF button indicator by pressing the
ISG OFF button, or when the mal-
function with the ISG system per-
sists, contact an authorized retailer
of Genesis Branded products.
• You can turn off the ISG OFF but-
ton indicator by driving over 50
mph (80 km/h) for up to 2 hours
with the fan speed below the 2nd
position. If the ISG OFF button
indicator remains ON, contact an
authorized retailer of Genesis
Branded products.
i
When the engine is in auto stop
mode, the engine may restart.
Before leaving the vehicle or
checking the engine compart-
ment, stop the engine by press-
ing Engine Start/Stop button to
the OFF position.
WARNING
