2021 GENESIS G70 Owner's Manual

F9
Introduction

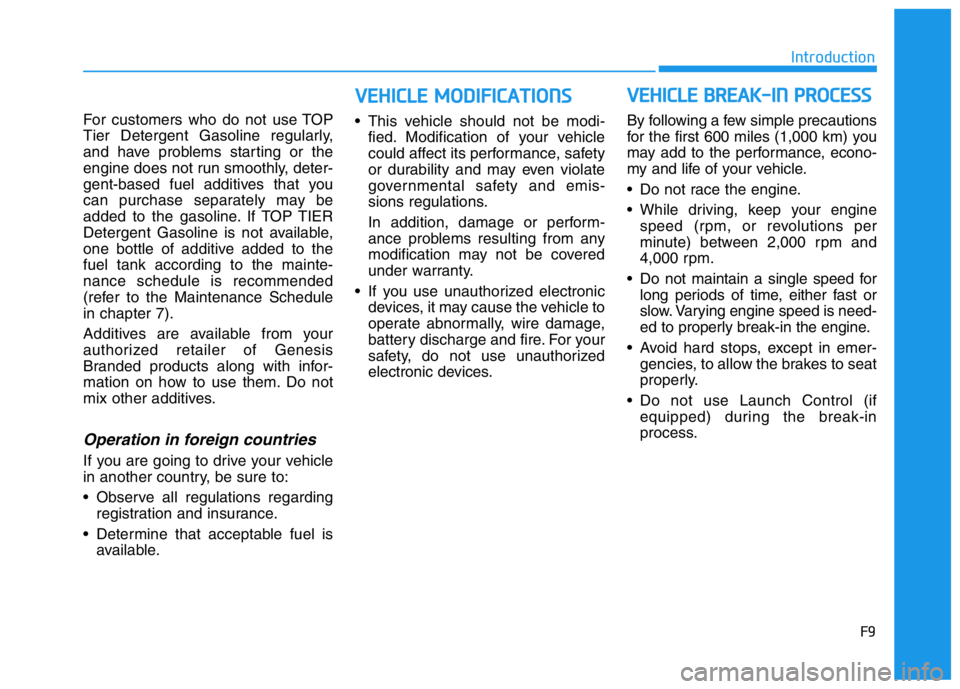

For customers who do not use TOP
Tier Detergent Gasoline regularly,
and have problems starting or the
engine does not run smoothly, deter-
gent-based fuel additives that you
can purchase separately may be
added to the gasoline. If TOP TIER
Detergent Gasoline is not available,
one bottle of additive added to the
fuel tank according to the mainte-
nance schedule is recommended
(refer to the Maintenance Schedule
in chapter 7).
Additives are available from your
authorized retailer of Genesis
Branded products along with infor-
mation on how to use them. Do not
mix other additives.
Operation in foreign countries
If you are going to drive your vehicle
in another country, be sure to:
• Observe all regulations regarding
registration and insurance.
• Determine that acceptable fuel is
available.• This vehicle should not be modi-
fied. Modification of your vehicle
could affect its performance, safety
or durability and may even violate
governmental safety and emis-
sions regulations.
In addition, damage or perform-
ance problems resulting from any
modification may not be covered
under warranty.
• If you use unauthorized electronic
devices, it may cause the vehicle to
operate abnormally, wire damage,
battery discharge and fire. For your
safety, do not use unauthorized
electronic devices.By following a few simple precautions
for the first 600 miles (1,000 km) you
may add to the performance, econo-
my and life of your vehicle.
• Do not race the engine.
• While driving, keep your engine
speed (rpm, or revolutions per
minute) between 2,000 rpm and
4,000 rpm.
• Do not maintain a single speed for
long periods of time, either fast or
slow. Varying engine speed is need-
ed to properly break-in the engine.
• Avoid hard stops, except in emer-
gencies, to allow the brakes to seat
properly.
• Do not use Launch Control (if
equipped) during the break-in
process.
VEHICLE BREAK-IN PROCESS
VEHICLE MODIFICATIONS

F10
Introduction
This vehicle is equipped with an
event data recorder (EDR). The
main purpose of an EDR is to
record, in certain crash or near
crash-like situations, such as an
air bag deployment or hitting a
road obstacle, data that will assist
in understanding how a vehicle’s
systems performed. The EDR is
designed to record data related to
vehicle dynamics and safety sys-
tems for a short period of time,
typically 30 seconds or less. The
EDR in this vehicle is designed to
record such data as:
• How various systems in your
vehicle were operating;
• Whether or not the driver and
passenger safety belts were
buckled/fastened;
• How far (if at all) the driver was
depressing the accelerator
and/or brake pedal; and,
• How fast the vehicle was travel-
ing.These data can help provide a bet-
ter understanding of the circum-
stances in which crashes and
injuries occur. NOTE: EDR data
are recorded by your vehicle only
if a non-trivial crash situation
occurs; no data are recorded by
the EDR under normal driving
conditions and no personal data
(e.g., name, gender, age, and
crash location) are recorded.
However, other parties, such as
law enforcement, could combine
the EDR data with the type of per-
sonally identifying data routinely
acquired during a crash investiga-
tion.
To read data recorded by an EDR,
special equipment is required, and
access to the vehicle or the EDR is
needed. In addition to the vehicle
manufacturer, other parties, such
as law enforcement, that have the
special equipment, can read the
information if they have access to
the vehicle or the EDR.
VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS
CALIFORNIA PROPOSITION 65
WARNING
Items contained in motor vehi-
cles or emitted from them are
known to the State of California
to cause cancer and birth
defects or reproductive harm.
These include:

1
2
3
4
5
6
7
8
I
Your Vehicle at a Glance
Safety System of Your Vehicle
Convenient Features of Your Vehicle
Infotainment System
Driving Your Vehicle
What to Do in an Emergency
Maintenance
Specifications, Consumer Information and
Reporting Safety Defects
Index
TABLE OF CONTENTS

Your vehicle at a glance
1
Your vehicle at a glance
Exterior Overview ..................................................1-2
Interior Overview ...................................................1-4
Instrument Panel Overview (I) .............................1-5
Instrument Panel Overview (II) ............................1-6
Engine Compartment .............................................1-71

1-2
EXTERIOR OVERVIEW
Your vehicle at a glance
1. Hood ......................................................3-42
2. Front lamps ..........................................7-57
3. Tires and wheels ..................................7-33
4. Side repeater lamp ................................7-615. Sunroof ..................................................3-38
6. Wiper blade ..........................................7-27
7. Windows ................................................3-34
8. Parking Distance Warning system
(Reverse/Forward) ..............................3-122
OIK017001N
■ Front view
The actual shape may differ from the illustration.

1-3
Your vehicle at a glance
1
9. Door lock ..............................................3-10
10. Fuel filler door ....................................3-55
11. Rear combination lamp ......................7-61
12. Trunk ................................3-43, 3-46, 3-52
13. High mounted stop lamp ....................7-6314. Defroster............................................3-147
15. Parking Distance Warning system
(Reverse) ..........................................3-119
16. Antenna ................................................4-2
17. Rear view monitor ..................3-126, 3-127
OIK017002
■ Rear view
The actual shape may differ from the illustration.

1-4
Your vehicle at a glance
INTERIOR OVERVIEW
1. Inside door handle ................................3-11
2. Driver position memory system ............3-16
3. Side view mirror folding switch ..............3-32
4. Side view mirror control switch ..............3-31
5. Central door lock/unlock switch ............3-12
6. Power window lock switch......................3-37
7. Power window switches ........................3-34
8. Instrument panel illumination control
switch ....................................................3-59
9. Lane Keeping Assist (LKA) system ......5-95
10. Blind-spot Collision Warning (BCW)
system..................................................5-73
11. Fuel filler door opener lever ................3-55
12. Trunk release lever ....................3-43, 3-46
13. Hood release lever ..............................3-42
14. Steering wheel tilt/telescope ................3-21
15. Steering wheel ....................................3-20
16. Seat........................................................2-4
17. Fuse panel ..........................................7-49
OIK017003N
The actual shape may differ from the illustration.

INSTRUMENT PANEL OVERVIEW (I)
The actual shape may differ from the illustration.
1-5
Your vehicle at a glance
11. Instrument cluster ..............................3-58
2. Driver's front air bag ..........................2-47
3. Engine start/stop button........................5-6
4
. Hazard warning flasher button ................6-2
5. Infotainment system..............................4-4
6. Automatic climate control system ....3-131
7. Heated steering wheel ........................3-22
8. Seat warmer ......................................2-19
9. Air ventilation seat ..............................2-20
10. Passenger's front air bag ..................2-47
11. Glove box ........................................3-151
12. Manual transmission/ ........................5-12
Automatic transmission ....................5-16
13. Drive mode integrated control ..........5-65
14. ISG (Idle Stop and Go) ....................5-60
15. ESC (Electronic Stability Control)
OFF button........................................5-43
16. Parking Distance Warning
(Reverse/Forward) ON button ........3-123
17. Auto Hold ..........................................5-38
18. Surround view monitoring system ..3-128
19. EPB (Electronic Parking Brake) ........5-33
20. Power outlet ....................................3-155
21. USB port ............................................4-2
22. Wireless cellular phone
charging system..............................3-157
OIK018004N
■With Manual Transmission
■With Automatic Transmission
