2021 CADILLAC ESCALADE relay

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
386 VEHICLE CARE
SeeAccessories and Modifications
0 364 and
General Information 0363.
To check a fuse, look at the
silver-colored band inside the fuse.
If the band is broken or melted,
replace the fuse. Be sure to replace a
bad fuse with a new one of the
identical size and rating.
Fuses of the same amperage can be
temporarily borrowed from another
fuse location, if a fuse goes out.
Replace the fuse as soon as possible.Engine Compartment Fuse
Block
If the vehicle has a diesel engine, see
the Duramax diesel supplement.
The engine compartment fuse block is
in the engine compartment, on the
driver side of the vehicle.
The vehicle may not be equipped with
all of the fuses, relays, and features
shown.
Lift the cover to access the fuse block.
Caution
Spilling liquid on any electrical
component on the vehicle may
damage it. Always keep the covers
on any electrical component.
A fuse puller is available in the left
instrument panel fuse block.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
VEHICLE CARE 389
FusesUsage
73 Left trailer stop turn lamp
74 TIM 2
75 DEFC
76 ELEC RNG BDS
78 ECM
79 –
80 Cabin cool pump 17W
81 Right trailer stop turn lamp
82 TIM 1
83 FTZM
84 Trailer battery
85 Engine
86 ECM
87 Injector B even
88 02 B sensor
89 02 A sensor
90 Injector A odd
91 ECM throttle control Fuses
Usage
92 Cool fan clutch AERO shutter
Relays Usage
5 –
18 DC/AC inverter
23 –
35 Park lamp
36 Run/Crank
43 Secondary axle motor
59 A/C clutch
64 Starter motor
70 Starter pinion
77 PowertrainInstrument Panel Fuse
Block
The right instrument panel fuse block
access door is on the passenger side
edge of the instrument panel.
Pull off the cover to access the fuse
block.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
390 VEHICLE CARE

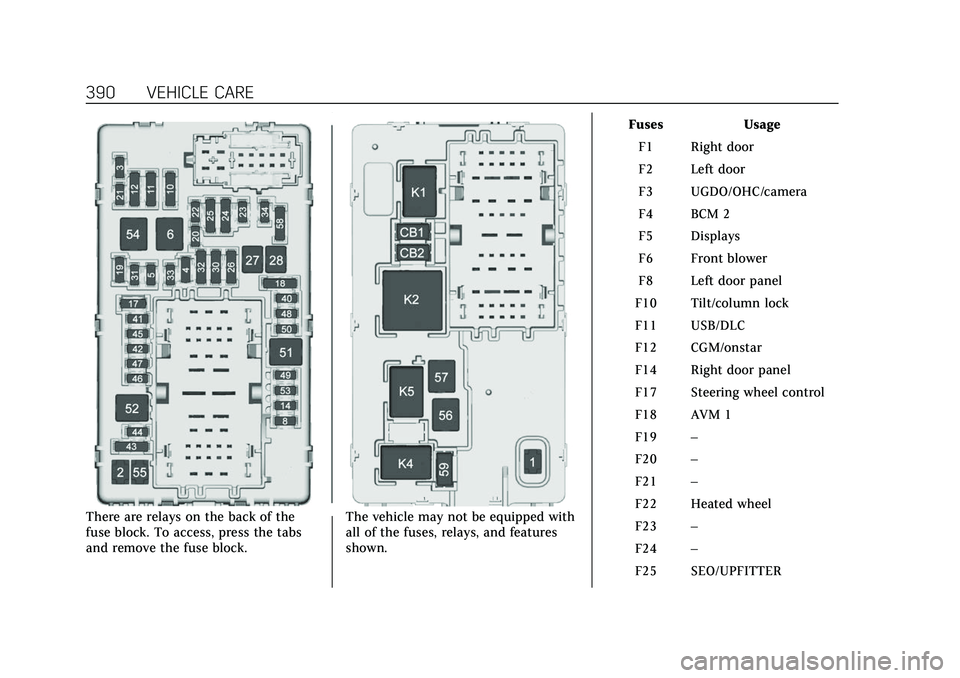

There are relays on the back of the
fuse block. To access, press the tabs
and remove the fuse block.The vehicle may not be equipped with
all of the fuses, relays, and features
shown. Fuses Usage
F1 Right door
F2 Left door
F3 UGDO/OHC/camera
F4 BCM 2
F5 Displays
F6 Front blower
F8 Left door panel
F10 Tilt/column lock
F11 USB/DLC
F12 CGM/onstar
F14 Right door panel
F17 Steering wheel control
F18 AVM 1
F19 –
F20 –
F21 –
F22 Heated wheel
F23 –
F24 –
F25 SEO/UPFITTER

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
392 VEHICLE CARE
The vehicle may not be equipped with
all of the fuses, relays, and features
shown.Fuses Usage
F01 RFA
F02 WCM
F03 Heated seat module row 1 (Battery 1)
F04 MSM driver
F05 –
F06 –
F07 Amp aux 2
F08 –
F09 SEO UPFTR 2
F10 Motor seatbelt passenger
F11 Power folding seat row 2
F12 GBS
F13 –
F14 –
F15 Heated seat module row 1 (Battery 2)
F16 RH CINCH latch Fuses Usage
F17 Memory seat module passenger
F18 Rear wiper
F19 Motor seatbelt driver
F20 Rear defogger
F21 –
F22 Rear HVAC display control
F23 EOCM
F24 Amp aux 3
F25 OBS DET
F26 RDCM
F27 Amp aux 1
F28 VPM
F29 –
F30 –
F31 Amp
F32 –
F33 ICCM
F34 Heated seat module row 2

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
VEHICLE CARE 393
FusesUsage
F35 HFCR
F36 ELM
F37 –
F38 Power slide console
F39 –
F40 –
F41 –
F42 –
F43 UPA
F44 –
F45 AFL AHL
F46 Rear HVAC blower motor
F47 LH CINCH latch
F48 Power seat recline module
F49 Lift glass
F50 Driver power seat
F51 Power liftgate module
F52 Passenger power seat Relays
Usage
K53 –
K54 –
K55 L/GLASS
