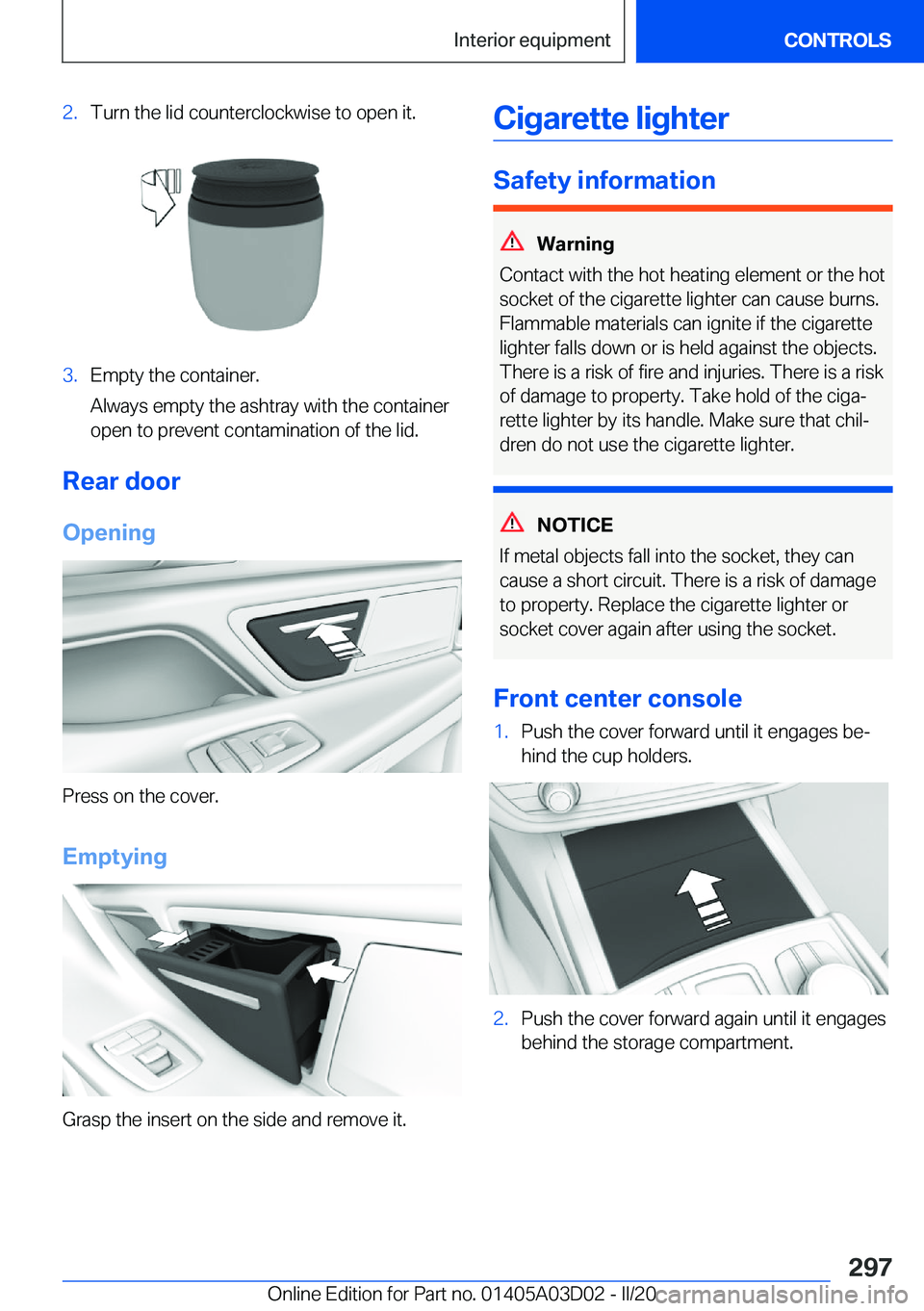

2.Turn
the
lid
counterclockwise
to
open
it.3.Empty
the
container.
Always
empty
the
ashtray
with
the
container
open
to
prevent
contamination
of
the
lid.
Rear
door
Opening
Press
on
the
cover.
Emptying
Grasp
the
insert
on
the
side
and
remove
it.
Cigarette
lighter
Safety
information
Warning
Contact
with
the
hot
heating
element
or
the
hot
socket
of
the
cigarette
lighter
can
cause
burns. Flammable
materials
can
ignite
if
the
cigarettelighter
falls
down
or
is
held
against
the
objects.
There
is
a
risk
of
fire
and
injuries.
There
is
a
risk of
damage
to
property.
Take
hold
of
the
ciga#j
rette
lighter
by
its
handle.
Make
sure
that
chil#j
dren
do
not
use
the
cigarette
lighter.
NOTICE
If
metal
objects
fall
into
the
socket,
they
can
cause
a
short
circuit.
There
is
a
risk
of
damage to
property.
Replace
the
cigarette
lighter
or
socket
cover
again
after
using
the
socket.
Front
center
console
1.Push
the
cover
forward
until
it
engages
be#j
hind
the
cup
holders.2.Push
the
cover
forward
again
until
it
engages
behind
the
storage
compartment.Seite
297*nterior
equipmentCONTROLS297
Online
Edition
for
Part
no.
01405A03D02
-
II/20

The
cigarette
lighter
is
located
between
the
cupholders.
Rear
center
console Without
rear
console:
opening
and
closing
The
cigarette
lighter
is
on
the
left
side.
Open:
press
on
the
cover.
To
close:
press
the
cover
closed
again.
With
rear
console:
opening
and
closing
Push
the
cover
backward
until
it
engages.
The
cigarette
lighter
is
located
between
the
cup holders.
Tap
the
cover
on
the
handle
bar
to
close
it.
Operation Push
in
the
cigarette
lighter.
The
cigarette
lighter
can
be
re#j
moved
as
soon
as
it
pops
back
out.
Sockets
Concept
The
lighter
socket
can
be
used
as
a
socket
for electrical
equipment
when
standby
and
drive- ready
state
are
switched
on.
General
information The
total
load
of
all
sockets
must
not
exceed
140
watts
at
12
volts.
Do
not
damage
the
socket
by
using
non-com#j patible
connectors.
Safety
information
Warning
Devices
and
cables
in
the
unfolding
area
of
the
airbags,
such
as
portable
navigation
devices,
can
hinder
the
unfolding
of
the
airbag
or
be
thrown
around
in
the
car's
interior
during
un#j
folding.
There
is
a
risk
of
injury.
Make
sure
that
Seite
298CONTROLS*nterior
equipment298
Online
Edition
for
Part
no.
01405A03D02
-
II/20

devices
and
cables
are
not
in
the
airbag's
area
of
unfolding.
NOTICE
Battery
chargers
for
the
vehicle
battery
can
work
with
high
voltages
and
currents,
which
means
that
the
12
volt
on-board
network
can be
overloaded
or
damaged.
There
is
a
risk
of
damage
to
property.
Only
connect
battery
chargers
for
the
vehicle
battery
to
the
starting
aid
terminals
in
the
engine
compartment.
NOTICE
If
metal
objects
fall
into
the
socket,
they
can
cause
a
short
circuit.
There
is
a
risk
of
damage to
property.
Replace
the
cigarette
lighter
or
socket
cover
again
after
using
the
socket.
Front
center
armrest
The
center
armrest
contains
a
socket.
Front
center
console
Push
the
cover
forward
until
it
engages.
A
socket
is
located
between
the
cup
holders.
Rear
center
console Without
rear
console:
opening
and
closing
One
socket
is
located
in
the
rear
center
console.
Open:
press
on
the
cover.
To
close:
press
the
cover
closed
again.
Seite
299*nterior
equipmentCONTROLS299
Online
Edition
for
Part
no.
01405A03D02
-
II/20

With
rear
console:
opening
and
closing
Push
the
cover
backward
until
it
engages.
A
socket
is
located
between
the
cup
holders.
Tap
the
cover
on
the
handle
bar
to
close
it.
With
rear
console:
rear
center
armrest
The
center
armrest
contains
a
socket.
In
the
cargo
area
A
socket
is
located
on
the
right
side
in
the
cargo area.
Unfold
the
cover.
USB
port
General
information Follow
the
information
regarding
the
connection
of
mobile
devices
to
the
USB
port
in
the
section on
USB
connections.
Additional
information:
USB
connections,
refer
to
page
74.
In
the
center
armrest
A
USB
port
is
located
in
the
center
armrest. Properties:
'xUSB
port
Type
C.'xFor
charging
mobile
devices
and
for
datatransfer.'xCharge
current:
max.
3
A.Seite
300CONTROLS*nterior
equipment300
Online
Edition
for
Part
no.
01405A03D02
-
II/20

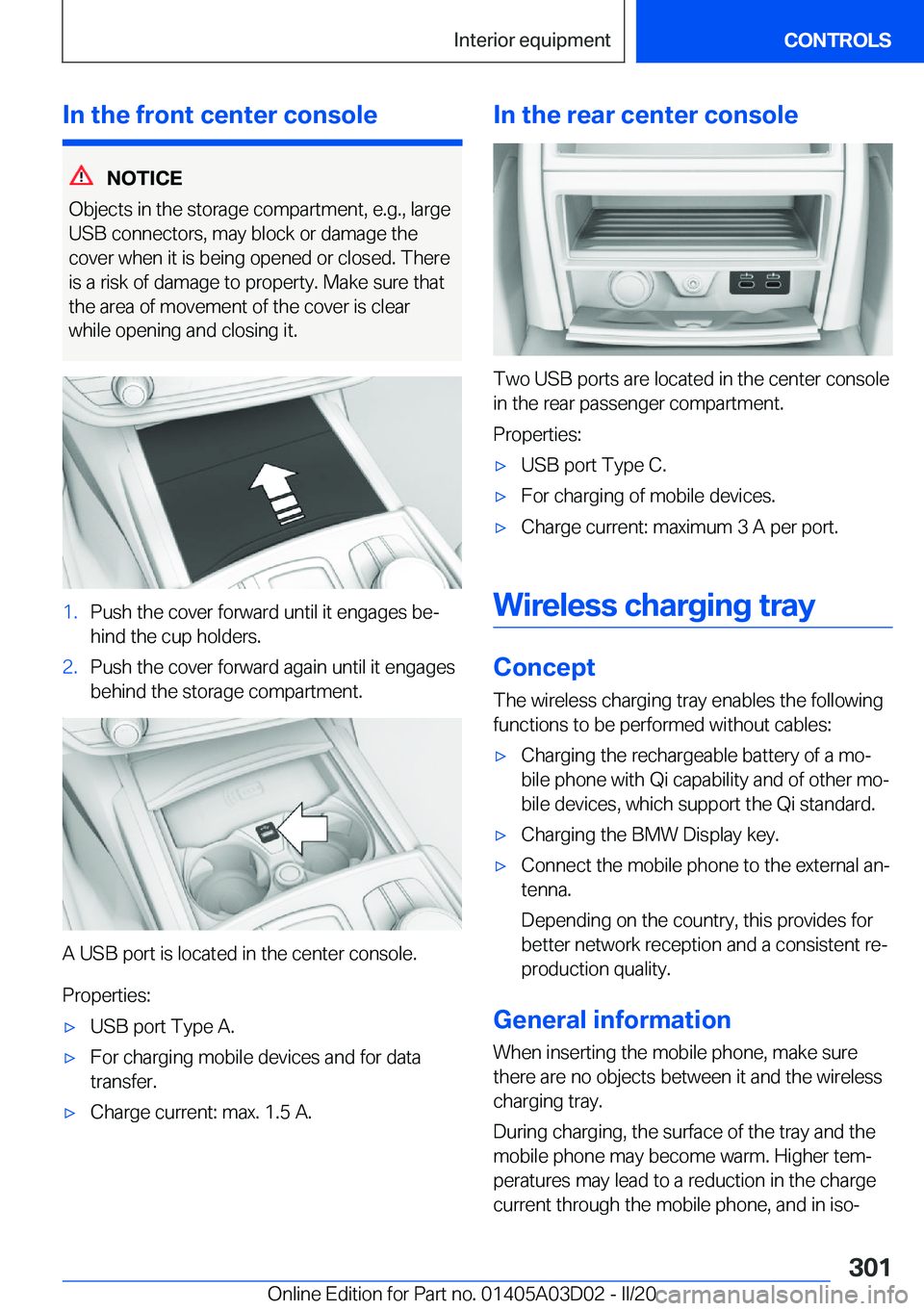

In
the
front
center
console
NOTICE
Objects
in
the
storage
compartment,
e.g.,
large
USB
connectors,
may
block
or
damage
the
cover
when
it
is
being
opened
or
closed.
There is
a
risk
of
damage
to
property.
Make
sure
that
the
area
of
movement
of
the
cover
is
clear
while
opening
and
closing
it.
1.Push
the
cover
forward
until
it
engages
be#j
hind
the
cup
holders.2.Push
the
cover
forward
again
until
it
engages
behind
the
storage
compartment.
A
USB
port
is
located
in
the
center
console.
Properties:
'xUSB
port
Type
A.'xFor
charging
mobile
devices
and
for
data transfer.'xCharge
current:
max.
1.5
A.In
the
rear
center
console
Two
USB
ports
are
located
in
the
center
consolein
the
rear
passenger
compartment.
Properties:
'xUSB
port
Type
C.'xFor
charging
of
mobile
devices.'xCharge
current:
maximum
3
A
per
port.
Wireless
charging
tray
Concept
The
wireless
charging
tray
enables
the
following
functions
to
be
performed
without
cables:
'xCharging
the
rechargeable
battery
of
a
mo#j
bile
phone
with
Qi
capability
and
of
other
mo#j
bile
devices,
which
support
the
Qi
standard.'xCharging
the
BMW
Display
key.'xConnect
the
mobile
phone
to
the
external
an#j tenna.
Depending
on
the
country,
this
provides
for
better
network
reception
and
a
consistent
re#j
production
quality.
General
information
When
inserting
the
mobile
phone,
make
surethere
are
no
objects
between
it
and
the
wireless
charging
tray.
During
charging,
the
surface
of
the
tray
and
the mobile
phone
may
become
warm.
Higher
tem#j peratures
may
lead
to
a
reduction
in
the
chargecurrent
through
the
mobile
phone,
and
in
iso#j
Seite
301*nterior
equipmentCONTROLS301
Online
Edition
for
Part
no.
01405A03D02
-
II/20

lated
cases
the
charging
process
is
paused
tem#jporarily.
Follow
the
relevant
instructions
in
the
mobile
phone
owner's
manual.


The
charge
indicator
shows
on
the
Control
Display
whether
a
mobile
phone
with
Qi
capabil#j
ity
is
being
charged.
NOTE This
device
has
been
tested
for
human
exposurelimits
and
found
compliant
at
a
minimum
dis#j tance
of
2
in/5
cm
during
operation.
Therefore,
a
distance
of
4
in/10
cm
must
be
maintained
in
every
direction
when
operating
the
device.
Mounting
position
of
the
product.
Safety
information
Warning
When
charging
a
device
that
meets
the
Qi
standard
in
the
wireless
charging
tray,
any
metal
objects
located
between
the
device
and
the
tray
can
become
very
hot.
Placing
storage
devices
or
electronic
cards,
such
as
chip
cards,
cards
with
magnetic
strips
or
cards
for
signal
transmission,
between
the
device
and
the
tray may
impair
the
card
function.
There
is
a
risk
of
injury
and
risk
of
damage
to
property.
When
charging
mobile
devices,
make
sure
there
are
no
objects
between
the
device
and
the
tray.
NOTICE
The
tray
is
intended
for
mobile
phones
up
to
a particular
size.
Forceful
inserting
of
the
mobile
phone
into
the
tray
can
damage
the
tray
or
the mobile
phone.
There
is
a
risk
of
damage
to
property.
Observe
the
maximum
dimensions
for
mobile
phones.
Do
not
force
the
mobile
phone
into
the
tray.
Overview
Tray
in
the
center
console:
1LED2Storage
area
Functional
requirements
'xThe
mobile
phone
must
compatibly
support
the
required
Qi
standard.
If
the
mobile
phone
does
not
support
the
Qi
standard,
the
mobile
phone
can
be
charged
using
a
special
Qi-compatible
charging
case.'xStandby
state
is
switched
on.'xA
possible
parking
maneuver
via
Remote
Control
Parking
must
be
completed.'xObserve
the
maximum
dimensions
of
the
mobile
phone.'xUse
only
protective
jackets
and
covers
up
to
a
maximum
thickness
of
0.07
in/2
mm;
other#j wise,
the
charging
function
may
be
impaired.'xThe
mobile
phone
to
be
charged
is
located
in
the
center
of
the
tray.Seite
302CONTROLS*nterior
equipment302
Online
Edition
for
Part
no.
01405A03D02
-
II/20

Operation
Inserting
the
mobile
phone The
mobile
phone
must
not
exceed
the
maxi#j
mum
size
of
approximately
6.0
x
3.1
x
0.7
in/154.5
x
80
x
18
mm.1.Open
the
tray
cover.2.Place
the
mobile
phone
centered
in
the
tray
with
the
display
facing
up.3.Close
the
tray
cover.
Removing
the
mobile
phone
1.Open
the
tray
cover.2.Remove
the
mobile
phone.
LED
displays
ColorMeaningBlueThe
mobile
phone
is
charging.
The
blue
LED
stays
illuminated
once
the
inserted
mobile
phone
with
Qi
ca#j
pability
is
fully
charged.OrangeThe
mobile
phone
is
not
charging.
Temperature
on
the
mobile
phone
possibly
too
high
or
foreign
object
in
charging
tray.RedThe
mobile
phone
is
not
charging.
Contact
a
dealer#ss
service
center
or another
qualified
service
center
or
re#j
pair
shop.
Forgotten
warning
General
information
If
the
vehicle
is
equipped
with
the
forgotten
warning
function,
a
warning
can
be
output
if
a
mobile
phone
with
Qi
capability
was
forgotten
in
the
wireless
charging
tray
when
leaving
the
vehi#j
cle.
The
forgotten
warning
is
displayed
in
the
instru#j
ment
cluster.
Activating Via
iDrive:1."CAR"2."Settings"3."General
settings"4."Wireless
charging
tray"5.Activate
reminder.
System
limits
At
high
temperatures
on
the
mobile
phone
or
inthe
vehicle,
the
charging
functions
of
the
mobile
phone
may
be
limited
and
some
functions
may no
longer
work.
LTE-Compensator
-
Information
and
User
Manual
Your
car
is
equipped
with
a
wireless
charging tray
(WCA)
to
charge
your
mobile
phone
andconnect
it
to
the
mobile
network.
To
ensure
the
best
possible
connection
a
signal
booster
(LTE- Compensator)
is
used
in
conjunction
with
the
WCA.
The
following
paragraphs
refer
to
this booster:
This
is
a
CONSUMER
device.
BEFORE
USE,
you
MUST
REGISTER
THIS
DE#j VICE
with
your
wireless
provider
and
have
your
provider's
consent.
Most
wireless
providers
con#j
sent
to
the
use
of
Compensators.
Some
provid#j
ers
may
not
consent
to
the
use
of
this
device
on
their
network.
If
you
are
unsure,
contact
your
provider.
You
MUST
operate
this
device
with
ap#j
proved
antennas
and
cables
as
specified
by
the
manufacturer.
Antennas
MUST
be
installed
at
least
20
cm
(8
inches)
from
any
person.
You
MUST
cease
operating
this
device
immediately
if
requested
by
the
FCC
or
a
licensed
wireless
service
provider.
Warning
E911
location
informa#j
tion
may
not
be
provided
or
may
be
inaccurate
for
calls
served
by
using
this
device.
Seite
303*nterior
equipmentCONTROLS303
Online
Edition
for
Part
no.
01405A03D02
-
II/20

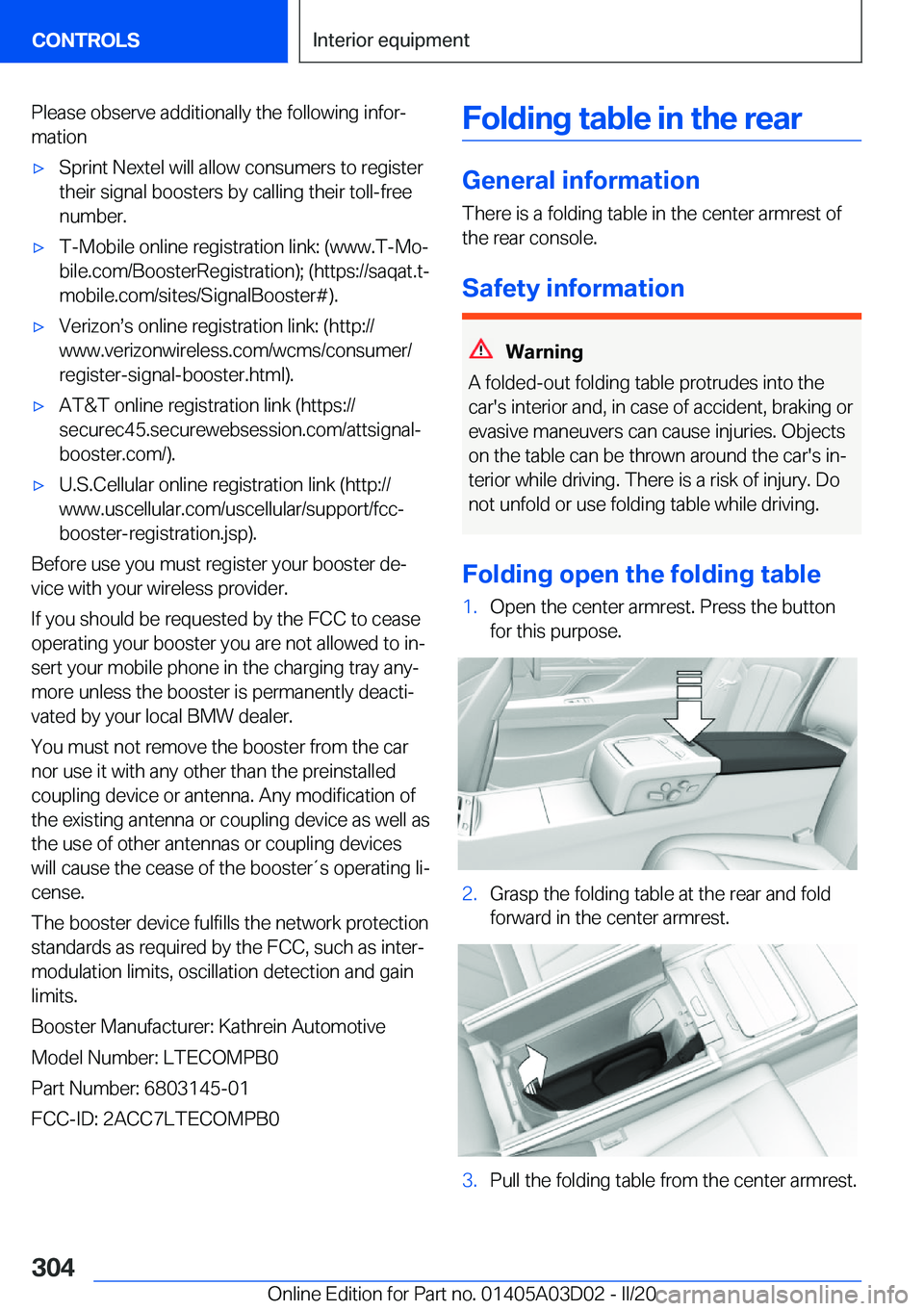

Please
observe
additionally
the
following
infor#j
mation'xSprint
Nextel
will
allow
consumers
to
register their
signal
boosters
by
calling
their
toll-freenumber.'xT-Mobile
online
registration
link:
(www.T-Mo#jbile.com/BoosterRegistration);
(https://saqat.t-
mobile.com/sites/SignalBooster#).'xVerizon#ss
online
registration
link:
(http:// www.verizonwireless.com/wcms/consumer/
register-signal-booster.html).'xAT&T
online
registration
link
(https://
securec45.securewebsession.com/attsignal#j
booster.com/).'xU.S.Cellular
online
registration
link
(http://
www.uscellular.com/uscellular/support/fcc- booster-registration.jsp).
Before
use
you
must
register
your
booster
de#jvice
with
your
wireless
provider.
If
you
should
be
requested
by
the
FCC
to
cease
operating
your
booster
you
are
not
allowed
to
in#j
sert
your
mobile
phone
in
the
charging
tray
any#j
more
unless
the
booster
is
permanently
deacti#j
vated
by
your
local
BMW
dealer.
You
must
not
remove
the
booster
from
the
car
nor
use
it
with
any
other
than
the
preinstalled
coupling
device
or
antenna.
Any
modification
of
the
existing
antenna
or
coupling
device
as
well
as
the
use
of
other
antennas
or
coupling
devices
will
cause
the
cease
of
the
boosterts
operating
li#j
cense.
The
booster
device
fulfills
the
network
protection standards
as
required
by
the
FCC,
such
as
inter#j modulation
limits,
oscillation
detection
and
gainlimits.
Booster
Manufacturer:
Kathrein
Automotive Model
Number:
LTECOMPB0
Part
Number:
6803145-01
FCC-ID:
2ACC7LTECOMPB0
Folding
table
in
the
rear
General
information
There
is
a
folding
table
in
the
center
armrest
of
the
rear
console.
Safety
information
Warning
A
folded-out
folding
table
protrudes
into
the
car's
interior
and,
in
case
of
accident,
braking
or
evasive
maneuvers
can
cause
injuries.
Objects
on
the
table
can
be
thrown
around
the
car's
in#j
terior
while
driving.
There
is
a
risk
of
injury.
Do not
unfold
or
use
folding
table
while
driving.
Folding
open
the
folding
table
1.Open
the
center
armrest.
Press
the
buttonfor
this
purpose.2.Grasp
the
folding
table
at
the
rear
and
foldforward
in
the
center
armrest.3.Pull
the
folding
table
from
the
center
armrest.Seite
304CONTROLS*nterior
equipment304
Online
Edition
for
Part
no.
01405A03D02
-
II/20
