2021 AUDI Q2 Start engine

Checking and topping up fluids
© CAUTIO
-The anti-freeze concentration must be
matched to the climate of the country in
which you are driving. If the concentration
is too
high,
damage to the car may result.
- Never put in radiator anti-freeze or other
additives.
- Never use washer fluid which contains paint
thinners or solvents as it can damage the
paintwork.
Service interval display

The
service interval display detects when the
next
service
is due
for
your vehicle.
There are two service interval dispLay levels:
- Inspection or oil change reminder: After a cer­
tain mileage, a service reminder will appear in
the instrument cluster dispLay each time the ig­
nition is switched on/off. The distance or time
remaining will be shown briefly.
- Inspection or oil change due: When your
vehi­

cle is due for an inspection, oil change or
both,

the corresponding reminder Inspection
due!,

Oil change due! or Oil change and inspection

due!
will appear briefly after you switch the ig­
nition on/off.
Checking the service intervals
On the infotainment system, you can look up the
distance and time remaining until the next oil
change or next service inspection. Select the
fol­

lowing on the infotainment system:
|MENU|
but­
ton > Car
>
left control button > Servicing &
checks
>
Service intervals.

Applies
to: vehicles with flexible oil change service
You cannot check the service interval on a new
vehicle until it has been driven for about 500 km.
Qualified workshops reset the service interval af­
ter the oil is changed. The distance to the next oil
change is initially displayed based on the driving
profile prior to the oil change. Your own personal
driving profile is used subsequently to calculate
the remaining distance. Frequent cold starts or
short trips place extra demands on the engine oil
with the result that the oil has to be changed
more often.
Resetting the display
Your qualified workshop resets the service inter­
val display after each service.
It is very important that you reset the oil change
dispLay if
you
change the oil yourself. The
next
oil
change will be due after
a
fixed service interval.
To reset the display, select the following on the
infotainment system:
|MENU|
button > Car
>
left
control button > Servicing & checks
>
Service in­
tervals
>
Reset oil change interval.

(J) CAUTION

- Do not reset the oil change interval display
unless you have changed the oil.
- Keeping to the correct service intervals is
crucial for the operation, service life and re­
sidual value of the vehicle (and especially
for the life of the engine). Services must al­
ways be carried out promptly, even if the
mileage is Low.
304

Mobility
A WARNING

CO

rN
IV
rN
•-i

00
- Make sure the jack* is stable. If the ground
underneath the jack* is slippery or soft, the
jack can slip or sink in - risk of injury!
- Use only the jack* supplied with your vehicle
to raise the vehicle. If
you
use
a
jack from a
different vehicle, your vehicle may slip off

the
jack - risk of injury!
- Apply the jack* only at the jacking points lo­
cated behind the markings on the door sill
and align it properly. Otherwise there is a
risk of injury since
the
jack* can slip off
sud­

denly if it is not properly engaged.
-The height of the parked vehicle can change
as a result of variations in loading.
- Never start the engine when the vehicle is
on the jack - risk of accident!
- If work has to be done under the vehicle, en­
sure that it is
safely
supported on suitable
stands - risk of injury!
© CAUTION
The vehicle must not be lifted up on its sills.
Only apply the jack*
at
the jacking points loca­
ted behind the markings on the door
sill.
Oth­

erwise your vehicle could be damaged.
Taking off / putting on the wheel

Fig.
264 Wheel: Hexagonal socket for turning wheel bolts

Fig.
265 Wheel: Mounting pin in wheel bolt hole nearest
to the top
Taking off the wheel
• Using the hexagonal socket in the screwdriver
handle (provided in the vehicle's tool kit), un­
screw the top wheel bolt and place it on a clean
surface
<=>Fig.
264.
• Screw in the mounting pin (provided in the ve­
hicle's tool kit) by hand in place of the wheel

boit*Fig.
265.

• Then unscrew the other wheel bolts.
• Take off the wheel
*(£).
The mounting pin
stays where it is.
Putting on the wheel
When putting on a tyre with directional tread

pattern,
refer to
*page
324.
• Put on the wheel, using the mounting pin to
guide it into place
<=>([).

• Screw in the wheel bolts and tighten them
lightly using the hexagonal socket.
• Then unscrew the mounting pin and tighten the
remaining wheel bolt lightly.
• Carefully lower the car with the jack*.
• Tighten the wheel bolts in diagonal sequence
with the box spanner.
The wheel bolts should be clean and turn easily.
Before putting on the wheel, inspect the condi­
tion of the wheel and hub mounting surfaces.
These surfaces must be clean before mounting
the wheel.
A WARNING
Do not use the hexagonal socket in the screw­
driver handle to tighten the wheel bolts. It is
323

Mobility
Removing the bass box (version 2)
Applies to: vehicles with bass box in spare wheel well

You
must remove the bass box before you can
take out the spare wheel*.
f

Fig.
269 Spare wheel
well:
Bass box
Removing the bass box
• Lift the floor panel
*page
324, Fig. 266.
•
Pull
the
catch
Q^F/g.
269 towards the cable.
• Press the retaining tab © down.
• Unplug the connector © and move the discon­
nected cable clear to one side.
• Unscrew
bolt
(4).
• Carefully take out the bass box.
Installing the bass box
• Carefully place the bass box in the well of the

rim.
Make sure that the inscription "FRONT" on
the bass box points to the front of the vehicle.
• Plug the connector back in again.
• Push the catch © back towards the bass box.
• Secure the bass box with the screw.
• Fold the floor panel back down.
Note
The bass box can be fitted even if there is no
wheel in the spare wheel
welL.

Jump-starting
Before starting the engine
If
necessary,
the engine can be started by con­
necting it to the battery of another vehicle.
If the engine fails to start because of
a
dis­
charged battery, the vehicle battery can be
con­

nected to the battery of another vehicle to start
the engine. Suitable jump leads are required.
Both vehicle batteries must be rated at 12 V. The
capacity (Ah) of the booster battery should not
be significantly lower than that of the discharged
battery.
Jump leads
The jump Leads must be heavy enough to carry
the starter current. Refer to the details given by
the manufacturer.
Only
use
jump leads with insulated battery
clamps.
Positive cable - usually red.
Negative cable - usually black.
WARNING
- When it is discharged the vehicle battery
can freeze at temperatures around 0°C. A
frozen vehicle battery must first be thawed
out before connecting the jump leads - risk
of explosion and chemical burns! After
jump-starting the vehicle, drive to a quali­
fied workshop without delay and have the
vehicle battery checked.
- The engine compartment is a potentially
hazardous area and working here can lead
to serious injuries. Before carrying out any
work in the engine compartment please
read and observe the warnings
*page
295.
- Incorrect handling of the jump leads may
result in the vehicLe battery exploding (risk
of serious injury). Please observe the follow­
ing rules to minimise the risk of injury:
- The non-insulated parts of the battery
clamps must not be allowed to touch. The
jump lead attached to the positive terminal
must not touch metal parts of the vehicle:
this can cause short circuiting.
- Position the jump leads in such a way that
they cannot come into contact with any
moving parts in the engine compartment.
- Do not lean over the vehicle battery - risk of
chemical burns!
- The screw plugs on the battery cells must be
screwed in firmly.
326

Mobility

CO

rN
IV
rN
•-i

00
- Keep sparks, flame and lit cigarettes away
from vehicle batteries: the gases given off
can cause an explosion.
- Do not attach the negative cable to parts of
the fuel system or to the brake pipes.
© CAUTION
- The vehicles must not touch each other,
otherwise electricity could flow as soon as
the positive terminals are connected and
the boosting battery could be discharged.
- If the jump leads are not connected correct­
ly this can result in serious damage to the
electrical system of the vehicle.
- The discharged vehicle battery must be
properly connected to the vehicle's electri­
cal system.
- Please note that the method described
be­

low for connecting the leads is intended for
jump-starting your vehicle. If jump-starting
another vehicle, you should not connect the
negative lead (-) to the negative terminal of
the discharged battery, but directly to the
engine block or
a
solid metal part bolted to
the engine block. If the battery of the other
vehicle does not have a gas vent, there is a
risk that
a
mixture of oxygen and hydrogen
gas can accumulate and cause an explosion.
© Note
Switch off the car telephone if necessary. De­
tails will be given in the manufacturer's in­
structions for the car telephone.
Starting the engine

The two
jump leads must be connected in the
correct
sequence.

Fig.
270 jump-starting with the vehicle battery of another
vehicle:
®
- Discharged battery, ® - Boosting battery
The vehicle battery is located at the front Left of
the engine compartment. Open the cover to ac­
cess the positive terminal of the vehicle battery.
Please note that the described method of
con­

necting the leads is meant for jump-starting your
vehicle.
Please observe the general notes on the vehicle
battery
*page
302.
Preparations

1.
Please read
*page
326, Before starting the
engine carefully before proceeding.

2.
Apply the parking brake and move the gear
lever to neutral (on vehicles with manual
gearbox) or move the selector lever to
P
(on
vehicles with automatic gearbox).
3. Switch off all electrical equipment and the
ignition on both vehicles.
Connecting and disconnecting the jump
leads

4.
Open the battery cover.
5. Connect one end of the red jump lead to the
positive
terminal®
*Fig.
270 of the dis­
charged battery
© oQ)
in Before starting
the engine on page 327.
6. Connect the other end of the red jump lead
to the positive terminal
©
of the boosting

battery®.

327

Mobility
7. Connect one end of the black lead preferably
to the earth point or alternatively to the
neg­

ative battery terminal © on the vehicle pro­
viding assistance®.
8. Connect the other end of the
black
jump lead
only to the earth point © of the jump-start
connection on your vehicle ©
<=>(£).

9. Position the jump leads in such a way that
they cannot come into contact with any mov­
ing parts in the engine compartment.
Starting the engine

10.
Start the engine of the vehicle with the
boosting battery and let it run at idling

speed.

11.
Start the engine of the
car
with the dis­
charged battery and wait two or three mi­
nutes until the engine is running smoothly.

12.
If the engine fails to start: do not operate the
starter for longer than 10 seconds. Wait for
about 30 seconds and try again.

13.
Switch on the blower and the rear window
heating on the vehicle which has been jump-
started in order to offset excessive voltage
which may occur when disconnecting the

leads.
The headlights must be switched off!

14.
Disconnect the leads in exactly the opposite
sequence to that described in
*page
327
with the engines running. Make sure that the
Leads cannot come into contact with any
moving parts in the engine compartment.

15.
Fold the cover back onto the battery in its
correct position.

16.
Switch off the blower and the rear window
heating again.
PLease refer to
<=>
A in Before starting the engine
on page 326 and
•=>©
in Before starting the en­
gine on page 327.
© CAUTION
Do not use the negative battery terminal
when jump-starting (this could cause a
mal­

function in the on-board electrical system).
- Connect the battery clamps so they have
good metal-to-metal contact with the bat­
tery terminals.
- The vehicle battery is vented to the outside
to prevent gases entering the vehicle's inte­
rior.

Tow-
start
ing / towing
away
General notes
Some experience is required to tow or tow-start a
vehicle, especially when using a tow-rope. Both
drivers should be familiar with the technique re­
quired for towing. Inexperienced drivers should
not attempt to tow-start or tow away another ve­

hicle.

Do not pull too hard with the towing vehicle and
take care to avoid jerking the tow-rope. When
towing off-road, there is aLways a risk that the
anchorage points may be overloaded.
Tow-bar / tow-rope
It is easier and safer to tow the vehicle with a
tow-bar. You should only use a tow-rope if you do
not have a tow-bar. It is advisable to use a tow-
rope made of elastic synthetic fibre or similarly
elastic material.
Notes on towing vehicles
The vehicle can be towed with a tow-bar or tow-

rope.
When the engine is not running, the
gear­

box will not be adequately lubricated if the
fol­

lowing speed/distance restrictions are not ob­

served:

- The vehicle must not be towed faster than
50 km/h.
- The vehicle must not be towed further than
50 km. •
328

Mobility

CO

rN
IV
rN
•-i

00
Additional notes on towing by breakdown
truck
If one of the axles has to be raised in order to
tow the vehicLe, please refer to the following ta­
ble to determine the appropriate axle
for
your
gearbox/drive combination:
Manual
gearbox
Automatic
gearbox
Front-wheel
drive
Front or rear
axle
Front axle
Four-wheel
drive
Front or rear
axle
Front axle
Applies to vehicles with four-wheel drive: If the
vehicle is to be towed with one of the axles

raised,
the ignition must be switched off; other­
wise the drive train can be damaged.
Notes on tow-starting
Applies to vehicles with automatic gearbox: For
technical reasons, your vehicle must not be tow-

started.

Applies to vehicles with manual gearbox: As a
general rule, tow-starting is not recommended.
If the engine will not start, it is best to try start­
ing it using the battery of another vehicle

*>page
326 before attempting to tow start. If
this is not possible, you can try to push-start or
tow-start the vehicle
*page
330, Tow-starting.
A WARNING
There is a high risk of accidents when towing/
tow-starting, as the towed vehicle can easily
be driven into the towing vehicle.

UTION

- If it is not possible to tow the vehicle as de­
scribed above (e.g. due to a gearbox failure
or if the vehicle has to be towed further
than 50 km), it must be transported on a
special car transporter or trailer.
- Towing a vehicle with the wrong axle raised
can cause serious damage to the gearbox.
- Applies to vehicles with automatic gearbox:
It is not possible to move the selector lever
out of position
P
if the electrical power sup­
ply fails. Before the vehicle can be recov­
ered/manoeuvred you must manually re­
lease the selector lever; left-hand drive
vehicles
*page
93, right-hand drive
vehicles
*page
94.
- Please observe the relevant regulations
when towing or tow-starting.
Towing away
Please observe the important safety warnings on

*
page 328.
Preparations
• Attach the tow-rope or the tow-bar only to the
towing anchorages provided
for
this purpose

opage
330,
*page
331.
• Please ensure that the tow-rope is not twisted
as it could otherwise unscrew the towline an­
chorage while the vehicle is being towed.
• The hazard warning lights of both vehicles
must normally be switched on
*page
52. How­
ever, observe any regulations to the contrary.
Towing vehicle (front)
• Ensure that the tow-rope is taut before you
drive off.
• Manual gearbox: Engage the clutch very gently
when starting to move and accelerate with par­
ticular care.
• Automatic gearbox: Accelerate slowly and
grad­

ually.
• Avoid unnecessary braking and manoeuvres.
Vehicle being towed (rear)
• Ensure that the ignition is switched on, the
steering wheel is not locked, and
that
you can
operate the turn signals, horn or windscreen
wipers if necessary
<=>/t\-

• The brake servo only works when the engine is

running.
The power steering only works when
329

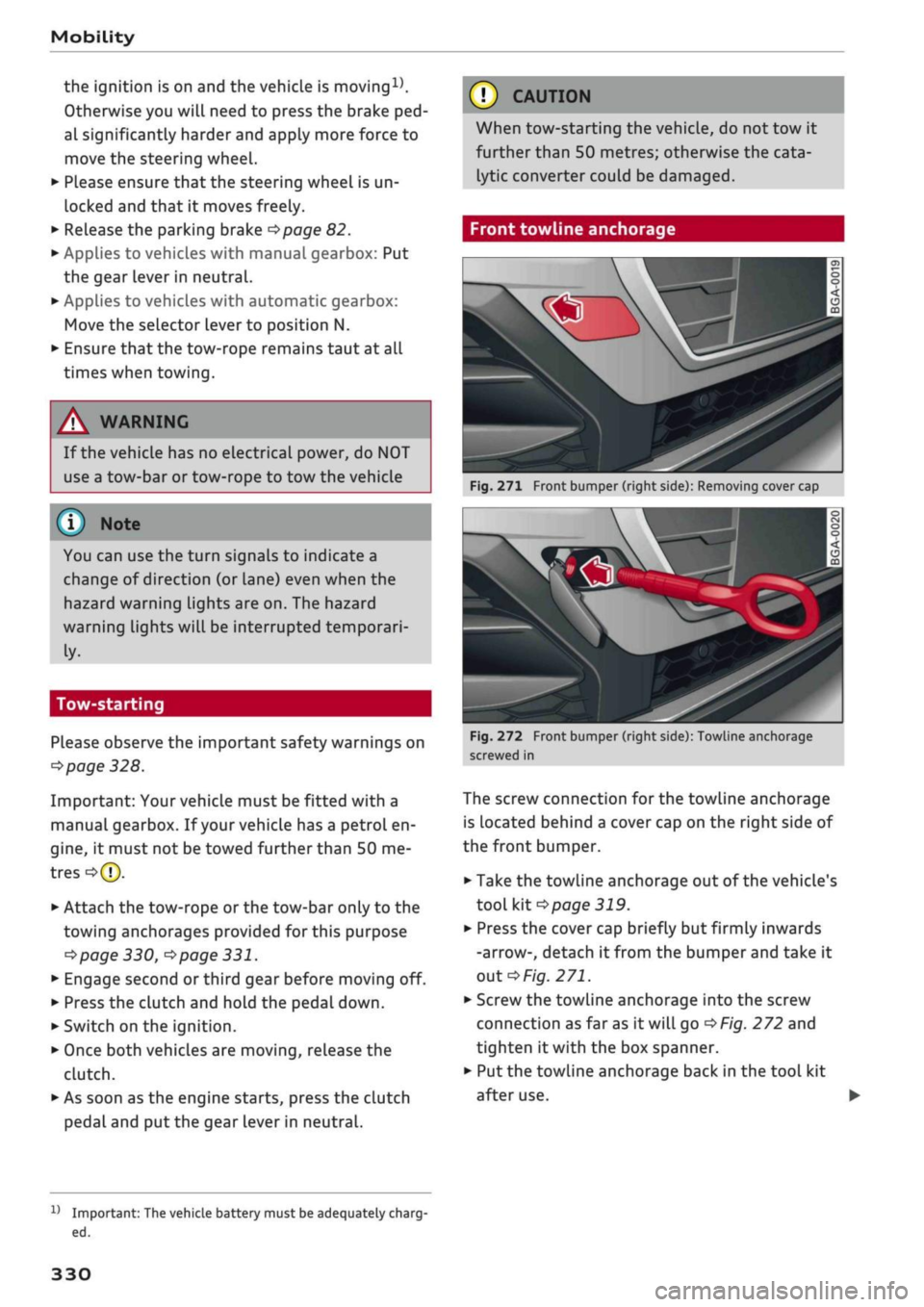

Mobility
the ignition is on and the vehicle is moving1'.
Otherwise you will need to press the brake
ped­

al significantly harder and apply more force to
move the steering wheel.
• Please ensure that the steering wheel is un­
locked and that it moves freely.
• Release the parking brake
*page
82.
• Applies to vehicles with manual gearbox: Put
the gear lever in neutral.
• Applies to vehicles with automatic gearbox:
Move the selector lever to position N.
• Ensure that the tow-rope remains taut at all
times when towing.
© CAUTION
A WARNING
If the vehicle has no electrical power, do NOT
use a tow-bar or tow-rope to tow the vehicle
© Note
You can use the turn signals to indicate a
change of direction (or lane) even when the
hazard warning lights are on. The hazard
warning lights will be interrupted temporari-

Ly.

Tow-starting
Please observe the important safety warnings on

*page
328.
Important: Your vehicle must be fitted with a
manual gearbox. If your vehicle has a petrol en­

gine,
it must not be towed further than 50 me­
tres
*(J).

• Attach the tow-rope or the tow-bar only to the
towing anchorages provided
for
this purpose

*page
330,
*
page 331.
• Engage second or third gear before moving off.
• Press the clutch and hold the pedal down.
• Switch on the ignition.
• Once both vehicles are moving, release the

clutch.

• As soon as the engine starts, press the clutch
pedal and put the gear lever in neutral.
When tow-starting the vehicle, do not tow it
further than 50 metres; otherwise the cata­
lytic converter could be damaged.
Front towline anchorage

»

Fig.
271 Front bumper (right side): Removing cover cap

Fig.
272 Front bumper (right side): Towline anchorage
screwed in
The screw connection for the towline anchorage
is located behind a cover cap on the right side of
the front bumper.
• Take the towline anchorage out of the vehicle's
tool kit
*
page 319.
• Press the cover cap briefly but firmly inwards
-arrow-, detach it from the bumper and take it

out*Fig.
271.
• Screw the towline anchorage into the screw
connection as far as
it
will go
*Fig.
272 and
tighten it with the box spanner.
• Put the towline anchorage back in the tool kit
after use.

11
Important: The vehicle battery must be adequately charg­

ed.

330

Fuses and bulbs
Fuses in engine compartment

Fig.
278 Engine compartment: Fuse layout

No.

Fl

F2
F3
F4

F5

F6
F7

F8

F9
F10

Fll

F12
F13
F15
F16
Electrical equipment
Electronic stabilisation control (ESC)
Electronic stabilisation control (ESC)
Engine control unit
Engine components, engine cooling, sup­
plementary heater relay coils (1+4+7),
secondary air pump relay
Engine components, tank system (diesel)
Brake Light sensor
Engine components, coolant pumps, tank
system (petrol)
Lambda probe
Engine components, exhaust flap, control
unit for automatic glow period (relay 6)
Fuel control unit, fuel pump
Supplementary heater heating rod 2
Supplementary heater heating rod 3
Automatic gearbox
Horn
Ignition coil (relay
8)

Electronic stabilisation control (ESC), en­
gine control unit (relay 5)

No.

F18
F19
F20
F22
F23
F24
F31
F33
Electrical equipment
Battery monitoring, gateway
Windscreen wipers
Anti-theft alarm system
Terminal 50, diagnostics, engine control
unit
Starter
Supplementary heater heating rod 1
Vacuum pump
Automatic gearbox, gearbox oil pump
Bulbs
General notes
Changing bulbs requires a certain degree of
practical
skill.

LED*
lights are maintenance-free and cannot be

changed.
For repairs, please contact a qualified
workshop.
If
you
decide to change bulbs in the engine com­
partment yourself, be aware of the safety risks
involved
*
A in Working on components in the
engine compartment on page 295.
WARNING
- Take particular care when working on com­
ponents in the engine compartment if the
engine is warm - risk of burns!
- Bulbs are sensitive to pressure. The glass
can break when you touch the bulb, causing
injury.
- When changing bulbs, please take care not
to injure yourself on sharp edges, in particu­
lar on the headlight housing.
© CAUTION
-Always switch off the ignition before carry­
ing out any work on the electrical system -
danger of short circuiting!
- Switch off the Lights or parking lights before
you change a bulb.
- Take good care to avoid damaging any com­
ponents.
334
