The radiator fan turns on and off automatically
according to the coolant temperature.
Fuel gauge
The fuel gauge indicates the amount of fuel in the
fuel tank. The display segments of the fuel gauge
disappear from “F” (full) towards “E” (empty) as
the fuel level decreases. When the last segment
starts flashing, approximately 4.0 L (1.06 US gal,
0.88 Imp.gal) of fuel remains. Refuel as soon as
possible.
TIPIf the electrical circuit for the fuel gauge is not
working correctly, all display segments will flash
repeatedly. Have a Yamaha dealer check the vehi-
cle. Brightness control mode
This mode allows you to adjust the brightness of
the multi-function display when the vehicle is
stopped.
To adjust the brightness1. Push the “SELECT” button for 2 seconds.
1. Fuel gauge
1
1. Brightness level display
1
UB5K62E0.book Page 10 Thursday, May 9, 2019 2:59 PM

5-11
52. Push the “RESET” button to set the bright-
ness level.
3. Push the “SELECT” button to confirm the se- lected brightness level and exit the brightness
control mode.
Error code display
This model is equipped with a self-diagnosis de-
vice for various electrical circuits.
If a problem is detected in any of those circuits,
the engine trouble warning light will come on or
flash, and the display will indicate an error code. If the display indicates an error code, note the
code number and have a Yamaha dealer check
the vehicle.
NOTICEECB00812If the multi-function display indicates an error
code, the vehicle should be checked as soon
as possible in order to avoid engine damage.
1. Error code display
2. Engine trouble warning light “ ”
2
1
UB5K62E0.book Page 11 Thursday, May 9, 2019 2:59 PM

5-12
5
EBU18068Handlebar switchesYFM700FWBYFM700FWBD / YFM70KPAL1. Light switch “ / /OFF”
2. Engine stop switch “ / ”
3. Start switch “ ”
4. Horn switch “ ”
3421
1. Light switch “ / /OFF”
2. Start switch “ ”
3. Engine stop switch “ / ”
4. Override switch “OVERRIDE”
5. Horn switch “ ”
41325
UB5K62E0.book Page 12 Thursday, May 9, 2019 2:59 PM

5-13
5YFM700FWBD / YFM70KPAL
EBU18081Engine stop switch “ / ”
Set this switch to “ ” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this
switch to stop the engine in an emergency situa-
tion. The engine will not start or run when this
switch is set to “ ”.
EBU18102Start switch “ ”
Push this switch to crank the engine with the start-
er. See the starting instructions on page 7-1 prior
to starting the engine.EBU34123Light switch “ / /OFF”
Set this switch to “ ” to turn on the left and right
headlights (low beams) and the taillight. Set the
switch to “ ” to turn on the left and right head-
lights (high beams), the handlebar-mounted light
(YFM700FWBD / YFM70KPAL), and the taillight.
Set the switch to “OFF” to turn off all the lights.NOTICEECB00046Do not use the headlights with the engine
turned off for an extended period of time. The
battery may discharge to the point that the
starter will not have enough power to crank the
engine. If this should happen, remove the bat-
tery and recharge it. (See page 9-53.) EBU18171Horn switch “ ”
Press the switch to sound the horn.
1. On-Command drive switch “2WD/4WD”
2. On-Command drive switch “4WD/LOCK”
3. Drive switch lock lever
2WD
4WD
LOCK4WD
3
3
2
1
UB5K62E0.book Page 13 Thursday, May 9, 2019 2:59 PM

5-14
5
EBU18192Override switch “OVERRIDE” (YFM700FWBD /
YFM70KPAL)
Top speed is normally limited when operating in
differential gear lock. If conditions require more
engine power when riding forward, push and hold
this switch to override the differential gear lock
speed limiting function. (See page 5-15.) Releas-
ing the switch restores the speed limiting function.
While the override switch is pushed, the segments
of the speedometer digits will appear as shown in
the figure.
TIPIf the digits of the speedometer appear as shown
when the switch is NOT being pushed, this could
indicate a malfunction in the electrical system. In
this case, take the ATV to a Yamaha dealer at the
first opportunity.
WARNING
EWB00151Always ride at a slow speed when the ATV is in
four-wheel-drive differential gear lock, and al-
low extra time and distance for maneuvers.
All wheels turn at the same speed when the dif-
ferential is locked, so it takes more effort to
turn the ATV. The effort needed to turn increas-
es with the riding speed. You may lose control
and have an accident if you cannot make a
sharp enough turn for the speed you are trav-
eling.
UB5K62E0.book Page 14 Thursday, May 9, 2019 2:59 PM

5-15
5
EBU2660AOn-Command drive switch “2WD/4WD”
(YFM700FWBD / YFM70KPAL)
Stop the ATV and push this switch to change from
two-wheel drive to four-wheel drive or vice versa.
Select the appropriate drive according to the ter-
rain and riding conditions.
“2WD” (two-wheel drive): power is supplied to
the rear wheels only, giving a smooth ride and
fuel economy.
 “4WD” (four-wheel drive): power is supplied to
the front and rear wheels, giving increased trac-
tion.
WARNING
EWB00164Always stop the ATV before changing from
two-wheel drive to four-wheel drive and vice
versa. The ATV handles differently in two-
wheel drive than in four-wheel drive in some
circumstances. Changing from two-wheel
drive to four-wheel drive or vice versa while
moving may cause the ATV to unexpectedly
handle differently. This could distract the oper-
ator and increase the risk of losing control and
of causing an accident.
EBU30467On-Command drive switch “4WD/LOCK”
(YFM700FWBD / YFM70KPAL)
Stop the ATV and push this switch to change from
standard four-wheel drive to four-wheel drive with
the differential locked. Select the appropriate
switch position according to the terrain and the
conditions.
“4WD” (four-wheel drive): power is supplied to
the front and rear wheels, with the front differen-
tial unlocked.
 “LOCK” (four-wheel drive with the differential
gear locked): power is supplied to the front and
rear wheels and the differential gear is locked.
Unlike in four-wheel drive, all wheels turn at the
same speed, giving maximum traction.
WARNING
EWB00132Always stop the ATV before changing from
four-wheel drive to four-wheel-drive differen-
tial gear lock or vice versa.
The ATV handles differently in four-wheel drive
than in differential gear lock in some circum-
stances. Changing from four-wheel drive to
differential gear lock or vice versa while mov-
ing may cause the ATV to handle differently un-
UB5K62E0.book Page 15 Thursday, May 9, 2019 2:59 PM

5-16
5
expectedly. This could distract the operator
and increase the risk of losing control and
causing an accident.
To access the “4WD/LOCK” switch, set the
“2WD/4WD” switch to “4WD”, and then move the
drive switch lock lever to the right.TIP
When the switch is set to “LOCK” or “4WD”, the
differential gear lock icon and indicator light will
flash until the differential gear is completely
locked or unlocked. 
When the icon and indicator light are flashing,
turning the handlebar back and forth will help
the differential gear lock to engage or disen-
gage.
 Riding before the differential gear is properly en-
gaged or disengaged (e.g., when the icon and
indicator light are flashing) will cause the vehicle
speed to be limited until the differential gear is
completely engaged or disengaged.
 When the ATV is in four-wheel-drive differential
gear lock, the maximum traveling speed is limit-
ed to 35 km/h (22 mi/h). However, if conditions
require full engine power to be available, push
and hold the override switch to disable the dif-
ferential gear lock speed limiter. (See page
5-14.)

WARNING
EWB00141Always ride at a slow speed when the ATV is in
differential gear lock, and allow extra time and
distance for maneuvers.
All wheels turn at the same speed when the dif-
ferential gear is locked, so it takes more effort
to turn the ATV. The effort needed to turn in-
creases with the riding speed. You may lose
1. On-Command drive switch “4WD/LOCK”
2. Drive switch lock lever
LOCK4WD
1
2
UB5K62E0.book Page 16 Thursday, May 9, 2019 2:59 PM

5-17
5control and have an accident if you cannot
make a sharp enough turn for the speed you
are traveling.
EBU37201Drive lever “2WD/4WD” (YFM700FWB)Stop the vehicle and move the lever to change
from two-wheel drive to four-wheel drive or vice
versa. Select the appropriate drive according to
the terrain and riding conditions. 
“2WD” (two-wheel drive): Power is supplied to
the rear wheels only, giving a smooth ride and
fuel economy.
 “4WD” (four-wheel drive): Power is supplied to
the front and rear wheels, giving increased trac-
tion.
WARNING
EWB00164Always stop the ATV before changing from
two-wheel drive to four-wheel drive and vice
versa. The ATV handles differently in two-
wheel drive than in four-wheel drive in some
circumstances. Changing from two-wheel
drive to four-wheel drive or vice versa while
moving may cause the ATV to unexpectedly
handle differently. This could distract the oper-
ator and increase the risk of losing control and
of causing an accident.

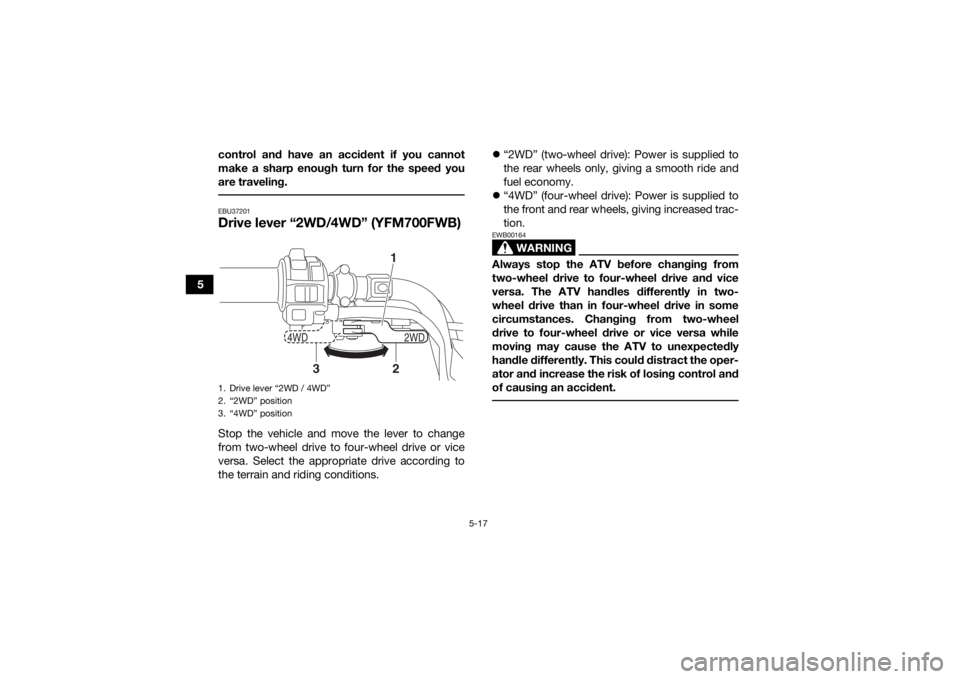

1. Drive lever “2WD / 4WD”
2. “2WD” position
3. “4WD” position
2WD
4WD
12
3
