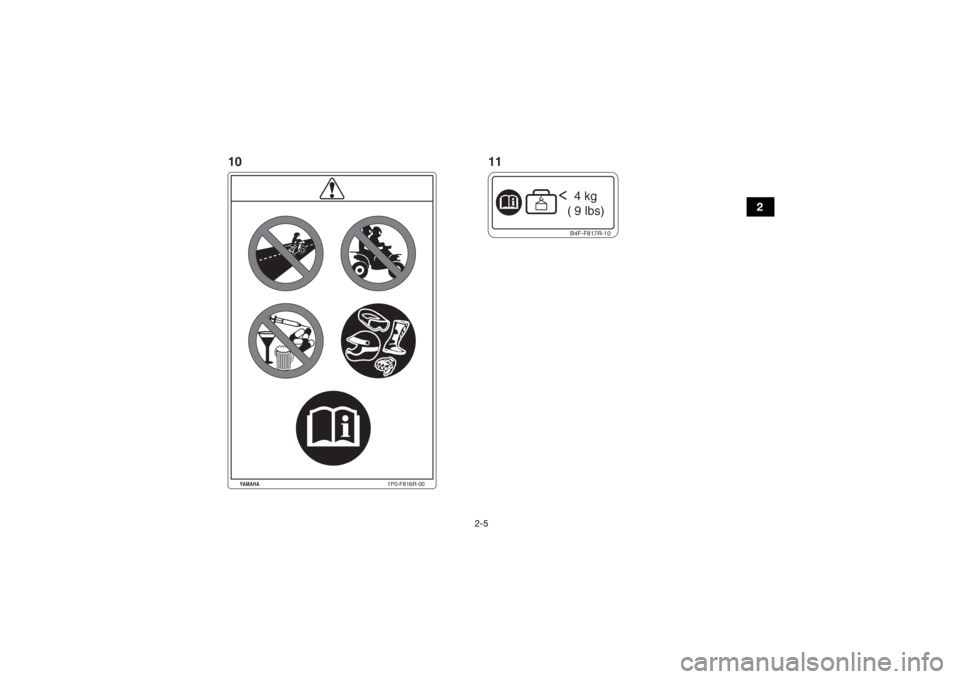

B4F-F817R-10< 4 kg
( 9 lbs)
10 11
UB5K62E0.book Page 5 Thursday, May 9, 2019 2:59 PM

2-6
2Familiarize yourself with the following pictograms and read the explanatory text, then make sure to check
the pictograms that apply to your model.
Read the Owner’s manual.
ALWAYS use an approved helmet and
protective gear.
Use from 16 years old.
Operating this ATV if you are under the age
of 16 increases your chance of severe injury
or death. NEVER use on paved roads.
NEVER carry passengers.
NEVER use with drugs or alcohol.
NEVER store fuel or flamma
ble liquids.
This unit contains high-pressure nitrogen
gas.
Mishandling can cause an explosion. Do not
incinerate, puncture or open.
UB5K62E0.book Page 6 Thursday, May 9, 2019 2:59 PM

2-7
2
E10E5

**.* kPa
*.** kgf/cm²
*.* psi **.* kPa
*.** kgf/cm²
*.* psi
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
******
*** kW
*** kg
****1
2
34 This pictogram sho
ws trailer Hitch To w
w eight limit. (Combined w eight of the trailer
and all cargo in the trailer.)
Ov erloading can cause loss of control.
Loss of control can result in se vere injury or
death.
EN228 fuel identification mark.
Gasoline of ethanol 10% or less can be
used. EN228 fuel identification mark.
Gasoline of ethanol 5% or less can be
used.
Use unleaded gasoline only.
Measure the tire pressure when the tires are
cold. Adjust the tire pressure.
Improper tire pressu
re can cause loss of
control.
Loss of control can result in se vere injury or
death.
This pictogram sho ws the loading limits
and/or maxim um load capacity for this ATV .
Follo w all load limits and other loading
guidelines in this man ual.
Load may inclu de the driver, passenger,
human protectiv e gear, accessories, goods,
luggage, and all other load related items.
Make sure you do not exceed the load limits.
Ov erloading can cau se loss of control.
Loss of control can result in se vere injur
y or
death.
This pictog

ram sho ws trailer Hitch Tong ue
w eight limit. (W eight on the trailer tongue.)
Ov erloading can cause loss of control.
Loss of control can result in se vere injury or
death.
1
2
3
4 Year of constr
uction
Model Name
Max. Po wer
Mass In Running Order
UB5K62E0.book Page 7 Thursday, May 9, 2019 2:59 PM

2-8
2For Oceania
3
5 4
9
6
7
8
1
2
UB5K62E0.book Page 8 Thursday, May 9, 2019 2:59 PM

2-9
2
LOAD LIMIT50 kg (110 lbs)
B16-F4877-A0
YAMAHA
LOAD LIMIT90 kg (198 lbs)
B16-F4897-30
YAMAHA
MAXIMUM LOADING LIMIT
37S-F151K-00
PULLING LOAD: 5880 N (600 kgf)
1322 lbf
TO NGUE WEIGHT: 147 N ( 15 kgf)
33 lbfYAMAHA
WARNINGNEVER ride as a
passenger.Passengers can cause
a loss of control,
resulting in SEVERE
INJURY or DEATH.
1 2
3 4
UB5K62E0.book Page 9 Thursday, May 9, 2019 2:59 PM

2-10
2
Recommended
Minimum : FRONT
REAR
: FRONT
REAR: 35 kPa, (5.0 psi)
: 30 kPa, (4.4 psi)
: 32 kPa, (4.6 psi)
: 27 kPa, (4.0 psi)Ne
ver set tire pressure belo w minimum. It could cause
the tire to dislodge from the rim.Cargo or a trailer can affect stability and handling.
Read o wner’s man ual before loading or to wing.
When riding with cargo or to wing a trailer : Reduce speed
and allo w more room to stop. A void hills and rough terrain.
Maxim um Vehicle Load : 240 kg, (530 lbs)
Includes w eight of operator, cargo and accessories
(and if applicable, trailer tongue w eight).
WARNING
B16-F816M-00
YAMAHAIMPROPER TIRE PRESSURE OR OVERLOADING CAN
CAUSE LOSS OF CONTROL.
LOSS OF CONTROL CAN RESULT IN SEVERE
INJURY OR DEATH.OPERATING TIRE PRESSURE : Set with tires coldLOADING/TRAILER TOWING
WARNING
NEVER
operate this ATV if you are
under age 16.Operating this ATV if you are under
the age of 16 increases you r chance
of sev ere inju ry or death.
16
UNDER
1P0-F816L-01
Wait for the engine to return to normal idle speed
before shifting.
2UD-F151E-00
56
7UB5K62E0.book Page 10 Thursday, May 9, 2019 2:59 PM

2-11
2
WARNING
Improper ATV use can result in SEVERE
INJURY or DEATH.ALWAYS USE
AN APPROVED HELMET ANDPROTECTIVE GEAR NEVER USE
ON PUBLIC ROADS NEVER CARRY
PASSENGERS NEVER USE
WITH DRUGS
OR ALCOHOLNEVER operate :
ALWAYS :g or instruction.

conditions.

with another vehicle.
g er-passengers affect
balance and steering and increase risk
of losing control.
g techniques to avoid
vehicle overturns on hills and rough
terrain and in turns.

seriously affect handling and control.
LOCATE AND READ OWNER’S MANUAL.
FOLLOW ALL INSTRUCTIONS AND WARNINGS.
4XE-F1568-10
YAMAHA
LOAD LIMIT4 kg (9 lbs)
B4F-F4877-A0
YAMAHA
89
UB5K62E0.book Page 11 Thursday, May 9, 2019 2:59 PM

3-1
3
EBU17432
SAFETY INFORMATION
SAFETY INFORMATION
EBU27255AN ATV IS NOT A TOY AND CAN BE HAZARD-OUS TO OPERATE.An ATV handles differently from other vehicles, in-
cluding motorcycles and cars. A collision or roll-
over can occur quickly, even during routine
maneuvers such as turning and riding on hills or
over obstacles, if you fail to take proper precau-
tions.
SEVERE INJURY OR DEATH can result if you do
not follow these instructions:
Read this manual and all labels carefully and fol-
low the operating procedures described.
 Never operate an ATV without proper training or
instruction. Take a training course. Beginners
should receive training from a certified instruc-
tor. Contact an authorized ATV dealer to find
out about the training courses nearest you.
 Always follow the age recommendation:
– A child under 16 years old should never oper-
ate an ATV with engine size greater than 90 cc. 
Never allow a child under age 16 to operate an
ATV without adult supervision, and never allow
continued use of an ATV by a child if he or she
does not have the abilities to operate it safely.
 Never carry a passenger on an ATV.
 This vehicle is intended for off-road use only. Do
not operate on any paved surfaces such as:
sidewalks, driveways, parking lots, paved
roads, public streets or other motorway.
 Watch carefully for other vehicles when operat-
ing on unpaved public streets or roads. Make
sure you know your country’s laws and regula-
tions before you ride on unpaved public streets
or roads.
 Never operate an ATV without wearing an ap-
proved motorcycle helmet that fits properly.
You should also wear eye protection (goggles
or face shield), gloves, boots, a long-sleeved
shirt or a jacket, and long pants.
 Never consume alcohol or drugs before or while
operating this ATV.UB5K62E0.book Page 1 Thursday, May 9, 2019 2:59 PM
