2020 TOYOTA PRIUS PRIME check engine

5
1
9 8
7
6 4 3
2
PRIUS PRIME_OM_OM47C77U_(U)
10
5
6-4. Using the other interior features
Other interior features ....... 540 • Sun visors ..................... 540
• Vanity mirrors................ 540
• Power outlets ................ 541
• USB charging ports....... 542
• Wireless charger ........... 544
• Armrest ......................... 553
• Coat hooks.................... 553
• Assist grips ................... 554
Garage door opener .......... 555 7-1. Maintenance and care
Cleaning and protecting the vehicle exterior .......... 564
Cleaning and protecting the vehicle interior ........... 569
7-2. Maintenance Maintenance requirements ................... 575
General maintenance ........ 578
Emission inspection and maintenance (I/M)
programs ......................... 581
7-3. Do-it-yourself maintenance Do-it-yourself service precautions ...................... 582
Hood .................................. 585
Positioning a floor jack....... 587
Engine compartment ......... 588
Tires................................... 602
Tire inflation pressure ........ 611
Wheels............................... 614
Replacing the tire............... 617
Air conditioning filter .......... 628
Wiper insert replacement..................... 632
Electronic key battery ........ 635
Checking and replacing fuses ................................ 638
Headlight aim..................... 641
Light bulbs ......................... 643
7Maintenance and care

17Pictorial index
PRIUS PRIME_OM_OM47C77U_(U)Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 368
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 368
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 720
Charging port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 110
Charging method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 134
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . P. 602
Replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 617
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . P. 725
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 495
Checking/rotation/tire pressur e warning system . . . . . . . . .P. 602
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 680
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 585
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 585
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 722
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 709
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 350
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 350
Fog lights
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 360
LED accent lights
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 350
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 348
Daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 350
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 350
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 350
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 350
Back-up lights
Shifting the shift position to R . . . . . . . . . . . . . . . . . . . . . . . . . P. 342
5
6
7
8
Light bulbs of the exterior lights for driving
(Replacing method: P. 643, Watts: P. 726)
*: If equipped
9
10
11
12
13
14
15
16
17
18

PRIUS PRIME_OM_OM47C77U_(U)
872-1. Plug-in hybrid system
2
Plug-in hybrid system
The plug-in hybrid system operates in the following modes.
The multi-information display can be used to check which mode t he plug-in
hybrid system is currently being driven in. ( P. 218)
EV mode
When a sufficient amount of electricity is remaining after
charging
*1, EV driving is performed using electricity stored in the
hybrid battery (traction battery).
*2
When in EV mode, the EV drive mode indicator illuminates.
*1: The amount of remaining charge can be checked on the multi-informa- tion display etc. ( P. 229)
*2: Depending on the situation, EV driving may be canceled and bot h gaso-
line engine and electric motor are used. ( P. 95)

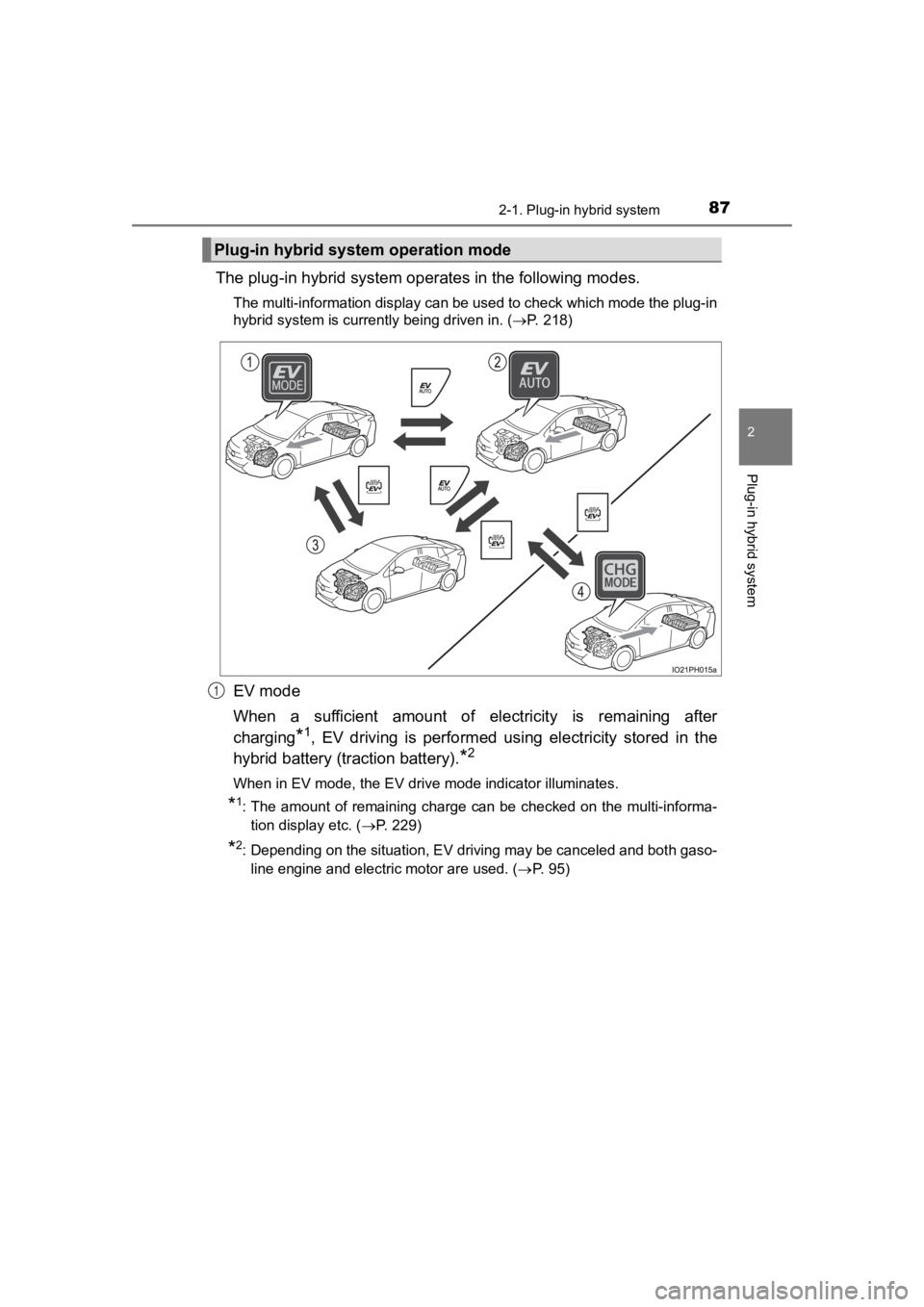

Plug-in hybrid syst em operation mode
1

88
PRIUS PRIME_OM_OM47C77U_(U)
2-1. Plug-in hybrid system
EV auto mode (P. 9 0 )
When a sufficient amount of elect ricity for EV driving is remaining in
the hybrid battery (traction battery) after charging
*, the operation
mode can be switched to EV auto mode.
Switching to EV auto mode make powerful driving possible by usi ng
both the gasoline engine and elec tric motor in a driving condition
that requires large driving force, such as when passing a vehicle on
a highway or driving on a steep slope.
When in EV auto mode, the EV auto mode indicator illuminates.
*: The amount of remaining charge can be checked on the multi-informa- tion display etc. ( P. 229)
HV mode
When in HV mode, the vehicle is driven using both the gasoline
engine and electric motor. ( P. 92)
● If electricity needed for EV driving in EV mode or EV auto mode
is not remaining, the operation mode will be automatically
switched to HV mode.
● The operation mode can be switched to HV mode at any timing
by operating the switch to keep electricity for EV driving etc.
*
( P. 90). Switching to HV mode when driving on a highway or
when driving uphill is recommended in order to conserve battery
power.
When in HV mode, the EV drive mode indicator and EV auto mode i ndi-
cator turn off.
*: The EV driving range may reduce even after switching to HV mode.
2
3

92
PRIUS PRIME_OM_OM47C77U_(U)
2-1. Plug-in hybrid system
■When in EV/EV auto mode
In EV/EV auto mode, EV driving (driving using only the electric
motor)
* is possible. However, depending on the situation, EV driv-
ing may be canceled and both gaso line engine and electric motor
are used ( P. 95). Also, if a little electricity is remaining in the
hybrid battery (traction battery), HV mode is automatically sel ected.
To drive in EV/EV auto mode l ong, observe the followings.
● Avoid sudden acceleration and sudden deceleration, and be sure
to drive smoothly.
If you repeatedly accelerate, the hybrid battery (traction batt ery)
charge will deplete quickly. Also , EV driving may be canceled by
rapid acceleration or vehicle speed.
● Restrain your speed as much as possible. The distance that can
be driven in EV/EV auto mode will reduce considerably at high
speeds.
*: The EV driving range can be checked using the multi-informatio n dis-
play etc. ( P. 212, 228, 235, 252)
■
When in HV mode
The vehicle can be used in the same way as a standard hybrid
vehicle.
In HV mode, controls are primarily carried out as follows in ac cor-
dance with the dr iving conditions.
● The gasoline engine stops
* when the vehicle is stopped.
● During start off, the electric motor (traction motor) drives the vehi-
cle.
● During normal driving, the gasoline engine and electric motor
(traction motor) are controlled effectively, and the vehicle is
driven with optimum fuel efficiency. Also, when necessary, the
electric motor (traction motor) operates as an electrical gener ator
to charge the hybrid battery (traction battery).
● When the accelerator pedal is depressed heavily, drive force
from both the gasoline engine and the electric motor (traction
motor) is used to accelerate.
*: When the hybrid battery (traction battery) requires charging or the
engine is warming up, etc., the gasoline engine will not automa tically
stop. ( P. 95)
Control when driving in each mode

94
PRIUS PRIME_OM_OM47C77U_(U)
2-1. Plug-in hybrid system
■Regenerative braking
In the following situations, kinetic energy is converted to electric energy and
deceleration force can be obtained in conjunction with the rech arging of the
hybrid battery (traction battery).
● The accelerator pedal is released while driving with the shift position in D or
B.
● The brake pedal is depressed while driving with the shift posit ion in D or B.
■ EV driving range
●The EV driving range is displayed on the multi-information disp lay etc.
( P. 212, 228, 235, 252)
● The EV driving range changes in accordance with the charge status of the
hybrid battery (traction battery), the speed of the vehicle, et c.
● Even if there is enough charge remaining in the hybrid battery (traction bat-
tery), EV driving may be canceled and both gasoline engine and electric
motor are used depending on the situation. ( P. 95)
■ After EV mode has switched to HV mode due to low hybrid battery (trac-
tion battery) charge
If the hybrid battery (traction battery) is regenerated by driving continuously
down a long slope, the EV driving range etc. will be displayed on the multi-
information display and EV mode will be automatically switched to.
If EV mode is not switched to even though EV driving range is b eing dis-
played, EV mode can be switched to by pressing the EV/HV mode selection
switch.
■ Refilling fuel
Plug-in hybrid vehicles can be driven using electricity charged from an exter-
nal power source. However, as the gasoline engine is used depending on the
situation even if in EV mode, and the gasoline engine is provided on board as
a power source for driving in HV mode, it is needed to refuelin g the vehicle.
Check the fuel amount and refill immediately when the fuel level becomes
low. ( P. 368)

96
PRIUS PRIME_OM_OM47C77U_(U)
2-1. Plug-in hybrid system
■If the vehicle is not used for a long time
●The 12-volt battery may discharge. In this event, charge the 12 -volt battery.
( P. 595)
In order to prevent the hybrid battery (traction battery) from becoming
extremely low in charge, charge the hybrid battery (traction ba ttery) from
external power source or start the hybrid system at least once every 2 or 3
months, and turn the power switch off after the gasoline engine has
stopped automatically. (If the gasoline engine does not start up even after
approximately 10 seconds have pass ed since the “READY” indicator came
on, the power switch can be turned to off without any further action.)
● When the vehicle is left with the charging cable connected, the electricity
consumption amount of the 12-volt battery increases due to cont rols, such
as the system checking, operating. When the charging cable is n ot needed,
immediately remove it from the vehicle.
■ Sounds and vibrations sp ecific to a hybrid vehicle
There may be no engine sound or vibration even though the vehic le is able to
move with the “READY” indicator is illuminated. For safety, app ly the parking
brake and make sure to shift the shift position to P when parke d.
The following sounds or vibrations may occur when the hybrid sy stem is
operating and are not a malfunction.
● Motor sounds may be heard from the engine compartment.
● Sounds may be heard from the hybrid battery (traction battery) when the
hybrid system starts or stops.
● Relay operating sounds such as a snap or soft clank will be emi tted from the
hybrid battery (traction battery), behind the rear seats, when the hybrid sys-
tem is started or stopped.
● Sounds from the hybrid system may be heard when the back door is open.
● Sounds may be heard from the transmission when the gasoline engine
starts or stops, when driving at low speeds, or during idling.
● Engine sounds may be heard when accelerating sharply.
● Sounds may be heard due to regenerative braking when the brake pedal is
depressed or as the accelerator pedal is released.
● Vibration may be felt when the gasoline engine starts or stops.
● Cooling fan sounds may be heard from the air intake vent. ( P. 99)
■ Vehicle proximity notification system
In the following cases, the vehicle proximity notification syst em may be diffi-
cult for surrounding people to hear.
● In very noisy areas
● In the wind or the rain
Also, as the vehicle proximity notification system is installed on the front of
the vehicle, it may be more difficult to hear from the rear of the vehicle com-
pared to the front.

106
PRIUS PRIME_OM_OM47C77U_(U)
2-1. Plug-in hybrid system
◆Accelerator pedal/brake pedal operation
●Drive your vehicle smoothly. Avoid abrupt acceleration and
deceleration. Gradual accelerat ion and deceleration will make
more effective use of the electric motor (traction motor) witho ut
having to use gaso line engine power.
● Avoid repeated acceleration. Repeated acceleration consumes
hybrid battery (tracti on battery) power, resulting in poor fuel con-
sumption. Battery power can be restored by driving with the
accelerator pedal slightly released.
◆When braking
Make sure to operate the brakes gently and a timely manner. A
greater amount of electrical energy can be regenerated when slow-
ing down.
◆Delays
Repeated acceleration and deceleration, as well as long waits a t
traffic lights, will lead to high fuel and electricity consumption.
Check traffic reports before leav ing and avoid delays as much a s
possible. When driving in a traffic jam, gently release the brake
pedal to allow the vehicle to mov e forward slightly while avoiding
overuse of the accelerator pedal. Doing so can help control exces-
sive electricity and fuel consumption.
◆Highway driving
● Control and maintain the vehicle at a constant speed. Before
stopping at a toll booth or similar, allow plenty of time to re lease
the accelerator and gently apply the brakes. A greater amount o f
electrical energy can be regenerated when slowing down.
● Electricity consumption will in crease significantly when drivin g at
high speeds in EV mode. If there will be a long distance to the
next external charging point after leaving a freeway, it is rec om-
mended to drive in HV mode while on the freeway and change to
EV mode after leaving the freeway.
