2020 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

7859-2. Customization
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
9
Vehicle specifications
■Power windows (P. 352)
■Reverse warning buzzer (P. 382)
■Turn signal lever (P. 385)
FunctionDefault
settingCustomized
setting
Mechanical key linked opera-
tion (open)Off On – – O
Mechanical key linked opera-
tion (close)Off On – – O
Wireless remote control linked
operation (open)Off On – – O
Wireless remote control linked
operation (close)Off On – – O
Mechanical key, wireless
remote control linked opera-
tion signal (buzzer)On Off – – O
123
FunctionDefault
settingCustomized
setting
Signal (buzzer) when the shift
position is in RSingleIntermittent––O
123
FunctionDefault
settingCustomized
setting
Times of flashing of the lane
change signal flashers3Off
––O 5
7
123

7869-2. Customization
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
■Automatic light control system (P. 387)
■AHS (Adaptive High-beam System) (P. 391)
*: Only high beam will be turned on or off.
FunctionDefault
settingCustomized
setting
Light sensor sensitivityLevel 0Level -2 to 2–OO
Time elapsed before head-
lights turn off (follow me home
system)
30 seconds
60 seconds
––O90 seconds
120 seconds
123
FunctionDefault settingCustomized
setting
Adaptive High-beam SystemOnOff*––O
Clearance between a vehicle
ahead and the shaded high
beams
Standard
Narrow
––O
Wide
Adaptive adjustment of the
high-beam brightness and illu-
minated area according to
vehicle speedApproximately
120 km/h
(75 mph) or
more
Approximately
100 km/h
(63 mph) or
more
––OApproximately
80 km/h
(50 mph) or
more
Intensity adjustment of the
high beams when driving
around a curve (illuminates
the area in the direction vehi-
cle is turning more brightly)
OnOff––O
Projection distance adjust-
ment of the low beams
according to the distance to a
preceding vehicle
OnOff––O
123

7879-2. Customization
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
9
Vehicle specifications
■Rain-sensing windshield wipers (P. 398)
■RSA (Road Sign Assist) (P. 445)
*1: RSA (Road Sign Assist) function becomes On when the power switch is
turned to ON mode.
*2: If a speed limit with supplemental mark is exceeded, the notification buzzer
does not operate.
FunctionDefault
settingCustomized
setting
Wiper operation when the
wiper switch is in the
position
Rain-sensing
operation
Intermittent
operation
linked to vehi-
cle speed
(with interval
adjuster)
––O
123
FunctionDefault
settingCustomized
setting
RSA (Road Sign Assist)*1OnOffO––
Excess speed notification
method
*2Display only
No notification
O––Display and
buzzer
Excess speed notification
level2 km/h
(1 mph)
5 km/h
(3 mph)
O––10 km/h
(5 mph)
No overtaking notification
methodDisplay only
No notification
O––Display and
buzzer
Other notifications method
(No-entry notification)Display only
No notification
O––Display and
buzzer
123

7889-2. Customization
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
■BSM (Blind Spot Monitor)* (P. 473)
*: If equipped
■
Toyota parking assist-sensor* (P. 499)
*: If equipped
■
S-IPA (Simple Intelligent Parking Assist System)* (P. 523)
*: If equipped
FunctionDefault
settingCustomized
setting
Outside rear view mirror indi-
cator brightnessBrightDim––O
123
FunctionDefault
settingCustomized
setting
Detection distance of the front
center sensorsFarNear––O
Detection distance of the rear
center sensorsFarNear––O
Buzzer volume31 to 5––O
123
FunctionDefault
settingCustomized
setting
Obstacle detection rangeStandard
Near
––OSlightly far
Far
Back-in parking spaceStandard
Narrow
––OSlightly wide
Wide
Parallel parking spaceStandard
Narrow
––OSlightly wide
Wide
123

7899-2. Customization
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
9
Vehicle specifications

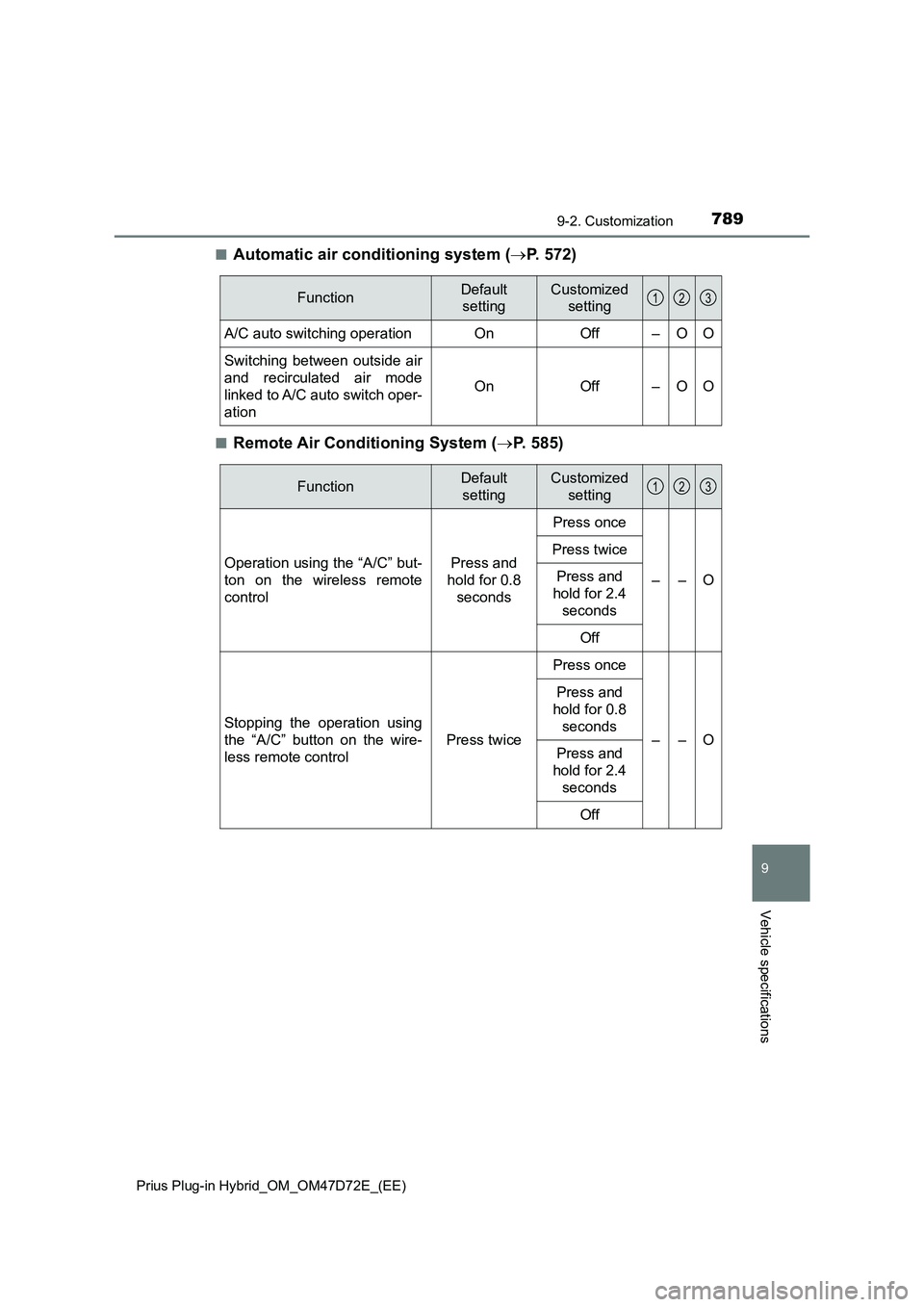

■Automatic air conditioning system (P. 572)
■Remote Air Conditioning System (P. 585)
FunctionDefault
settingCustomized
setting
A/C auto switching operationOnOff–OO
Switching between outside air
and recirculated air mode
linked to A/C auto switch oper-
ation
OnOff–OO
123
FunctionDefault
settingCustomized
setting
Operation using the “A/C” but-
ton on the wireless remote
controlPress and
hold for 0.8
seconds
Press once
––O
Press twice
Press and
hold for 2.4
seconds
Off
Stopping the operation using
the “A/C” button on the wire-
less remote control
Press twice
Press once
––O
Press and
hold for 0.8
seconds
Press and
hold for 2.4
seconds
Off
123

7909-2. Customization
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
■Illumination (P. 591)
■Charge settings
■Maintenance system
FunctionDefault
settingCustomized
setting
Time elapsed before the inte-
rior lights turn off15 secondsOff
–OO 7.5 seconds
30 seconds
Operation after the power
switch is turned offOnOff––O
Operation when the doors are
unlockedOnOff––O
Operation when you approach
the vehicle with the electronic
key on your person
OnOff––O
Footwell lighting On Off – – O
Interior lights illumination con-
trolOn Off – – O
123
Charge scheduleSetting the charging schedule: P. 179
Charge currentChanging the upper limit of the charging cur-
rent: P. 150
Traction battery heaterSetting “Traction Battery Heater” on/off:
P. 155
Tire pressure warning
systemInitializing the tire pressure warning system:
P. 651

7919-2. Customization
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
9
Vehicle specifications
■ In the following situations, customize mode in which the settings can be
changed through the multi-information display will automatically be
turned off.
● The power switch is turned off.
● The vehicle begins to move while the customize mode screen is displayed.
WARNING
■Cautions during customization
As the hybrid system needs to be operating during customization, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed
area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ During customization
To prevent 12-volt battery discharge, ens ure that the hybrid system is oper-
ating while customizing features.

7929-3. Initialization
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the 12-volt battery being reconnected,
or maintenance being performed on the vehicle:
ItemWhen to initializeReference
Power windowWhen functioning abnormallyP. 353
Parking Support Brake func-
tion (if equipped)After reconnecting or chang-
ing the 12-volt batteryP. 520
S-IPA (Simple Intelligent
Parking Assist System) (if
equipped)After reconnecting or chang-
ing the 12-volt batteryP. 548
Tire pressure warning sys-
tem
• When rotating the tires on
vehicles with differing front
and rear tire inflation pres-
sures
• When changing the tire infla-
tion pressure by changing
traveling speed or load
weight, etc.
P. 651
