2173. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
Front fog light indicator P. 397
Rear fog light indicator P. 397
Security indicator P. 74, 87
“READY” indicator P. 373
Shift position indicators P. 379
*1, 2Slip indicator light P. 560
*1, 3VSC OFF indicator P. 561
Cruise control indicator P. 462
Dynamic radar cruise control indicator P. 451
Cruise control “SET” indicator P. 451
*1, 3PCS warning light P. 422
*4LTA indicator P. 438
Steering control indicator P. 438
Adaptive High-beam System indicator P. 392
“BSM” indicator (if equipped) P. 473
IndicatorsPages

2183. Instrument cluster
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or turn off. Have the vehicle
inspected by any authorized Toyota re tailer or Toyota authorized repairer,
or any reliable repairer.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off.
*4: Depending on the operating condition, the color and illuminating/flashing
state of the light change.
Toyota parking assist-sensor indicator
(if equipped) P. 499
*1, 3PKSB OFF indicator (if equipped) P. 512
*1S-IPA indicator (if equipped) P. 527
*1“PASSENGER AIR BAG” indicator P. 51
IndicatorsPages

2193. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47D72E_(EE)

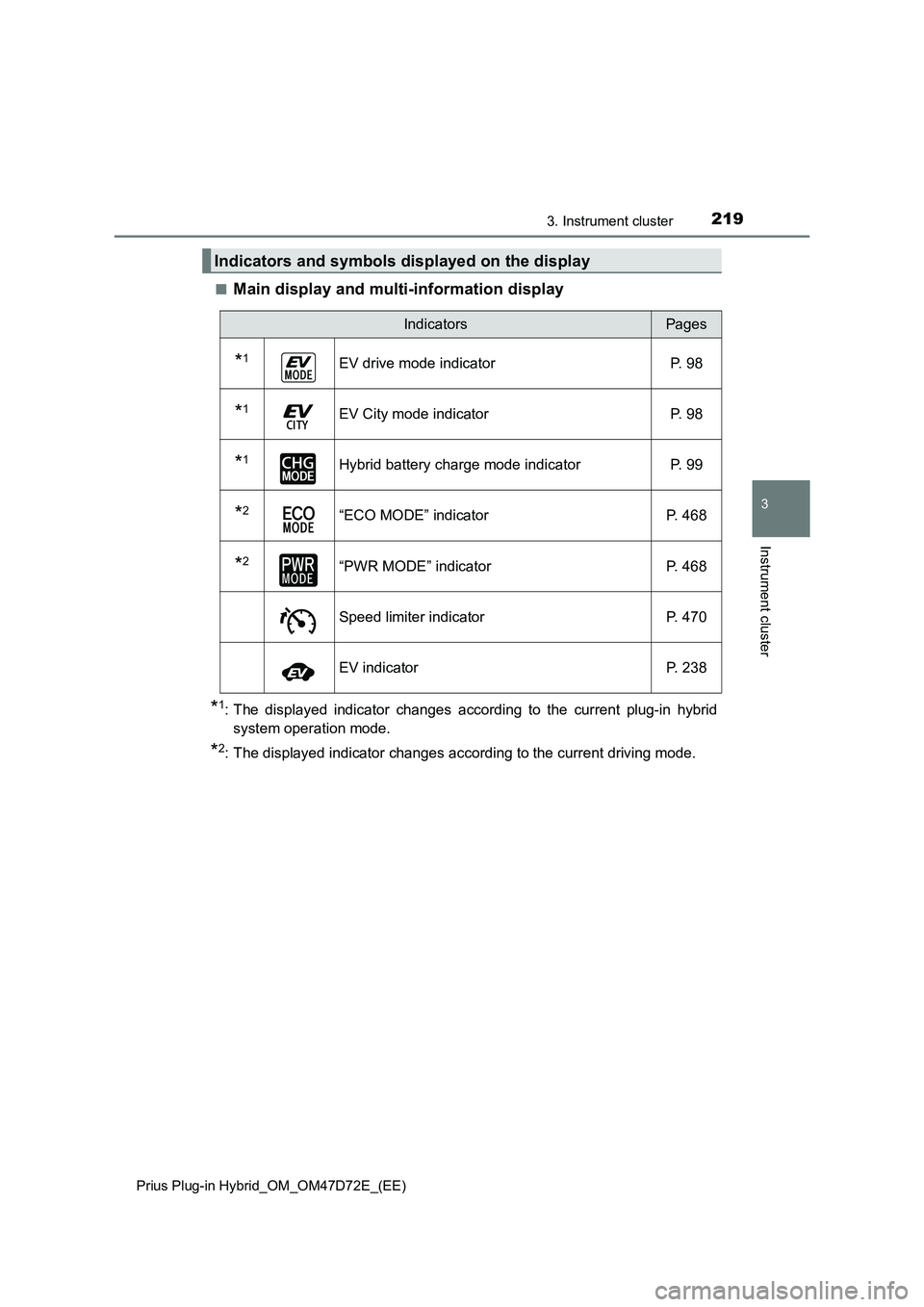

■Main display and multi-information display
*1: The displayed indicator changes according to the current plug-in hybrid
system operation mode.
*2: The displayed indicator changes according to the current driving mode.
Indicators and symbols displayed on the display
IndicatorsPages
*1EV drive mode indicator P. 98
*1EV City mode indicator P. 98
*1Hybrid battery charge mode indicator P. 99
*2“ECO MODE” indicator P. 468
*2“PWR MODE” indicator P. 468
Speed limiter indicator P. 470
EV indicator P. 238

2203. Instrument cluster
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
■Multi-information display (symbol display*)
*: These symbols are displayed along with a message. Also, the symbol dis-
plays listed here are only an example, and different symbols may be dis-
played according to the contents of the multi-information display.
■BSM (Blind Spot Monitor) outside rear view mirror indicators
(if equipped) (P. 473)
• When the BSM function is enabled on the screen of the multi-infor-
mation display, the power switch is turned to ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
Symbol displayPages
Smart entry & start system P. 373
Brake Override System/Drive-Start
Control/Parking Support Brake function
(if equipped)P. 719
LTA (Lane Tracing Assist)P. 443
P. 443
●Indicators are also displayed on the out-
side rear view mirrors.
●In order to confirm operation, the BSM
outside rear view mirror indicators illumi-
nate in the following situations:
• When the power switch is in ON
mode, the BSM function is enabled
on the screen of the multi-infor-
mation display.

2213. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer imme-
diately if this occurs.
NOTICE
■ To prevent damage to the engine and its components
The engine may be overheating if the high coolant temperature warning
light comes on or flashes. In this case, immediately stop the vehicle in a
safe place, and check the engine after it has cooled completely. ( P. 761)

2223. Instrument cluster
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
Main display
The units used on the display may differ depending on the target region.
The main display shows basic information, such as the vehicle
speed and remaining fuel amount. Also, the displayed informa-
tion can be switched according to user preference.
Display contents

2233. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C
(122°F).
The temperature display flashes for approximately 10 seconds when the
outside temperature drops to approximately 3°C (37°F) or less, and then
stops flashing.
Mileage display (odometer/trip meters/driving range)
The possible driving range estimated from the mileage and current remain-
ing fuel amount can be displayed. (P. 224)
Average fuel consumption display
The average electricity and fuel consumption that is linked with the con-
tents of the mileage display can be displayed. (P. 224)
Sub-screen (when RSA [Road Sign Assist] and speed limiter are
off)
Information such as the Hybrid System Indicator and current fuel con-
sumption can be displayed. (P. 226)
Sub-screen (when RSA [Road Sign Assist] and/or speed limiter is
on)
Displays information related to RSA (Road Sign Assist)* or speed limiter.
(P. 445, 470)
*: When RSA (Road Sign Assist) information is displayed in the screen
of the multi-information display (P. 256), RSA (Road Sign Assist) infor-
mation is not displayed on the sub-screen.
1
2
3
4
5
6
7

2243. Instrument cluster
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
Each time is pressed, the mileage display and fuel consumption
display change in the following order from 1 to 7.
Mileage display
Average fuel consumption dis-
play
After 1 to 7 are displayed, the dis-
plays return to 1.
Use the displayed average fuel
consumption as a reference.
Switching the mileage display and average fuel consumption
display
