Page 25 of 52
23
Moonroof (if equipped)
Recommended driving position
to minimize wind noise. Push once to open partway;
again to open completely.
SLIDING OPERATION
TILTING OPERATION
Lightly press either side of the moonroof switch while opening/tilting is in progress,
the moonroof stops partway.
Push once to open completely.OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
All window auto up/down Push the switch completely down or pull it completely up
and release to fully open or close. To stop the window partway, operate the switch
in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Windows-Power
Up
Down
Window
lock switchDriver side
TiltClose
OpenClose
Page 26 of 52
24
LockUnlock
Door locks
FEATURES & OPERATIONS
# 0 5 5 - & ) 0 - % & 3 4 % 0 0 3 . 0 6 / 5 & %
CUP HOLDERS
Bottle holders/Cup holders
Front
FrontRear
Rear (if equipped)
Page 27 of 52
25
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Power outlet-12V DC
USB media port
Open lid
5 I F F O H J O F T X J U D I N V T U C F J O U I F i " $ $ w P S i 0 / w Q P T J U J P O X J U I P V U 4 N B S U , F Z
i " $ $ & 4 4 0 3 : w P S w * ( / * 5 * 0 / 0 / w N P E F X J U I 4 N B S U , F Z
G P S V T F
USB charge-ports (if equipped)
5 I F F O H J O F T X J U D I N V T U C F J O U I F i " $ $ w P S i 0 / w Q P T J U J P O X J U I P V U 4 N B S U , F Z
i " $ $ & 4 4 0 3 : w P S w * ( / * 5 * 0 / 0 / w N P E F X J U I 4 N B S U , F Z
G P S V T F
Connecting a compatible device and cable into the USB media port will support
charging and music playback through the audio multimedia system.
(Charge only)
Page 28 of 52
26
Access
the audio/visual
screen Push to turn ON/OFF or
turn to adjust volume
Turn to tune
radio stations
manually or
select tracks
or filesAccess
the home screen
Access
the menu screenAccess
Toyota apps
screen
Access
the map screenAccess Bluetooth
hands-free system Seek station/track/file select
Touch screen display
FEATURES & OPERATIONS
Audio
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Audio Multimedia System if it will distract you. Refer to the “Navigation and Multimedia System Owner’s Manual” or visit
www.toyota.com/audio-multimedia for additional resources.
Page 29 of 52
27
Audio switches
Phone switches
Microphone
Steering wheel switches
(Audio, MID & phone: Bluetooth®)
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Volume controls
Voice command switch Seek
Bluetooth® technology allows dialing or receipt of calls without removing your hands
from the steering wheel.
Refer to the Bluetooth
® device pairing in this guide or the Navigation and
Multimedia System Owner’s Manual for additional user instructions.
“MODE” Push to change audio mode.
Push and hold to mute or pause the audio.
Receive/end call
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Audio Multimedia System if it will distract you.
Page 30 of 52
28
FEATURES & OPERATIONS
Power switchCharge areaOperation indicator light
Qi Wireless charger (if equipped)
A mobile device can be charged wirelessly on the tray. (1) Press the wireless
charger power switch and the green operation indicator light turns on. (2) Place
a compatible mobile device on the tray as shown in the illustration. An amber
indicator illuminates while charging is in progress. When charging is complete, the
indicator illuminates green. Some phones, cases or cover type wireless chargers
may not cause the green indicator to illuminate even though it is fully charged.
5 I F F O H J O F T X J U D I N V T U C F J O U I F i " $ $ w P S i 0 / w Q P T J U J P O X J U I P V U 4 N B S U , F Z
i " $ $ & 4 4 0 3 : w P S w * ( / * 5 * 0 / 0 / w N P E F X J U I 4 N B S U , F Z
G P S V T F
Refer to the Owner’s Manual for limitations and more details on this system before
attempting to use it.
Press (1)
When the engine is turned off, the last state (ON/
OFF) of the charger is memorized.
Place device nearest the center of charging area for
best results. Moving device may result in stopping
or restarting the charging process.
Place (2)
Page 31 of 52
29
1 V T I iMENU” button next to the screen.
4 F M F D U iSetup” or “General” in the touch screen to access the general settings
screen.
4 F M F D U iClock.”
5 I F O T F M F D U E F T J S F E J U F N T U P C F S F T F U
Refer to the “Navigation and Multimedia System Owner’s Manual” for more details.
1 Premium Audio only2 Audio Plus/Premium Audio only
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Garage door opener (HomeLink®*) (if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 5-4 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
I U U Q X X X I P N F M J O L D P N U P Z P U B
* HomeLink®
is a registered trademark of Gentex Corporation.
Buttons
Remote
HomeLink® indicator light
Garage door operation
indicators
Select to change time zone
Select to daylight savings
time ON/OFF/AUTO1.
Select to set to automatic
GPS adjustment of clock.2
Select to set hour display
to 12 or 24 hour time.
Clock
Page 32 of 52
30

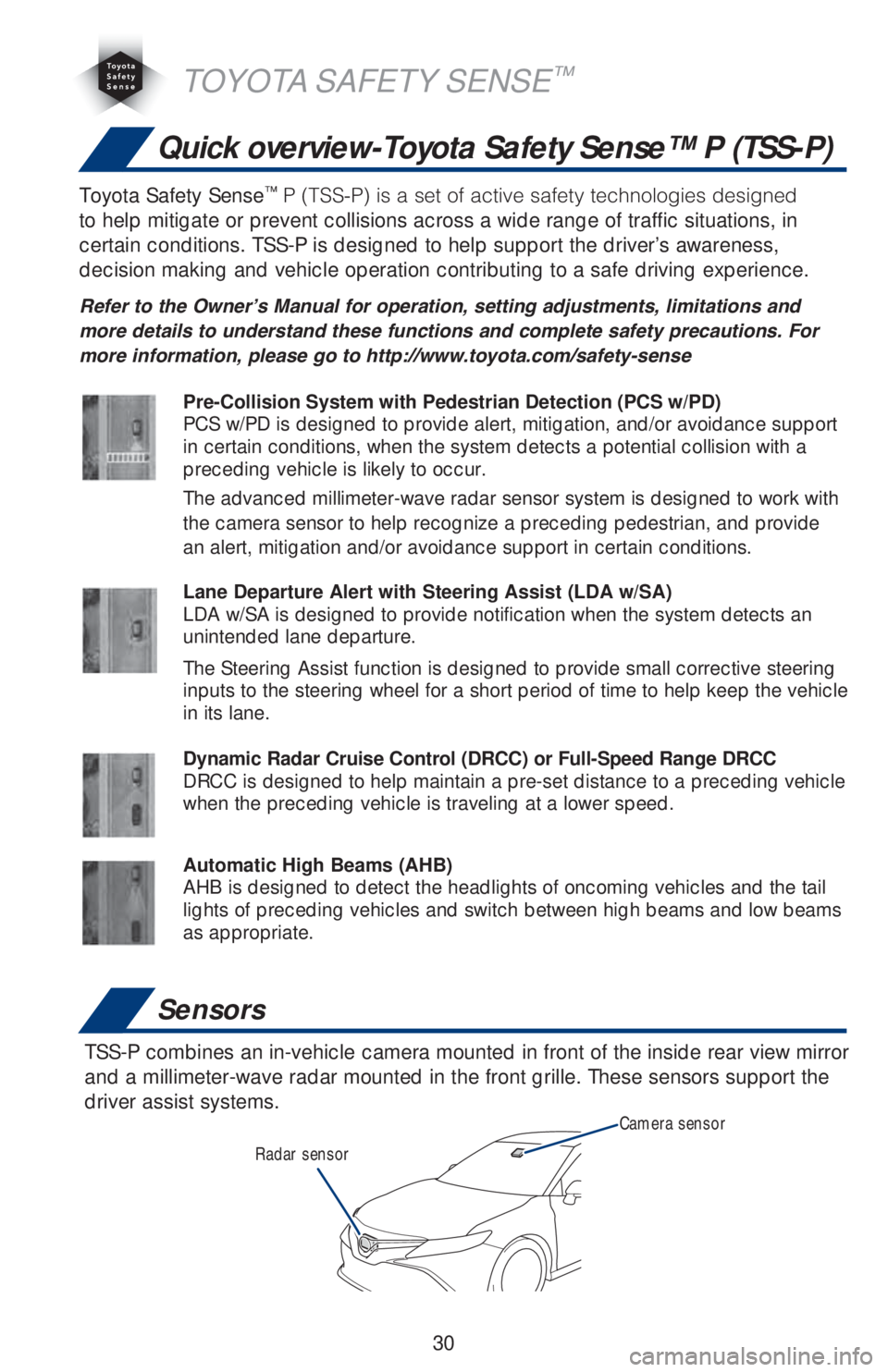

Quick overview-Toyota Safety Sense™ P (TSS-P)
Sensors
TSS-P combines an in-vehicle camera mounted in front of the inside rear view mirror
and a millimeter-wave radar mounted in the front grille. These sensors support the
driver assist systems.
TOYOTA SAFETY SENSE™
Toyota Safety Sense™ 1 5 4 4 1
J T B T F U P G B D U J W F T B G F U Z U F D I O P M P H J F T E F T J H O F E
to help mitigate or prevent collisions across a wide range of traffic situations, in
certain conditions. TSS-P is designed to help support the driver’s awareness,
decision making and vehicle operation contributing to a safe driving experience.
5 H I H U W R W K H 2 Z Q H U
