2020 TOYOTA AYGO Owners Manual (in English)

16 - NAVIGATION SYSTEM OWNER’S MANUAL
NItem Additional info
12JUNCTION VIEW image During navigation on motorways or major
roads a Junction View may be displayed
when approaching a road junction. The
Junction View is a special graphic image
of the junction point, represented in a
schematic way, similar as it appears in the
reality.
It pops up automatically and it is displayed
until the junction is passed. The lane to be
followed is highlighted.
To come back to standard view, tap on the
image.
13Distance to
NEXT MANEUVERIt shows the distance from current position
to the maneuver.
MAP - Junction view
12
13

NAVIGATION SYSTEM2
2.1 SETTINGS 18
2.1.1 USER SETTINGS MENU 18
2.1.2 MAP SETTINGS MENU 20
2.2 DRIVE TO MENU 21
2.2.1 Searching a POI 21
2.2.2 Favourites list 22
2.2.3 Home mark 23
2.2.4 Other Drive to options 24
2.3 TURN LIST 25
2.3.1 The turn list 25
2.3.2 How to avoid a manouveur 27
2.4 TRIP OVERVIEW 27
2.5 GPS PAGE 28

18 - NAVIGATION SYSTEM OWNER’S MANUAL
2.1 SETTINGS
Navigation System
2.1.1 USER SETTINGS MENU
In the Navigation Menu, press the “User settings” button.
123
4 5 6
78
User settings menu page 1
User settings menu page 2

NAVIGATION SYSTEM OWNER’S MANUAL - 19
NSetup Description
1LANGUAGE It is possible to change the language
of the software anytime from this
setup. It affects both, texts and vocal
instructions.
List of languages
2TIME ZONE
The date and the time are
automatically taken, in UTC format,
from the GPS data. Select your time
zone to adjust the UTC time.
List of time zones
3VOLUME
Level control for vocal instructions
volume, with “Test” and “Mute”
button.
Volume slider
4UNITS
Switch from metric to imperial for
Distance, Speed and Altitude.
List of presetted options
5DATE AND TIME PRESENTATION Date formats: dd/mm/yyyy or mm/
dd/yyyy
Time formats: 12 am /12 pm or 24h
List of available formats
6ABOUT
Navigation system info: software and
map version.
Info page
7CLEAR RECENTS Clear all the recently searched
destinations.
8FACTORY RESETSet back the navigation system to
the factory defaults setting.

20 - NAVIGATION SYSTEM OWNER’S MANUAL
2.1.2 MAP SETTINGS MENU
In the Navigation Menu, press the “Map settings” button.
123
4 5
NSetup Description
1ROUTE SETTINGS It allows to enable alternative routing and
junction view. It also allows to customize the
route calculations, avoiding special type of
roads, such as toll roads.
2MAP VIEWView options: 2D north up, 2D head up or 3D.
3ICONS ON MAPHide or show POI icons on map.
4PALETTEMap palette options: day light or night view.
5AUTOZOOMEnable or disable autozoom option.
6SPEED CAMERAEnable or disable speed camera alarm and
speed camera icons on map.Map settings menu page
6

NAVIGATION SYSTEM OWNER’S MANUAL - 21
2.2 DRIVE TO MENU
2.2.1 Searching a POI
In the Navigation Menu, press the “Drive to” button, then press “POI button”.
123
NFunction Description
1NEARBY Allows to select a POI close to your position.
Available only with GPS position.
2NEAR TOWNAllows to select country and town name with
the virtual keyboard.
3NEAR DESTINATIONAllows to select a POI close to the set
destination. Available only with an active route.
To change the research range:
1. Choose the search option, for instance “Nearby”.
2. In the categories list, on the right side press “Change range”.
3. Move the control to set the range and then press “Back” button to go back to the
categories list.
4. Continue by choosing the subcategory or by pressing the “Search by name” button. POI menu
To search by name:
1. Choose the search option, for instance “Nearby”.
2. In the categories list, on the right side press button “Search by name”.
3. Enter name in with the virtual keyboard and press OK.
4. Choose the POI in the results list.

22 - NAVIGATION SYSTEM OWNER’S MANUAL
2.2.2 Favourites list
In the Drive to menu, press the “Favourites” button. At the first use, the list appears
empty.
To add a favourite:
1. On map, when in cursor mode press the bottom bar.
2. In the full info page, press “Add as favourite” button.
or
1. Search a point by entering an address or using “POI”, “Coordinates”, “Recents”
options in the Drive to menu.
2. At the end of the process, in the Start Navigation pop up menu, press the “Save as favourite” button.
To set a favourite mark as destination:
1. In the favourites list, scroll the list and tap on the chosen mark.
2. In the Start Navigation pop up menu, press the “Drive to” button.
Favourites list
Categories list

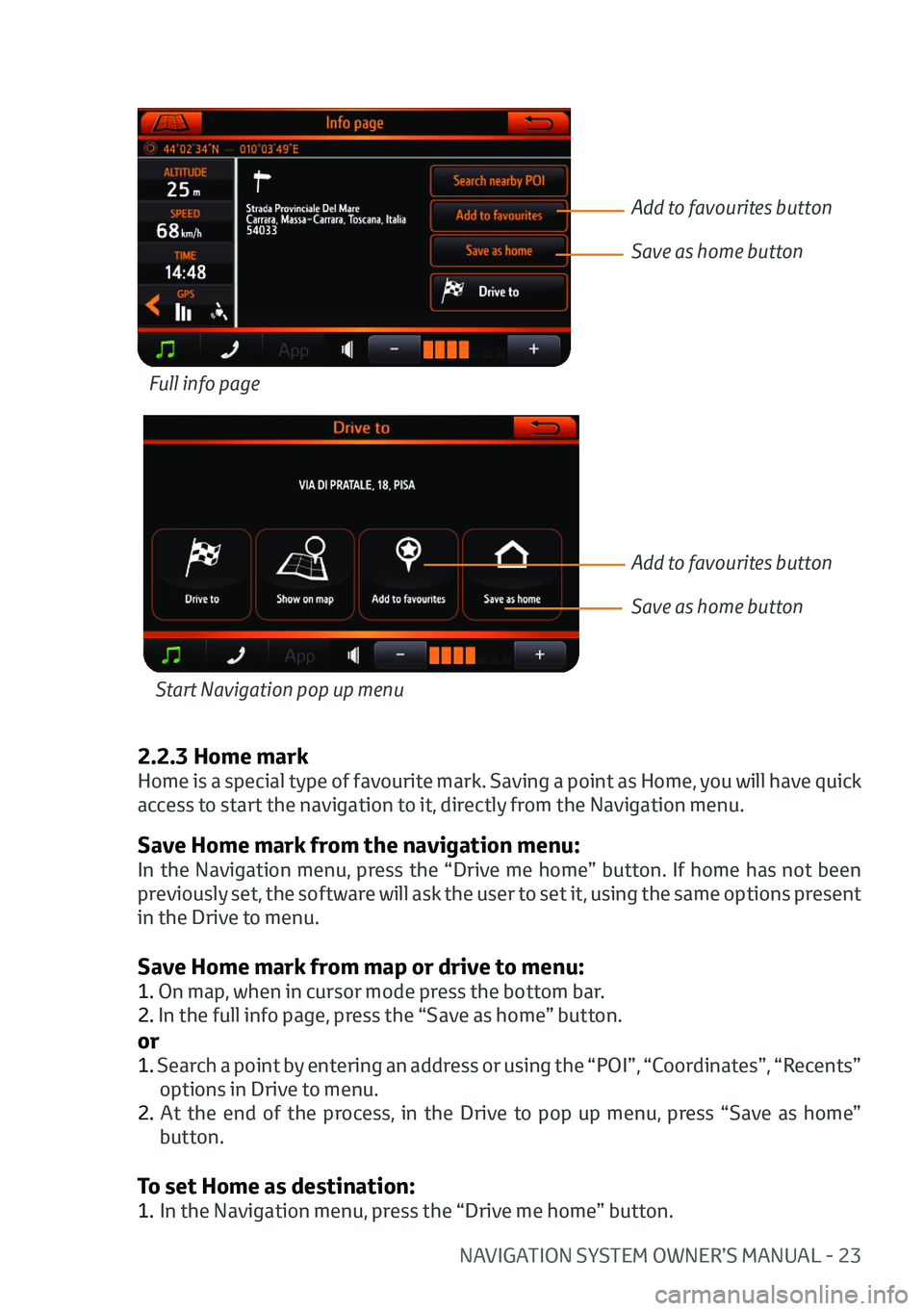

NAVIGATION SYSTEM OWNER’S MANUAL - 23
Save Home mark from the navigation menu:
In the Navigation menu, press the “Drive me home” button. If home has not been
previously set, the software will ask the user to set it, using the same options present
in the Drive to menu.
Save Home mark from map or drive to menu:
1. On map, when in cursor mode press the bottom bar.
2. In the full info page, press the “Save as home” button.
or
1. Search a point by entering an address or using the “POI”, “Coordinates”, “Recents”
options in Drive to menu.
2. At the end of the process, in the Drive to pop up menu, press “Save as home” button.
To set Home as destination:
1. In the Navigation menu, press the “Drive me home” button.
Full info page
Start Navigation pop up menu
Add to favourites button
Save as home button
Add to favourites button
Save as home button
2.2.3 Home mark
Home is a special type of favourite mark. Saving a point as Home, you will have quick
access to start the navigation to it, directly from the Navigation menu.
