2020 SUBARU BRZ Owners Manual

497
6-1. Specifications
6
Vehicle specifications
BRZ_U

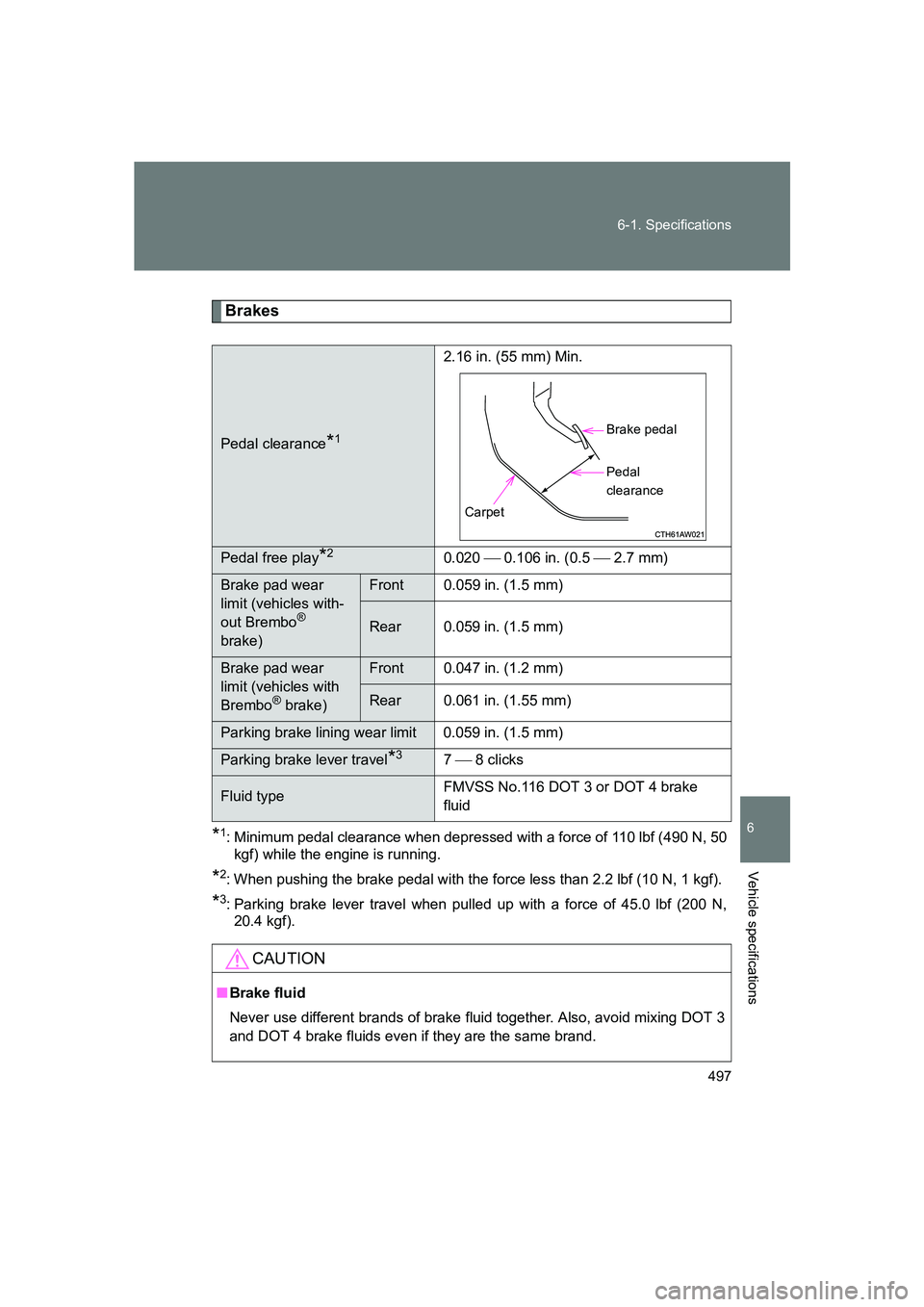

Brakes
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50
kgf) while the engine is running.
*2: When pushing the brake pedal with the force less than 2.2 lbf (10 N, 1 kgf).
*3: Parking brake lever travel when pulled up with a force of 45.0 lbf (200 N,20.4 kgf).
Pedal clearance*1
2.16 in. (55 mm) Min.
Pedal free play*20.020  0.106 in. (0.5  2.7 mm)
Brake pad wear
limit (vehicles with-
out Brembo
®
brake)
Front 0.059 in. (1.5 mm)
Rear 0.059 in. (1.5 mm)
Brake pad wear
limit (vehicles with
Brembo
® brake)
Front 0.047 in. (1.2 mm)
Rear 0.061 in. (1.55 mm)
Parking brake lining wear limit 0.059 in. (1.5 mm)
Parking brake lever travel*37  8 clicks
Fluid type FMVSS No.116 DOT 3 or DOT 4 brake
fluid
CAUTION
■
Brake fluid
Never use different brands of brake fluid together. Also, avoid mixing DOT 3
and DOT 4 brake fluids even if they are the same brand.
Brake pedal
Pedal
clearance
Carpet

498 6-1. Specifications
BRZ_U■

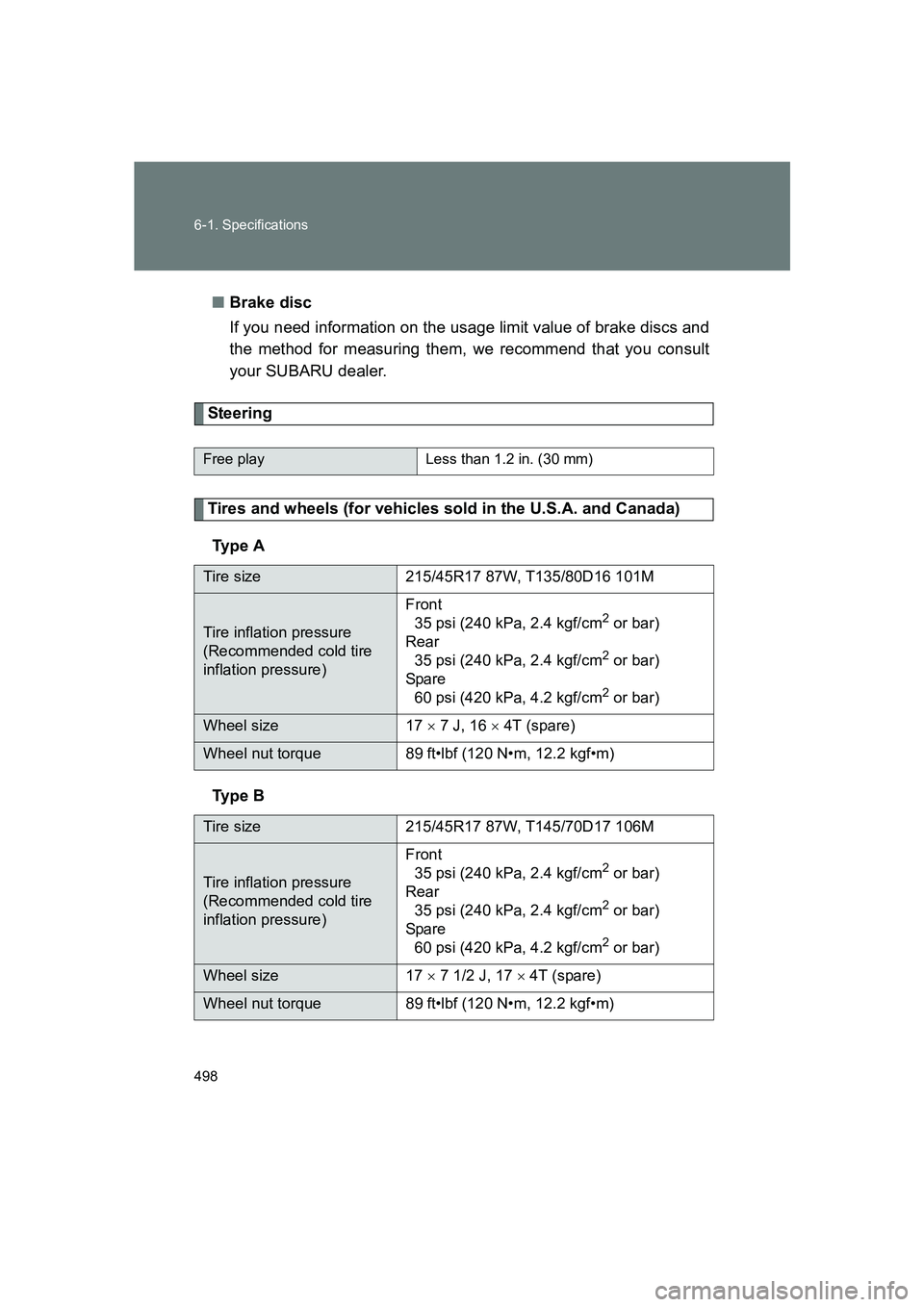

Brake disc
If you need information on the usage limit value of brake discs and
the method for measuring them, we recommend that you consult
your SUBARU dealer.
Steering
Tires and wheels (for vehicles sold in the U.S.A. and Canada)
Ty p e A
Ty p e B
Free play Less than 1.2 in. (30 mm)
Tire size 215/45R17 87W, T135/80D16 101M
Tire inflation pressure
(Recommended cold tire
inflation pressure) Front
35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear 35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Spare 60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size 17 × 7 J, 16 × 4T (spare)
Wheel nut torque 89 ft•lbf (120 N•m, 12.2 kgf•m)
Tire size 215/45R17 87W, T145/70D17 106M
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front
35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Rear 35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Spare 60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size 17 × 7 1/2 J, 17 × 4T (spare)
Wheel nut torque 89 ft•lbf (120 N•m, 12.2 kgf•m)

499
6-1. Specifications
6
Vehicle specifications
BRZ_U
Ty p e C
Tires and wheels (for vehicles sold in Mexico)
Tire size 215/40R18 85Y, T145/70D17 106M
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front
35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear 35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Spa re 60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size 18 × 7 1/2 J, 17 × 4T (spare)
Wheel nut torque 89 ft•lbf (120 N•m, 12.2 kgf•m)
Tire size 215/45R17 87W
Tire inflation pressure
(Recommended cold tire
inflation pressure) Front
35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Rear 35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Spa re 35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Wheel size 17 × 7 J
Wheel nut torque 89 ft•lbf (120 N•m, 12.2 kgf•m)

500 6-1. Specifications
BRZ_U

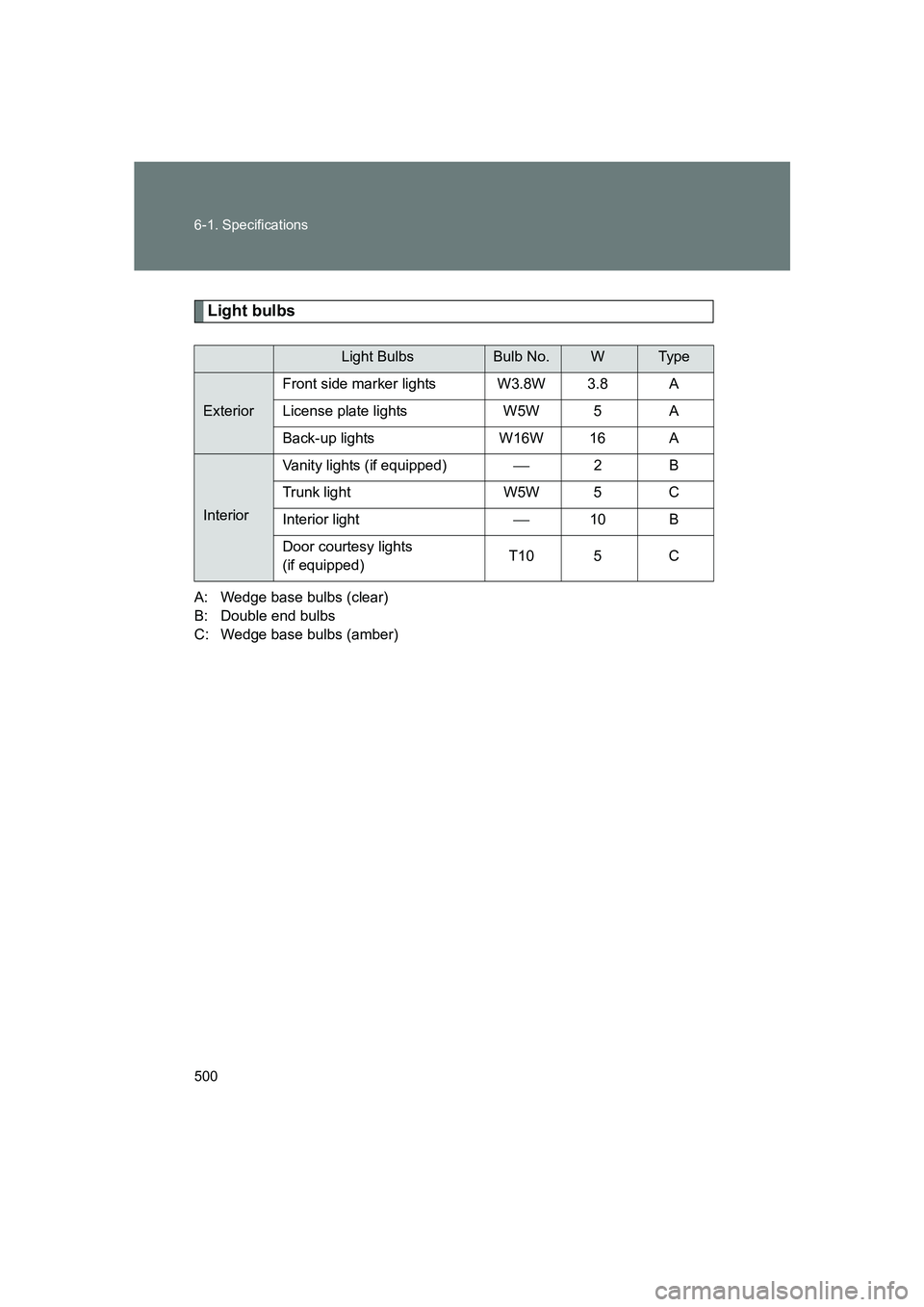

Light bulbs
A: Wedge base bulbs (clear)
B: Double end bulbs
C: Wedge base bulbs (amber)
Light BulbsBulb No.WTy p e
ExteriorFront side marker lights W3.8W 3.8 A
License plate lights W5W 5 A
Back-up lights W16W 16 A
InteriorVanity lights (if equipped)
2B
Trunk light W5W 5 C
Interior light 10 B
Door courtesy lights
(if equipped) T10 5 C

501
6-1. Specifications
6
Vehicle specifications
BRZ_U

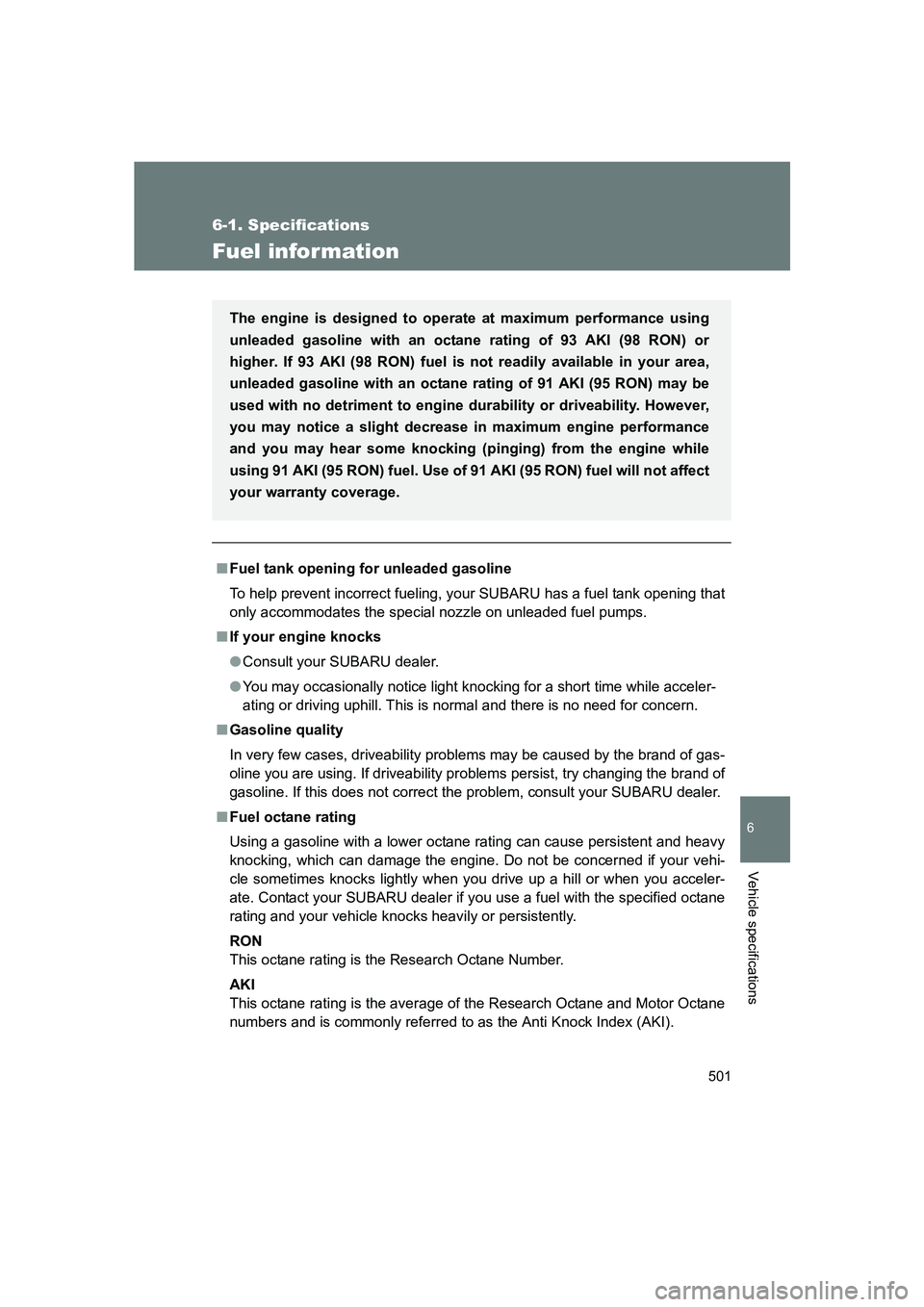

Fuel information
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your SUBARU has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
■ If your engine knocks
● Consult your SUBARU dealer.
● You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
■ Gasoline quality
In very few cases, driveability problems may be caused by the brand of gas-
oline you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your SUBARU dealer.
■ Fuel octane rating
Using a gasoline with a lower octane rating can cause persistent and heavy
knocking, which can damage the engine. Do not be concerned if your vehi-
cle sometimes knocks lightly when you drive up a hill or when you acceler-
ate. Contact your SUBARU dealer if you use a fuel with the specified octane
rating and your vehicle knocks heavily or persistently.
RON
This octane rating is the Research Octane Number.
AKI
This octane rating is the average of the Research Octane and Motor Octane
numbers and is commonly referred to as the Anti Knock Index (AKI). The engine is designed to operate at maximum performance using
unleaded gasoline with an octane rating of 93 AKI (98 RON) or
higher. If 93 AKI (98 RON) fuel is not readily available in your area,
unleaded gasoline with an octane rating of 91 AKI (95 RON) may be
used with no detriment to engine durability or driveability. However,
you may notice a slight decrease in maximum engine performance
and you may hear some knocking (pinging) from the engine while
using 91 AKI (95 RON) fuel. Use of 91 AKI (95 RON) fuel will not affect
your warranty coverage.

502 6-1. Specifications
BRZ_U

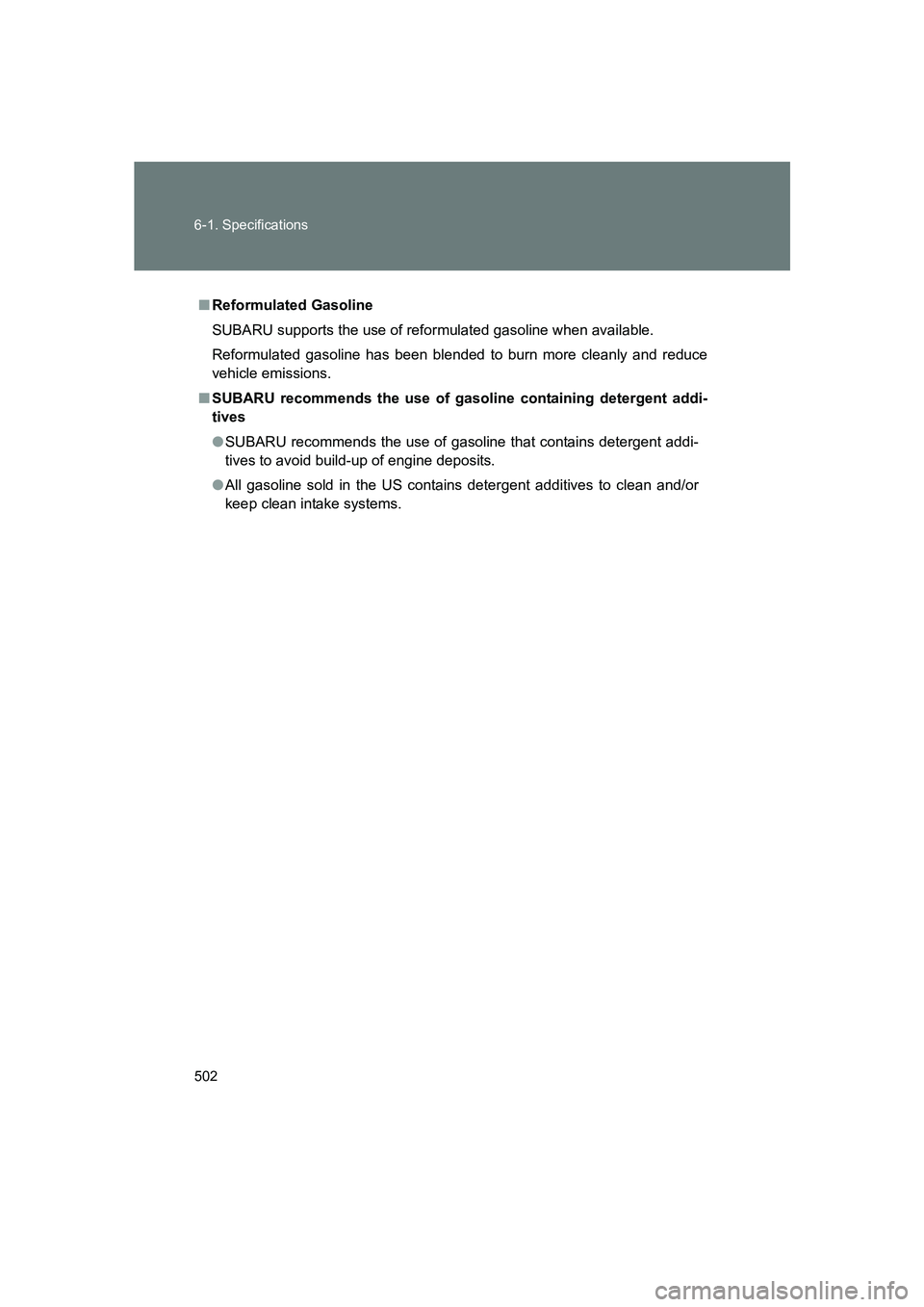

■Reformulated Gasoline
SUBARU supports the use of reformulated gasoline when available.
Reformulated gasoline has been blended to burn more cleanly and reduce
vehicle emissions.
■ SUBARU recommends the use of gasoline containing detergent addi-
tives
●SUBARU recommends the use of gasoline that contains detergent addi-
tives to avoid build-up of engine deposits.
● All gasoline sold in the US contains detergent additives to clean and/or
keep clean intake systems.

503
6-1. Specifications
6
Vehicle specifications
BRZ_U
■

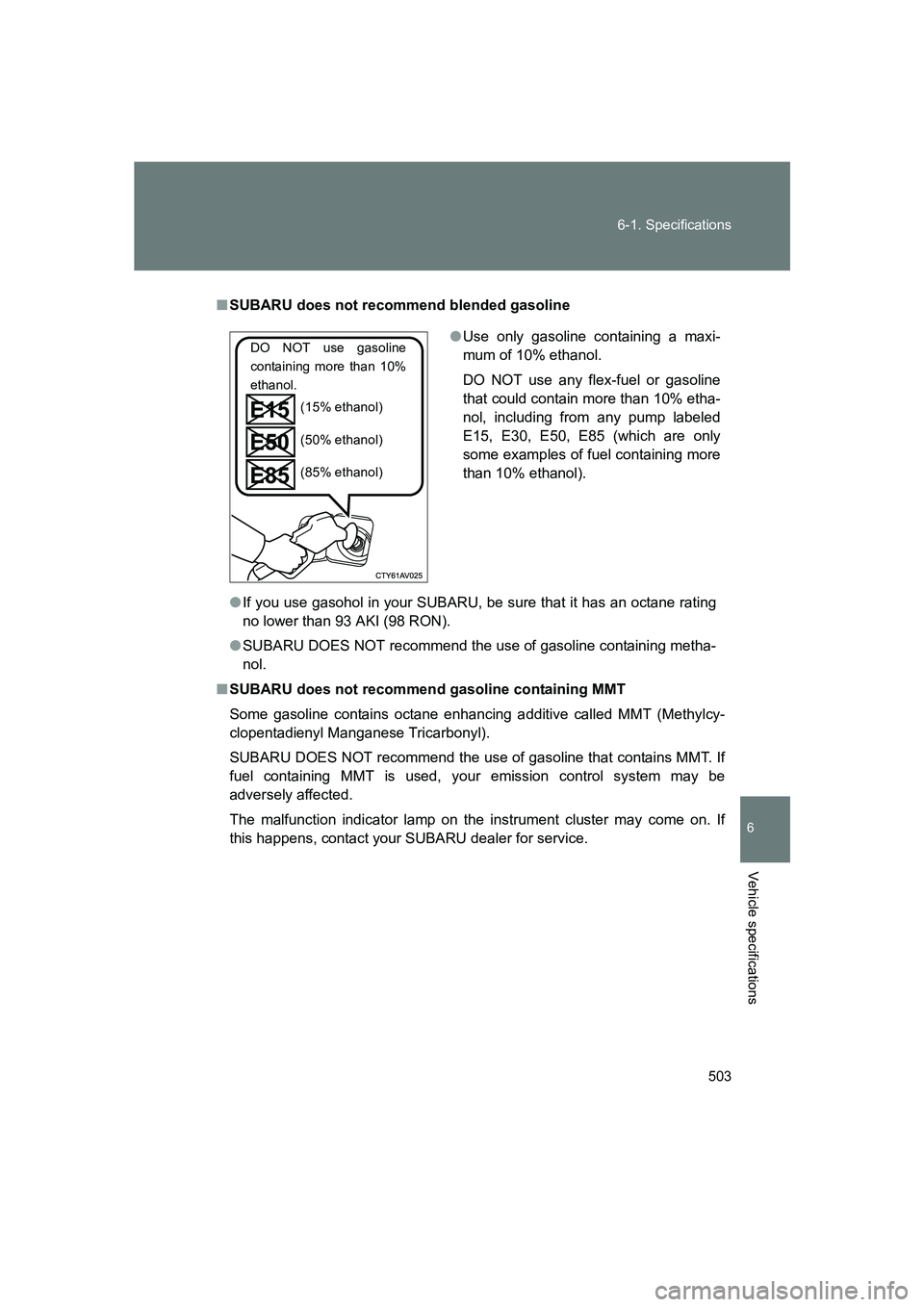

SUBARU does not recommend blended gasoline
● If you use gasohol in your SUBARU, be sure that it has an octane rating
no lower than 93 AKI (98 RON).
● SUBARU DOES NOT recommend the use of gasoline containing metha-
nol.
■ SUBARU does not recommend gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
SUBARU DOES NOT recommend the use of gasoline that contains MMT. If
fuel containing MMT is used, your emission control system may be
adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your SUBARU dealer for service. ●
Use only gasoline containing a maxi-
mum of 10% ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 10% etha-
nol, including from any pump labeled
E15, E30, E50, E85 (which are only
some examples of fuel containing more
than 10% ethanol).
DO NOT use gasoline
containing more than 10%
ethanol.
(15% ethanol)
(50% ethanol)
(85% ethanol)

504 6-1. Specifications
BRZ_U

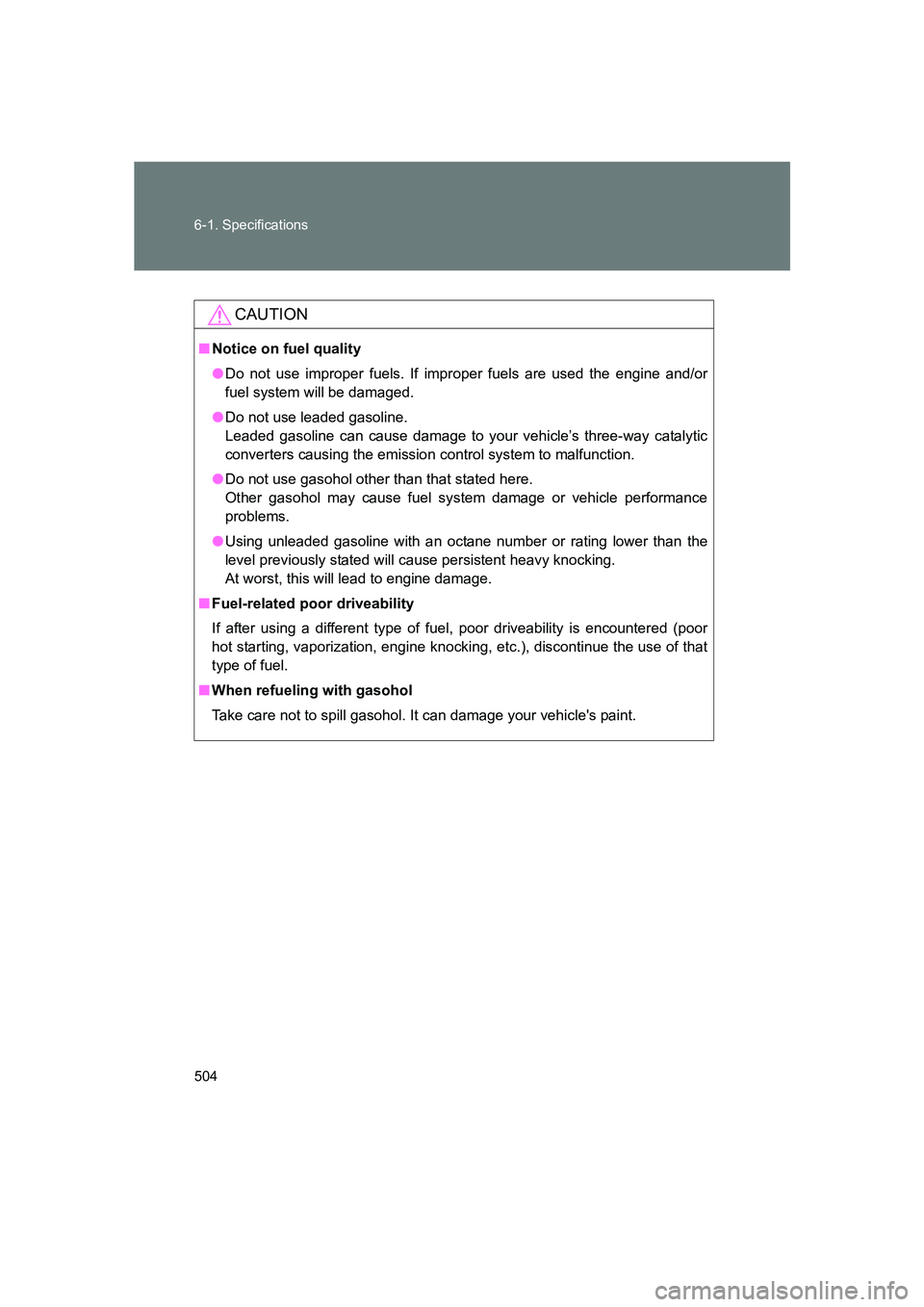

CAUTION
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used the engine and/or
fuel system will be damaged.
● Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.
● Do not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance
problems.
● Using unleaded gasoline with an octane number or rating lower than the
level previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■ Fuel-related poor driveability
If after using a different type of fuel, poor driveability is encountered (poor
hot starting, vaporization, engine knocking, etc.), discontinue the use of that
type of fuel.
■ When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle's paint.
