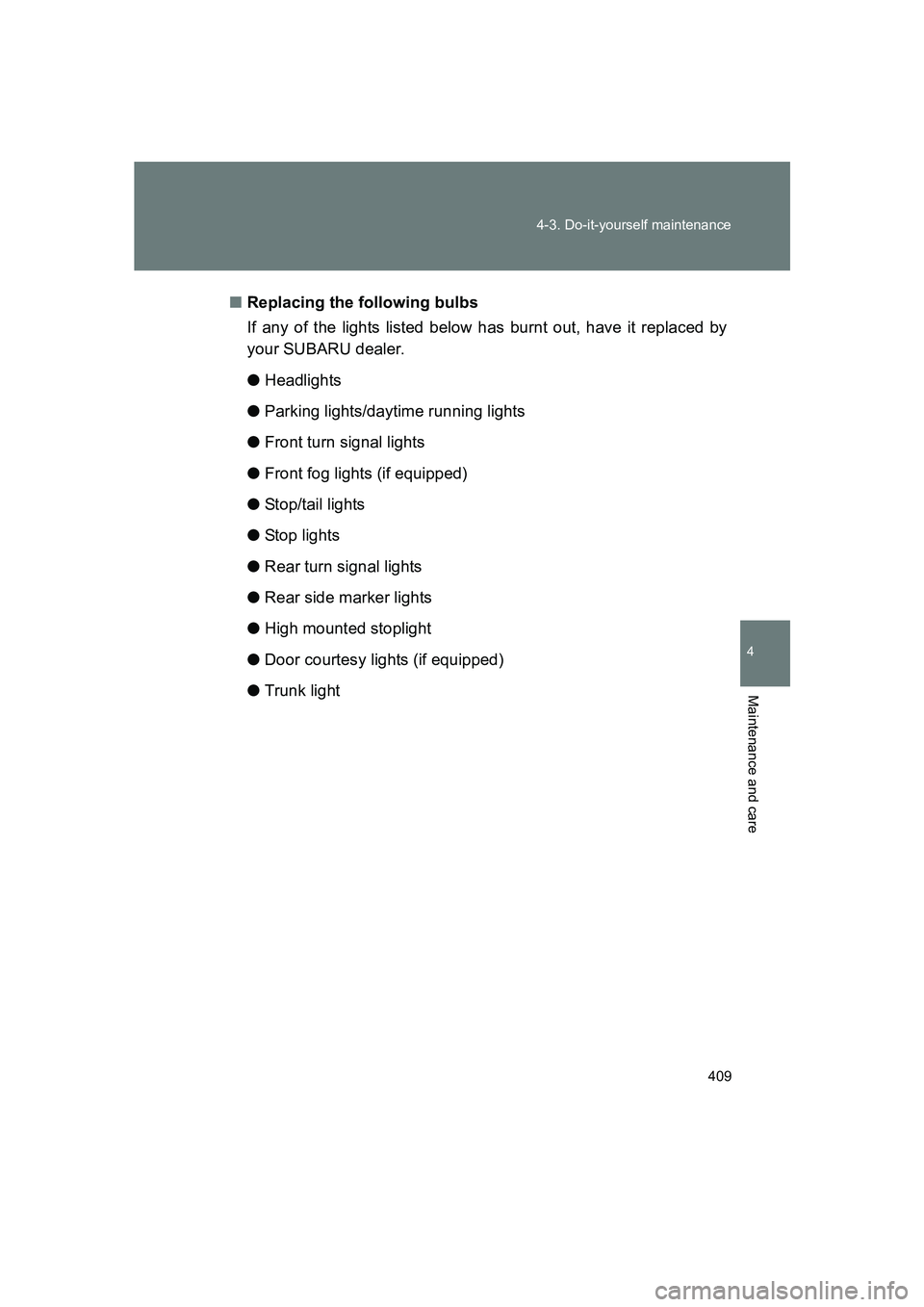

2020 SUBARU BRZ Owners Manual

409
4-3. Do-it-yourself maintenance
4
Maintenance and care
BRZ_U
■
Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your SUBARU dealer.
●Headlights
● Parking lights/daytime running lights
● Front turn signal lights
● Front fog lights (if equipped)
● Stop/tail lights
● Stop lights
● Rear turn signal lights
● Rear side marker lights
● High mounted stoplight
● Door courtesy lights (if equipped)
● Trunk light

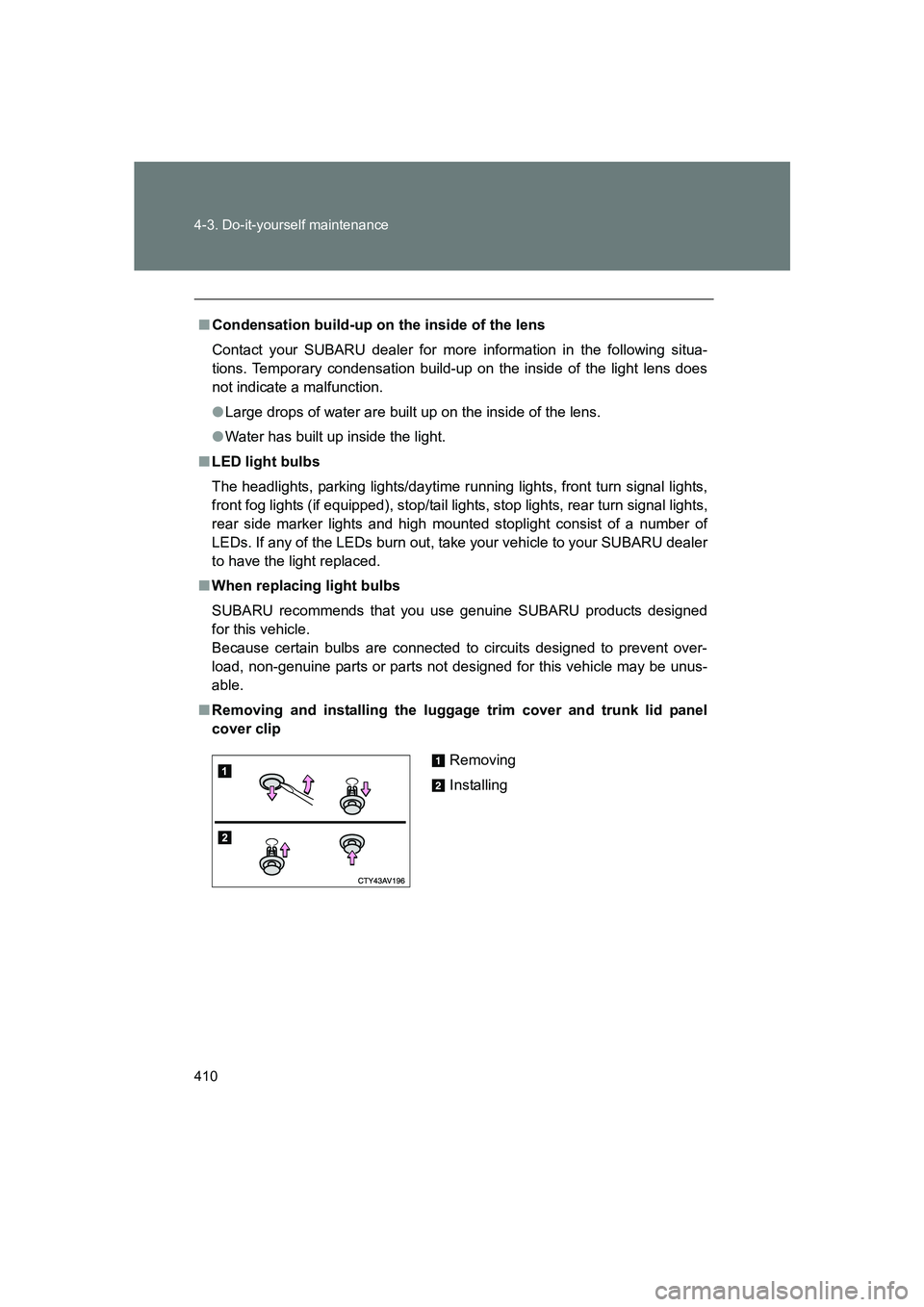

410 4-3. Do-it-yourself maintenance
BRZ_U
■Condensation build-up on the inside of the lens
Contact your SUBARU dealer for more information in the following situa-
tions. Temporary condensation build-up on the inside of the light lens does
not indicate a malfunction.
●Large drops of water are built up on the inside of the lens.
● Water has built up inside the light.
■ LED light bulbs
The headlights, parking lights/daytime running lights, front turn signal lights,
front fog lights (if equipped), stop/tail lights, stop lights, rear turn signal lights,
rear side marker lights and high mounted stoplight consist of a number of
LEDs. If any of the LEDs burn out, take your vehicle to your SUBARU dealer
to have the light replaced.
■ When replacing light bulbs
SUBARU recommends that you use genuine SUBARU products designed
for this vehicle.
Because certain bulbs are connected to circuits designed to prevent over-
load, non-genuine parts or parts not designed for this vehicle may be unus-
able.
■ Removing and installing the luggage trim cover and trunk lid panel
cover clip
Removing
Installing

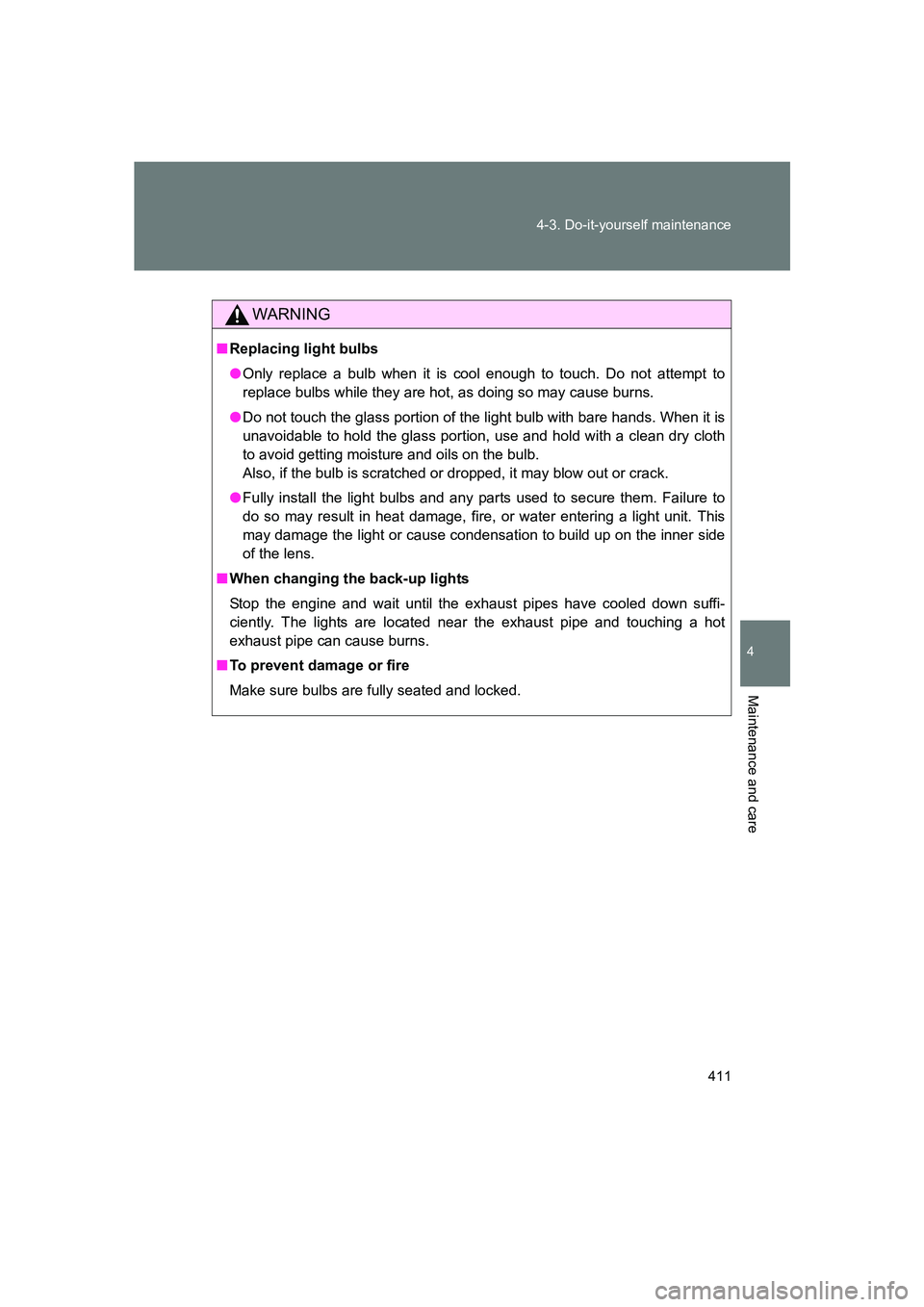

411
4-3. Do-it-yourself maintenance
4
Maintenance and care
BRZ_U
WARNING
■
Replacing light bulbs
● Only replace a bulb when it is cool enough to touch. Do not attempt to
replace bulbs while they are hot, as doing so may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install the light bulbs and any parts used to secure them. Failure to
do so may result in heat damage, fire, or water entering a light unit. This
may damage the light or cause condensation to build up on the inner side
of the lens.
■ When changing the back-up lights
Stop the engine and wait until the exhaust pipes have cooled down suffi-
ciently. The lights are located near the exhaust pipe and touching a hot
exhaust pipe can cause burns.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

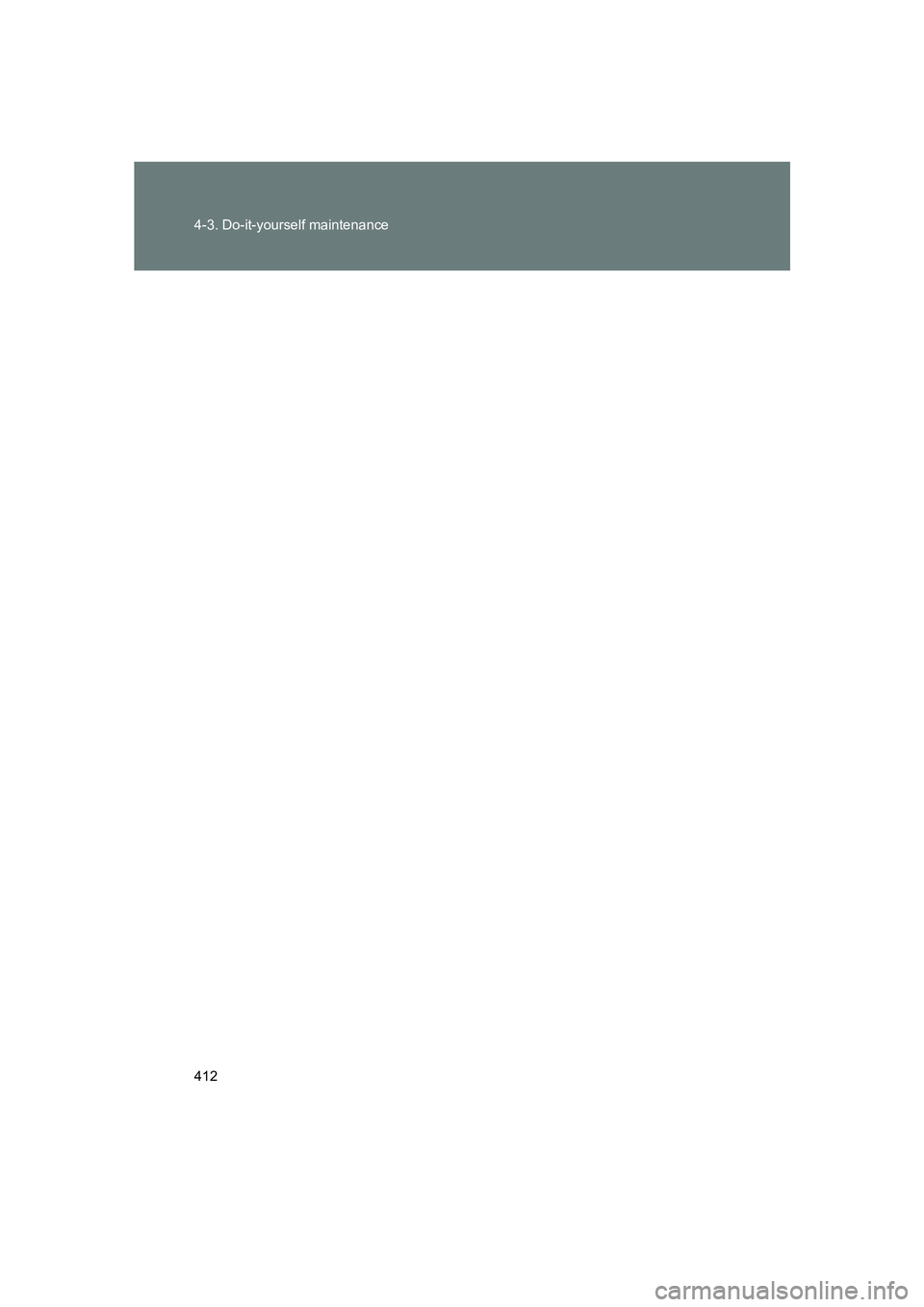

412 4-3. Do-it-yourself maintenance
BRZ_U

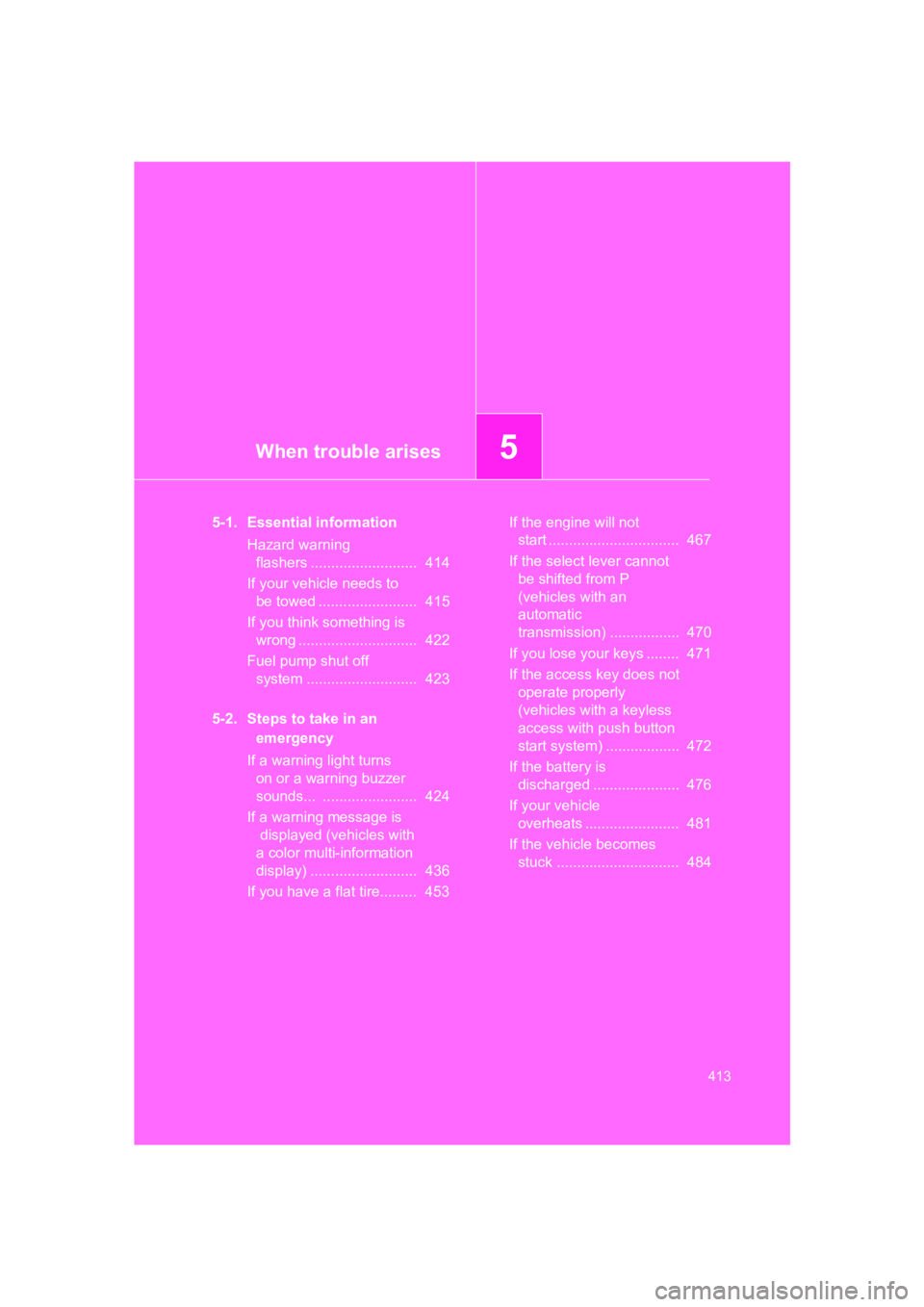

When trouble arises5
413
BRZ_U
5-1. Essential informationHazard warning flashers .......................... 414
If your vehicle needs to be towed ........................ 415
If you think something is wrong ............................. 422
Fuel pump shut off system ........................... 423
5-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer
sounds... ....................... 424
If a warning message is displayed (vehicles with
a color multi-information
display) .......................... 436
If you have a flat tire......... 453 If the engine will not
start ................................ 467
If the select lever cannot be shifted from P
(vehicles with an
automatic
transmission) ................. 470
If you lose your keys ........ 471
If the access key does not operate properly
(vehicles with a keyless
access with push button
start system) .................. 472
If the battery is discharged ..................... 476
If your vehicle overheats ....................... 481
If the vehicle becomes stuck .............................. 484

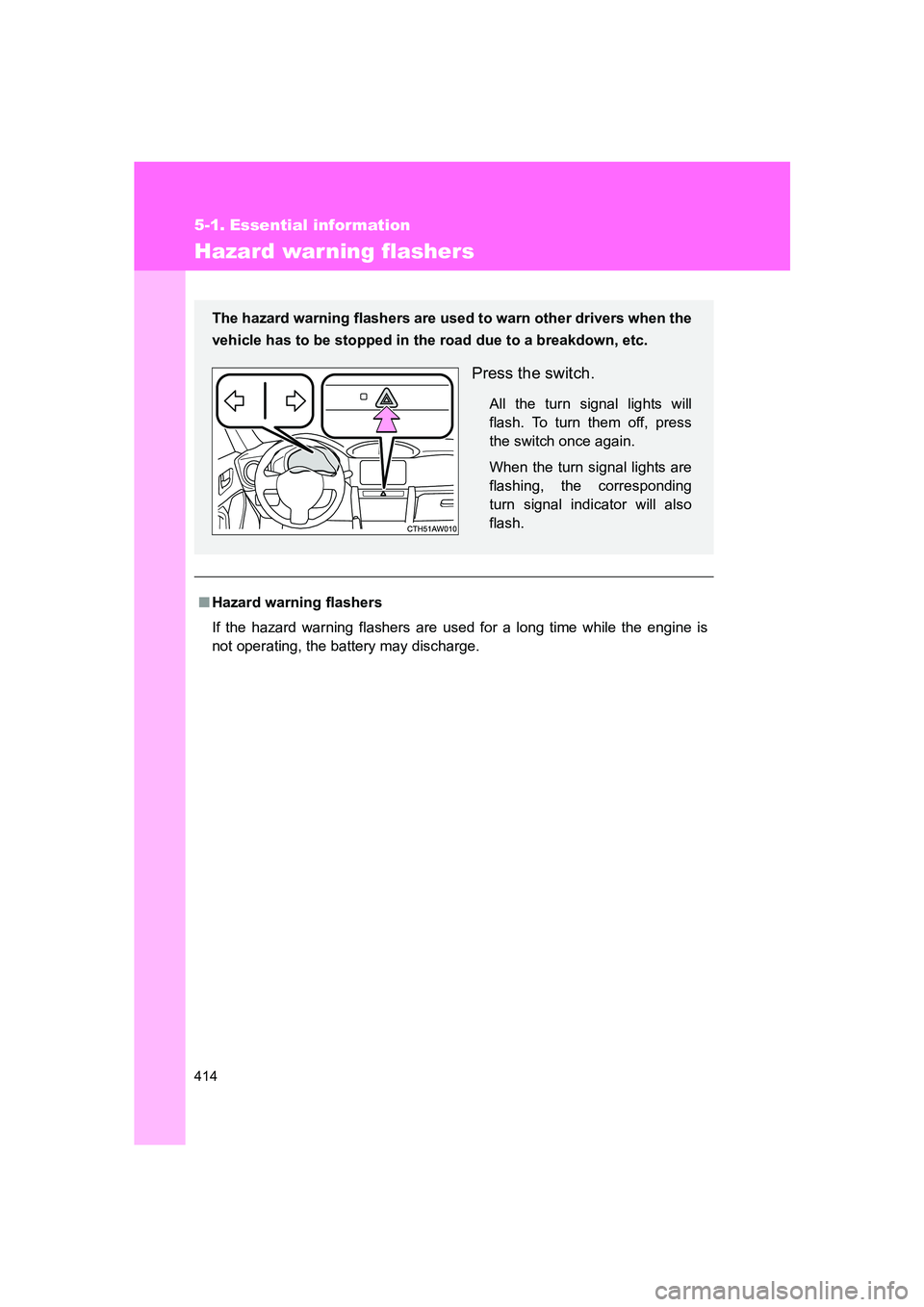

414
BRZ_U
5-1. Essential information
Hazard war ning flashers
■Hazard warning flashers
If the hazard warning flashers are used for a long time while the engine is
not operating, the battery may discharge. The hazard warning flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
Press the switch.
All the turn signal lights will
flash. To turn them off, press
the switch once again.
When the turn signal lights are
flashing, the corresponding
turn signal indicator will also
flash.

5
When trouble arises
415
5-1. Essential information
BRZ_U
If your vehicle needs to be towed
Emergency towingIf a tow truck is not available in an emergency, your vehicle may be
temporarily towed using a cable or chain secured to the emergency
towing eyelet to move the vehicle to a safe location or to free a stuck
vehicle from sand or snow. This should only be attempted on hard
surfaced roads for short distances at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The
vehicle's wheels, drive train, axles, steering and brakes must be in
good condition.
For vehicles with an automatic transmission, only the front towing
eyelet may be used. Towing eyelet
If towing is necessary, we recommend having your vehicle towed by
your SUBARU dealer or a comme rcial towing service, using a flat
bed truck.
The vehicle must be secured properly with safety chains. Each
safety chain should be equally tightened and care must be taken not
to pull the chains so tightly that the suspension bottoms out.

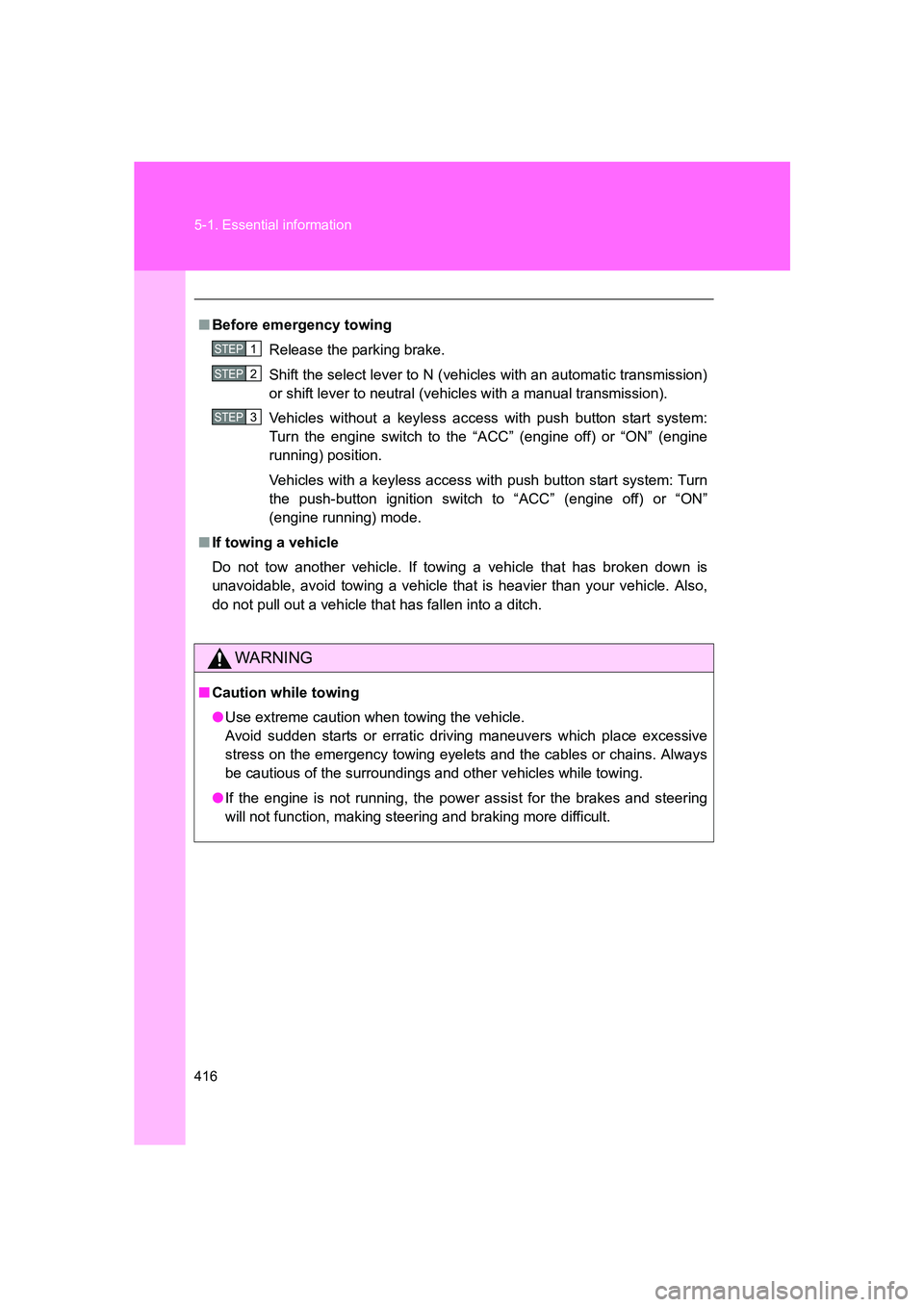

416 5-1. Essential information
BRZ_U
■Before emergency towing
Release the parking brake.
Shift the select lever to N (vehicles with an automatic transmission)
or shift lever to neutral (vehicles with a manual transmission).
Vehicles without a keyless access with push button start system:
Turn the engine switch to the “A CC” (engine off) or “ON” (engine
running) position.
Vehicles with a keyless access with push button start system: Turn
the push-button ignition switch to “ACC” (engine off) or “ON”
(engine running) mode.
■ If towing a vehicle
Do not tow another vehicle. If towing a vehicle that has broken down is
unavoidable, avoid towing a vehicle that is heavier than your vehicle. Also,
do not pull out a vehicle that has fallen into a ditch.
WARNING
■Caution while towing
●Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive
stress on the emergency towing eyelets and the cables or chains. Always
be cautious of the surroundings and other vehicles while towing.
● If the engine is not running, the power assist for the brakes and steering
will not function, making steering and braking more difficult.
STEP 1
STEP 2
STEP 3
