2020 NISSAN NV200 Owners Manual

WARNING
∙ The seat belts, the side air bags andcurtain air bags are most effective
when you are sitting well back and
upright in the seat with both feet on
the floor. The side air bag and curtain
air bag inflate with great force. Do not
allow anyone to place their hand, leg
or face near the side air bag on the
side of the seatback of the front seat
or near the side roof rails. Do not allow
anyone sitting in the front seats to ex-
tend their hand out of the window or
lean against the door. Some examples
of dangerous riding positions are
shown in the previous illustrations.
∙ Do not use seat covers on the front seatbacks. They may interfere with
side air bag inflation.

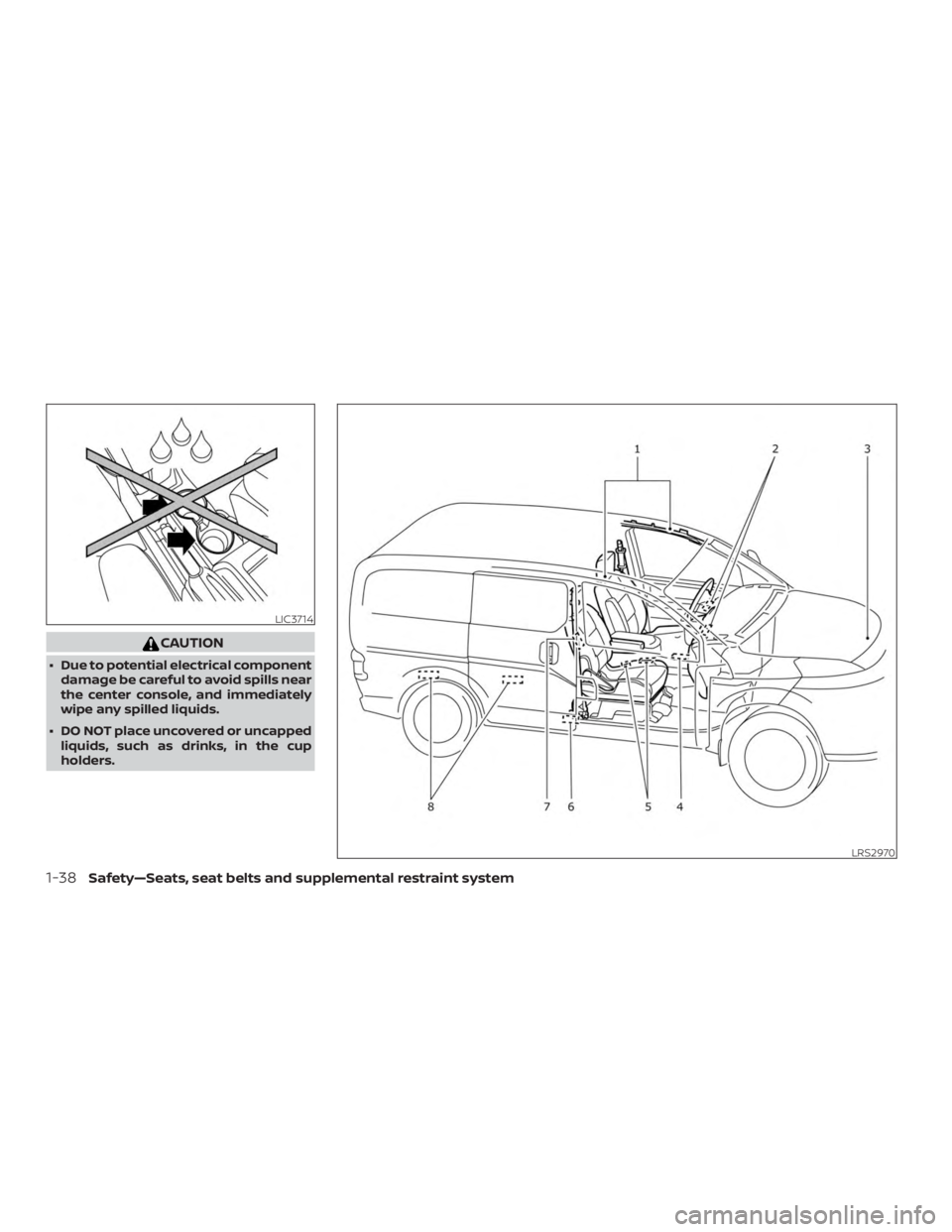

CAUTION
∙ Due to potential electrical componentdamage be careful to avoid spills near
the center console, and immediately
wipe any spilled liquids.
∙ DO NOT place uncovered or uncapped liquids, such as drinks, in the cup
holders.

NISSAN Advanced Air Bag System
(front seats)
1. Roof-mounted curtain side-impactand rollover supplemental air bags
2. Supplemental front-impact air bag modules
3. Crash zone sensor
4. Air bag Control Unit (ACU)
5. Occupant classification sensor (weight sensor)
6. Satellite sensors (passenger’s side shown; driver’s side similar)
7. Front seat-mounted side-impact supplemental air bag modules (pas-
senger’s side shown; driver’s side simi-
lar)
8. Satellite sensors (passenger’s side shown; driver’s side similar)

Front passenger air bag and status light
