2020 NISSAN ALTIMA Owner´s Manual

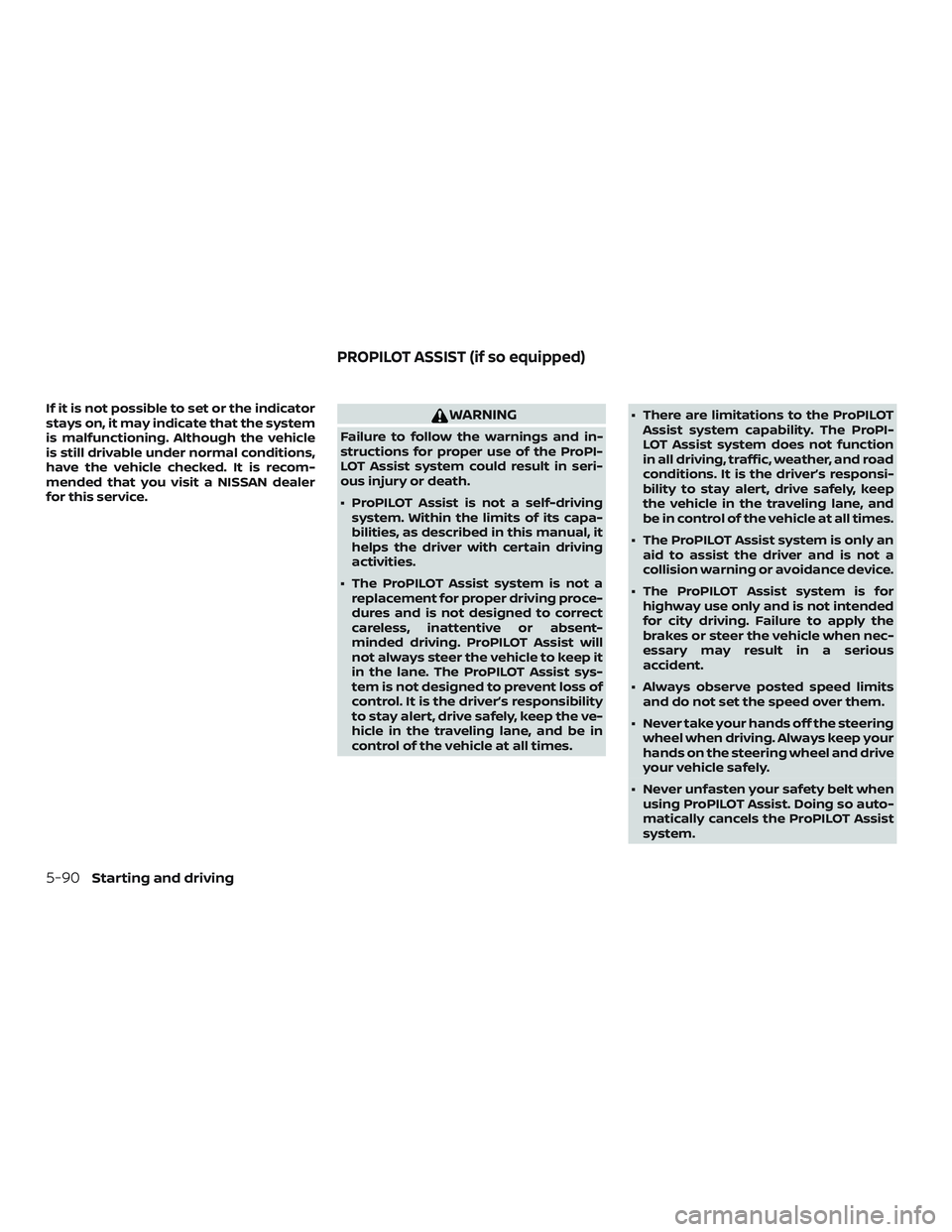

If it is not possible to set or the indicator
stays on, it may indicate that the system
is malfunctioning. Although the vehicle
is still drivable under normal conditions,
have the vehicle checked. It is recom-
mended that you visit a NISSAN dealer
for this service.WARNING
Failure to follow the warnings and in-
structions for proper use of the ProPI-
LOT Assist system could result in seri-
ous injury or death.
∙ ProPILOT Assist is not a self-drivingsystem. Within the limits of its capa-
bilities, as described in this manual, it
helps the driver with certain driving
activities.
∙ The ProPILOT Assist system is not a replacement for proper driving proce-
dures and is not designed to correct
careless, inattentive or absent-
minded driving. ProPILOT Assist will
not always steer the vehicle to keep it
in the lane. The ProPILOT Assist sys-
tem is not designed to prevent loss of
control. It is the driver’s responsibility
to stay alert, drive safely, keep the ve-
hicle in the traveling lane, and be in
control of the vehicle at all times. ∙ There are limitations to the ProPILOT
Assist system capability. The ProPI-
LOT Assist system does not function
in all driving, traffic, weather, and road
conditions. It is the driver’s responsi-
bility to stay alert, drive safely, keep
the vehicle in the traveling lane, and
be in control of the vehicle at all times.
∙ The ProPILOT Assist system is only an aid to assist the driver and is not a
collision warning or avoidance device.
∙ The ProPILOT Assist system is for highway use only and is not intended
for city driving. Failure to apply the
brakes or steer the vehicle when nec-
essary may result in a serious
accident.
∙ Always observe posted speed limits and do not set the speed over them.
∙ Never take your hands off the steering wheel when driving. Always keep your
hands on the steering wheel and drive
your vehicle safely.
∙ Never unfasten your safety belt when using ProPILOT Assist. Doing so auto-
matically cancels the ProPILOT Assist
system.
PROPILOT ASSIST (if so equipped)
5-90Starting and driving

∙ The ProPILOT Assist system does notreact to stationary and slow moving
vehicles.
∙ Always drive carefully and attentively when using the ProPILOT Assist sys-
tem. Read and understand the Own-
er’s Manual thoroughly before using
the ProPILOT Assist system. To avoid
serious injury or death, do not rely on
the system to prevent accidents or to
control the vehicle’s speed in emer-
gency situations. Do not use the Pro-
PILOT Assist system except in appro-
priate road and traffic conditions.

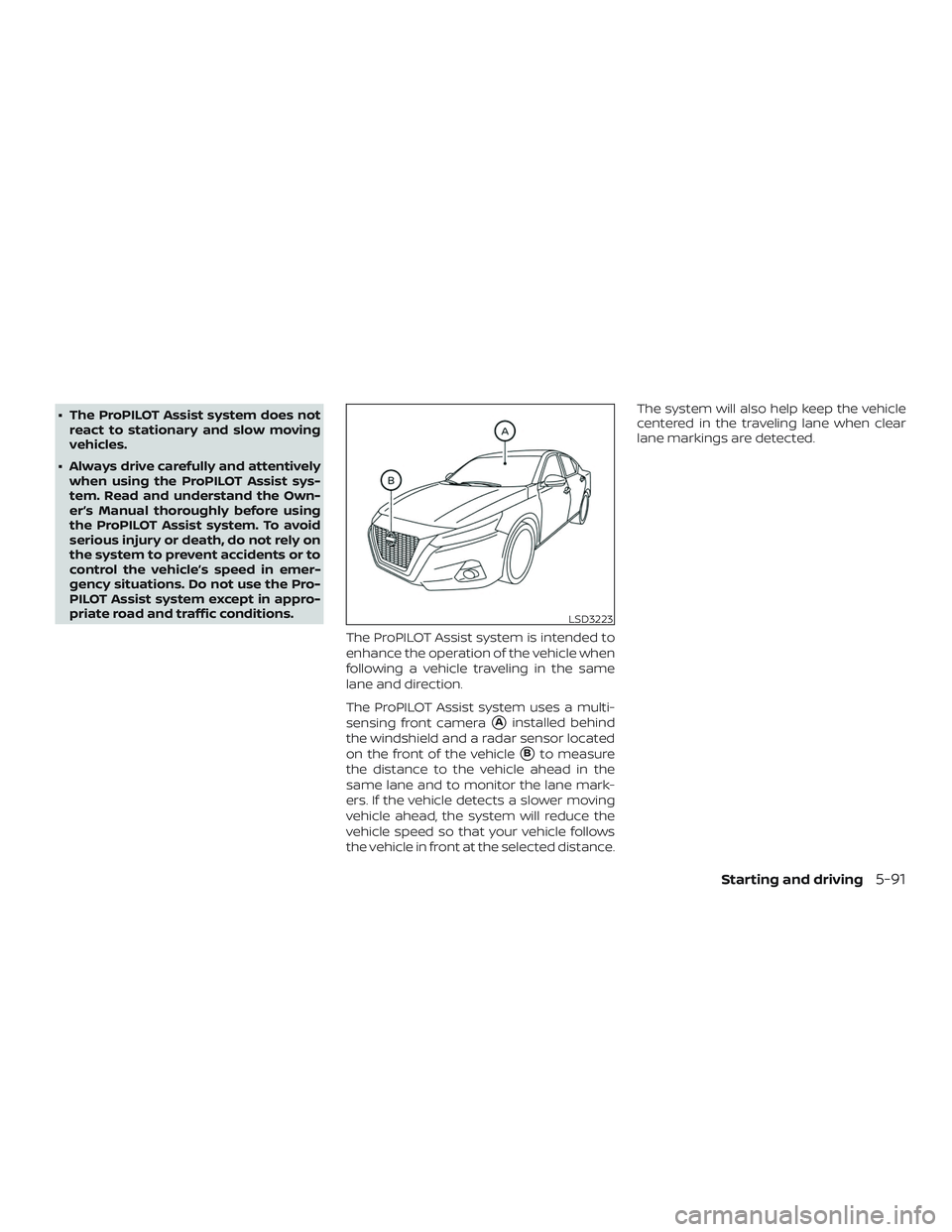

The ProPILOT Assist system is intended to
enhance the operation of the vehicle when
following a vehicle traveling in the same
lane and direction.
The ProPILOT Assist system uses a multi-
sensing front camera
Ainstalled behind
the windshield and a radar sensor located
on the front of the vehicle
Bto measure
the distance to the vehicle ahead in the
same lane and to monitor the lane mark-
ers. If the vehicle detects a slower moving
vehicle ahead, the system will reduce the
vehicle speed so that your vehicle follows
the vehicle in front at the selected distance. The system will also help keep the vehicle
centered in the traveling lane when clear
lane markings are detected.
LSD3223
Starting and driving5-91

1Steering-wheel-mounted control (lef t)
2Vehicle information display
3Steering-wheel-mounted control (right)
4ProPILOT Assist switch
PROPILOT ASSIST SYSTEM
OPERATION
The ProPILOT Assist system has the follow-
ing two functions:1. Intelligent Cruise Control (ICC)
The ICC system can be set to one of
two cruise control modes:
∙ Conventional (fixed speed) cruise
control mode: For cruising at a pre-
set speed
NOTE:
Steering Assist is not available in the
conventional (fixed speed) cruise control
mode.
LSD3224
5-92Starting and driving

∙Vehicle-to-vehicle distance control
mode: The ICC system maintains a
selected distance from the vehicle in
front of you within the speed range of
0 to 90 mph (0 to 144 km/h) up to the
set speed. The set speed can be se-
lected by the driver between 20 to
90 mph (32 to 144 km/h). When the
vehicle ahead slows to a stop, your
vehicle gradually decelerates to a
standstill. When the vehicle is
stopped, the ICC system maintains
braking force to keep your vehicle
stopped.
NOTE:
When your vehicle is stopped for less
than 3 seconds and the vehicle ahead
begins to move, your vehicle will start
moving again automatically. – When your vehicle is at a standstillfor more than 3 seconds and the
vehicle ahead begins to accelerate,
push the RES+ switch or lightly de-
press the accelerator pedal. The ICC
system starts to follow the vehicle
ahead.
– When no vehicle is detected ahead within the driver selected distance,
the vehicle travels at the speed set by the driver. The speed must be
above 20 mph (32 km/h) to use this
function.
NOTE:
Even if the Automatic Emergency Brak-
ing (AEB) setting is turned off by the
driver using the “Settings” menu in the
vehicle information display, AEB will be
automatically turned on when ICC is
used. 2. Steering Assist
The Steering Assist function controls
the steering system to help keep your
vehicle within the traveling lane.
When there is no vehicle ahead, Steer-
ing Assist is not available at speeds
under 37 mph (60 km/h).

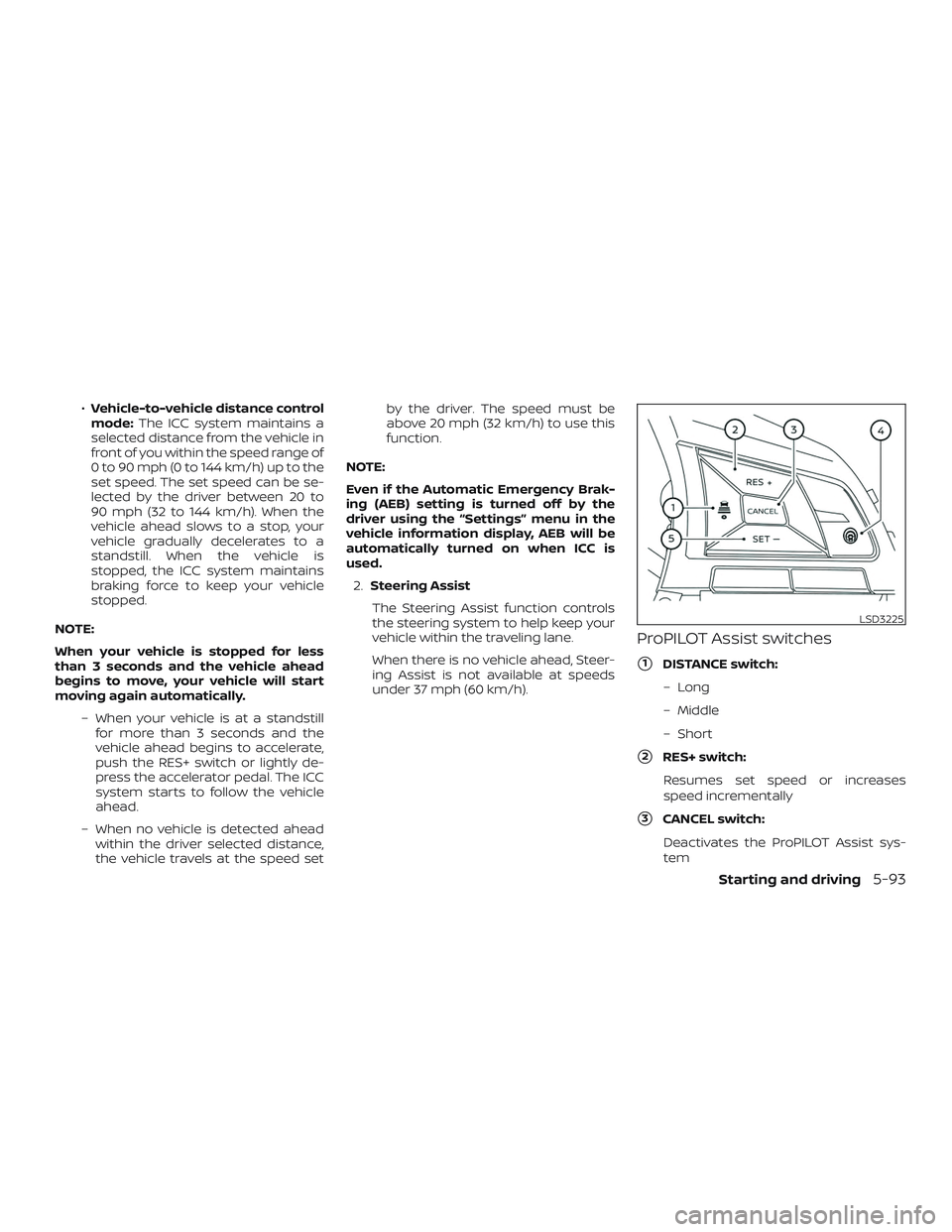

ProPILOT Assist switches
1DISTANCE switch:
– Long
– Middle
– Short
2RES+ switch:Resumes set speed or increases
speed incrementally
3CANCEL switch:Deactivates the ProPILOT Assist sys-
tem
LSD3225
Starting and driving5-93

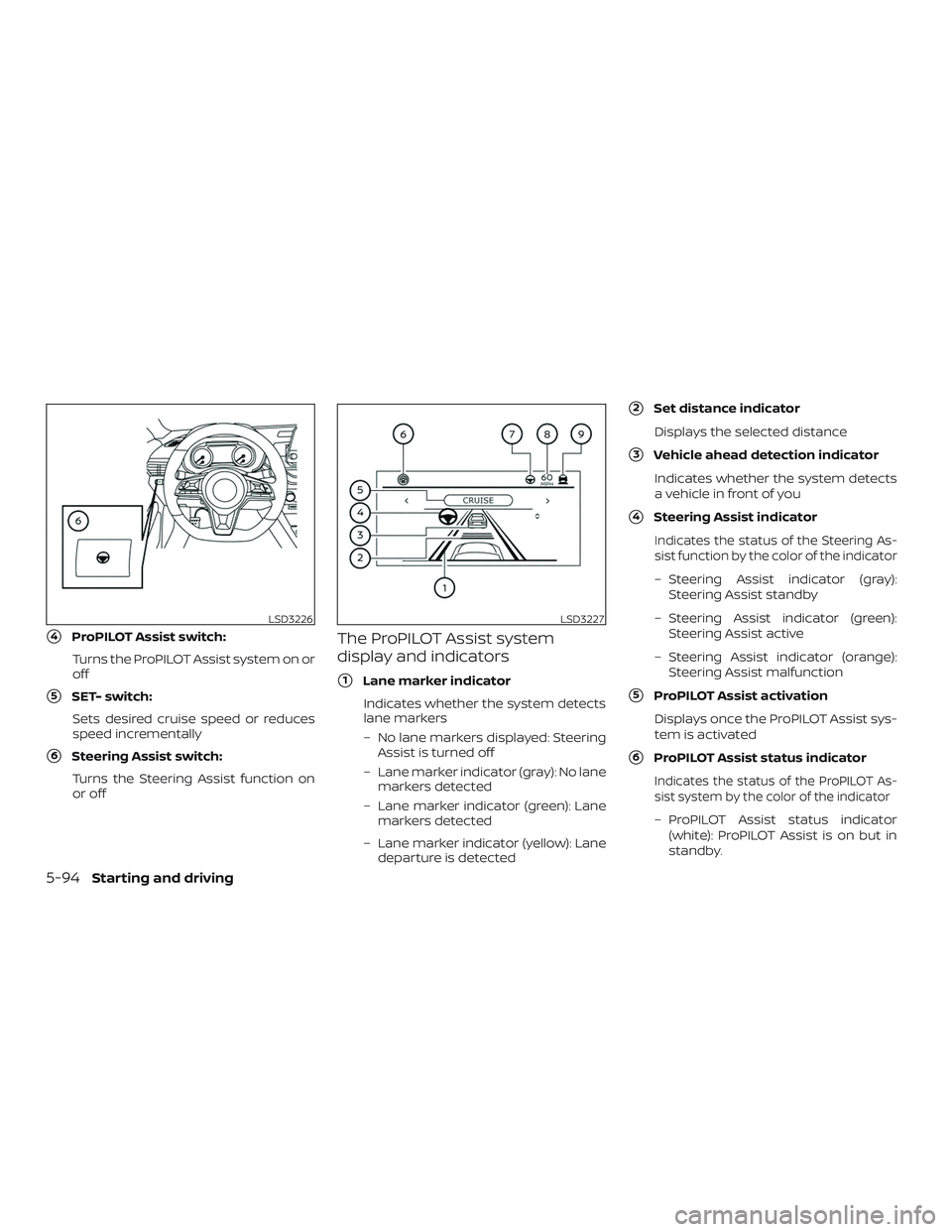

4ProPILOT Assist switch:Turns the ProPILOT Assist system on or
off
5SET- switch:Sets desired cruise speed or reduces
speed incrementally
6Steering Assist switch:Turns the Steering Assist function on
or off
The ProPILOT Assist system
display and indicators
1Lane marker indicatorIndicates whether the system detects
lane markers
– No lane markers displayed: Steering Assist is turned off
– Lane marker indicator (gray): No lane markers detected
– Lane marker indicator (green): Lane markers detected
– Lane marker indicator (yellow): Lane departure is detected
2Set distance indicator
Displays the selected distance
3Vehicle ahead detection indicatorIndicates whether the system detects
a vehicle in front of you
4Steering Assist indicator
Indicates the status of the Steering As-
sist function by the color of the indicator
– Steering Assist indicator (gray): Steering Assist standby
– Steering Assist indicator (green): Steering Assist active
– Steering Assist indicator (orange): Steering Assist malfunction
5ProPILOT Assist activation
Displays once the ProPILOT Assist sys-
tem is activated
6ProPILOT Assist status indicator
Indicates the status of the ProPILOT As-
sist system by the color of the indicator
– ProPILOT Assist status indicator (white): ProPILOT Assist is on but in
standby.
LSD3226LSD3227
5-94Starting and driving

– ProPILOT Assist status indicator(blue): ProPILOT Assist active
7Steering Assist status indicator/
warning
Displays the status of the Steering As-
sist by the color of the
indicator/warning
– No Steering Assist status indicator displayed: Steering Assist is turned
off
– Steering Assist indicator (gray): Steering Assist standby
– Steering Assist indicator (green): Steering Assist active
– Steering Assist indicator (yellow): Steering Assist malfunction
8Set vehicle speed indicator
Indicates the set vehicle speed
9Speed control status indicator/
warning
Displays the status of speed control
by the color and shape of the
indicator/warning
– Speed control status indicator/ warning (gray): ICC standby
– Speed control status indicator/ warning (solid green
): ICC (dis-
tance control mode) is active (ve-
hicle detected ahead). Your vehicle
matches the speed of the vehicle
ahead.
– Speed control status indicator/ warning (green outline
): ICC
(maintain speed control mode) is
active (no vehicle detected ahead).
Your vehicle maintains the driver-
selected set speed.
– Speed control status indicator/warning (orange): Indi-
cates an ICC malfunction
TURNING THE CONVENTIONAL
(fixed speed) CRUISE CONTROL
MODE ON
NOTE:
ProPILOT Assist provides no approach
warnings, automatic braking, or steering
assist in the conventional (fixed speed)
cruise control mode.
To choose the conventional (fixed speed)
cruise control mode, push and hold the
ProPILOT Assist switch for longer than ap-
proximately 1.5 seconds. For additional in-
formation, refer to “Conventional (fixed
speed) cruise control mode” in this section.
Starting and driving5-95

1. Automatic Emergency Braking (AEB)
2. Lane Departure Warning (LDW) whenshaded and Intelligent Lane Interven-
tion (I-LI) when solid
3. Blind Spot Warning (BSW)OPERATING PROPILOT ASSIST
1. Push the ProPILOT Assist switchA.
This turns on the ProPILOT Assist sys-
tem.
2. A screen is displayed for a period of time that indicates the status of the
driving aid functions.
– AEB, LDW, and BSW are enabled when the specified driving aid is
shaded.
– I-LI is enabled when the driving aid is solid. – To change the status of the driving
aids, use the1or2but-
ton to navigate the settings screen.
For additional information, refer to
“How to use the vehicle information
display” in the “Instruments and con-
trols” section of this manual.
3. The status of the ProPILOT Assist sys- tem is displayed in the vehicle informa-
tion display
B.
4. Accelerate or decelerate your vehicle to the desired speed.
LSD3311LSD3228LSD3074
5-96Starting and driving

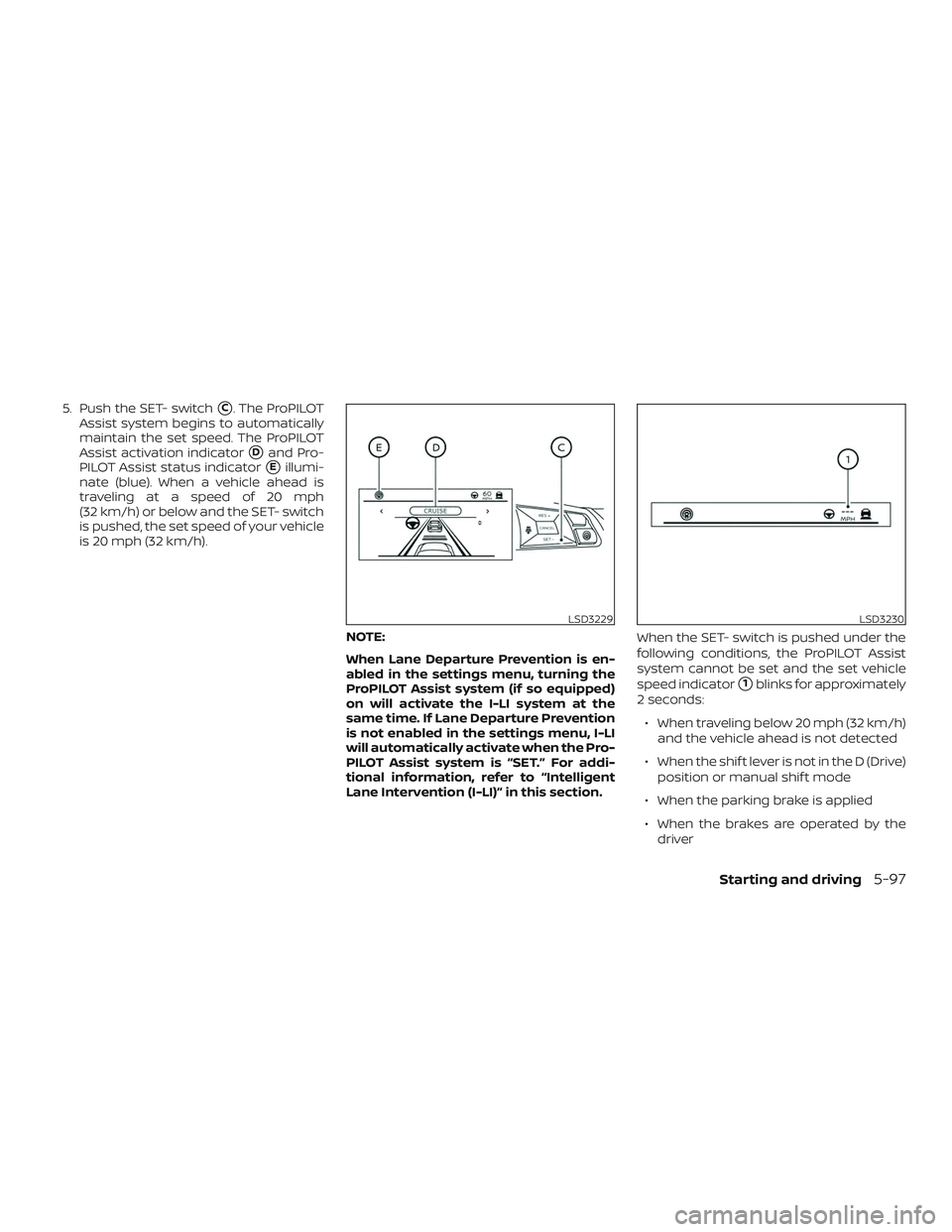

5. Push the SET- switchC. The ProPILOT
Assist system begins to automatically
maintain the set speed. The ProPILOT
Assist activation indicator
Dand Pro-
PILOT Assist status indicator
Eillumi-
nate (blue). When a vehicle ahead is
traveling at a speed of 20 mph
(32 km/h) or below and the SET- switch
is pushed, the set speed of your vehicle
is 20 mph (32 km/h).
NOTE:
When Lane Departure Prevention is en-
abled in the settings menu, turning the
ProPILOT Assist system (if so equipped)
on will activate the I-LI system at the
same time. If Lane Departure Prevention
is not enabled in the settings menu, I-LI
will automatically activate when the Pro-
PILOT Assist system is “SET.” For addi-
tional information, refer to “Intelligent
Lane Intervention (I-LI)” in this section. When the SET- switch is pushed under the
following conditions, the ProPILOT Assist
system cannot be set and the set vehicle
speed indicator
1blinks for approximately
2 seconds:
∙ When traveling below 20 mph (32 km/h) and the vehicle ahead is not detected
∙ When the shif t lever is not in the D (Drive) position or manual shif t mode
∙ When the parking brake is applied
∙ When the brakes are operated by the driver
LSD3229LSD3230
Starting and driving5-97
