2020 MAZDA MODEL MX-5 MIATA RF Owners Manual

▼Replacing Interior Light Bulbs
Overhead light
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens, and then remove the lens by
carefully prying on the edge of the lens
with the flathead screwdriver.
2. Disconnect the bulb by pulling it out.

3. Install the new bulb in the reverseorder of the removal procedure.
Trunk light
1. Wrap a small flathead screwdriver witha soft cloth to prev ent damage to the
lens, and then remove the lens by
carefully prying on t he edge of the lens
with the flathead screwdriver.

2. Disconnect the connector from the unit.
3. Disconnect the bulb by pulling it out.
4. Install the new bulb in the reverseorder of the removal procedure.
Maintenance and Care
Owner Maintenance
6-51
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

Fuses
Your vehicle's electrical system is
protected by fuses.

If any lights, accessories, or controls do
not work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.

If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
▼ Fuse Replacement
Replacing the fuses on the vehicle's left
side
If the electrical system does not work, first
inspect the fuses on the vehicle's left side.

1. Make sure the ignition is switched off,
and other switches are off.
2. Open the fuse panel cover.
3. Pull the fuse straight out with the fuse puller provided on the fuse block
located in the engine compartment.
4. Inspect the fuse and replace it if it is
blown.
Normal Blown
5. Insert a new fuse of the same
amperage rating, and make sure it fits
tightly. If it does not fit tightly, have an
expert install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or OUTLET circuit.
CAUTION
Always replace a fuse with a genuine
Mazda fuse or equivalent of the same
rating. Otherwise you may damage the
electric system.
6. Reinstall the cover and make sure that it is securely installed.
Maintenance and Care
Owner Maintenance
6-52
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood.
If a fuse is blown, it must be replaced.
Follow these steps:

1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the fuse block cover.
NOTE
If the lock is forcefully opened, the fuse
block cover may come in contact with
the frame when it is removed and
become scratched.
When removing the cover, remove it
slowly according to the following
procedure.
1. Disengage the rear lock by pressing down on the front tab with
your fingers.
2. Remove the front tab while slightly lifting the front of the cover.
3. Remove the cover while lifting it and sliding it to the rear.
3. If any fuse but the MAIN fuse isblown, replace it with a new one of the
same amperage rating .
Normal
Blown
WA R N I N G
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is a
high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
4. Reinstall the cover and make sure that it is securely installed.
Maintenance and Care
Owner Maintenance
6-53
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

▼Fuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 ENG IG3 5 A ―
2 ENG IG2 5 A ―
3 HORN2 7.5 A Horn
4 C/U IG1 15 A For protect ion of various circuits
5 ENG IG1 7.5 A Engine control system
6― ― ―
7 INTERIOR 15 A Overhead light
8 ENG
B 7.5 A Engine control system
9 AUDIO2 15 A Audio system
10 METER1 10 A Instrument cluster 11 SRS1 7.5 A Air bag
12 ― ― ―
13 RADIO 7.5 A Audio system
14 ENGINE3 20 A ―
15 ENGINE1 10 A Engine control system
16 ENGINE2 15 A Engine control system
Maintenance and Care
Owner Maintenance
6-54
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
17 AUDIO1 25 A Audio system
18 A/C MAG 7.5 A Air conditioner
19 AT P U M P
H/L HI 20 A
Transmission control system
*
20 AT 15 A
Transmission control system*
21 D LOCK 25 A Power door locks
22 H/L RH 20 A Headlight (RH)
23 ENG
B2 7.5 A Engine control system
24 TAIL 20 A Taillights, License p late lights, Parking lights
25 DRL 15 A ―
26 ROOM 25 A Overhead light
27 FOG 15 A ―
28 H/CLEAN 20 A ―
29 STOP 10 A Brake lights
30 HORN 15 A Horn
31 H/L LH 20 A Headlight (LH)
32 ABS/DSC S 30 A ABS, Dynamic stability control system
33 HAZARD 15 A Hazard warning flashers, Turn signal lights
34 FUEL PUMP 15 A Fuel system
35 ENG
B3 5 A ―
36 WIPER 20 A Windshield wipers
37 CABIN
B 50 A For protection of various circuits
38 ― ― ―
39 ENG SUB 30 A Engine control system
40 ABS/DSC M 50 A ABS, Dynamic stability control system
41 EVVT
A/R PUMP 20 A Engine control system
42 EVPS 30 A Brake control system
43 FAN1 30 A Cooling fan
44 FAN2 40 A ―
45 ENG.MAIN 40 A Engine control system
46 EPS 60 A Power steering system
47 DEFOG 30 A Rear window defogger
48 IG2 30 A For protectio n of various circuits
49 INJECTOR 30 A ―
50 HEATER 40 A Air conditioner
Maintenance and Care
Owner Maintenance
*Some models.6-55
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

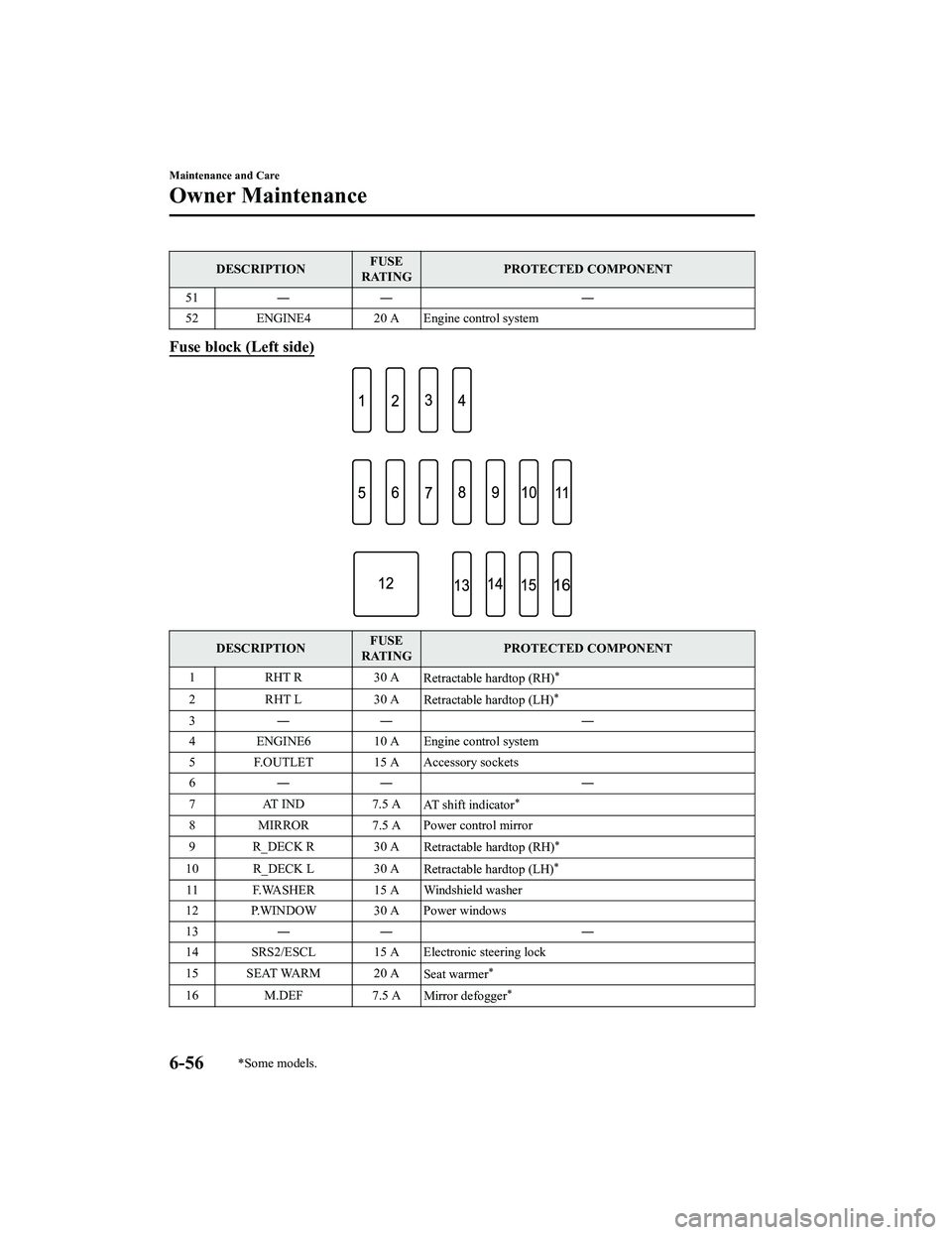

DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
51 ― ― ―
52 ENGINE4 20 A Engine control system
Fuse block (Left side)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 RHT R 30 A
Retractable hardtop (RH)
*
2 RHT L 30 A
Retractable hardtop (LH)*
3― ― ―
4 ENGINE6 10 A Engine control system
5 F.OUTLET 15 A Accessory sockets
6― ― ―
7 AT IND 7.5 A
AT shift indicator
*
8 MIRROR 7.5 A Power control mirror
9 R_DECK R 30 A Retractable hardtop (RH)
*
10 R_DECK L 30 A Retractable hardtop (LH)*
11 F.WASHER 15 A Windshield washer
12 P.WINDOW 30 A Power windows
13 ― ― ―
14 SRS2/ESCL 15 A Electronic steering lock
15 SEAT WARM 20 A Seat warmer
*
16M.DEF 7.5 A
Mirror defogger*
Maintenance and Care
Owner Maintenance
6-56*Some models.
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

Exterior Care
The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.

Environmental hazards, however, can
harm the paint's protective properties, if
proper care is not taken.

Here are some examples of possible
damage, with tips on how to prevent them.
Etching Caused by Acid Rain or
Industrial Fallout
Occurrence
Industrial pollutants and vehicle emissions
drift into the air and mix with rain or dew
to form acids. These acids can settle on a
vehicle's finish. As the water evaporates,
the acid becomes concentrated and can
damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.
Prevention
It is necessary to wash and wax your
vehicle to preserve it s finish according to
the instructions in this section. These steps
should be taken immediately after you
suspect that acid rain has settled on your
vehicle's finish.
Damage Caused by Bird Dropping,
Insects, or Tree Sap
Occurrence
Bird droppings contain acids. If these are
not removed they can eat away the clear
and color base coat of the vehicle's
paintwork.

When insects stick to the paint surface and
decompose, corrosive compounds form.
These can erode the clear and color base
coat of the vehicle's paintwork if they are
not removed.

Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.
Prevention
It is necessary to have your Mazda washed
and waxed to preserve its finish according
to the instructions in this section. This
should be done as soon as possible.

Bird droppings can be removed with a soft
sponge and water. If you are traveling and
these are not available, a moistened tissue
may also take care of the problem. The
cleaned area should be waxed according to
the instructions in this section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.

Another method is to cover the affected
area with dampened newspaper for 1 to 2
hours. After removing the newspaper,
rinse off the loosened debris with water.
Maintenance and Care
Appearance Care
6-57
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

Wa t e r M a r k s
Occurrence
Rain, fog, dew, and even tap water can
contain harmful minerals such as salt and
lime. If moisture containing these minerals
settles on the vehicle and evaporates, the
minerals will concentrate and harden to
form white rings. The rings can damage
your vehicle's finish.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These steps
should be taken immediately after you find
water marks on your vehicle's finish.
Paint Chipping
Occurrence
Paint chipping occurs when gravel thrown
in the air by another vehicle's tires hits
your vehicle.
How to avoid paint chipping
Keeping a safe distance between you and
the vehicle ahead reduces the chances of
having your paint chipped by flying
gravel.
NOTE
The paint chipping zone varies with the
speed of the vehicle. For example, when
traveling at 90 km/h (56 mph), the paint
chipping zone is 50 m (164 ft).
In low temperatures a vehicle's finish
hardens. This increases the chance of
paint chipping.
Chipped paint can lead to rust forming
on your Mazda. Before this happens,
repair the damage by using Mazda
touch-up paint according to the
instructions in this section. Failure to
repair the affected area could lead to
serious rusting and expensive repairs.

Follow all label and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
▼ Maintaining the Finish
Wa s h i n g
CAUTION

When the wiper lever is in the AUTO
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:
 If the windshield above the rain sensor
is touched or wiped with a cloth.
 If the windshield is struck with a hand
or other object from either outside or
inside the vehicle.
Keep hands and scrapers clear of the
windshield when the wiper lever is in the
AUTO position and the ignition is
switched ON as fingers could be pinched
or the wipers and wiper blades damaged
when the wipers activate automatically.
If you are going to clean the windshield,
be sure the wipers are turned off
completely (when it is most likely that the
engine is left running) this is particularly
important when clearing ice and snow.
Maintenance and Care
Appearance Care
6-58
