2020 MAZDA MODEL MX-5 MIATA RF Owners Manual

4When Driving
Information concerning safe driving and stopping.
Start/Stop Engine.............................. 4-4 Ignition Switch........ ..................... 4-4
Starting the Engine....................... 4-5
Turning the Engine Off............... 4-11
Instrument Cluster and Display ............
........................................................... 4-12 Meters and Gauges..................... 4-12
Multi-information Display and INFO
Switch
*....................................... 4-19
Warning/Indicator Lights............4-27
Manual Transmission
Operation......................................... 4-32 Manual Transmission Shift
Pattern......................................... 4-32
Automatic Transmission................. 4-35 Automatic Transmission
Controls...................................... 4-35
Shift-Lock System...................... 4-36
Transmission Ranges.................. 4-36
Manual Shift Mode..................... 4-38
Direct Mode
*.............................. 4-43
Driving Tips................................4-44
Switches and Controls..................... 4-45
Lighting Control......................... 4-45
Turn and Lane-Change
Signals........................................ 4-50
Windshield Wipers and
Washer........................................ 4-51
Rear Window Defogg er.............. 4-55
Horn............................................ 4-56
Hazard Warning Flasher............. 4-57
HomeLink Wireless Control
System
*.......................................4-57
Brake................................................ 4-61 Brake System.............................. 4-61
Hill Launch Assist (HLA)
*.........4-64
ABS/TCS/DSC................................. 4-65 Antilock Brake System
(ABS)..........................................4-65
Traction Control System
(TCS).......................................... 4-66
Dynamic Stability Control
(DSC)..........................................4-67
Fuel Economy Monitor................... 4-69 Fuel Economy Monito r...............4-69
Drive Selection................................. 4-72 Drive Selection
*..........................4-72
Power Steering................................. 4-74 Power Steering............................4-74
*Some models.4-1
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

i-ACTIVSENSE............................... 4-75i-ACTIVSENSE
*........................4-75
Adaptive Front Lighting System
(AFS)
*........................................ 4-77
High Beam Control System
(HBC)
*........................................4-78
Lane Departure Warning System
(LDWS)
*.................................... 4-81
Blind Spot Monitoring (BSM)
*.........
.................................................... 4-87
Traffic Sign Recognition System
(TSR)
*........................................ 4-92
Rear Cross Traffic Alert (RCTA)
*.....
.................................................... 4-98
Smart City Brake Support
(SCBS)
*.................................... 4-101
Forward Sensing Camera (FSC)
*......
.................................................. 4-105
Radar Sensors (Rear)
*.............. 4-109
Cruise Control................................ 4-111
Cruise Control
*......................... 4-111
Tire Pressure Monitoring
System............................................. 4-116 Tire Pressure Monitoring
System...................................... 4-116
Rear View Monitor....................... 4-120 Rear View Monitor
*................. 4-120
4-2*Some models.
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

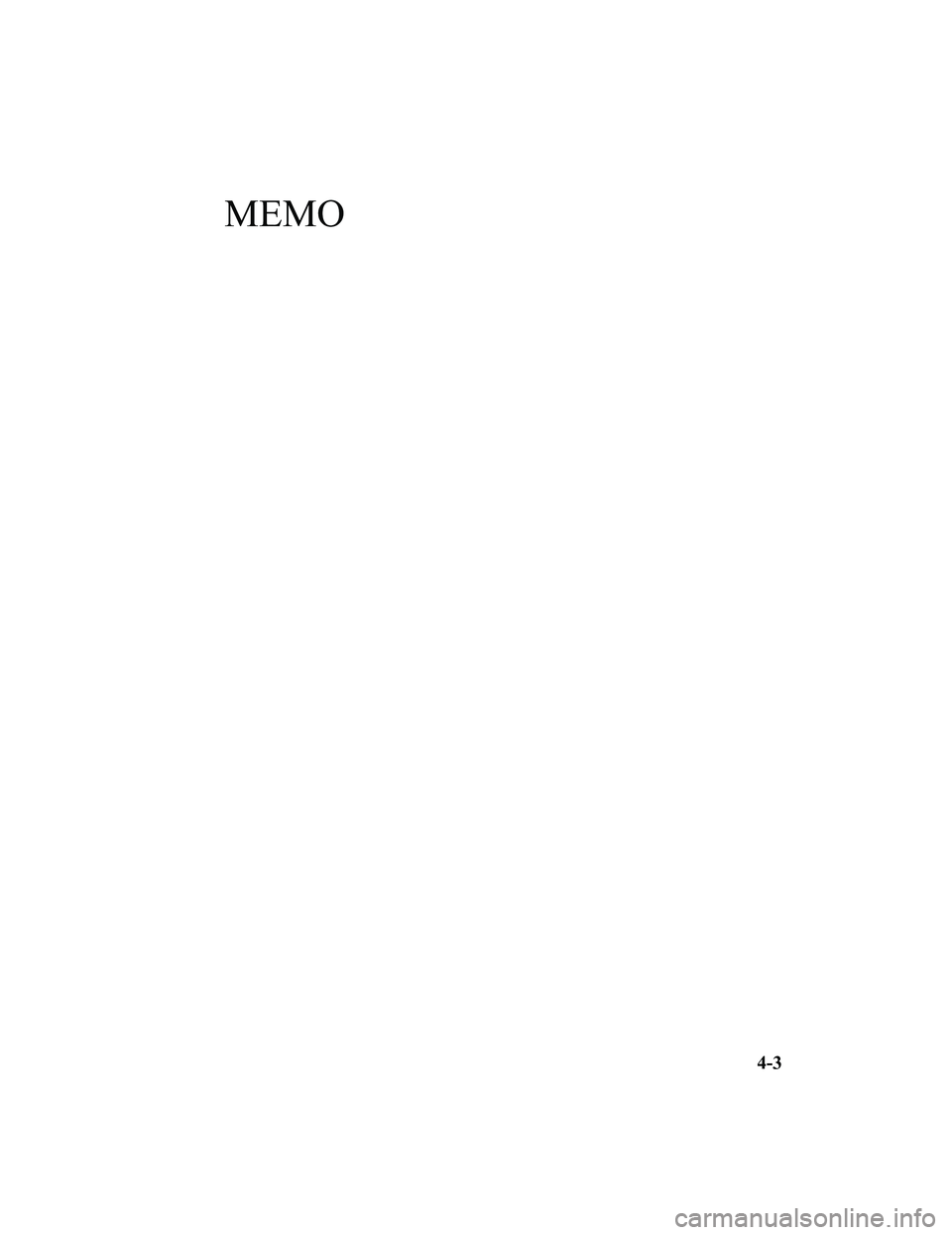

MEMO
4-3
MX-5_8JA4-EA-19K_Edition1_old2019-8-29 16:18:06

Ignition Switch
▼Push Button Start Positions
The system operates only when the key is
within operational range.
Each time the push button start is pressed,
the ignition switches
in the order of off,
ACC, and ON. Pressing the push button
start again from ON switches the ignition
off.
Indicator light
NOTE
The engine starts by pressing the push
button start while depressing the clutch
pedal (manual transmission) or the
brake pedal (automatic transmission).
To switch the ignition position, press the
push button start without depressing the
pedal.
Do not leave the ignition switched ON
while the engine is not running. Doing
so could result in the battery going
dead. If the ignition is left in ACC (For
automatic transmission, the selector
lever is in the P position, and the
ignition is in ACC), the ignition switches
off automatically af ter about 25 minutes.
Off
The power supply to electrical devices
turns off and the push button start
indicator light (amber) also turns off.
WA R N I N G
Before leaving the driver's seat, always
switch the ignition off, set the parking
brake, and make sure the selector lever is in
P (automatic transmission) position or in
1st gear or R (manual transmission):
Leaving the driver's seat without switching
the ignition off, setting the parking brake,
and shifting the selector lever to P
(automatic transmission) position or to 1st
gear or R (manual transmission) is
dangerous. Unexpected vehicle movement
could occur which could result in an
accident.
In addition, if your intention is to leave the
vehicle for even a short period, it is
important to switch the ignition off, as
leaving it in another position will disable
some of the vehicle's security systems and
run the battery down.
ACC (Accessory)
Some electrical accessories will operate
and the indicator light (amber) illuminates.
NOTE
The keyless entry system does not function
while the push button start has been
pressed to ACC, and the doors will not
lock/unlock even if they have been locked
manually.
When Driving
Start/Stop Engine
4-4
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

ON
This is the normal running position after
the engine is started. The indicator light
(amber) turns off. (The indicator light
(amber) illuminates when the ignition is
switched ON and the engine is not
running.)
Some indicator lights/warning lights
should be inspected before the engine is
started (page 4-27).
NOTE
When the push button start is pressed to
ON, the sound of the fuel pump motor
operating near the fuel tank can be heard.
This does not indi cate an abnormality.
Starting the Engine
WA R N I N G
Radio waves from the key may affect
medical devices such as pacemakers:
Before using the key near people who use
medical devices, ask the medical device
manufacturer or your physician if radio
waves from the key w ill affect the device.
NOTE
The key must be carried because the key
carries an immobilizer chip that must
communicate with the engine controls at
short range.
The engine can be started when the push
button start is pressed from off, ACC, or
ON.
The push button start system functions
(function which can start the engine by
only carrying the key) can be
deactivated to prevent any possible
adverse effect on a user wearing a
pacemaker or other medical device. If
the system is deactivated, you will be
unable to start the engine by carrying
the key. Consult an Authorized Mazda
Dealer for details. If the push button
start system functions have been
deactivated, you can start the engine by
following the procedure indicated when
the key battery goes dead.
Refer to Engine Start Function When
Key Battery is Dead on page 4-8.
When Driving
Start/Stop Engine
4-5
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

After starting a cold engine, the engine
speed increases and a whining sound
from the engine compartment can be
heard.
This is for improved exhaust gas
purification and does not indicate any
parts defect.
Engine-starting is controlled by the
spark ignition system.
This system meets all Canadian
Interference-Causing Equipment
Standard requirements regulating the
impulse electrical field strength of radio
noise.
1. Make sure you are carrying the key.
2. Occupants should fasten their seat belts.
3. Make sure the parking brake is on.
4. Continue to press the brake pedal firmly until the engine has completely
started.
5. (Manual transmission)
Continue to press the clutch pedal
firmly until the engine has completely
started.
(Automatic transmission)
Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).
NOTE
(Manual transmission)
The starter will not operate if the
clutch pedal is not depressed
sufficiently.
(Automatic transmission)
The starter will not operate if the
selector lever is not in P or N and the
brake pedal is not depressed
sufficiently.
6. Verify that the KEY indicator light (green) in the instr ument cluster and
the push button start indicator light
(green) illuminate.

Indicator light
Push button start
KEY indicator light
(green)/ KEY
warning light (red)
When Driving
Start/Stop Engine
4-6
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

NOTE
If the push button start indicator
light (green) flashes, make sure that
the key is being carried (for vehicles
with a type A instrument cluster
(page 4-27), messages are
displayed in the instrument cluster).
If the push button start indicator
light (green) flashes with the key
being carried, touch the key to the
push button start and start the
engine (for vehicles with a type A
instrument cluster (page 4-27),
messages are displayed in the
instrument cluster). Refer to Engine
Start Function When Key Battery is
Dead on page 4-8.
CAUTION
If the KEY warning light (red)
illuminates, or the push button start
indicator light (amber) flashes, this
could indicate a problem with the
engine starting system. This may
prevent the engine from starting or
from switching the ignition to ACC or
ON (for vehicles with a type A
instrument cluster (page 4-27),
messages are displayed in the
instrument cluster). Have your vehicle
inspected at an Authorized Mazda
Dealer as soon as possible.
NOTE
Under the following conditions, the
KEY warning light (red) flashes after
the push button start is pressed. This
informs the driver that the push
button start will not switch to ACC
even if it is pressed from off (for
vehicles with a type A instrument
cluster (page 4-27), messages are
displayed in the instrument cluster).
The key battery is dead.
The key is out of operational
range.
The key is placed in areas where it
is difficult for the system to detect
the signal (page 3-9).
A key from another manufacturer
similar to the key is in the
operational range.
When Driving
Start/Stop Engine
4-7
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

(Forced engine starting method)
If the KEY warning light (red)
illuminates, or the push button start
indicator light (amber) flashes, this
could indicate that the engine may
not start using the usual starting
method (for vehicles with a type A
instrument cluster (page 4-27),
messages are displayed in the
instrument cluster). Have your
vehicle inspected at an Authorized
Mazda Dealer as soon as possible. If
this occurs, the engine can be
force-started. Press and hold the
push button start until the engine
starts. Other procedures necessary
for starting the engine, such as
having the key in the cabin, and
depressing the clutch pedal (manual
transmission) or the brake pedal
(automatic transmission) are
required.
When the engine is force-started, the
KEY warning light (red) remains
illuminated and the push button start
indicator light (amber) remains
flashing.
(Automatic transmission)
When the selector lever is in the
neutral (N) position, the KEY
indicator light (green) and the push
button start indicator light (green)
do not illuminate.
7. Press the push button start after both
the KEY indicator light (green) in the
instrument cluster and the push button
start indicator light (green) illuminate.
NOTE
After starting the engine, the push
button start indica tor light (amber)
turns off and the ignition switches to
the ON position.
After pressing the push button start
and before the engine starts, the
operation sound of the fuel pump
motor from near the fuel tank can be
heard, however, this does not
indicate a malfunction.
8. After starting the e ngine, let it idle for
about ten seconds.
NOTE
Whether the engine is cold or warm,
it should be started without the use
of the accelerator.
If the engine does not start the first
time, refer to Starting a Flooded
Engine under Emergency Starting. If
the engine still does not start, have
your vehicle inspected by an
Authorized Mazda Dealer (page
7-26).
▼ Engine Start Function When Key
Battery is Dead
CAUTION
When starting the engine by holding the
transmitter over the push button start due
to a dead key battery or a malfunctioning
key, be careful not to allow the following,
otherwise the signal from the key will not
be received correctly and the engine may
not start.
When Driving
Start/Stop Engine
4-8
MX-5_8JA4-EA-19K_Edition1_old
2019-8-29 16:18:06
