▼Operation Indication
Operation Indicator Light
When illuminated
This indicates that the roof is only partially open.
When flashing
This indicates that the roof is being open/closed. (During swit
ch operation)
When not illuminated
This indicates that the roof is open/closed fully.
NOTE
If the operation indicator light flashes quickly, there may be a system malfunction. Consult
an Authorized Mazda Dealer.
Roof operation display
The roof operation status is i ndicated on the multi-information display.
Before Driving
Convertible Top (Hardtop)
3-43
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

▼Opening the Roof
When opening the roof, make sure objects
inside the vehicle a
re not blown away by
the wind. Secure all loose objects inside
before driving with the roof down.
1. Park the vehicle on level ground in a safe place where the vehicle does not
obstruct traffic.
Shift the shift lever to neutral on a
manual transmission vehicle.
Shift the selector lever to P on an
automatic transmission vehicle.
Apply the parking brake.
2. Make sure that the trunk is closed.
3. Start the engine t o prevent the battery
from going dead.
4. Continue pressing the retractable
hardtop switch in the open direction
until the roof opening operation is
completed. When the opening
operation is completed, a beep sound is
activated and the operation indicator
light turns off.
NOTE
If the retractable hardtop switch is
pressed in the open direction, a
warning beep sounds.
When pressing the retractable
hardtop switch while the windows
are closed, the windows open
slightly. If the switch is continuously
pressed in the open direction until
the roof opening operation is
completed, the wi ndows return to
their original positions. However,
the windows may not return to their
original positions depending on the
conditions.
The roof keeps opening and the
operation indicator light flashes
while the retractable hardtop switch
is pressed in the open direction.
If the switch is released while the
roof is opening, the roof stops
opening. If the switch is pressed in
the open direction again, the roof
resumes opening.
When the roof is half-open, the front
roof resumes opening after the rear
roof is completely open.
▼ Closing the Roof
1. Park the vehicle on level ground in a
safe place where the vehicle does not
obstruct traffic.
Shift the shift lever to neutral on a
manual vehicle.
Shift the selector lever to P on an
automatic vehicle.
Apply the parking brake.
2. Make sure that the trunk is closed.
3. Slightly slide the seats back if they are in the foremost position.
4. Start the engine to prevent the battery from going dead.
Before Driving
Convertible Top (Hardtop)
3-44
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

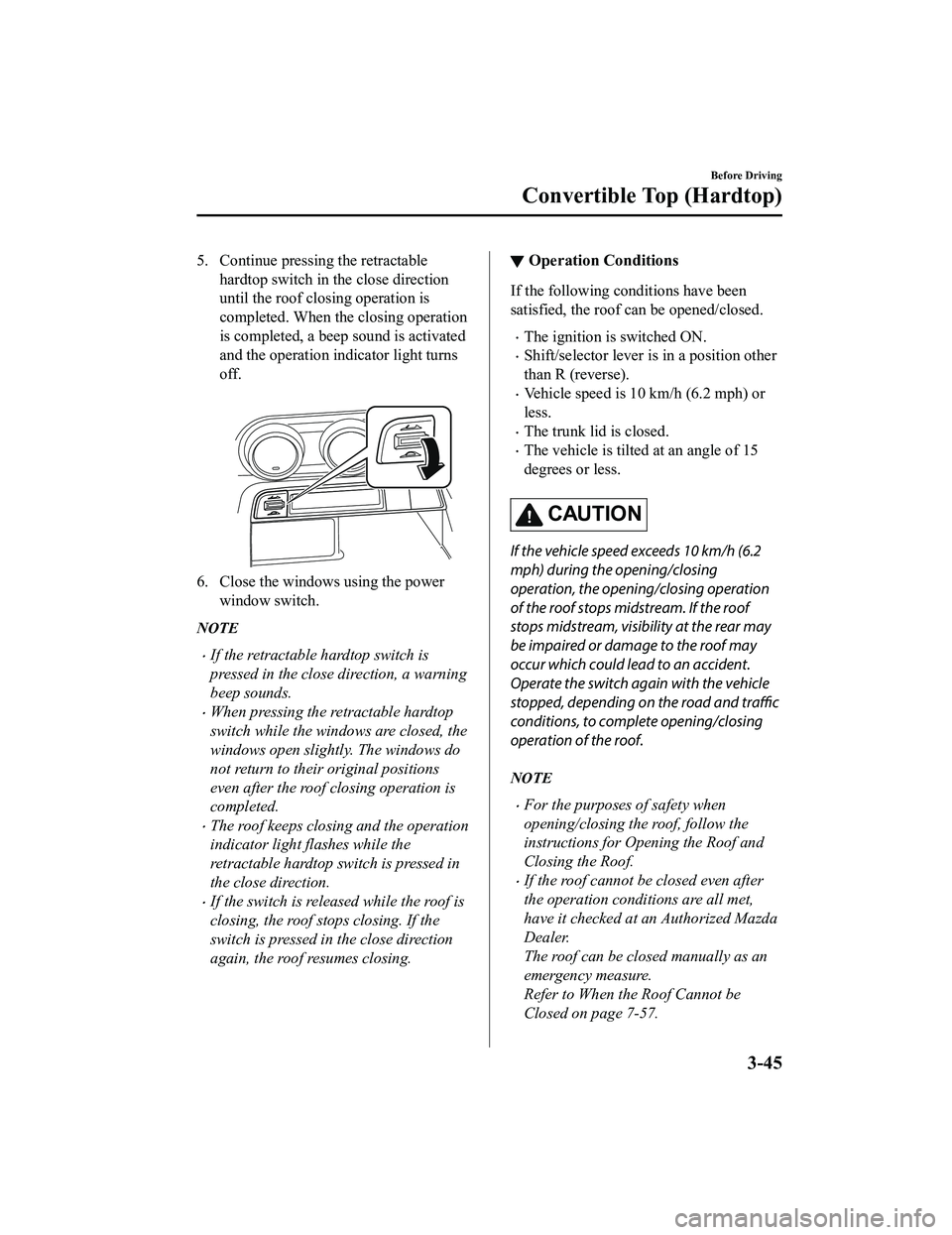

5. Continue pressing the retractablehardtop switch in the close direction
until the roof closing operation is
completed. When the closing operation
is completed, a beep sound is activated
and the operation i ndicator light turns
off.

6. Close the windows using the power window switch.
NOTE
If the retractable hardtop switch is
pressed in the close direction, a warning
beep sounds.
When pressing the retractable hardtop
switch while the windows are closed, the
windows open slightly. The windows do
not return to their original positions
even after the roof closing operation is
completed.
The roof keeps closing and the operation
indicator light flashes while the
retractable hardtop switch is pressed in
the close direction.
If the switch is released while the roof is
closing, the roof stops closing. If the
switch is pressed in the close direction
again, the roof resumes closing.
▼Operation Conditions
If the following conditions have been
satisfied, the roof can be opened/closed.
The ignition is switched ON.
Shift/selector lever is in a position other
than R (reverse).
Vehicle speed is 10 km/h (6.2 mph) or
less.
The trunk lid is closed.
The vehicle is tilted at an angle of 15
degrees or less.
CAUTION
If the vehicle speed exceeds 10 km/h (6.2
mph) during the opening/closing
operation, the opening/closing operation
of the roof stops midstream. If the roof
stops midstream, visibility at the rear may
be impaired or damage to the roof may
occur which could lead to an accident.
Operate the switch again with the vehicle
stopped, depending on the road and traffic
conditions, to complete opening/closing
operation of the roof.
NOTE
For the purposes of safety when
opening/closing the roof, follow the
instructions for Opening the Roof and
Closing the Roof.
If the roof cannot be closed even after
the operation conditions are all met,
have it checked at an Authorized Mazda
Dealer.
The roof can be closed manually as an
emergency measure.
Refer to When the Roof Cannot be
Closed on page 7-57.
Before Driving
Convertible Top (Hardtop)
3-45
MX-5_8JA4-EA-19K_Edition1_old
2019-8-29 16:18:06

▼Power Window Interlocking
Operation
When opening/closing the roof, the power
windows lower automatically for
improved operability.
NOTE
If the vehicle battery is disconnected for
vehicle maintenance or other reasons, the
power windows will not lower
automatically. If the power windows do
not lower, reset the power window
automatic open/close function.
Refer to Auto-opening on page 3-35.
Before Driving
Convertible Top (Hardtop)
3-46
MX-5_8JA4-EA-19K_Edition1_old
2019-8-29 16:18:06

Modification and Add-OnEquipment
Mazda cannot guarantee the immobilizer
and the theft-deterrent systems' operation
if the system has been modified or if any
add-on equipment has been installed.
CAUTION
To avoid damage to the vehicle, do not
modify the system or install any add-on
equipment to the immobilizer and the
theft-deterrent systems or the vehicle.
Immobilizer System
The immobilizer syste m allows the engine
to start only with a key the system
recognizes.

If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent
vehicle theft.
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
CAUTION
 Radio equipment like this is governed by
laws in the United States.
Changes or
modifications not expressly
approved by the party responsible for
compliance could void the user's
authority to operate the equipment.
 To avoid damage to the key, do not:
 Drop the key.
 Get the key wet.
 Expose the key to any kind of magnetic
field.
 Expose the key to high temperatures
on places such as the dashboard or
hood, under direct sunlight.
 If the engine does not start with the
correct key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
Before Driving
Security System
3-47
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

NOTE
The keys carry a unique electronic code.
For this reason, and to assure your
safety, obtaining a replacement key
requires some waiting time. They are
only available through an Authorized
Mazda Dealer.
Always keep a spare key in case one is
lost. If a key is lost, consult an
Authorized Mazda Dealer as soon as
possible.
If you lose a key, an Authorized Mazda
Dealer, will reset the electronic codes of
your remaining keys and immobilizer
system. Bring all the remaining keys to
the Authorized Mazda Dealer to reset.
Starting the vehicle with a key that has
not been reset is not possible.
▼Operation
NOTE
The engine may not start and security
indicator light may illuminate or flash if
the key is placed in an area where it is
difficult for the system to detect the
signal, such as on the dashboard. Move
the key to a location within the signal
range, switch the ignition off, and then
restart the engine.
Signals from a TV or radio station, or
from a transceiver or mobile telephone
could interfere with your immobilizer
system. If you are using the proper key
and the engine fails to start, check the
security indicator light.
Arming
The system is armed when the ignition is
switched from ON to off.
The security indicator light in the
instrument cluster fla
shes every 2 seconds
until the system is disarmed.

Disarming
The system is disarmed when the ignition
is switched ON with the correct
programmed key. The security indicator
light illuminates for about 3 seconds and
then turns off. If the engine does not start
with the correct key, and the security
indicator light remains illuminated or
flashing, try the following:
Make sure the key is within the
operational range for signal transmission.
Switch the ignition off, and then restart the
engine. If the engine d oes not start after 3
or more tries, contact an Authorized
Mazda Dealer.
NOTE
If the security indicator light flashes
continuously while you are driving, do
not shut off the engine. Go to an
Authorized Mazda Dealer, and have it
checked. If the engine is shut off while
the indicator light is flashing, you will
not be able to restart it.
Because the electronic codes are reset
when the immobilizer system is repaired,
the keys are needed. Make sure to bring
all the keys to an Authorized Mazda
Dealer, so that they can be programmed.
Before Driving
Security System
3-48
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

Theft-Deterrent System*
If the theft-deterrent system detects an
inappropriate entry in to the vehicle, which
could result in the veh icle or its contents
being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the horn and flashing the hazard
warning lights.

The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly.
▼ Operation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about 30
seconds when the system is triggered by
any one of the following:
Unlocking a door with the auxiliary key,
door lock switch, or an inside door-lock
knob.
Forcing open a door, the hood or the
trunk lid.
Opening the hood by operating the hood
release handle.
Switching the ignition ON without using
the push button start.
If the system is triggered again, the lights
and horn will activat e until the driver's
door is unlocked wit h the transmitter.
(With the advanced keyless function)
The lights and horn can also be
deactivated by pressing the request switch
on a door.
NOTE
The trunk lid does not open while the
theft-deterrent system is operating.
If the battery goes dead while the
theft-deterrent system is armed, the horn
will activate and the hazard warning
lights will flash when the battery is
charged or replaced.
▼ How to Arm the System
1. Close the windows and the convertible
top securely.
2. Switch the ignition OFF.
3. Make sure the hood, the doors, and the
trunk lid are closed.
4. Press the lock button on the transmitter
or lock the driver's door from the
outside with the auxiliary key.
The hazard warning lights will flash
once.
The following method will also arm
the theft-deterrent system:
Press the door-lock switch “
” while
any door is open and then close both of
the doors.
(With the advanced keyless function)
Press a request switch.

The security indicator light in the
instrument cluster flashes twice per
second for 20 seconds.
5. After 20 seconds, the system is fully armed.
Before Driving
Security System
*Some models.3-49
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

NOTE
The theft-deterrent system can also be
armed by activating the auto relock
function with both the doors, the trunk
lid and the hood closed.
Refer to Transmitter on page 3-5.
The system will disarm if one of the
following operations takes place within
20 seconds after pressing the lock
button:
Unlocking any door.
Opening any door.
Opening the hood.
Switching the ignition ON.
To rearm the system, do the arming
procedure again.
When the doors are locked by pressing
the lock button on the transmitter or
using the auxiliary key while the
theft-deterrent system is armed, the
hazard warning lights will flash once to
indicate that the system is armed.
▼ To Turn Off an Armed System
An armed system can be turned off using
any one of the following methods:
Pressing the unlock button on the
transmitter.
Starting the engine with the push button
start.
(With the advanced keyless function)
Pressing a request switch on the
doors.
The hazard warning lights will flash twice.
NOTE
When the doors are unlocked by pressing
the unlock button on the transmitter while
the theft-deterrent system is turned off, the
hazard warning lights will flash twice to
indicate that the system is turned off.
▼ To Stop the Alarm
A triggered alarm can be turned off using
any one of the following methods:
Pressing the unlock button or the trunk
button on the transmitter.
Starting the engine w
ith the push button
start.
(With the advanced keyless function)
Pressing a request switch on the
doors.
The hazard warning ligh ts will flash twice.
Before Driving
Security System
3-50
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06
