2020 Lexus GS F Owner's Manuals

GS350_GS F_OM_OM30J07U_(U)
5538-2. Customization
8
Vehicle specifications
■Automatic air conditioning system (P. 318)
■Front seat heaters (wit hout seat ventilators)* ( P. 334)
*: If equipped
■Front seat heaters and ventilators*1/rear seat heaters*2 ( P. 333)
*1: If both are equipped
*2: If equipped
FunctionDefault
settingCustomized setting
A/C Auto switch operationOnOffO—O
Exhaust gas sensor informationStandard-3 to 3O—O
123
FunctionDefaultsettingCustomized setting
Automatic operation of front seat heaterOffOn——O
123
FunctionDefault
settingCustomized setting
Adjustment of the front seat heater tem-
perature or the ventilator fan speed
during automatic operation (individual
seat adjustment available) Level 3
(standard)Level 1 (low) to level 5 (high)O—O
Adjustment of the re ar seat heater tem-
perature during automatic operation
(individual seat ad justment available)Level 3
(standard)Level 1
(low) to
level 5 (high)
O—O
Rear seat heater start-up conditions
when the engine switch is in IGNITION
ON mode (individual seat adjustment
available)
OffOn
(AUTO)O—O
123

554
GS350_GS F_OM_OM30J07U_(U)8-2. Customization
■Illumination (
P. 337)
FunctionDefault
settingCustomized setting
Interior lights illumination controlOnOff——O
Time elapsed before the interior lights
turn off15
seconds
7.5
seconds
O—O30
seconds
Operation after the engine switch is
turned offOnOff——O
Operation when the doors are unlockedOnOff——O
Operation when you approach the vehi-
cle with the electronic key on your per-
son
OnOff——O
Footwell lightingOnOff——O
Outer foot lightsOnOff——O
Time elapsed before the outer foot lights
turn off15
seconds
Off
O—O
7.5
seconds
30
seconds
Enable/disable operation of the outer
foot lights when you approach the vehi-
cle with the electronic key on your per-
son
OnOff——O
Enable/disable operation of the outer
foot lights when the doors are unlocked
with the power door lock switchOnOff——O
123

GS350_GS F_OM_OM30J07U_(U)
5558-2. Customization
8
Vehicle specifications
■Rear sunshade* ( P. 349)
*: If equipped
■Seat belt reminder buzzer ( P. 437)
■Vehicle customization
●When the speed linked door locking function and shift position linked door locking
function are both on, the door lock operates as follows.
• When shifting the shift lever to any position other than P, all the doors will be locked.
• If the vehicle is started with all the doors locked, the speed linked door locking func-
tion would not operate.
• If the vehicle is started with any door un locked, the speed linked door locking func-
tion will operate.
●When the smart access system with push-button start is off, the selecting door to
unlock cannot be customized.
●When the doors remain closed after unloc king the doors and the automatic door lock
function (time elapsed before the automatic d oor lock function is activated if a door is
not opened after being unlock ed) activates, the signals will be generated in accordance
with the operation signal (buzzers) and the operation signal (emergency flashers) set-
tings.
●Some settings can be changed using a switch or the Remote Touch screen. If a setting is
changed using a switch, the changed setting will not be reflected on the Remote Touch
screen until the engine switch is turn ed off and then to IGNITION ON mode.
■When customizing using the Remote Touch
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P. Also,
to prevent battery discharge, leave the engine running while customizing the features.
FunctionDefault settingCustomized setting
Reverse operationOnOff——O
Time elapsed before the reverse opera-
tion feature activates0.7
seconds
0 second
——O
0.9
seconds
1.2
seconds
123
FunctionDefault
settingCustomized setting
Speed-linked seat belt reminder func-
tionOnOff——O
123

556
GS350_GS F_OM_OM30J07U_(U)8-2. Customization
WARNING
■During customization
As the engine needs to be running during customization, ensure that the vehicle is
parked in a place with adequate ventilation.
In a closed area such as a garage, exhaust
gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This
may lead to death or a serious health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while customizing fea-
tures.

557
GS350_GS F_OM_OM30J07U_(U)8-3. Initialization
8
Vehicle specifications

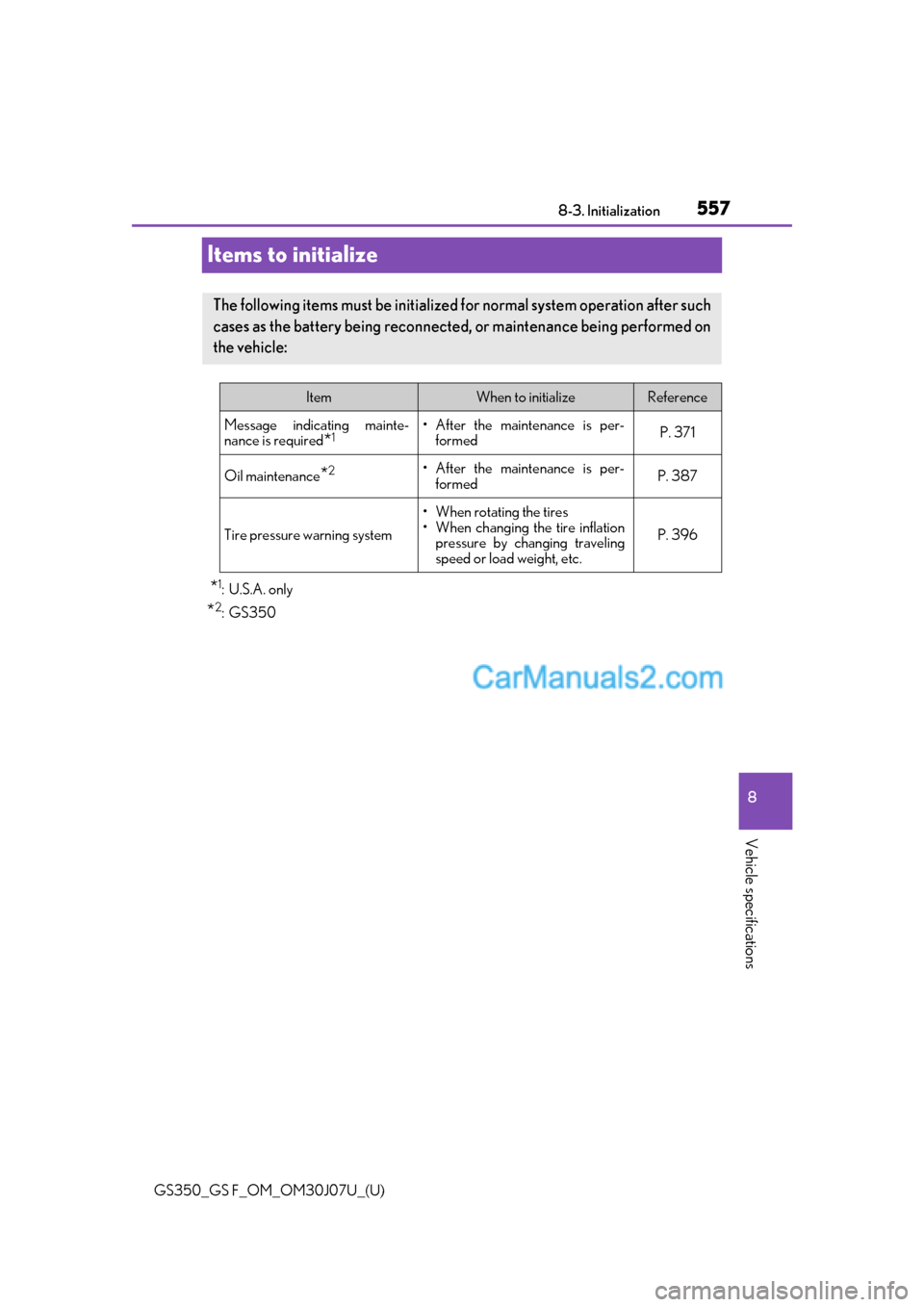

Items to initialize
*1: U.S.A. only
*2:GS350
The following items must be initialized for normal system operation after such
cases as the battery being reconnected
, or maintenance being performed on
the vehicle:
ItemWhen to initializeReference
Message indicating mainte-
nance is required
*1• After the maintenance is per- formedP. 371
Oil maintenance*2• After the maintenance is per-
formedP. 387
Tire pressure warning system
• When rotating the tires
• When changing the tire inflationpressure by changing traveling
speed or load weight, etc.
P. 396

558
GS350_GS F_OM_OM30J07U_(U)8-3. Initialization

559
GS350_GS F_OM_OM30J07U_(U)
9For owners
Reporting safety defects for U.S. owners.....................................560
Seat belt instructions for Canadian owners
(in French) ............................................... 561
SRS airbag instructions for Canadian owners
(in French) .............................................. 563
Headlight aim instructions for Canadian owners
(in French) (vehicles with
single-beam headlights).....................571

560
GS350_GS F_OM_OM30J07U_(U)
Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a crash or
could cause injury or death, you sh ould immediately inform the National
Highway Traffic Safety Administration (NHTSA) in addition to notifying the
Lexus Division of Toyota Motor Sales, U.S.A., Inc. (Toll-free: 1-800-25-
LEXUS).
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall
and remedy campaign. However, NHTSA cannot become involved in indi-
vidual problems between you, your dealer, or Lexus Division of Toyota
Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ; or
write to: Administrator, NHTSA, 1200 New Jersey Ave, S.E., Washington, DC
20590. You can also obtain other info rmation about motor vehicle safety from
http://www.safercar.gov.
