2020 Lexus GS F Owner's Manuals

GS350_GS F_OM_OM30J07U_(U)
3455-4. Using the storage features
5
Interior features

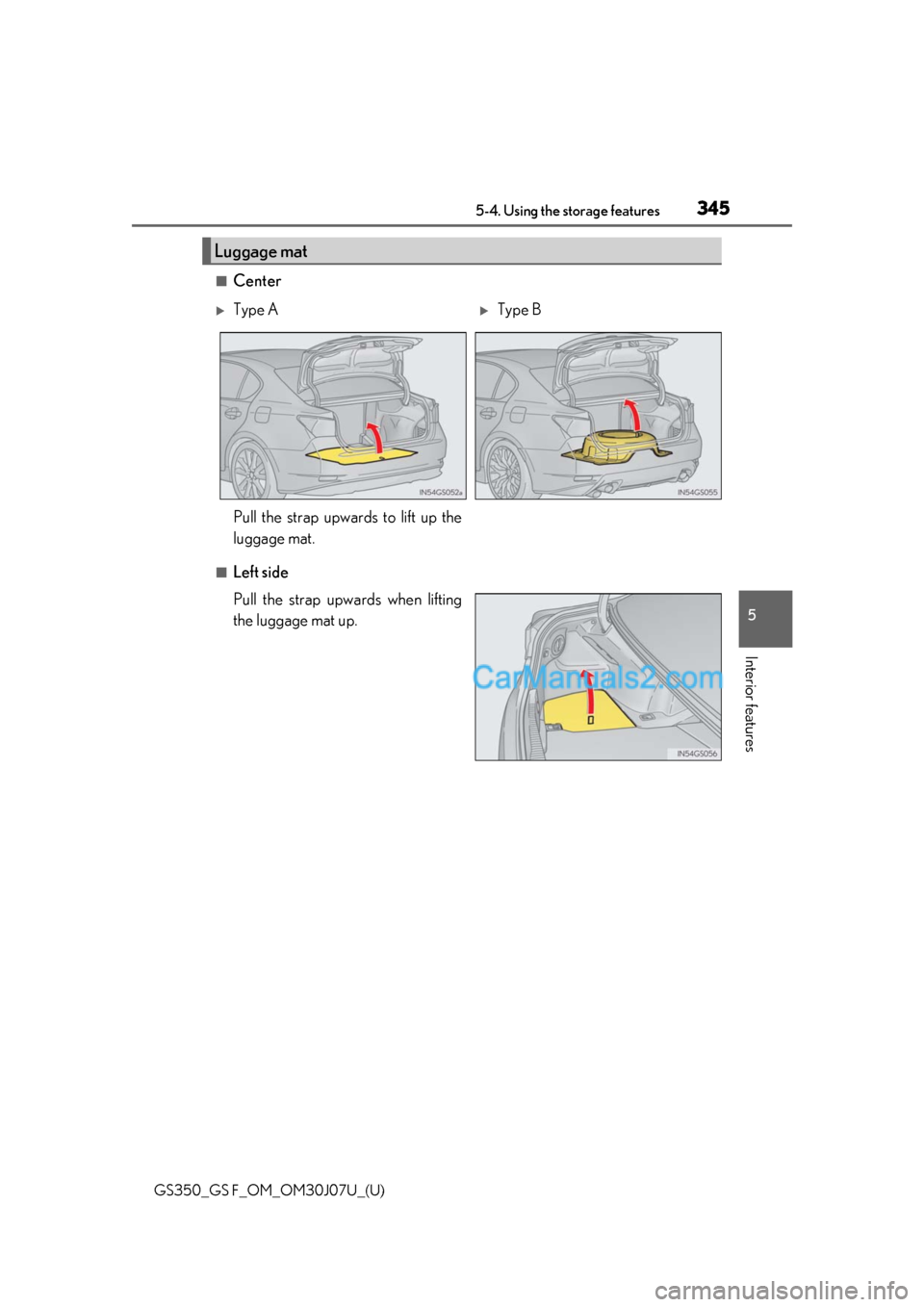

■Center
■Left side
Pull the strap upwards when lifting
the luggage mat up.
Luggage mat
Type AType B
Pull the strap upwards to lift up the
luggage mat.

346
GS350_GS F_OM_OM30J07U_(U)5-5. Using the other interior features
Other interior features
To set the visor in the forward posi-
tion, flip it down.
To set the visor in the side position,
flip down, unhook, and swing it to the
side.
To use the side extender, place the
visor in the side position, then slide it
backward.
Slide the cover to open.
The light turns on when the cover is
opened.
Sun visors
1
2
3
Vanity mirrors
NOTICE
To prevent battery discharge, do not leave the vanity lights on for extended periods
while the engine is off.

GS350_GS F_OM_OM30J07U_(U)
3475-5. Using the other interior features
5
Interior features
The GPS clock’s time is automatically
adjusted by utilizing GPS time informa-
tion.
For details, refer to “NAVIGATION
SYSTEM OWNER’S MANUAL”.
Open the ashtray lid.
To remove the ashtray, pull the ashtray
lid upwards.
Clock
Ashtrays (if equipped)
WARNING
●Keep the ashtray closed when not in use. In the event of sudden braking or sudden
swerving, an accident may occur due to an occupant being struck by the open ash-
tray or ash flying out.
●To prevent fire
• Fully extinguish matches and cigarettes before putting them in the ashtray, thenmake sure the ashtray is fully closed.
• Do not place paper or any other type of flammable object in the ashtray.

348
GS350_GS F_OM_OM30J07U_(U)5-5. Using the other interior features

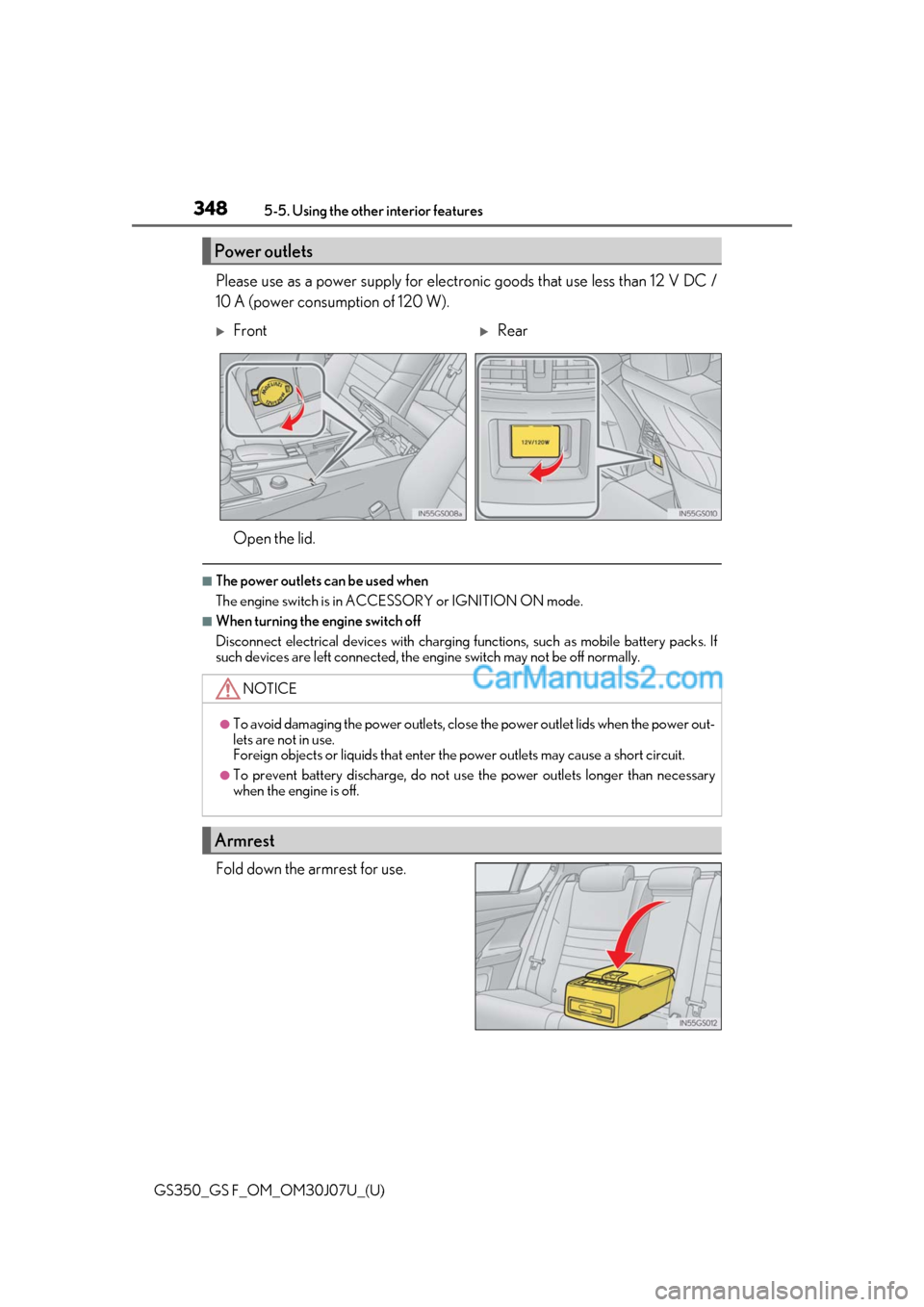

Please use as a power supply for electronic goods that use less than 12 V DC /
10 A (power consumption of 120 W).
■The power outlets can be used when
The engine switch is in ACCESSORY or IGNITION ON mode.
■When turning the engine switch off
Disconnect electrical devices
with charging functions, such as mobile battery packs. If
such devices are left connected, the engine switch may not be off normally.
Fold down the armrest for use.
Power outlets
FrontRear
Open the lid.
NOTICE
●To avoid damaging the power outlets, close the power outlet lids when the power out-
lets are not in use.
Foreign objects or liquids that enter the power outlets may cause a short circuit.
●To prevent battery discharge, do not use the power outlets longer than necessary
when the engine is off.
Armrest

GS350_GS F_OM_OM30J07U_(U)
3495-5. Using the other interior features
5
Interior features
■Rear sunshade
The rear sunshade can be raised and lowered by operating the button shown
below.Pull up the lever to release the lock.
Slide the armrest.
Raise/lower
■Rear door sunshades
Pull the tab of the rear door sun-
shade and hook the shade on using
the anchors.
To retract the rear door sunshade,
unhook the shade and retract it
slowly.
NOTICE
To prevent damage to the armrest, do not apply too much load on the armrest.
Rear sunshade (if equipped)/rear door sunshades (if equipped)
From the front seatsFrom the rear seats (if equipped)
1
2
3

350
GS350_GS F_OM_OM30J07U_(U)5-5. Using the other interior features
●The rear sunshade can be used when the engine switch is in IGNITION ON mode.
●The rear sunshade can be operated for approximately 1 minute even after the engine
switch is turned to ACCESSORY mode or turned off.
●Reverse operation feature: To ensure adequate
rear visibility, the rear sunshade auto-
matically lowers when the sh ift lever is shifted to R.
However, the rear sunshade is raised again if any of the following occurs:
• The button is pressed again.
*
• Shift the shift lever into P.
• The shift lever is shifted out of R, and the vehicle reaches a speed of 9 mph (15 km/h). If the engine is off when the rear sunshade has been lowered due to the reverse opera-
tion feature, it will not be raised even when the engine is turned on again and the vehi-
cle reaches a speed of 9 mph (15 km/h). To raise the sunshade again, press the button.
*: Occasionally, the reverse function may not be carried out after the switch has been
pressed. Repeat the above operation to operate the function.
●Vehicles with rear control panel: To preven t inadvertent operation, some buttons on the
rear armrest can be locked. ( P. 331)
●Vehicles with rear control panel: Control panel illumination on the rear armrest can be
turned off. ( P. 331)
●Time elapsed before the reverse operation feature activates can be changed.
(Customizable features:  P. 542)
WARNING
When the rear sunshade is being operated, do not place fingers or other objects in the
fastener section or in the opening.
They may get caught, causing injury.
NOTICE
●To prevent battery discharge, do not operate the rear sunshade when the engine is
off.
●Observe the following precautions to ensure normal operation of the rear sunshade
and rear door sunshades.
• Do not place excessive load on the moto r or other components of the rear sun-
shade.
• Do not place objects where they may hinder opening and closing operations.
• Do not attach items to the rear sunshade and rear door sunshades.
• Keep the opening clean and clear of obstructions.
• Do not operate the rear sunshade cont inuously for long periods of time.

GS350_GS F_OM_OM30J07U_(U)
3515-5. Using the other interior features
5
Interior features
Long objects can be loaded into the vehicle by utilizing the trunk space and rear
seat area.
Fold down the armrest.
Fold down the handle and open the
armrest door.
The armrest door can be locked and
unlocked using the mechanical key.Unlock
Lock
Trunk storage extension
1
2
1
2
WARNING
Ensure that the armrest door is closed when not in use.
In the event of sudden braking, items stor ed in the trunk may be thrown forward into
the cabin, resulting in injury.

352
GS350_GS F_OM_OM30J07U_(U)5-5. Using the other interior features
The coat hooks are provided with the
rear assist grips.
An assist grip installed on the ceiling
can be used to support your body while
sitting on the seat.
Coat hooks
WARNING
Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS cur-
tain shield airbags deploy, these items may become projectiles, causing death or seri-
ous injury.
Assist grips
WARNING
Do not use the assist grip when getting in or out of the vehicle or rising from your seat.
NOTICE
To prevent damage to the assist grip, do not hang any heavy object or put a heavy load
on the assist grip.
