2020 Lexus GS F Owner's Manuals

337
GS350_GS F_OM_OM30J07U_(U)5-3. Using the interior lights
5
Interior features
Interior lights list
When the instrument panel light control switch
is turned to minimum and the tail lights
are on, the inside door handle lights, th e ornament lights and the footwell lights will
turn off. ( P. 95, 103)
Outer foot lights
Shift lever light
Front interior light ( P. 338)
Front personal lights ( P. 338)
Inside door handle lights Rear personal lights (
P. 338)
Rear interior light
Ornament lights
Door courtesy lights
Power window switch lights
Footwell lights1
2
3
4
5
6
7
8
9
10

338
GS350_GS F_OM_OM30J07U_(U)5-3. Using the
interior lights
Turns the lights on/off
The rear interior light is also turned on/
off.
Turns the door position on/off
■Front
Turns the light on/off
■Rear
Turns the light on/off
Interior lights
1
2
Personal lights

GS350_GS F_OM_OM30J07U_(U)
3395-3. Using the interior lights
5
Interior features
●Illuminated entry system: The lights automatically turn on/off according to engine
switch mode, the presence of the electronic key, whether the doors are locked/
unlocked, and whether the doors are opened/closed.
●If the interior lights remain on when the engine switch is turned off, the lights will go off
automatically after 20 minutes.
●Setting (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features:  P. 542)
NOTICE
To prevent battery discharge, do not leave th e lights on longer than necessary when the
engine is off.

340
GS350_GS F_OM_OM30J07U_(U)5-4. Using the storage features
List of storage features
Cup holders (
P. 342)
Glove box ( P. 341)
Auxiliary boxes (if equipped) (P. 343)
Ashtrays (if equipped) ( P. 347) Auxiliary boxes (
P. 343)
Console box ( P. 341)
WARNING
●Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause
the following when cabin temperature becomes high:
• Glasses may be deformed by heat or cracke d if they come into contact with other
stored items.
• Lighters or spray cans may explode. If they come into contact with other stored
items, the lighter may catch fire or the spray can may release gas, causing a fire
hazard.
●When driving or when the storage compartments are not in use, keep the lids closed.
In the event of sudden braking or sudden swerving, an accident may occur due to an
occupant being struck by an open lid or the items stored inside.
1
2
3
4
5

GS350_GS F_OM_OM30J07U_(U)
3415-4. Using the storage features
5
Interior features
Open (press the button)
Unlock with the mechanical key
Lock with the mechanical key
●The glove box light turns on when the tail lights are on.
●The trunk opener main switch is located in the glove box. (P. 151)
●The insert inside the glove box can be removed.
●An SRS knee airbag for the front passenger’s seat is bu ilt into the glove box door.
(  P. 41)
Using with half-open
Grip the knob to release the lock,
and slide the armrest as far back.
Using with fully open
Grip the knob to release the lock,
and lift the armrest to open.
●The console box light turns on when the tail lights are on.
Glove box
1
2
3
Console box
1
2
●The tray slides forward/backward and can be
removed.

342
GS350_GS F_OM_OM30J07U_(U)5-4. Using the storage features
■Front
To open, press down and release the
cup holder lid.
■Rear
To open, pull down the armrest and
press in and release the rear cup
holder on the armrest.
●Rear cup holder: When stowing the cup hold
er, stow the cup holder with the armrest
down. The cup holder cannot be stowed if the armrest is not down.
WARNING
When using the console box with half-open, do not apply too much load on the arm-
rest. Doing so may damage the armrest and may cause you to injure yourself.
Cup holders
●Front cup holder: The cup holder insert may
be removed for cleaning.

GS350_GS F_OM_OM30J07U_(U)
3435-4. Using the storage features
5
Interior features
WARNING
Do not place anything other than cups or beverage cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or sudden
braking, causing injury. If possible, cover hot drinks to prevent burns.
NOTICE
To prevent damage to the rear cup holder, stow the cup holder before stowing the arm-
rest.
Auxiliary boxes
Type AType B
Press in the button. Pull up the lever to release the lock
and lift the lid.
Type C (if equipped)
Open the lid.
WARNING
Type C: Do not use the auxiliary box as an ashtray.
Doing so may cause a fire.

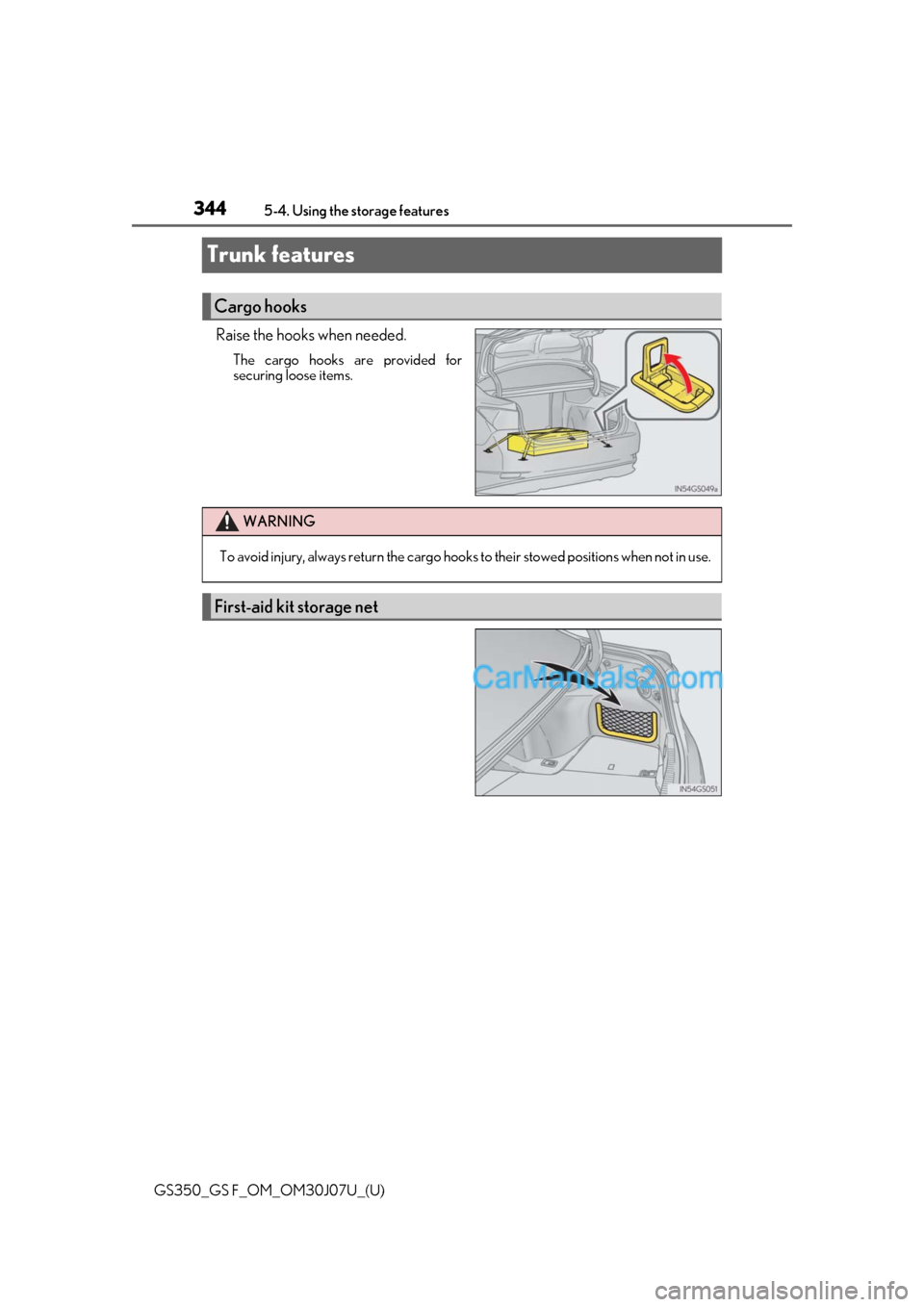

344
GS350_GS F_OM_OM30J07U_(U)5-4. Using the storage features
Trunk features
Raise the hooks when needed.
The cargo hooks are provided for
securing loose items.
Cargo hooks
WARNING
To avoid injury, always return the cargo hooks to their stow ed positions when not in use.
First-aid kit storage net
