2020 Lexus ES300h Owner's Manual

4238-2. Customization
8
Vehicle specifications
■Outside rear view mirrors (P.125)
*:If equipped
■Power windows and moon roof ( P.128, 130)
■Automatic light control system ( P.159)
■Lights ( P.159)
FunctionDefault settingCustomized set-
ting
Automatic mirror folding and
extending operation
*
Linked to the lock-ing/ unlocking of the doorsOff
OLinked to opera-
tion of the power switch
FunctionDefault settingCustomized set- ting
Mechanical key linked opera-
tionOffOnO
Wireless remote control linked
operationOffOn (open only)O
Wireless remote control linked
operation signal (buzzer)OnOffO
FunctionDefault settingCustomized set-ting
Light sensor sensitivityStandard-2 to 2OO
Time elapsed before headlights
automatically turn off after
doors are closed
30 seconds
Off
OO60 seconds
90 seconds
Windshield wiper linked head-
light illuminationOnOffO
FunctionDefault settingCustomized set-ting
Daytime running lightsOnOff*1OO
ABC
ABC
ABC
ABC

4248-2. Customization
*1:Except for Canada
*2: If equipped
■PCS (Pre-Collision System) (P.178)
■LTA (Lane Tracing Assist) ( P.185)
■RSA (Road Sign Assist)* ( P.194)
Welcome lightingOnOffO
AFS (Adaptive Front-lighting
System)
*2OnOffO
FunctionDefault settingCustomized set-
ting
PCS (Pre-Collision System)OnOffO
Adjust alert timingMiddleEarlyOLate
FunctionDefault settingCustomized set-ting
Lane centering functionOnOffO
Steering assist functionOnOffO
Alert typeSteering wheel vibrationBuzzerO
Alert sensitivityHighStandardO
Vehicle sway warning functionOnOffO
Vehicle sway warning sensitivityStandardHighOLow
FunctionDefault settingCustomized set- ting
RSA (Road Sign Assist)OnOffO
Excess speed notification
methodDisplay onlyNo notificationODisplay and buzzer
FunctionDefault settingCustomized set-tingABC
ABC
ABC
ABC

4258-2. Customization
8
Vehicle specifications
*:If equipped
■BSM (Blind Spot Monitor)* ( P.206)
*:If equipped
■PKSA (Parking Support Alert) ( P.214)
■Intuitive parking assist* ( P.215)
*:If equipped
Excess speed notification level1 mph (2 km/h)3 mph (5 km/h)O5 mph (10 km/h)
Other notifications method
(No-entry notification)Display onlyNo notificationODisplay and buzzer
FunctionDefault settingCustomized set-
ting
BSM (Blind Spot Monitor)OnOffO
Outside rear view mirror indi-
cator brightnessBrightDimO
Alert timing for presence of
approaching vehicle (sensitiv-
ity)
Intermediate
Early
O
Late
Only when vehicle detected in blind spot
FunctionDefault settingCustomized set- ting
Buzzer volumeLevel2Level1OLevel3
FunctionDefault settingCustomized set-ting
Intuitive parking assistOnOffO
FunctionDefault settingCustomized set-tingABC
ABC
ABC
ABC

4268-2. Customization
■RCTA (Rear Cross Traffic Alert) function* ( P.221)
*:If equipped
■RCD (Rear Camera Detection) function* ( P.225)
*:If equipped
■PKSB (Parking Support Brake)* ( P.228)
*:If equipped
■Automatic air conditioning system ( P.265)
FunctionDefault settingCustomized set-
ting
RCTA (Rear Cross Traffic
Alert) functionOnOffO
Buzzer volume*Level2Level1OLevel3
FunctionDefault settingCustomized set-ting
RCD (Rear Camera Detection)
functionOnOffO
FunctionDefault settingCustomized set-ting
PKSB (Parking Support Brake)
functionOnOffO
FunctionDefault settingCustomized set-ting
A/C auto switch operationOnOffOO
Exhaust gas sensor sensitivityStandard-3 to 3OO
ABC
ABC
ABC
ABC

4278-2. Customization
8
Vehicle specifications
■Seat heater*/seat ventilators* ( P.273)
*:If equipped
■Heated steering wheel* ( P.273)
*:If equipped
■Illumination ( P.277)
FunctionDefault settingCustomized set-
ting
Driver’s seat temperature pref-
erence in automatic modeStandard-2 (cooler) to 2 (warmer)OO
Passenger’s seat temperature
preference in automatic modeStandard-2 (cooler) to 2 (warmer)OO
FunctionDefault settingCustomized set- ting
Steering wheel heating prefer-
ence in automatic modeStandard-2 (low) to 2 (high)OO
FunctionDefault settingCustomized set-ting
Time elapsed before the interior
lights turn off15 seconds
Off
OO7.5 seconds
30 seconds
Operation after the power
switch is turned offOnOffO
Operation when the doors are
unlockedOnOffO
Operation when you approach
the vehicle with the electronic
key on your person
OnOffO
Footwell lightsOnOffO
Instrument panel ornament
light
* and door trim ornament
lights
*
OnOffO
ABC
ABC
ABC

4288-2. Customization
*:If equipped
■Vehicle customization
●When the smart access system with
push-button start is off, the entry unlock
function cannot be customized.
●When the doors remain closed after
unlocking the doors and the timer acti-
vated automatic door lock function acti-
vates, signals will be generated in
accordance with the operation buzzer
volume and operational signal (Emer-
gency flashers) function settings.
●Some settings can be changed using a
switch or the Center Display. If a setting is
changed using a switch, the changed set-
ting will not be reflected on the Center
Display until the power switch is turned
off and then to ON mode.
■Clock settings screen
If the clock adjustment screen is displayed
continuously when attempting to change
the clock settings, the system may be mal-
functioning. Have the vehicle inspected by
your Lexus dealer.
Time elapsed before the outer
foot lights turn off15 seconds
Off
OO7.5 seconds
30 seconds
Operation of the outer foot
lights when you approach the
vehicle with the electronic key
on your person
OnOffO
Operation of the outer foot
lights when the doors are
unlocked
OnOffO
Operation of the outer foot
lights when a door is openedOnOffO
Fading out of the outer foot
lights when they turn offLongShortO
FunctionDefault settingCustomized set-
tingABC

4298-3. Items to initialize
8
Vehicle specifications

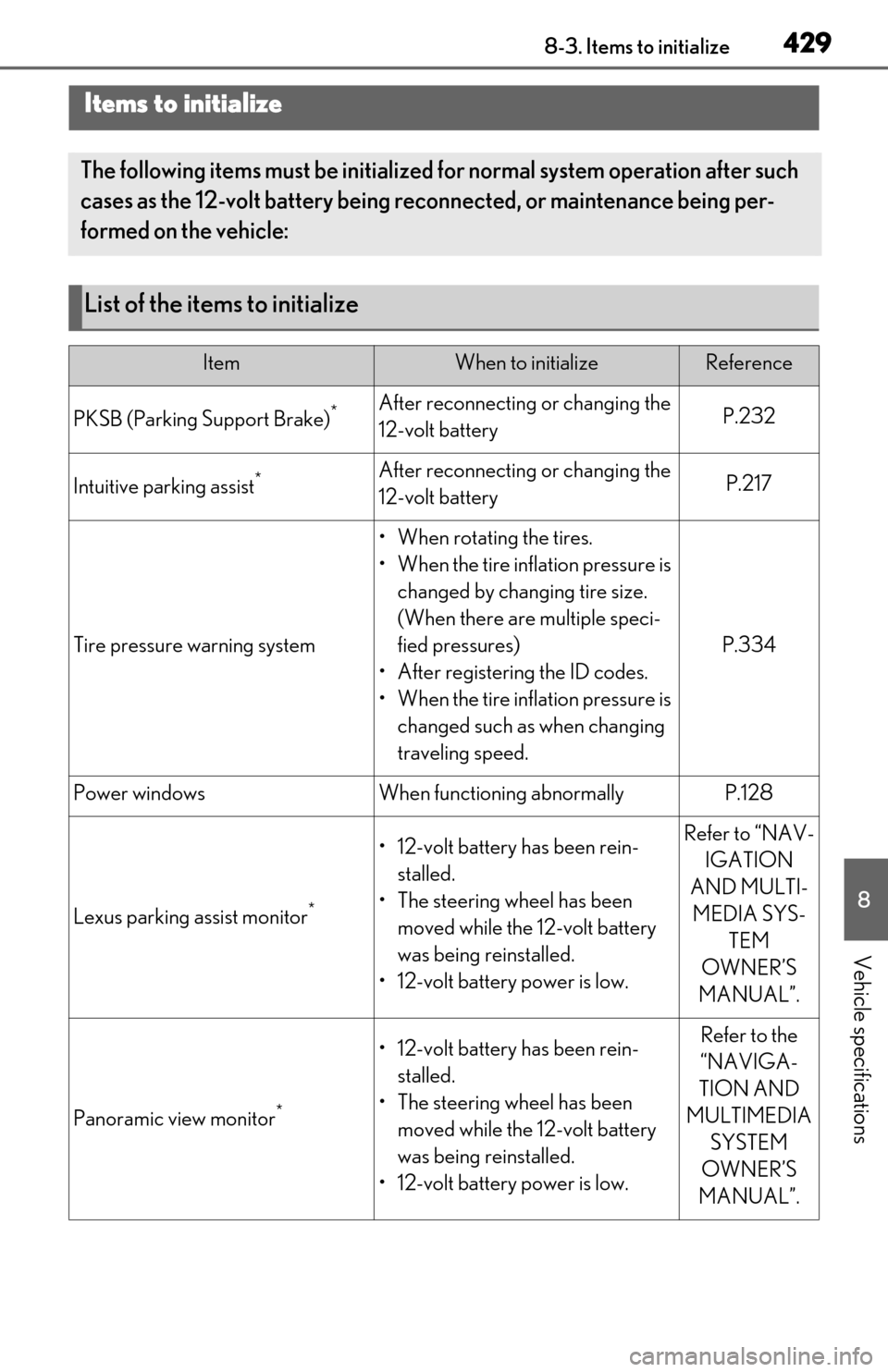

8-3.Items to initialize
Items to initialize
The following items must be initialized for normal system operation after such
cases as the 12-volt battery being re connected, or maintenance being per-
formed on the vehicle:
List of the items to initialize
ItemWhen to initializeReference
PKSB (Parking Support Brake)*After reconnecting or changing the
12-volt batteryP.232
Intuitive parking assist*After reconnecting or changing the
12-volt batteryP.217
Tire pressure warning system
• When rotating the tires.
• When the tire inflation pressure is changed by changing tire size.
(When there are multiple speci-
fied pressures)
• After registering the ID codes.
• When the tire inflation pressure is changed such as when changing
traveling speed.
P.334
Power windowsWhen functioning abnormallyP.128
Lexus parking assist monitor*
• 12-volt battery has been rein-stalled.
• The steering wheel has been moved while the 12-volt battery
was being reinstalled.
• 12-volt battery power is low.Refer to “NAV- IGATION
AND MULTI- MEDIA SYS- TEM
OWNER’S
MANUAL”.
Panoramic view monitor*
• 12-volt battery has been rein- stalled.
• The steering wheel has been moved while the 12-volt battery
was being reinstalled.
• 12-volt battery power is low.Refer to the
“NAVIGA-
TION AND
MULTIMEDIA SYSTEM
OWNER’S
MANUAL”.

4308-3. Items to initialize
*:If equipped

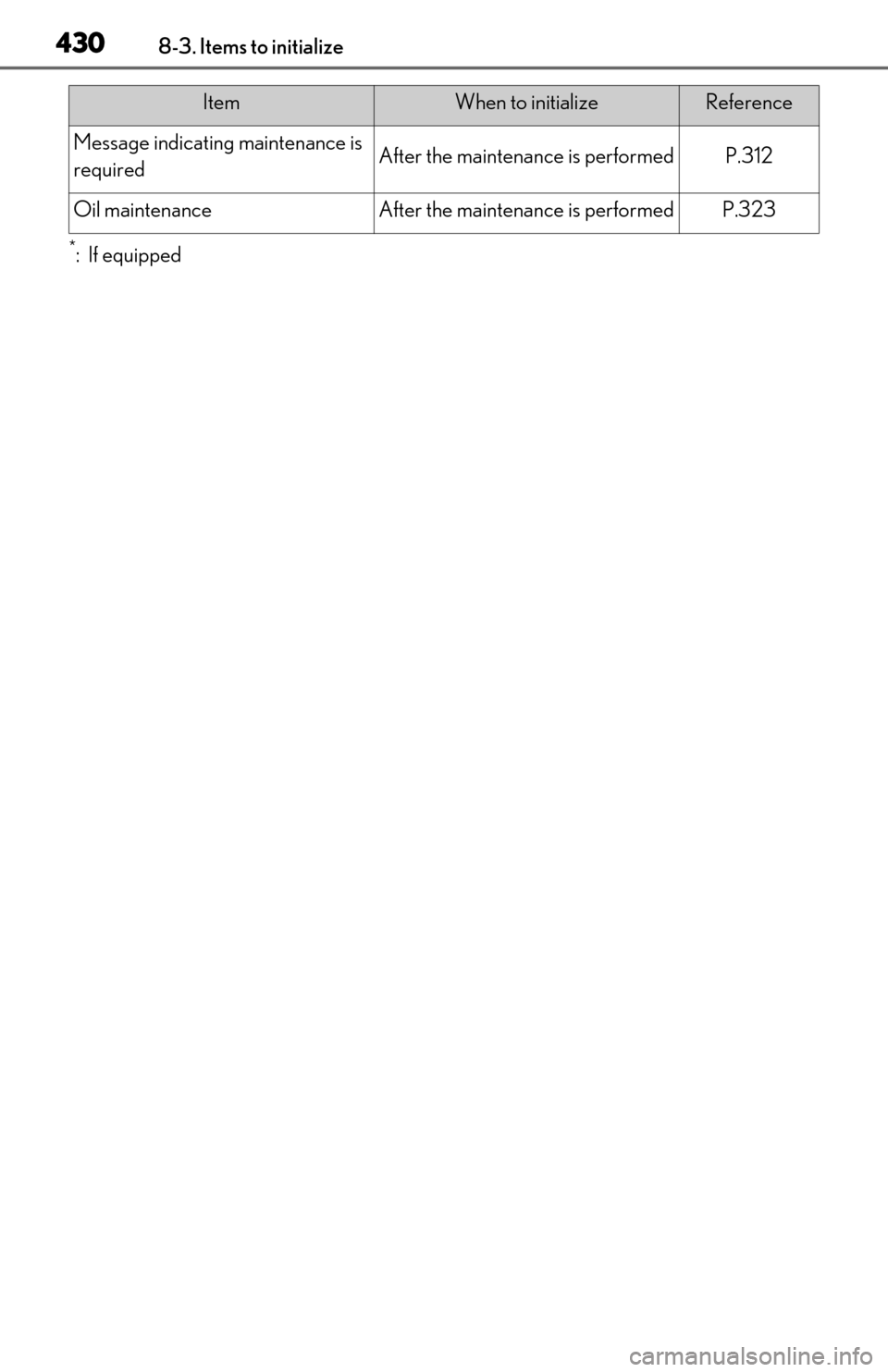

Message indicating maintenance is
requiredAfter the maintenance is performedP.312
Oil maintenanceAfter the maintenance is performedP.323
ItemWhen to initializeReference
