2020 KIA TELLURIDE Navigation System Quick Reference Guide

1-5
\335Warning
\225 Driving while distracted can result in a loss of vehicle control
that may lead to an accident, severe bodily injury, or death.
The driver's primary responsibility is the safe and legal
operation of the vehicle, and the use of any vehicle systems,
including the touch screen and steering wheel controls, which
take the driver's eyes, attention, and focus away from the safe
operation of the vehicle, or which are not permissible by law,
should never be used during the operation of the vehicle.
\225 Some functions may not be active while driving to ensure
safety. Those functions run only when the vehicle is stationary.
In order to use them, first stop the vehicle.
\225 When the screen is not displayed, the volume is muted, or
other system failures occur, immediately stop using the
system. When you use the faulty system continuously, it may
cause fire, electric shock, or fatal system failure.
Turning off the system
To turn off the system while driving, press and hold
the [POWER] button on the panel.
The screen and sound are turned off.
0000
A
To use the system again, press the [ POWER] button.
0000
A
When a specified period of time elapses after turning off the
vehicle, the system automatically shuts down. When you open
the driver's door, the system immediately shuts down.

1-6
Using the touch screen
This system is equipped with a touch-type screen. You can use
various practices by using this feature.
\335Warning
Do not use the touch screen while driving as this will divert your
attention away from the safe operation of the vehicle. You may
lose your steering control which could cause an accident and
severe bodily injuries.
\334Caution
\225 Do not press the touch screen with excessive force or a sharp
object. The touch screen may become damaged.
\225 Be careful for the touch screen not to contact any electrically
charged object. Static or other electric shock may cause the
system to malfunction or damage the touch screen.
0000
A
The touch screen will not respond when you are wearing
gloves. Take off the gloves or wear electrostatic touch gloves.
\334Caution
\225 The system can be turned on even when the ignition switch is
in “ACC” or “ON.” However, when you use the system without
turning on the vehicle for a long time, it may cause battery
discharge. To use the system for a long time, be sure to turn
on the vehicle.
\225 When you use the system with the vehicle turned off, the
battery warning message appears. The warning message
disappears as soon as you turn on the vehicle.
0000AWhen you turn off and on the vehicle, the system is turned on
with the mode and settings used when the vehicle was turned
off.
0000
A
To prevent audio from playing loud when you turn on the
vehicle, adjust the system volume to an adequate level.
0000
A
To automatically decrease the system volume, move to the All
Menus screen and touch Setup >
Sound >
Priority >
Start-
up Volume Limit to set the function.
> See “Start-up Volume
Limit.”

1-7
“Touch and hold” gesture
Touch and hold the desired item.
It is used to fast forward or rewind during playback.
“Touch” gesture
Lightly touch the desired item and release the finger.
The corresponding function is run or the corresponding menu is
selected.

1-8

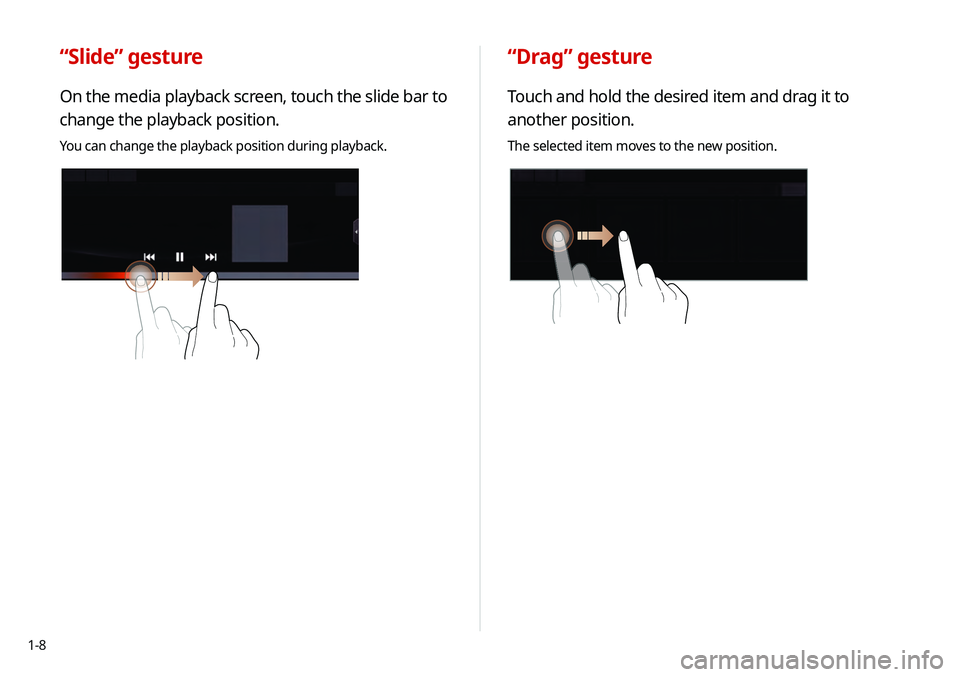

“Drag” gesture
Touch and hold the desired item and drag it to
another position.
The selected item moves to the new position.
“Slide” gesture
On the media playback screen, touch the slide bar to
change the playback position.
You can change the playback position during playback.

1-9
“Spread/pinch” gesture
On the map screen, touch and hold the screen with
two fingers and spread or pinch the fingers.
It is used to zoom in or out the map.
“Swipe” gesture
Lightly swipe the screen in the desired direction.
It is used to move fast vertically or horizontally across the menu
screen or options list.

1-10
Setting the Home screen type
You can set the Home screen type.
1 At the upper left of the Home screen, touch Menu
> Edit Home Layout.
2 Select the desired type.
Home screen
The Home screen provides various functions.
The Home screen is provided with two different types: One Page
Home Screen and Multi-page Home Screen. The characteristics
of each type are as follows.
\225 The way to access the All Menus screen differs depending on
the type.
> See “
All Menus screen.”
\225The One Page Home screen provides widgets and shortcut
icons. The map widget position is fixed. The other two widgets
and icons can be customized to suit your preferences.
\225The Multi-page Home screen can display three different
widgets. All widgets can be customized to suit your
preferences.
0000
A
This User’s Manual provides operation descriptions based on
the initial state of the Multi-page Home screen.
0000
A
To return to the Home screen from other screens, touch
.

1-11
f The set icon appears. When the icon is pressed, the function
runs on the full screen.
g The list of menu items appears.
\225Edit Home Widgets: Used to edit the types and positions
of widgets on the Home screen.
\225Edit Home Icons: Used to edit the types of icons on the
Home screen.
\225Edit Home Layout: Used to change the Home screen type
to the One Page Home Screen or Multi-page Home screen.
\225User's Manual on Web (QR Code): Displays the QR code
that provides access to the online user manual for the
system.
0000
A
The screen may differ depending on the vehicle model and
specifications.
One Page Home screen
The layout of the One Page Home screen is as follows:
\037\036
\035
\034\033
\032
\031
a Displays the current date and time.
b Displays the icon to let you know the current status. > See
“ System status indicator icons.”
c Displays active widgets. When a widget is touched, the
corresponding function runs in full screen.
> See “Editing
widgets on the One Page Home screen.”
d Displays the map widget. When the map widget is touched,
the map appears in full screen.
e The All Menus screen appears. In this case, all menus appear
on the One Page Home screen.

1-12
Editing icons on the One Page Home screen
You can arrange frequently used icons at the bottom of the One
Page Home screen to run the functions directly.
1 At the upper left of the Home screen, touch Menu
> Edit Home Icons.
2 Perform any of the following methods:
\225 To change the icon type, touch and hold the desired icon
on
List of icons and then drag it to Icon area.
\225To change the listed order for icons, touch and hold
an icon on
Icon area and then drag it to the desired
position.
\037
\036
a List of icons
b Icon area
0000
A
To initialize the types and positions of icons, touch Reset.
Editing widgets on the One Page Home screen
You can edit the types and positions for widgets to display on the
One Page Home screen.
1 At the upper left of the Home screen, touch Menu
> Edit Home Widgets.
2 Perform any of the following methods:
\225 To change the widget type, touch and hold the desired
widget on
List of widgets and then drag it to Widget
area.
\225To change the listed order for widgets, touch and hold a
widget on
Widget area and then drag it to the desired
position.
\037\036
a List of widgets
b Widget area
0000
A
You cannot change the map widget to another one on the
One Page Home screen.
0000
A
To initialize the types and positions of widgets, touch
Reset.
