2020 KIA TELLURIDE Navigation System Quick Reference Guide

CAR INFOTAINMENT SYSTEM
QUICK REFERENCE GUIDE
BK7
(영어ｌ미국) 표준5Wide
S9MS7-BK000

Be sure to read this User’s Manual before using the product to ensure safety and usability.

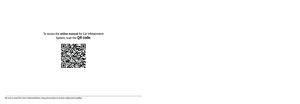

To access the online manual for Car Infotainment System, scan the
QR code.

1
3 Touch the URL for User’s Manual on Web from the
smartphone display.
The online user’s manual of the system appears in the
Internet browser application on the smartphone.
0000ADepending on how you scan the QR code, the online manual
may open without touching the URL.
0000
A
With a camera application of your iPhone or Android
smartphone, the QR code can also be scanned. Depending
on the Android smartphone model, the QR code scanning
may not be supported for the provided application. For more
details, see the smartphone’s manual.
0000
A
Without scanning the QR code, you can directly enter the URL
address to see User’s Manual on Web. (http://webmanual.kia.
com/STD_GEN5_WIDE/AVNT/USA/English/index.html )
Reading the manual on web
with the QR code
You can access the online user’s manual of the system by
scanning the QR code with your smartphone.
\335Warning
Pull over the vehicle to a safe area and scan the QR code. To ensure
your safety, the system does not provide QR codes while driving.
1 Scan the QR code by using any of the following
methods:
\225On the All Menus screen, touch Setup
>
General >

System Info >
User's Manual on Web (QR Code).
\225 Or scan the QR code in the Quick Reference Guide.
2 Scan the QR code after installing the QR code
reader application from App Store (
) or Google
Play Store (
).

2
For emergency services (e.g. hospital, fire station), do not rely
solely on the navigation system.
\225Some emergency services may not be included in the navigation map.
Obtain information in advance for emergency situations.
\335System handling
Do NOT arbitrarily disassemble or modify the system.
\225It may cause accident, fire, or electric shock.
Exercise caution to make sure that no liquid or foreign
materials enter the system.
\225It may cause smoke generation, fire ignition, or system failure.
When the screen is not displayed, the volume is muted, or
other system failures occur, immediately stop using the
system.
\225Otherwise, it may cause fire, electric shock, or fatal system failure.
0000
A
If you experience any problems with the system, contact your
place of purchase or dealer.

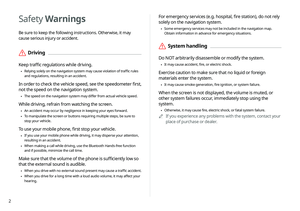

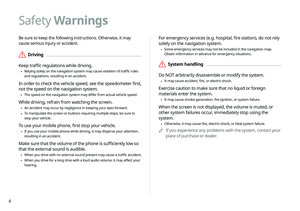

Safety Warnings
Be sure to keep the following instructions. Otherwise, it may
cause serious injury or accident.
\335Driving
Keep traffic regulations while driving.
\225Relying solely on the navigation system may cause violation of traffic rules
and regulations, resulting in an accident.
In order to check the vehicle speed, see the speedometer first,
not the speed on the navigation system.
\225The speed on the navigation system may differ from actual vehicle speed.
While driving, refrain from watching the screen.
\225An accident may occur by negligence in keeping your eyes forward.
\225To manipulate the screen or buttons requiring multiple steps, be sure to
stop your vehicle.
To use your mobile phone, first stop your vehicle.
\225If you use your mobile phone while driving, it may disperse your attenti\
on,
resulting in an accident.
\225When making a call while driving, use the Bluetooth Hands-free function
and if possible, minimize the call time.
Make sure that the volume of the phone is sufficiently low so
that the external sound is audible.
\225When you drive with no external sound present may cause a traffic accident.
\225When you drive for a long time with a loud audio volume, it may affect your
hearing.

3
\334System handling
Do NOT apply excessive force to the system.
\225When you apply excessive pressure to the screen, the LCD panel or touch
panel may get damaged.
To clean the screen or button panel, first turn off the vehicle
and then use a dry, soft cloth to wipe it.
\225Do not wipe using a rough or hard cloth, chemical fiber, organic solvent (e.g.
alcohol, benzene, thinner), or air freshener. The panel surface may become
scratched or damaged due to chemical reaction.
When you install an air freshener on the air conditioner vent,
the surface may be deformed due to leakage.
0000
A
If you experience any problems with the system, contact your
place of purchase or dealer.
Safety Precautions
Be sure to keep the following instructions. Otherwise, it may
cause minor injury or system damage.
\334Operation
Use the system with the vehicle started.
\225When you use the system for a long time with the vehicle stopped, it may\

cause battery discharge.
Do NOT install unapproved products.
\225Using unapproved products may cause an error while using the system.
\225System errors caused by installing unapproved products are not covered
under the warranty.

4

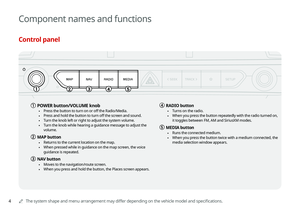

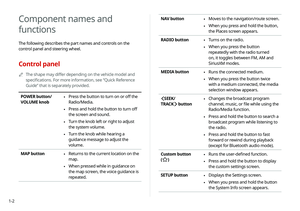

Component names and functions
Control panel
0000AThe system shape and menu arrangement may differ depending on the vehicle model and specifications.
a POWER button/VOLUME knob
\225Press the button to turn on or off the Radio/Media. \225Press and hold the button to turn off the screen and sound. \225Turn the knob left or right to adjust the system volume. \225Turn the knob while hearing a guidance message to adjust the
volume.
b MAP button
\225Returns to the current location on the map. \225When pressed while in guidance on the map screen, the voice
guidance is repeated.
c NAV button
\225Moves to the navigation/route screen. \225When you press and hold the button, the Places screen appears.
d RADIO button
\225Turns on the radio. \225When you press the button repeatedly with the radio turned on,
it toggles between FM, AM and SiriusXM modes.
e MEDIA button
\225Runs the connected medium. \225When you press the button twice with a medium connected, the
media selection window appears.

5

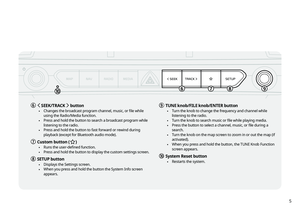

f < SEEK/TRACK > button
\225Changes the broadcast program channel, music, or file while
using the Radio/Media function.
\225Press and hold the button to search a broadcast program while
listening to the radio.
\225Press and hold the button to fast forward or rewind during
playback (except for Bluetooth audio mode).
g Custom button (B
)
\225Runs the user-defined function. \225Press and hold the button to display the custom settings screen.
h SETUP button
\225Displays the Settings screen. \225When you press and hold the button the System Info screen
appears.
i TUNE knob/FILE knob/ENTER button
\225Turn the knob to change the frequency and channel while
listening to the radio.
\225Turn the knob to search music or file while playing media. \225Press the button to select a channel, music, or file during a
search.
\225Turn the knob on the map screen to zoom in or out the map (if
activated).
\225When you press and hold the button, the TUNE Knob Function
screen appears.
j System Reset button
\225Restarts the system.

6

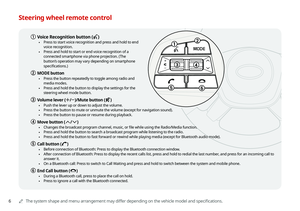

Steering wheel remote control
0000AThe system shape and menu arrangement may differ depending on the vehicle model and specifications.
1
23
4
5
6
MODE
a Voice Recognition button (C )
\225Press to start voice recognition and press and hold to end
voice recognition.
\225Press and hold to start or end voice recognition of a
connected smartphone via phone projection. (The
button’s operation may vary depending on smartphone
specifications.)
b MODE button
\225Press the button repeatedly to toggle among radio and
media modes.
\225Press and hold the button to display the settings for the
steering wheel mode button.
c Volume lever (+
/- )/Mute button (M )
\225Push the lever up or down to adjust the volume. \225Press the button to mute or unmute the volume (except for navigation sound). \225Press the button to pause or resume during playback.

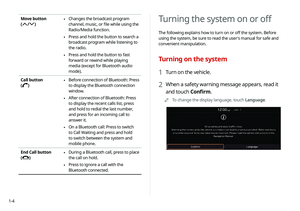

d Move button (:
/; )
\225 Changes the broadcast program channel, music, or file while using the Radio/Media function. \225Press and hold the button to search a broadcast program while listening to the radio. \225Press and hold the button to fast forward or rewind while playing media (except for Bluetooth audio mode).
e Call button (D
)
\225Before connection of Bluetooth: Press to display the Bluetooth connection window. \225After connection of Bluetooth: Press to display the recent calls list, press and hold to redial the last number, and press for an incoming call to
answer it.
\225On a Bluetooth call: Press to switch to Call Waiting and press and hold to switch between the system and mobile phone.
f End Call button (E
)
\225During a Bluetooth call, press to place the call on hold. \225Press to ignore a call with the Bluetooth connected.
