2020 KIA NIRO PHEV Quick Start Guide Base Audio

Car Infotainment System
Quick Reference Guide
G5MS7-DG000
DG7
(영어 | 미국) 디오디오2Value

Be sure to read this Quick Reference Guide and the web manual before using the product to
ensure safety and usability.
To access the web manual for your car infotainment system,
scan the QR code below.

1
Accessing the web manual via QR
codes
You can view the web manual of the system by scanning QR codes with your smartphone.
\334Warning
Park your vehicle in a safe location before scanning the QR code. For safety reasons, you are
not able to access QR codes from the system′s screen while the vehicle is moving.
1 Select one of the following methods to access a QR code.
0024On the system′s Home screen, press All Menus > User′s Manual.
0024On the system′s Home screen, press All Menus > Setup > General > System Info >
User′s Manual on Web (QR Code).
0024Alternatively, find the QR code in the Quick Reference Guide.
2 Install a QR code reader application
from the App Store () or the Google
Play Store () and scan a QR code.
3 On your smartphone's screen, press
the URL for the web manual.
0024You can view the web manual of the system
in the Internet browser application of your
smartphone.
0024Depending on how you scan the QR code,
you may be able to open the web manual
without pressing its URL.

2
\333Note
0024You can also scan QR codes with the pre-installed camera application in your iPhone
or Android smartphone. Depending on the Android smartphone type, some camera
applications may not support QR code scanning. For more information, refer to your
smartphone′s user guide.
0024By scanning the QR code in each function menu, you can quickly access th\
e information of
the current function (except for some functions).
-After starting a function in the system, press Menu > User′s Manual on Web (QR Code).
0024Without scanning the QR code, you can directly enter the URL address to view the web
manual. (http://webmanual.kia.com/DA_GEN2_V/AV/USA/English/index.html)

3

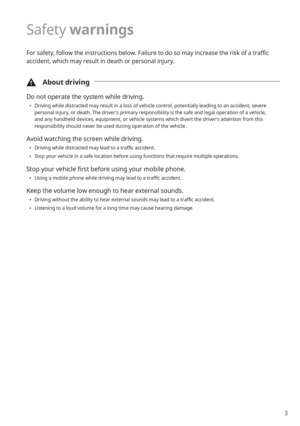

Safety warnings
For safety, follow the instructions below. Failure to do so may increase the risk of a traffic
accident, which may result in death or personal injury.
\334About driving
Do not operate the system while driving.
0024Driving while distracted may result in a loss of vehicle control, potentially leading to an accident, severe personal injury, or death. The driver′s primary responsibility is the safe and legal operation of a vehicle, and any handheld devices, equipment, or vehicle systems which divert the driver′s attention from this responsibility should never be used during operation of the vehicle.
Avoid watching the screen while driving.
0024Driving while distracted may lead to a traffic accident.
0024Stop your vehicle in a safe location before using functions that require multiple operations.
Stop your vehicle first before using your mobile phone.
0024Using a mobile phone while driving may lead to a traffic accident.
Keep the volume low enough to hear external sounds.
0024Driving without the ability to hear external sounds may lead to a traffic accident.
0024Listening to a loud volume for a long time may cause hearing damage.

4
\334About handling the system
Do not disassemble or modify the system.
0024Doing so may result in an accident, fire, or electric shock.
Do not allow liquids or foreign substances to enter the system.
0024Liquids or foreign substances may cause noxious fumes, a fire, or a system malfunction.
Stop using the system if it malfunctions, such as no audio output or dis\
play.
0024If you continue using the system when it is malfunctioning, it may lead \
to a fire, electric shock, or system failure.
\333Note
If you experience any problems with the system, contact your place of purchase or dealer.

5
Safety cautions
For safety, follow the instructions below. Failure to do so may result in personal injury or
damage to the system.
\335About operating the system
Use the system with the engine running.
0024Using the system for a long time when the engine is stopped may discharge the battery.
Do not install unapproved products.
0024Using unapproved products may cause an error while using the system.
0024System errors caused by installing unapproved products are not covered under the warranty.
\335About handling the system
Do not apply excessive force to the system.
0024Excessive pressure on the screen may damage the LCD panel or the touch panel.
When cleaning the screen or button panel, make sure to stop the engine and use a
soft, dry cloth.
0024Wiping the screen or buttons with a rough cloth or using solvents (alcohol, benzene, paint thinner, etc.) m\
ay scratch or chemically damage the surface.
If you attach a liquid-type air freshener to the fan louver, the surface of the louver may
become deformed due to the flowing air.
\333Note
If you experience any problems with the system, contact your place of purchase or dealer.

6

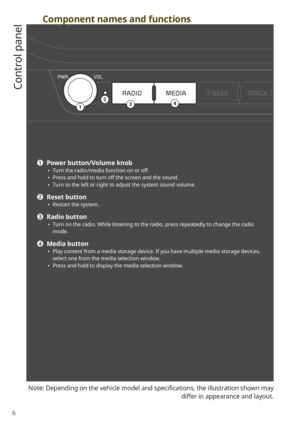

Component names and functions
Control panel
Note: Depending on the vehicle model and specifications, the illustration shown may
differ in appearance and layout.
1342
a Power button/Volume knob 0024Turn the radio/media function on or off. 0024Press and hold to turn off the screen and the sound. 0024Turn to the left or right to adjust the system sound volume.
b Reset button 0024Restart the system.
c Radio button 0024Turn on the radio. While listening to the radio, press repeatedly to change the radio mode.
d Media button 0024Play content from a media storage device. If you have multiple media storage devices, select one from the media selection window. 0024Press and hold to display the media selection window.
