Instrument cluster
Electronic Stability
Control (ESC)
Indicator Light
7his indicator light illuminates
‡When you set the ignition switch or
the Engine Start/Stop button to the
ON position.
- It illuminates for approximately 3
seconds and then goes off.
‡When there is a malfunction with
the ESC system.
In this case, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
7his indicator light blinks
‡Whilst the ESC is operating.
For more details, refer to “Elect-
ronic Stability Control (ESC)” in
chapter 6.
Electronic Stability
Control (ESC) OFF
Indicator Light
7his indicator light illuminates
‡When you set the ignition switch or
the Engine Start/Stop button to the
ON position.
- It illuminates for approximately 3
seconds and then goes off.
‡When you deactivate the ESC sys-
tem by pressing the ESC OFF but-
ton.
For more details, refer to “Elect-
ronic Stability Control (ESC)” in
chapter 6.
AUTO STOP Indicator
Light (if equipped)
7his indicator light illuminates

4-17
04
Immobiliser Indicator
Light (without smart
key) (if equipped)
7his indicator light illuminates
‡When the vehicle detects the immo-
biliser in the key with the ignition
switch in the ON position.
- At this time, you can start the
engine.
- The indicator light goes off after
starting the engine.
7his indicator light blinks
‡When there is a malfunction with
the immobiliser system.
In this case, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
Immobiliser Indicator
Light (with smart key)
(if equipped)
7his indicator light illuminates for
up to 3 seconds
‡When the vehicle detects the smart
key in the vehicle with the Engine
Start/Stop button in the ACC or ON
position.
- At this time, you can start the
engine.
- The indicator light goes off after
starting the engine.
7his indicator light blinks for a few
seconds
‡When the smart key is not in the
vehicle.
- At this time, you cannot start the
engine.
7his indicator light illuminates for 2
seconds and goes off
‡If the smart key is in the vehicle and
the Engine Start/Stop button is ON,
but the vehicle cannot detect the
smart key.
In this case, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
7his indicator light blinks
‡When there is a malfunction with
the immobiliser system.
In this case, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.

4-20
Instrument cluster
Forward Collision-
Avoidance Assist sys-
tem warning light (if
equipped)
7his indicator light illuminates
‡When you set the ignition switch or
Engine Start/Stop button to the ON
position.
- It illuminates for approximately 3
seconds and then goes off.
‡When there is a malfunction with
FCA.
In this case, we recommend that you
have the vehicle inspected by a
HYUNDAI authorised repairer.
For more details, refer to “Forward
Collision-Avoidance Assist (FCA)”
in chapter 6.
Lane Keeping Assist
system indicator light
(if equipped)
7his indicator light illuminates
‡[Green] When the system operating
conditions are satisfied.
‡[White] The system operating con-
ditions are not satisfied.
‡[Yellow] When there is a malfunc-
tion with the lane keeping assist
system.
In this case, we recommend that
you have your vehicle inspected by
a HYUNDAI authorised repairer.
For more details, refer to “Lane
Keeping Assist (LKA)” in chapter
6.
LCD display messages
Key not in vehicle
(for smart key system)
This warning message is displayed if
the smart key is not in the vehicle
when you open or close door in the
ACC position or ON position. The
warning sound is heard when you
close door without a smart key in
vehicle.
When attempting to start the vehicle
always have the smart key with you.
Key not detected
(for smart key system)
This warning message is displayed if
the smart key is not detected when
you press the Engine Start/Stop but-
ton.
Press START button with key
(for smart key system)
This warning message is displayed if
you press the Engine Start/Stop but-
ton whilst the warning message “Key
not detected” is displayed.
At this time, the immobiliser indicator
light blinks.
Low Key Battery
(for smart key system)
This warning message is displayed if
the battery of the smart key is dis-
charged whilst changing the Engine
Start/Stop button to the OFF position.

4-21
04

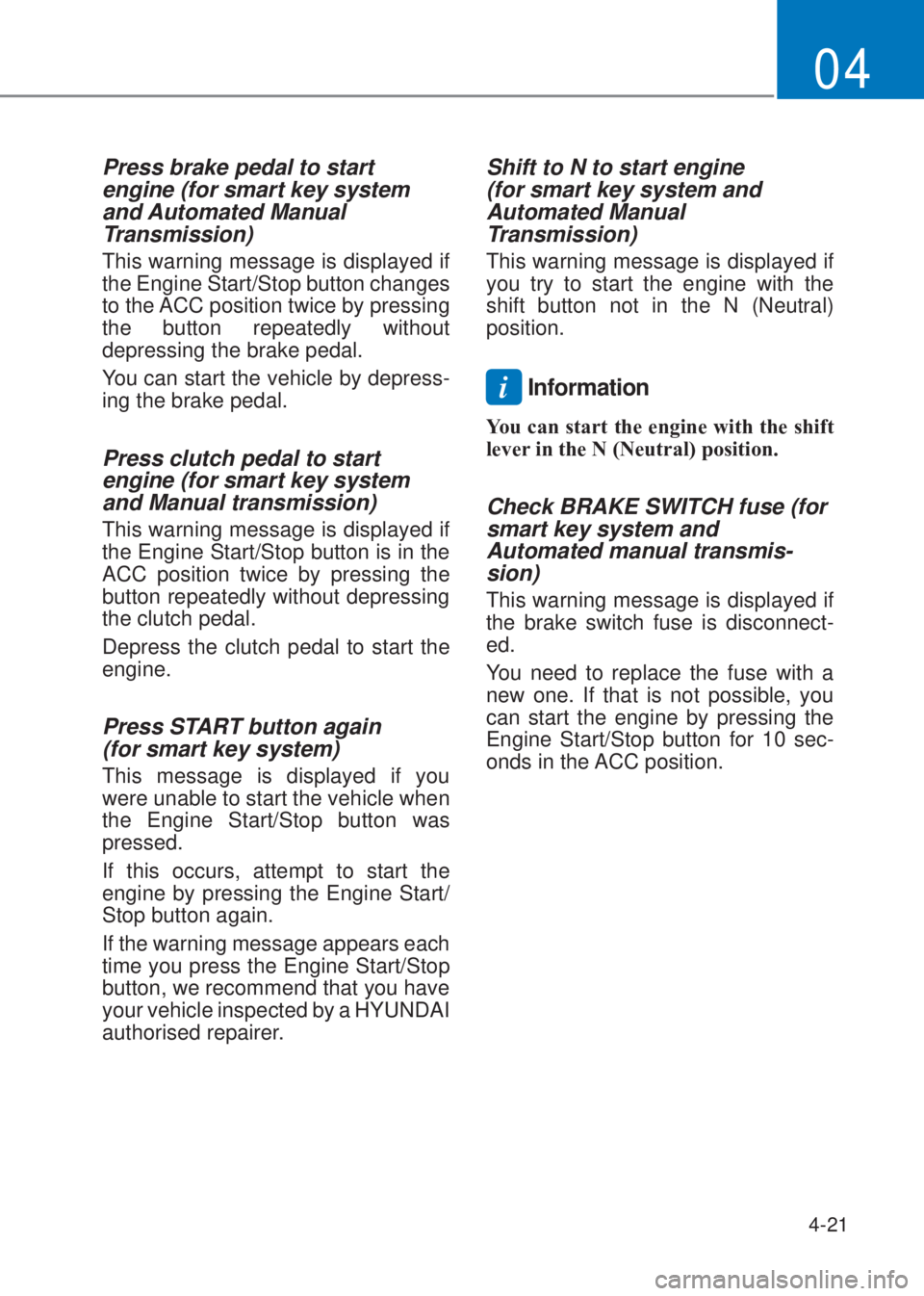

Press brake pedal to start
engine (for smart key system
and Automated Manual
Transmission)
This warning message is displayed if
the Engine Start/Stop button changes
to the ACC position twice by pressing
the button repeatedly without
depressing the brake pedal.
You can start the vehicle by depress-
ing the brake pedal.
Press clutch pedal to start
engine (for smart key system
and Manual transmission)
This warning message is displayed if
the Engine Start/Stop button is in the
ACC position twice by pressing the
button repeatedly without depressing
the clutch pedal.
Depress the clutch pedal to start the
engine.
Press START button again
(for smart key system)
This message is displayed if you
were unable to start the vehicle when
the Engine Start/Stop button was
pressed.
If this occurs, attempt to start the
engine by pressing the Engine Start/
Stop button again.
If the warning message appears each
time you press the Engine Start/Stop
button, we recommend that you have
your vehicle inspected by a HYUNDAI
authorised repairer.
Shift to N to start engine
(for smart key system and
Automated Manual
Transmission)
This warning message is displayed if
you try to start the engine with the
shift button not in the N (Neutral)
position.
i Information
lever in the 1 (1eutral) position.
Check BRAKE SWITCH fuse (for
smart key system and
Automated manual transmis-
sion)
This warning message is displayed if
the brake switch fuse is disconnect-
ed.
You need to replace the fuse with a
new one. If that is not possible, you
can start the engine by pressing the
Engine Start/Stop button for 10 sec-
onds in the ACC position.

4-35
04
„Type A
OQX069060L
„Type B
To change the trip mode, toggle the
"
, " switch on the steering wheel.
Fuel economy
OAC3069039R
Average Fuel (conomy (1)
‡The average fuel economy is calcu-
lated by the total driving distance
and fuel consumption since the last
average fuel economy reset.
‡The average fuel economy can be
reset both manually and automati-
cally.Manual reset
To clear the average fuel economy
manually, press the [OK] button on
the steering wheel for more than 1
second when the average fuel econo-
my is displayed.
Automatic reset
To automatically reset the average
fuel economy after refueling, select
the "Fuel Econ. Reset" mode in the
User Settings menu on the LCD dis-
play.
- After vehicle On: The average fuel
economy will reset automatically
whenever it has passed 4 hours
after turning OFF the engine.
- After refueling: The average fuel
economy will reset automatically
when driving speed exceeds 1
km/h, after adding 1.6 gallons (6
liters) of fuel or more.
i Information
7he average fuel economy may be
inaccurate, when the vehicle drives
shorter than .1 miles (3 metres)
after turning 21 the (ngine Start/
Stop button.
Instant Fuel Economy (2)
‡This mode displays the instant fuel
economy during the last few sec-
onds when the vehicle speed is
more than 6.2 mph (10 km/h).

4-36
Instrument cluster
Accumulated Info display
OAC3069041TU
This display shows the accumulated
trip distance (1), the average fuel
economy (2), and the total driving
time (3).
The information is accumulated start-
ing from the last reset.
To manually reset the information,
press and hold the OK button when
viewing the Accumulated driving info.
The trip distance, the average fuel
economy, and total driving time will
reset simultaneously.
The accumulated driving information
will continue to be counted whilst the
engine is still running (for example,
when the vehicle is in traffic or
stopped at a stop light).
i Information
7he vehicle must be driven for a mini-
mum of .1 miles (3 metres) since
the last ignition key cycle before the
average fuel economy will be recalcu-
lated.
Drive Info display
OAC3069040R
This display shows the trip distance
(1), the average fuel economy (2),
and the total driving time (3).
The information is combined for each
ignition cycle. However, when the
engine has been OFF for 4 hours or
longer the Drive Info screen will reset.
To manually reset the information,
press and hold the OK button when
viewing the Drive Info. The trip dis-
tance, the average fuel economy,
and total driving time will reset simul-
taneously.
The driving information will continue
to be counted whilst the engine is still
running (for example, when the vehi-
cle is in traffic or stopped at a stop
light.)

Before driving ......................................................................................................6-5
Before entering the vehicle ...........................................................................6-5
Before starting ................................................................................................6-5
Ignition switch..................................................................................................... 6-7
Key ignition switch
......................................................................................... 6-7
Engine Start/Stop button ............................................................................. 6-10
Manual transmission
........................................................................................ 6-15
Manual transmission operation ................................................................... 6-15
Good driving practices ..................................................................................6-17
Automated manual transmission (AMT)
......................................................... 6-18
Automated Manual Transmission (AMT) operation .................................... 6-19
Features of the Automated Manual Transmission (AMT) .......................... 6-19
LCD display for transmission temperature and warning message ............ 6-23
Transmission ranges ......................................................................................6-28
Parking ........................................................................................................... 6-31
Good driving practices ................................................................................. 6-31
Braking system
..................................................................................................6-33
Power brakes ................................................................................................6-33
Disc brakes wear indicator ...........................................................................6-33
Rear drum brakes ..........................................................................................6-34
Parking brake ................................................................................................6-34
Anti-lock Brake System (ABS) .......................................................................6-35
Electronic Stability Control (ESC)................................................................. 6-37
Vehicle Stability Management (VSM) ......................................................... 6-40
Hill-Start Assist Control (HAC) ...................................................................... 6-41
Emergency Stop Signal (ESS) ...................................................................... 6-42
Good braking practices ............................................................................... 6-42
ISG (Idle Stop and Go) system
........................................................................ 6-44
To activate the ISG system ........................................................................... 6-44
To deactivate the ISG system ......................................................................6-47
ISG system malfunction ................................................................................6-47
The battery sensor deactivation .................................................................. 6-48
6. Whilst driving
6

6-12
Whilst driving
Engine Stop/Start button positions
Button PositionAction Notice
OFF
