2020 HYUNDAI I10 air conditioning
[x] Cancel search: air conditioningPage 15 of 486
Exterior overview (I)............................................................................................ 2-2
Exterior overview (II) .......................................................................................... 2-3
Interior overview ................................................................................................. 2-4
Instrument panel overview ................................................................................ 2-5
Engine compartment ......................................................................................... 2-7
Dimensions .........................................................................................................2-8
Engine specification ...........................................................................................2-8
Bulb wattage .......................................................................................................2-9
Tyres and wheels............................................................................................... 2-10
Air conditioning system..................................................................................... 2-11
Tyre load and speed capacity ........................................................................... 2-11
Gross vehicle weight ......................................................................................... 2-11
Luggage volume ................................................................................................ 2-11
Recommended lubricants and capacities .......................................................2-12
Recommended SAE viscosity number .........................................................2-13
Vehicle identification number (VIN) .................................................................2-14
Vehicle certification label ..................................................................................2-14
Tyre specification and pressure label ...............................................................2-15
Engine number ..................................................................................................2-15
Air conditioner compressor label .................................................................... 2-16
Fuel label ........................................................................................................... 2-16
Declaration of conformity ................................................................................. 2-17
2. Vehicle information
2
Page 25 of 486
2-11
02

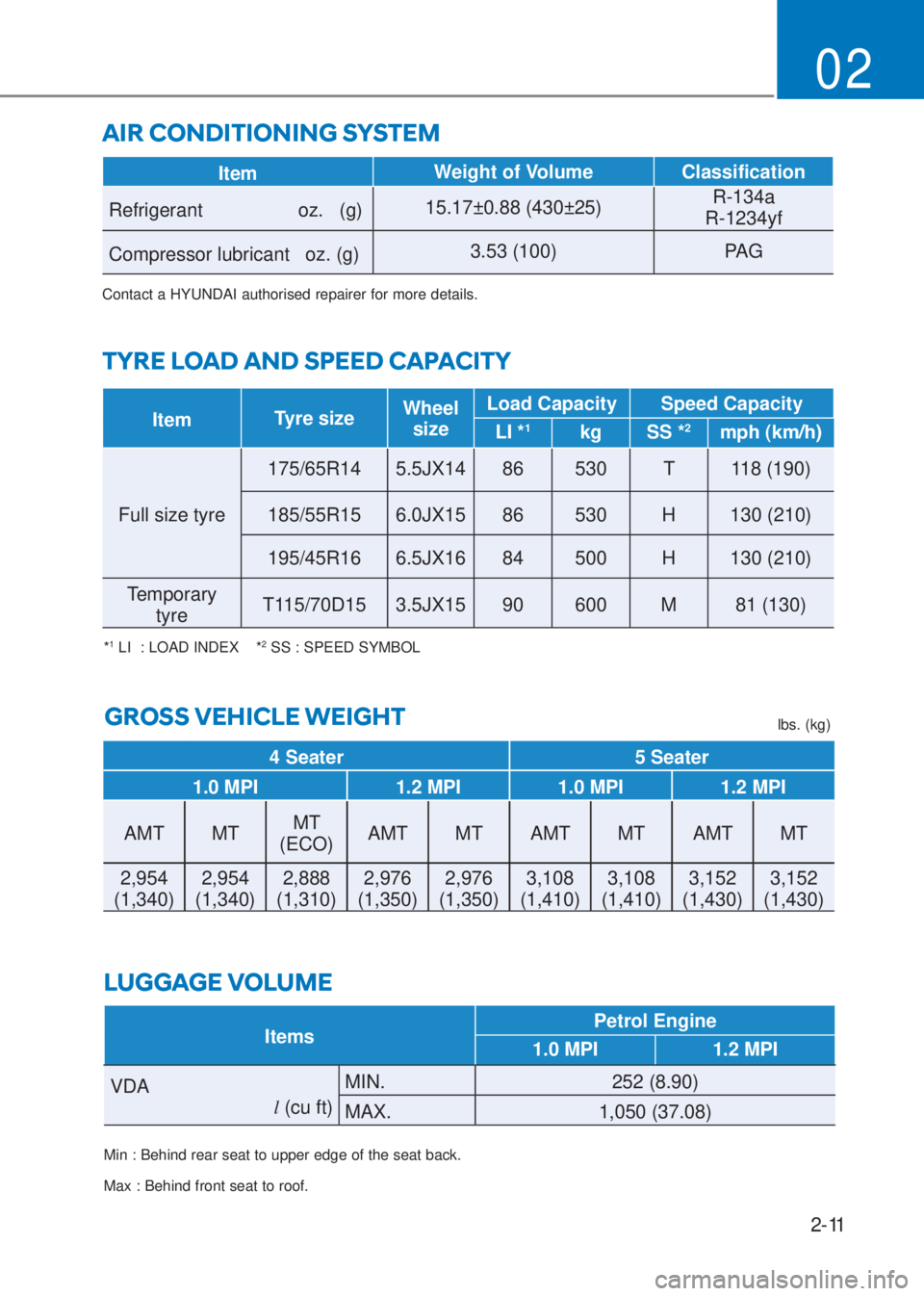

AIR CONDITIONING SYSTEM
ItemWeight of Volume Classification
Refrigerant oz. (g)15.17±0.88 (430±25)R-134a
R-1234yf
Compressor lubricant oz. (g)3.53 (100) PAG
Contact a HYUNDAI authorised repairer for more details.
lbs. (kg)
TYRE LOAD AND SPEED CAPACITY
ItemTyre sizeWheel
sizeLoad Capacity Speed Capacity
LI *1kg SS *2 P S K N P K
Full size tyre175/65R14 5.5JX14 86 530 T 118 (190)
185/55R15 6.0JX15 86 530 H 130 (210)
195/45R16 6.5JX16 84 500 H 130 (210)
Temporary
tyreT115/70D15 3.5JX15 90 600 M 81 (130)
LUGGAGE VOLUMEGROSS VEHICLE WEIGHT
*1 LI : LOAD INDEX *2 SS : SPEED SYMBOL
ItemsPetrol Engine
1.0 MPI 1.2 MPI
VDA
l (cu ft)MIN. 252 (8.90)
MAX. 1,050 (37.08)
Min : Behind rear seat to upper edge of the seat back.
Max : Behind front seat to roof.
6 H D W H U5 Seater
1.0 MPI 1.2 MPI 1.0 MPI 1.2 MPI
AMT MTMT
(ECO)AMT MT AMT MT AMT MT
2,954
(1,340)2,954
(1,340)2,888
(1,310)2,976
(1,350)2,976
(1,350)3,108
(1,410)3,108
(1,410)3,152
(1,430)3,152
(1,430)
Page 130 of 486
5
Rear view monitor (RVM) ................................................................................ 5-48
Reverse parking distance warning (PDW) ..................................................... 5-49
Manual climate control system .......................................................................5-53
Heating and air conditioning ........................................................................5-54
System operation ..........................................................................................5-58
System maintenance .....................................................................................5-59
Automatic climate control system ..................................................................5-62
Automatic heating and air conditioning ......................................................5-63
Manual heating and air conditioning .......................................................... 5-64
System operation ......................................................................................... 5-68
System maintenance ..................................................................................... 5-70
Windscreen defrosting and defogging ........................................................... 5-73
Automatic climate control system ............................................................... 5-74
Defroster ........................................................................................................ 5-75
Storage compartment ...................................................................................... 5-77
Centre console storage ................................................................................. 5-77
Glove box ....................................................................................................... 5-78
Interior features ............................................................................................... 5-79
Cigarette lighter ............................................................................................. 5-79
Ashtray ........................................................................................................... 5-79
Cup holder .................................................................................................... 5-80
Sunvisor .......................................................................................................... 5-81
Power outlet ...................................................................................................5-82
USB charger .................................................................................................. 5-83
Wireless mobile phone charging system .................................................... 5-83
Clock .............................................................................................................. 5-86
Coat hook ...................................................................................................... 5-86
Floor mat anchor(s) ....................................................................................... 5-87
Luggage net (holder) .................................................................................... 5-88
Cargo area cover .......................................................................................... 5-88
Exterior features .............................................................................................. 5-89
Roof rack ....................................................................................................... 5-89
Infotainment system ....................................................................................... 5-90
USB port ........................................................................................................ 5-90
Antenna ......................................................................................................... 5-90
Page 182 of 486
5-54
Convenient features

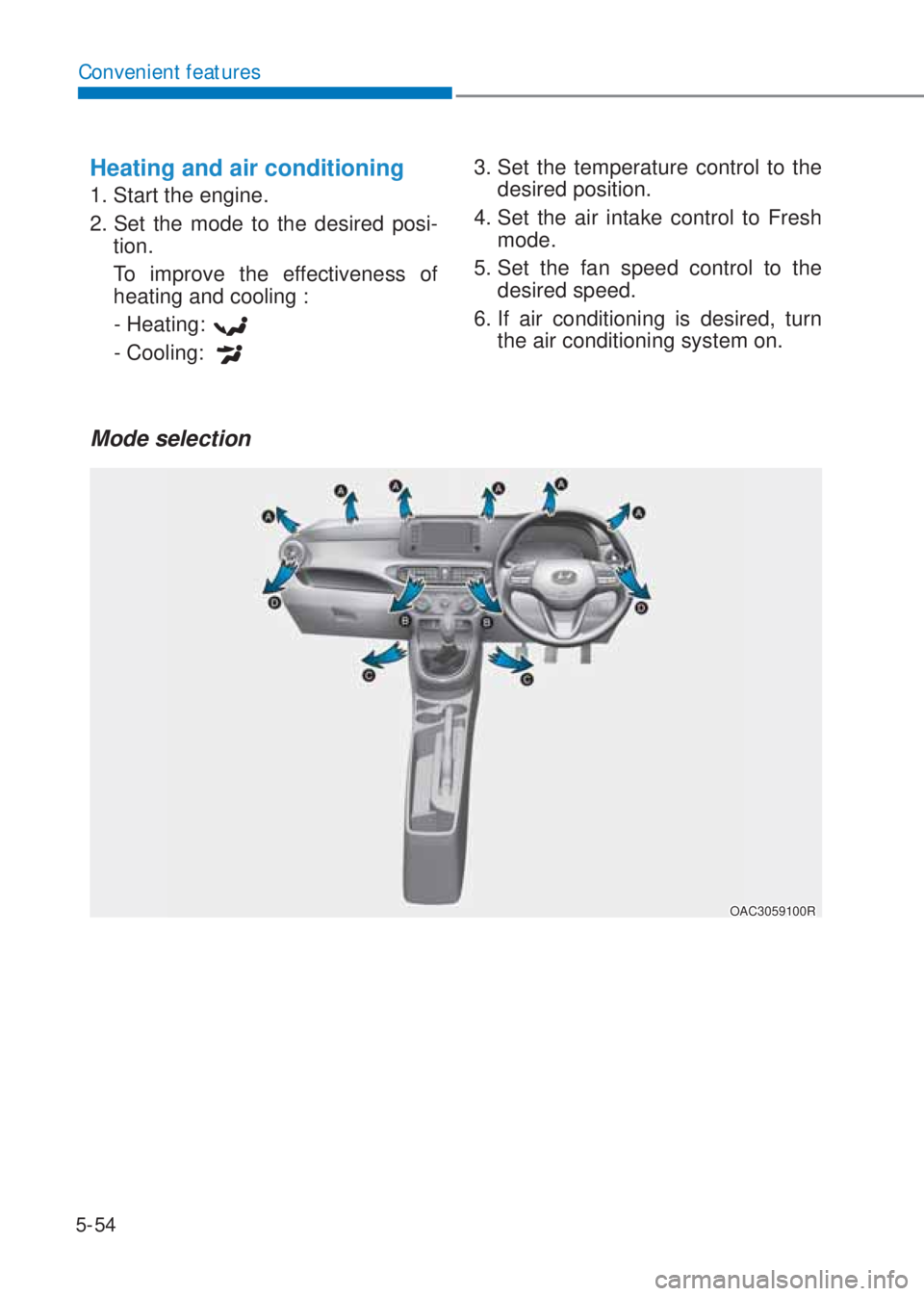

Heating and air conditioning
1. Start the engine.
2. Set the mode to the desired posi-
tion.
To improve the effectiveness of
heating and cooling :
- Heating:
- Cooling:
Mode selection
OAC3059100R
3. Set the temperature control to the
desired position.
4. Set the air intake control to Fresh
mode.
5. Set the fan speed control to the
desired speed.
6. If air conditioning is desired, turn
the air conditioning system on.
Page 186 of 486
5-58
Convenient features

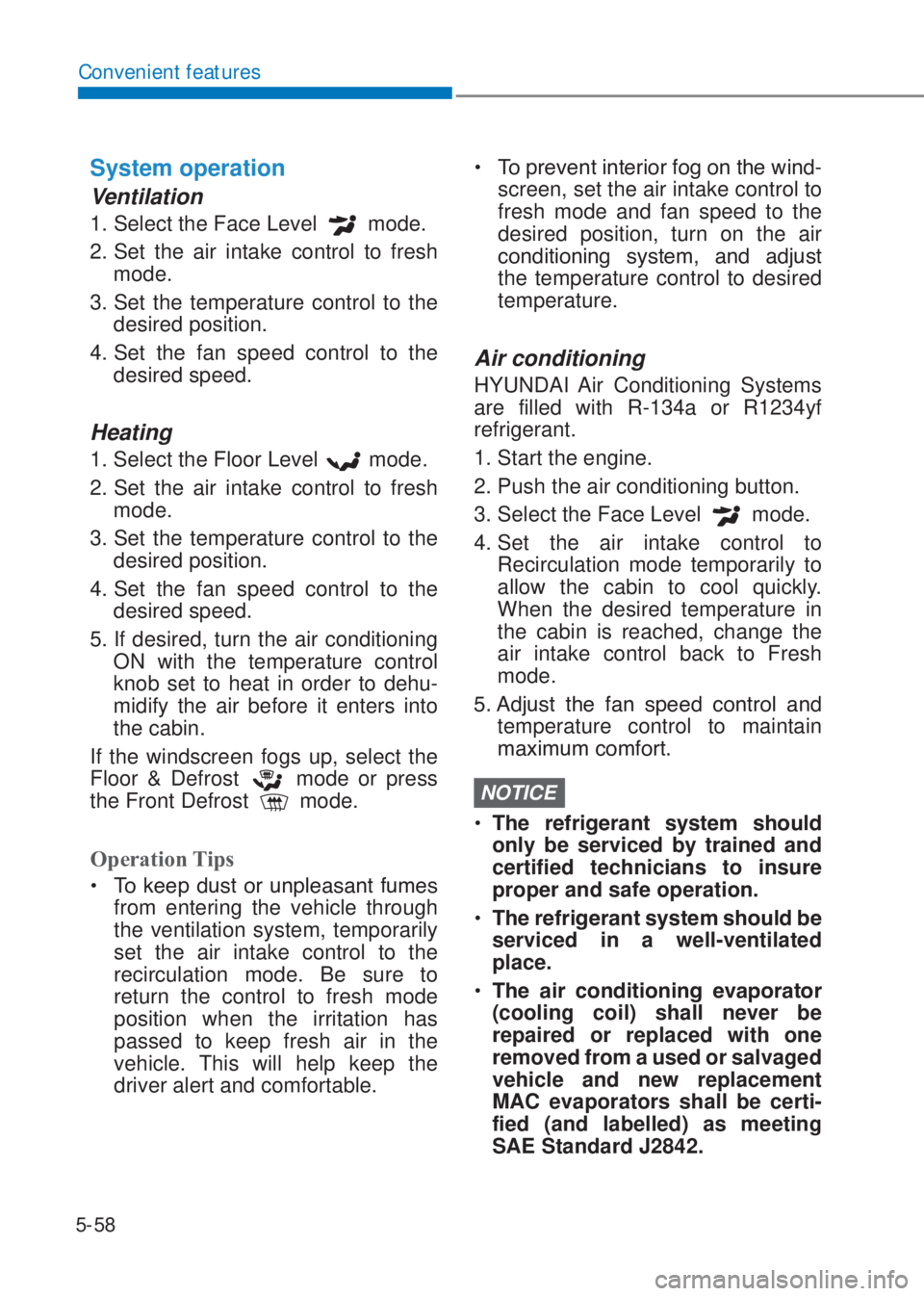

System operation
Ventilation
1. Select the Face Level mode.
2. Set the air intake control to fresh
mode.
3. Set the temperature control to the
desired position.
4. Set the fan speed control to the
desired speed.
Heating
1. Select the Floor Level mode.
2. Set the air intake control to fresh
mode.
3. Set the temperature control to the
desired position.
4. Set the fan speed control to the
desired speed.
5. If desired, turn the air conditioning
ON with the temperature control
knob set to heat in order to dehu-
midify the air before it enters into
the cabin.
If the windscreen fogs up, select the
Floor & Defrost
mode or press
the Front Defrost
mode.
2peration 7ips
Page 187 of 486
5-59
05
i Information
‡ When using the air conditioning sys-
tem, monitor the temperature gauge
closely whilst driving up hills or in
heavy traffic when outside tempera-
tures are high. Air conditioning sys-
tem operation may cause engine
overheating. Continue to use the
blower fan but turn the air condi-
tioning system off if the temperature
gauge indicates engine overheating.
‡ When opening the windows in humid
weather, air conditioning may create
water droplets inside the vehicle.
Since excessive water droplets may
cause damage to electrical equip-
ment, air conditioning should only
be used with the windows closed.
Air conditioning system operation
tips
Page 188 of 486
5-60
Convenient features
We recommend that the climate con-
trol air filter be replaced by a
HYUNDAI authorised repairer
according to the maintenance sched-
ule. If the vehicle is being driven in
severe conditions such as dusty or
rough roads, more frequent climate
control filter inspections and changes
are required.
If the air flow rate suddenly decreas-
es, we recommend the system be
checked at a HYUNDAI authorised
repairer.
i Information
‡ Replace the filter according to the
0aintenance Schedule.
If the car is being driven in severe
conditions such as dusty, rough
roads, more frequent climate control
air filter inspections and changes are
required.
‡ When the air flow rate suddenly
decreases, we recommend that the
system be checked by a + < 8 1 'AI
authorised repairer.
Checking the amount of air con-
ditioner refrigerant and com-
pressor lubricant
When the amount of refrigerant is
low, the performance of the air condi-
tioning is reduced. Overfilling also
has a bad influence on the air condi-
tioning system.
Therefore, if abnormal operation is
found, we recommend that the sys-
tem be inspected by a HYUNDAI
authorised repairer.
NOTICE
It is important that the correct type
and amount of oil and refrigerant
is used. Otherwise, damage to the
compressor and abnormal system
operation may occur. To prevent
damage, the air conditioning sys-
tem in your vehicle should only be
serviced by trained and certified
technicians.
WARNING
Vehicles equipped with R-134a
Since the refrigerant is
operated at very high
pressure, the air condi-
tioning system should
only be serviced by
trained and certified technicians.
All refrigerants should be
reclaimed with proper equipment.
Venting refrigerants directly to the
atmosphere is harmful to individu-
D O V D Q G H Q Y L U R Q P H Q W ) D L O X U H W R
heed these warnings can lead to
serious injuries.

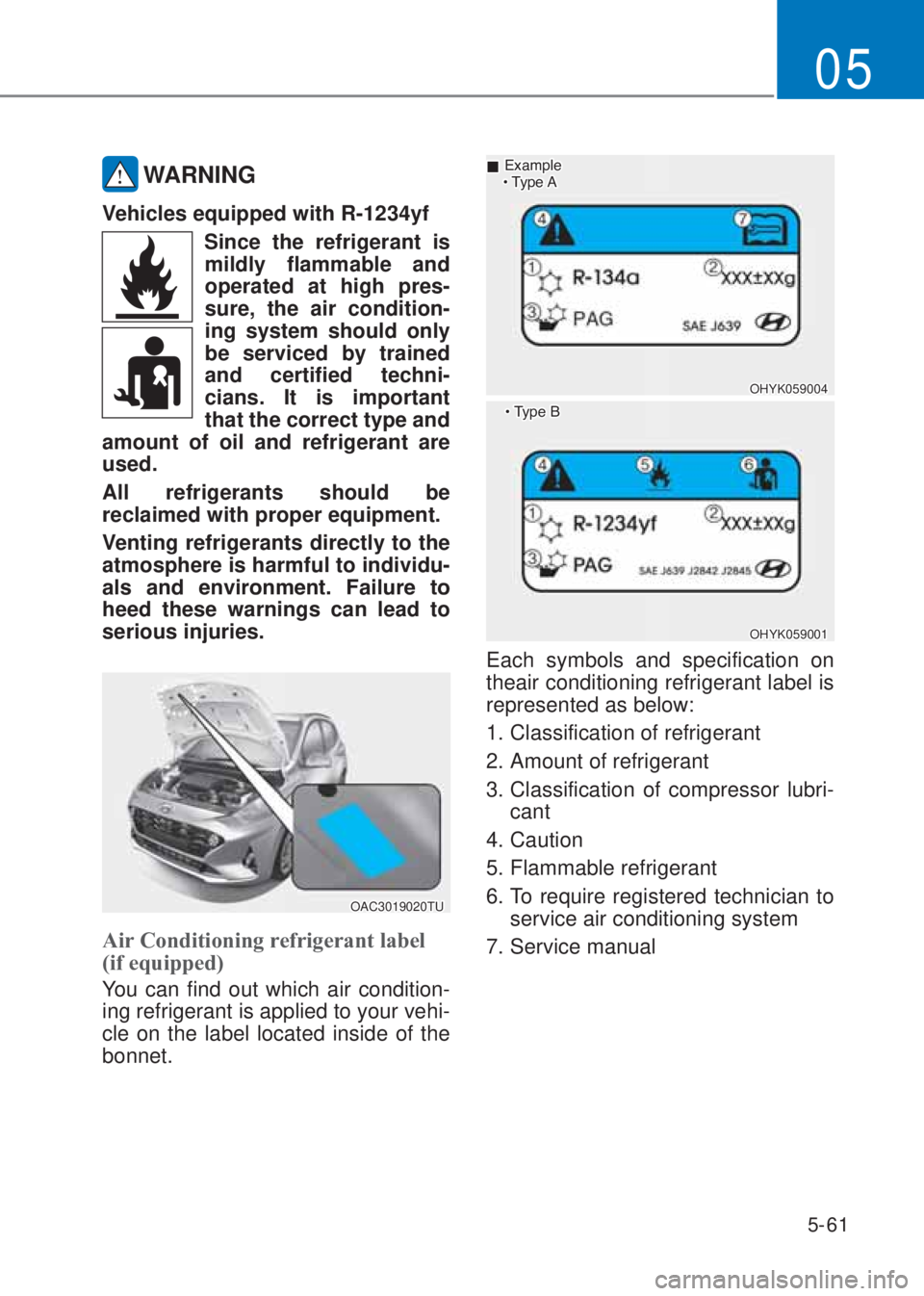

Page 189 of 486
5-61
05
WARNING
Vehicles equipped with R-1234yf
Since the refrigerant is
mildly flammable and
operated at high pres-
sure, the air condition-
ing system should only
be serviced by trained
and certified techni-
cians. It is important
that the correct type and
amount of oil and refrigerant are
used.
All refrigerants should be
reclaimed with proper equipment.
Venting refrigerants directly to the
atmosphere is harmful to individu-
D O V D Q G H Q Y L U R Q P H Q W ) D L O X U H W R
heed these warnings can lead to
serious injuries.
OAC3019020TU
Air Conditioning refrigerant label
(if equipped)
You can find out which air condition-
ing refrigerant is applied to your vehi-
cle on the label located inside of the
bonnet.
