3-17
03
WARNING
NEVER place anything on the seat
that insulates against heat when
the seat warmer is in operation,
such as a blanket or seat cushion.
This may cause the seat warmer to
overheat, causing a burn or dam-
age to the seat.
NOTICE
To prevent damage to the seat
warmers and seats:
‡ Never use a solvent such as
paint thinner, benzene, alcohol
or petrol to clean the seats.
‡ Do not place heavy or sharp
objects on seats equipped with
seat warmers.
‡ Do not change the seat cover. It
may damage the seat warmer or
air ventilation system.
OAC3039008TU
Whilst the engine is running, push
either of the switches to warm the
driver’s seat or front passenger’s
seat.
During mild weather or under condi-
tions where the operation of the seat
warmer is not needed, keep the
switches in the OFF position.
‡ Each time you push the switch, the
temperature setting of the seat is
changed as follows:
OFF JHIGH () JMIDDEL () JLOW ()
K
‡ The seat warmer defaults to the
OFF position whenever the ignition
switch is turned on.
‡ When pressing the switch for more
than 1.5 seconds with the seat
warmer operating, the seat warmer
will turn OFF.
Page 94 of 486
4-4
Instrument cluster
Engine Coolant Temperature
Gauge
OJS048104L
This gauge indicates the temperature
of the engine coolant when the igni-
tion switch is in the ON position.
NOTICE
If the gauge pointer moves beyond
the normal range area toward the
“130” position, it indicates over-
heating that may damage the
engine.
Do not continue driving with an
overheated engine. If your vehicle
overheats, refer to “If the Engine
Overheats” in chapter 7.
WARNING
Never remove the radiator cap or
reservoir cap when the engine is
hot. The engine coolant is under
pressure and could cause severe
burns. Wait until the engine is cool
before adding coolant to the reser-
voir.
Fuel Gauge
OAC3049005R
This gauge indicates the approximate
amount of fuel remaining in the fuel
tank.
i Information
‡ 7he fuel tank capacity is given in
chapter 2.
‡ 7he fuel gauge is supplemented by a
low fuel warning light, which will
illuminate when the fuel tank is
nearly empty.
‡ 2n inclines or curves, the fuel gauge
pointer may fluctuate or the low fuel
warning light may come on earlier
than usual due to the movement of
fuel in the tank.
Page 114 of 486
4-24
Instrument cluster
Low engine oil (if equipped)
This warning message is displayed
when the engine oil level should be
checked.
If this warning message is displayed,
check the engine oil level as soon as
possible and add engine oil as
required.
Slowly pour the recommended oil lit-
tle by little into a funnel. (Oil refill
capacity : approximately 0.15 ~ 0.26
gal. (0.6 ~ 1.0 l)
Use only the specified engine oil.
(Refer to "Recommended lubricants
and capacities" in chapter 8.)
Do not overfill the engine oil. Make
sure the oil level is not above F (Full)
mark on the dipstick.
NOTICE
If the message is displayed contin-
uously after adding the engine oil
and travelling approximately
50~100 km after the engine warms
up, we recommend that the system
be checked by a HYUNDAI autho-
rised repairer.
Engine has overheated
(if equipped)
This warning message is displayed
when the engine coolant temperature
is above 120°C (248°F). This means
that the engine is overheated and
may be damaged.
If your vehicle is overheated, refer
to “Overheating” in chapter 7.
Check headlight (if equipped)
This warning message is displayed if
the headlamps are not operating
properly.
In addition, if a specific lamp(turn sig-
nal lamp etc.) is not operating proper-
ly, the warning message according to
a specific lamp (turn signal lamp etc.)
is displayed. A corresponding bulb
may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same watt-
age rating.
Check brake light (if equipped)
This warning message is displayed if
the stop lamps are not operating
properly. A lamp may need to be
replaced.
Make sure to replace the burned out
bulb with a new one of the same watt-
age rating.
Page 187 of 486
5-59
05
i Information
‡ When using the air conditioning sys-
tem, monitor the temperature gauge
closely whilst driving up hills or in
heavy traffic when outside tempera-
tures are high. Air conditioning sys-
tem operation may cause engine
overheating. Continue to use the
blower fan but turn the air condi-
tioning system off if the temperature
gauge indicates engine overheating.
‡ When opening the windows in humid
weather, air conditioning may create
water droplets inside the vehicle.
Since excessive water droplets may
cause damage to electrical equip-
ment, air conditioning should only
be used with the windows closed.
Air conditioning system operation
tips
Page 345 of 486

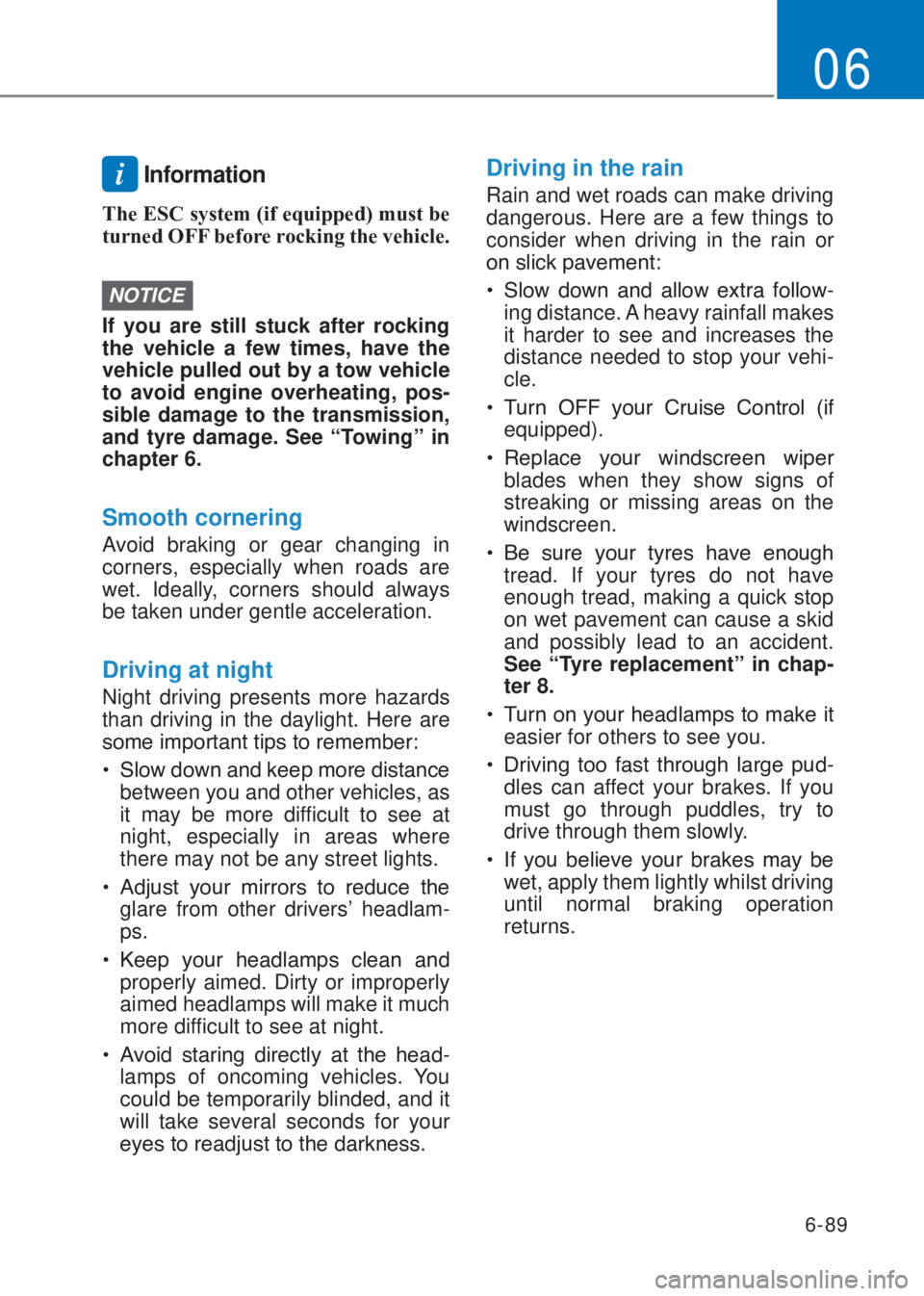

6-89
06
i Information
7he ESC system (if equipped) must be
turned 2FF before rocking the vehicle.
NOTICE
If you are still stuck after rocking
the vehicle a few times, have the
vehicle pulled out by a tow vehicle
to avoid engine overheating, pos-
sible damage to the transmission,
and tyre damage. See “Towing” in
chapter 6.
Smooth cornering
Avoid braking or gear changing in
corners, especially when roads are
wet. Ideally, corners should always
be taken under gentle acceleration.
Driving at night
Night driving presents more hazards
than driving in the daylight. Here are
V R P H L P S R U W D Q W W L S V W R U H P H P E H U
Page 346 of 486
6-90
Whilst driving
Hydroplaning
If the road is wet enough and you are
going fast enough, your vehicle may
have little or no contact with the road
surface and actually ride on the water.
The best advice is SLOW DOWN
when the road is wet.
The risk of hydroplaning increases
as the depth of tyre tread decreas-
es, refer to “Tyre replacement” in
chapter 8.
Driving in flooded areas
Avoid driving through flooded areas
unless you are sure the water is no
higher than the bottom of the wheel
hub. Drive through any water slowly.
Allow adequate stopping distance
because brake performance may be
reduced.
After driving through water, dry the
brakes by gently applying them sev-
eral times whilst the vehicle is moving
slowly.
Highway driving
Tyres
$ G M X V W W K H W \ U H L Q I O D W L R Q D V V S H F L I L H G
Under-inflation may overheat or dam-
age the tyres.
Do not install worn-out or damaged
tyres, which may reduce traction or
fail the braking operation.
i Information
1ever over-inflate your tyres above the
maximum inflation pressure, as speci-
fied on your tyres.
Fuel, engine coolant and engine
oil
Driving at higher speeds on the high-
way consumes more fuel and is less
efficient than driving at a slower, more
P R G H U D W H V S H H G 0 D L Q W D L Q D P R G H U-
ate speed in order to conserve fuel
when driving on the highway.
% H V X U H W R F K H F N E R W K W K H H Q J L Q H
coolant level and the engine oil before
driving.
Drive belt
A loose or damaged drive belt may
overheat the engine.
Page 353 of 486
Hazard warning flasher ...................................................................................... 7-3
In case of an emergency whilst driving ............................................................ 7-3
If the engine stalls whilst driving .................................................................... 7-3
If the engine stalls at a crossroad or crossing ............................................... 7-3
If you have a flat tyre whilst driving ............................................................... 7-4
If the engine will not start .................................................................................. 7-5
If the engine doesn’t turn over or turns over slowly ..................................... 7-5
If the engine turns over normally but doesn’t start ...................................... 7-5
Jump starting ...................................................................................................... 7-6
If the engine overheats ...................................................................................... 7-9
Tyre Pressure Monitoring System (TPMS) ........................................................7-10
TPMS reset procedure .....................................................................................7-11
Tyre pressure monitoring system .................................................................. 7-12
Low tyre pressure telltale ............................................................................... 7-14
Low tyre pressure position telltale and tyre pressure telltale ..................... 7-14
TPMS (Tyre Pressure Monitoring System) malfunction indicator ............... 7-15
Changing a tyre with TPMS ...........................................................................7-16
If you have a flat tyre (with spare tyre) .............................................................7-18
Jack and tools ................................................................................................7-18
Changing tyres................................................................................................7-19
Jack label ....................................................................................................... 7-23
EC Declaration of conformity for Jack......................................................... 7-24
If you have a flat tyre (with tyre mobility kit) .................................................. 7-25
Introduction ................................................................................................... 7-25
Notes on the safe use of the tyre Mobility Kit ............................................. 7-26
Components of the Tyre Mobility Kit ............................................................7-27
Using the Tyre Mobility Kit ............................................................................ 7-28
Distributing the sealant ................................................................................. 7-30
Checking the tyre inflation pressure ............................................................ 7-30
7. Emergency situations
7
Page 361 of 486
7-9
07
If your temperature gauge indicates
overheating, you experience a loss of
power, or hear loud pinging or knock-
ing, the engine may be overheating. If
this happens, you should:
1. Pull off the road and stop as soon
as it is safe to do so.
2. Place the shift lever in N (Neutral,
for Automated manual transmis-
sion vehicle) or neutral (for Manual
transmission vehicle) and set the
parking brake. If the air condition-
ing is ON, turn it OFF.
3. If engine coolant is running out
under the vehicle or steam is com-
ing out from the bonnet, stop the
engine. Do not open the bonnet
until the coolant has stopped run-
ning or the steaming has stopped.
If there is no visible loss of engine
coolant and no steam, leave the
engine running and check to be
sure the engine cooling fan is oper-
ating. If the fan is not running, turn
the engine off.
WARNING
: K L O V W W K H H Q J L Q H L V U X Q-
Q L Q J N H H S K D Q G V F O R W K-
L Q J D Q G W R R O V D Z D \ I U R P
W K H P R Y L Q J S D U W V V X F K
D V W K H F R R O L Q J I D Q D Q G
G U L Y H E H O W W R S U H Y H Q W
V H U L R X V L Q M X U \ 4. Check for coolant leaking from the
radiator, hoses or under the vehi-
cle. (If the air conditioning had
been in use, it is normal for cold
water to be draining from it when
you stop.)
5. If engine coolant is leaking out,
stop the engine immediately and
we recommend that you call a
HYUNDAI authorised repairer for
assistance.
WARNING
1 ( 9 ( 5 U H P R Y H W K H U D G L-
D W R U F D S R U W K H G U D L Q
S O X J Z K L O V W W K H H Q J L Q H
D Q G U D G L D W R U D U H K R W + R W
F R R O D Q W D Q G V W H D P P D \
E O R Z R X W X Q G H U S U H V V X U H F D X V L Q J
V H U L R X V L Q M X U \
7 X U Q W K H H Q J L Q H R I I D Q G Z D L W X Q W L O
W K H H Q J L Q H F R R O V G R Z Q 8 V H
H [ W U H P H F D U H Z K H Q U H P R Y L Q J W K H
U D G L D W R U F D S : U D S D W K L F N W R Z H O
D U R X Q G L W D Q G W X U Q L W F R X Q W H U F O R F N-
Z L V H V O R Z O \ W R W K H I L U V W V W R S 6 W H S
E D F N Z K L O V W W K H S U H V V X U H L V
U H O H D V H G I U R P W K H F R R O L Q J V \ V W H P
: K H Q \ R X D U H V X U H D O O W K H S U H V V X U H
K D V E H H Q U H O H D V H G S U H V V G R Z Q R Q
W K H F D S X V L Q J D W K L F N W R Z H O D Q G
F R Q W L Q X H W X U Q L Q J F R X Q W H U F O R F N Z L V H
W R U H P R Y H L W
IF THE ENGINE OVERHEATS
