uuInterior Lights/Interior Convenience Items uInterior Convenience Items
238
Controls
The AC power outlet can be used when the engine is running.
Open the cover to use it. Plug in the appliance
slightly, turn it 90° clockwise, then push it all
the way.
■AC Power Outlet*1AC Power Outlet*
NOTICE
Do not use the AC power outlet for electric
appliances that require hi gh initial peak wattage,
such as cathode-ray tube type televisions,
refrigerators, electric pumps, etc. It is not suitable for
devices that process precis e data, such as medical
equipment, and that require an extremely stable
power supply, such as microcomputer-controlled
electric blankets, touc h sensor lamps, etc.
The AC power outlet is desi gned to supply power for
up to 115 volt appliances that are rated 150 watts or
less.
Continued use of any elec tric appliance/device
exceeding these ratings may result in damage to the
appliance/device.
* Not available on all models
20 US ODYSSEY-31THR6210.book 238 ページ ２０２０年２月２８日　金曜日　午前７時２６分

255
uuClimate Control System uAutomatic Climate Control Sensors
Controls
Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.
Dual-zone climate control system
Sensor
Sensor
20 US ODYSSEY-31THR6210.book 255 ページ ２０２０年２月２８日　金曜日　午前７時２６分

262
uuClimate Control System uAutomatic Climate Control Sensors
Controls
Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.
Tri-zone climate control system
Sensor
Sensor
20 US ODYSSEY-31THR6210.book 262 ページ ２０２０年２月２８日　金曜日　午前７時２６分

529
Driving
This chapter discusses driving and refueling.
Before DrivingDriving Preparation .......................... 530
Maximum Load Limit........................ 533
Towing a Trailer Towing Preparation .......................... 536
Driving Safely with a Trailer .............. 540
Towing Your Vehicle ........................ 541
When Driving Starting the Engine .......................... 542
Precautions While Driving................. 548
Automatic Transmission ................... 549
Shifting ............................................ 550
Auto Idle Stop .................................. 558
ECON Button ................................... 564 Intelligent Traction Management ..... 565
Cruise Control*............................... 566
Front Sensor Camera*..................... 569
Adaptive Cruise Control (ACC)*....... 571Road Departure Mitigation (RDM) System*....583Lane Keeping Assist System (LKAS)*.... 588Vehicle Stability AssistTM (VSA®), aka Electronic
Stability Control (ESC), System .............. 596
Agile Handling Assist ....................... 598
Tire Pressure Monitoring System (TPMS) with Tire Fill Assist .......................... 599
Tire Pressure Monitoring System (TPMS) -
Required Federal Explanation ......... 601
Blind spot information System
*........ 603
LaneWatchTM*.................................. 605 Braking
Brake System ................................... 607
Anti-lock Brake System (ABS) ........... 613
Brake Assist System ......................... 614
Collision Mitigation Braking System
TM
(CMBSTM)*..................................... 615
Parking Your Vehicle When Stopped ................................ 624
Parking Sensor System
*................... 626
Cross Traffic Monitor*..................... 631
Multi-View Rear Camera .................. 635
Refueling
Fuel Information .............................. 637
How to Refuel ................................. 638
Fuel Economy and CO
2 Emissions .... 640
* Not available on all models
20 US ODYSSEY-31THR6210.book 529 ページ ２０２０年２月２８日　金曜日　午前７時２６分

532
uuBefore Driving uDriving Preparation
Driving
• Be sure items placed on the floor behind the front seats cannot roll under the
seats.
u They can interfere with the driver’s ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2Fastening a Seat Belt P. 41
•Make sure that the indicators in the ins trument panel come on when you start the
vehicle, and go off soon after.
u Always have a dealer check the vehicle if a problem is indicated.
2 Indicators P. 84
20 US ODYSSEY-31THR6210.book 532 ページ ２０２０年２月２８日　金曜日　午前７時２６分

569
uuWhen Driving uFront Sensor Camera*
Continued
Driving
Front Sensor Camera*
The camera, used in systems su ch as LKAS, RDM, ACC, and CMBSTM, is designed to
detect an object that triggers any of the systems to operate its functions.
This camera is located behind the rearview
mirror.
To help reduce the likelihood that high interior
temperatures will cause the camera’s sensing
s y s t e m t o s h u t o f f , w h e n p a r k i n g , f i n d a s h a d y
area or face the front of the vehicle away from
the sun. If you use a reflective sun shade, do
not allow it to cover the camera housing.
Covering the camera can concentrate heat on
it.
■Camera Location and Handling Tips
1 Front Sensor Camera*
Never apply a film or attach any objects to the
windshield, the hood, or th e front grille that could
obstruct the camera’s fiel d of vision and cause the
system to oper ate abnormally.
Scratches, nicks, and othe r damage to the windshield
within the camera’s fiel d of vision can cause the
system to operate abnormally. If this occurs, we
recommend that you replac e the windshield with a
genuine Honda replacem ent windshield. Making
even minor repairs within th e camera’s field of vision
or installing an aftermarket replacement windshield
may also cause the system to operate abnormally.
After replacing the windshield, have a dealer
recalibrate the camera. Pr oper calibration of the
camera is necessary for the system to operate
properly.
Do not place an object on the top of the instrument
panel. It may reflect onto the windshield and prevent
the system from detecting lane lines properly.
Front Sensor
Camera
* Not available on all models
20 US ODYSSEY-31THR6210.book 569 ページ ２０２０年２月２８日　金曜日　午前７時２６分

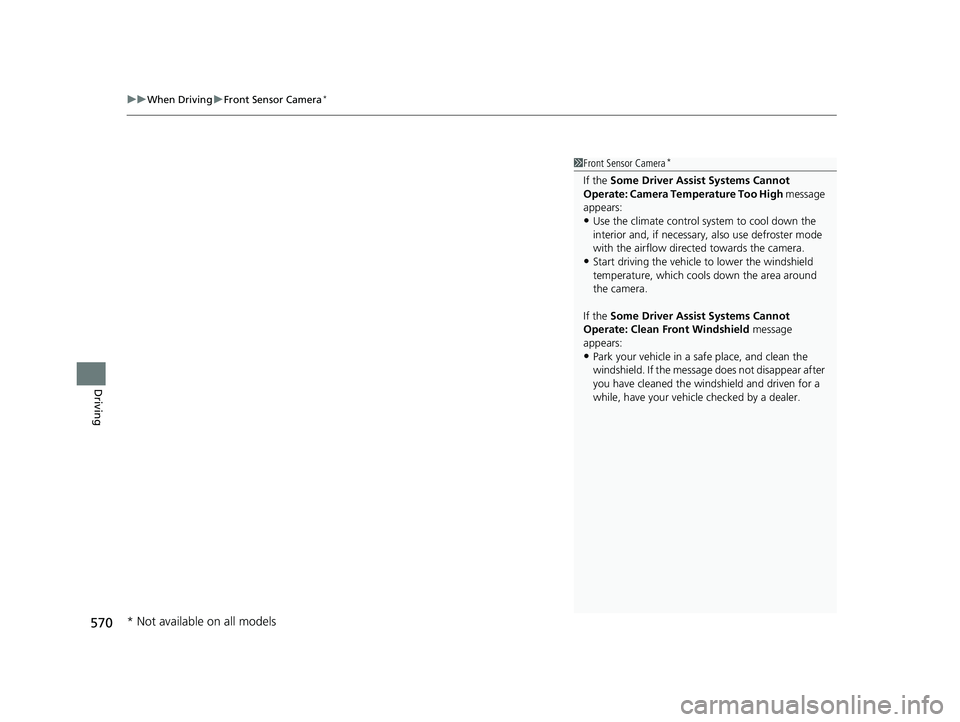

uuWhen Driving uFront Sensor Camera*
570
Driving
1Front Sensor Camera*
If the Some Driver Assist Systems Cannot
Operate: Camera Temperature Too High message
appears:
•Use the climate control system to cool down the
interior and, if necessary, also use defroster mode
with the airflow directed towards the camera.
•Start driving the vehicle to lower the windshield
temperature, which cool s down the area around
the camera.
If the Some Driver Assist Systems Cannot
Operate: Clean Front Windshield message
appears:
•Park your vehicle in a sa fe place, and clean the
windshield. If the message does not disappear after
you have cleaned the winds hield and driven for a
while, have your vehicle checked by a dealer.
* Not available on all models
20 US ODYSSEY-31THR6210.book 570 ページ ２０２０年２月２８日　金曜日　午前７時２６分

571
uuWhen Driving uAdaptive Cruise Control (ACC)*
Continued
Driving
Adaptive Cruise Control (ACC)*
Helps maintain a constant vehicle speed an d a set following-interval behind a vehicle
detected ahead of yours, without you having to keep your foot on the brake or the
accelerator.1 Adaptive Cruise Control (ACC)*
ACC can not be activated if Intelligent Traction
Management sett ing is snow.
3WARNING
Improper use of ACC can lead to a crash.
Use ACC only when driving on expressways
or freeways and in good weather
conditions.
3WARNING
ACC has limited braking capability.
When your vehicle speed drops below 22
mph (35 km/h), ACC will automatically
cancel and no longer will apply your
vehicle’s brakes.
Always be prepared to apply the brake
pedal when conditions require.
When to use
The camera is located
behind the rearview
mirror.
The radar sensor is inside
the front grille.
■Vehicle speed for adaptive cruise control: Desired speed in
a range above roughly 25 mph (40 km/h) ~
■Gear positions for adaptive cruise control: In ( D or (S
* Not available on all models
20 US ODYSSEY-31THR6210.book 571 ページ ２０２０年２月２８日　金曜日　午前７時２６分
