2020 HONDA HR-V Owner's Manual (in English)

103
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
•Appears when the ignition key is turned to
ACCESSORY
(q from ON (w. (The driver’s door is
closed.)—
• Appears when you open the driver’s door while the
ignition key is in ACCESSORY
(q.
• Turn the ignition switch to LOCK (0, then remove the
key.
• Appears when you open the driver’s door while the
ignition key is in LOCK
(0.
• Remove the key from the ignition switch.
Models without smart entry system
20 HR-V HDMC HDMG-31T7A6400.book 103 ページ ２０１９年８月８日　木曜日　午後３時５２分

104
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Instrument Panel
MessageConditionExplanation
•Appears after you unlock and open the driver’s
door.
2 Starting the Engine P. 435
•Appears when the steering wheel is locked.•Move the steering wheel left and right while pressing
the ENGINE START/STOP button.
•Appears if you push the ENGINE START/STOP
button to turn the engine off without the shift lever
in
(P.
• Move the shift lever to (P. The power mode changes
to VEHICLE OFF.
• Appears when the power mode is in ACCESSORY.
—
Models with smart entry system
Canadian models
20 HR-V HDMC HDMG-31T7A6400.book 104 ページ ２０１９年８月８日　木曜日　午後３時５２分

105
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
•Appears after the driver’s door is opened when the
power mode is in ACCESSORY.• Change the power mode to VEHICLE OFF.
2 ENGINE START/STOP Button P. 166
•Appears when you close the door with the power
mode in ON without the smart entry remote inside
the vehicle.•Goes off when you bring the smart entry remote back
inside the vehicle and close the door.
2 Smart Entry Remote Reminder P. 168
•Appears when the smart entry remote battery
becomes weak.•Replace the battery as soon as possible.
2 Replacing the Button Battery P. 568
•Appears if the smart entry remote battery is too
weak to start the engine or the key is not within
operating range to start the engine. A beeper
sounds six times.•Bring the smart entry remote in front of the ENGINE
START/STOP button to be touched with.
2If the Smart Entry Remote Battery is Weak P. 592
Models with smart entry system
20 HR-V HDMC HDMG-31T7A6400.book 105 ページ ２０１９年８月８日　木曜日　午後３時５２分

106
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Instrument Panel
MessageConditionExplanation
•Appears when there is a problem with the sensor on
the battery.•Have your vehicle checked by a dealer.
2 Checking the Battery P. 566
•Appears when the starter system has a problem.•As a temporary measure, press and hold the ENGINE
START/STOP button for up to 15 seconds while
pressing the brake pedal, and manually start the
engine.
Have your vehicle checked by a dealer.U.S. models
Canadian models
20 HR-V HDMC HDMG-31T7A6400.book 106 ページ ２０１９年８月８日　木曜日　午後３時５２分

107
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
•Appears for about thre e seconds when ACC has
been automatically canceled.• You can resume the set speed after the condition that
caused ACC to cancel improves. Press the RES/+
button.
2 Adaptive Cruise Control (ACC) P. 473
•Flashes when the system sens es a likely collision with
a vehicle in front of you.• Take appropriate action to prevent a collision (apply
the brakes, change lanes, etc.).
2 Adaptive Cruise Control (ACC) P. 473
2 Collision Mitigation Braking SystemTM (CMBSTM)
P. 463
• Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a
system related to the LKAS. The LKAS cancels
automatically. The beeper sounds simultaneously.• If any other system indicato rs come on, such as the
VSA ®, ABS and brake system, take appropriate action.
2Indicators P. 80
•Appears when the camera has been cooled down
and LKAS is available.• Pressing the MAIN/LKAS button can resume the
system.
2 Front Sensor Camera P. 500
20 HR-V HDMC HDMG-31T7A6400.book 107 ページ ２０１９年８月８日　木曜日　午後３時５２分

108
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Instrument Panel
MessageConditionExplanation
•Appears if there is a problem with the auto high-
beam.•Manually operate the headlight switch.
• If you are driving with the high beam headlights when
this happens, the headlights are changed to low
beams.
• Appears if anything covers the radar sensor cover
and prevents the sensor from detecting a vehicle in
front.
• May appear when driving in bad weather (rain,
snow, fog, etc.)•When the radar sensor gets dirty, stop your vehicle in a
safe place, and wipe off dirt using a soft cloth.
• Have your vehicle checked by a dealer if the message
does not disappear even after you clean the sensor
cover.
2 Radar Sensor P. 502
2 Honda Sensing ®* P. 460
•Appears if the temperature inside the front sensor
camera is too high and some driver assist systems
cannot be activated.•Use the climate control sy stem to cool down the
camera.
• Disappears - The camera has been cooled down and
the systems are activated normally.
2 Front Sensor Camera P. 500
2 Honda Sensing ®* P. 460
•Appears if the area around the front sensor camera
is blocked by dirt, mud, et c. and be prevented from
detecting a vehicle in front.
• May appear when driving in bad weather (rain,
snow, fog, etc.)•When the front window gets dirty, stop your vehicle in
a safe place, and wipe it off with a soft cloth.
• Have your vehicle checked by a dealer if the message
does not disappear even after you cleaned the area
around the camera.
2 Front Sensor Camera P. 500
2 Honda Sensing ®* P. 460
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 108 ページ ２０１９年８月８日　木曜日　午後３時５２分

109
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
•Appears when the vehicle is driving out of a
detected line. The steering wheel vibrates rapidly.
• Keep the vehicle within the lane you are driving.
2Lane Keeping Assist System (LKAS) P. 486
•Appears when the vehicle is driving out of a
detected line.
- The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected line.
- The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected line. The system
also steers the vehicle to help you remain within
your driving lane.
• Keep the vehicle within the lane you are driving.
2Road Departure Mitigation (RDM) System P. 495
•You can change the setting for the road departure
mitigation system. Narrow, Normal, Wide, and
Warning Only can be selected.
2Customized Features P. 123
•Appears when the vehicle is likely to drive out of a
detected line.
- The system steers the vehi cle to help you remain
within your driving lane.—
• Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously.• Operate the steering wheel to resume the LKAS.
Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Narrow, Normal or Wide
Road Departure Mitigation (RDM) System
When you selected Narrow
20 HR-V HDMC HDMG-31T7A6400.book 109 ページ ２０１９年８月８日　木曜日　午後３時５２分

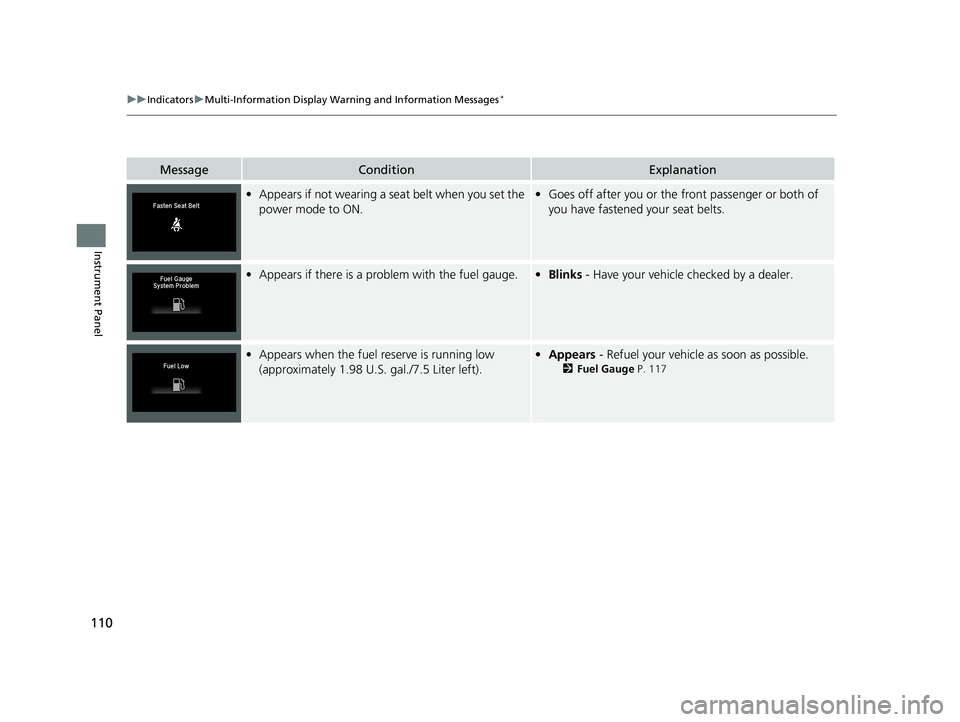

110
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Instrument Panel
MessageConditionExplanation
•Appears if not wearing a seat belt when you set the
power mode to ON.•Goes off after you or the front passenger or both of
you have fastened your seat belts.
• Appears if there is a problem with the fuel gauge.•Blinks - Have your vehicle checked by a dealer.
•Appears when the fuel reserve is running low
(approximately 1.98 U.S. gal./7.5 Liter left).• Appears - Refuel your vehicl e as soon as possible.
2Fuel Gauge P. 117
