2020 HONDA FIT Owner's Manual (in English)

7
Quick Reference Guide
❙Grab Handle
❙Coat Hook (P192)
(Only on the rear left side)
❙Interior Light (P186)
❙Side Curtain Airbags (P55)
❙Rearview Mirror (P173)
❙Sun Visors
❙Vanity Mirrors
❙Map Lights (P187)
❙Moonroof Switch* (P153)
❙Cargo Floor Box (P190)
❙Cargo Area Cover* (P194)
❙Cargo Area Light (P187)
❙LATCH to Secure a Child Seat (P65)
❙Rear Seat (P178)
❙Side Airbags (P53)
❙Accessory Power Socket* (P191)
❙USB Port* (P207)
❙Front Seat (P174)
❙Seat Belts (P36)
❙Seat Belt (Installing a Child Seat) (P67)
❙Seat Belt to Secure a Child Seat (P69)
❙Seat Belt with Detachable Anchor
(P43)
* Not available on all models
20 FIT-31T5A6500.book 7 ページ ２０１９年９月２６日　木曜日　午後４時４１分

Visual Index
8
Quick Reference Guide
❙Door Lock/Unlock Control (P127)
❙Power Door Mirrors (P173)
❙Maintenance Under the Hood (P501)
❙Windshield Wipers (P168, 520)
❙Headlights (P160, 513)
❙Front Turn Signal/Parking Lights (P159, 514)
❙Side Marker Lights (P160, 515)
❙Tires (P524, 547)
❙Fog Lights* (P163, 515)
❙Audio Antenna (P209)
❙High-Mount Brake Light (P518)
❙Rear Wiper (P169, 522)
❙Opening/Closing the Tailgate (P145)
❙Tailgate Outer Handle/Release Button (P146)
❙License Plate Lights (P519)
❙Multi-View Rear Camera (P482)
❙Brake/Tail/Rear Side Marker Lights (P518)
❙Back-Up Lights (P517)
❙Rear Turn Signal Lights (P517)
❙How to Refuel (P485)
20 FIT-31T5A6500.book 8 ページ ２０１９年９月２６日　木曜日　午後４時４１分

9
Quick Reference Guide
Eco Assist® System
Ambient Meter
●The color of the ambient meter changes to green
to indicate that the vehicle is being driven in a fuel
efficient manner.
ECON Mode Indicator*
(P85)
Comes on when the ECON button is
pressed.
ECON Button* (P427)
Helps maximize fuel economy.
Models with multi-information display
The message is displayed for
a few seconds when the
ECON button is pressed.
* Not available on all models
20 FIT-31T5A6500.book 9 ページ ２０１９年９月２６日　木曜日　午後４時４１分

10
Quick Reference Guide
Safe Driving (P 31)
Airbags (P46)
● Your vehicle is fitted with ai rbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P60)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restrained in a forward-facing child seat.
● Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P73)
● Your vehicle emits dangerous exhaust gases that contain
carbon monoxide. Do not run the engine in confined spaces
where carbon monoxide gas can accumulate.
Before Driving Checklist (P400)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P36)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
20 FIT-31T5A6500.book 10 ページ ２０１９年９月２６日　木曜日　午後４時４１分

11
Quick Reference Guide
Instrument Panel (P75)
Lights Indicators
Malfunction
Indicator Lamp
Low Oil Pressure
IndicatorAnti-lock Brake
System (ABS)
Indicator
Vehicle Stability
Assist
TM (VSA ®)
System Indicator
VSA ® OFF Indicator
Electric Power
Steering (EPS) System
Indicator Lights On Indicator High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
CRUISE MAIN
Indicator*
Supplemental
Restraint System
Indicator
Door and Tailgate
Open Indicator
Tachometer
Speedometer
Fuel Gauge
Security System
Alarm Indicator
Shift Lever Position Indicator
*
Low Fuel Indicator
Gauges (P103)/Information Display* (P104) Multi-Information Display* (P107)/System Indicators (P76)
Turn Signal and
Hazard Warning
Indicators
High Temperature
Indicator (Red)
System Indicators
System Indicators
Low Tire Pressure/
TPMS Indicator
U.S. models only
Parking Brake
and Brake System
Indicator (Red)
CRUISE CONTROL
Indicator*
System Indicators
Charging System
Indicator
U.S.
Washer Level
Indicator*
ECON Mode
Indicator*
Maintenance
Minder Indicator
Fog Light Indicator
*
Canada
Brake System
Indicator (Amber)
Canada
U.S.
M
(7-speed manual shift mode)
Indicator/Shift Indicator*
Information Display
Models with information display
Low Temperature
Indicator (Blue)
* Not available on all models
20 FIT-31T5A6500.book 11 ページ ２０１９年９月２６日　木曜日　午後４時４１分

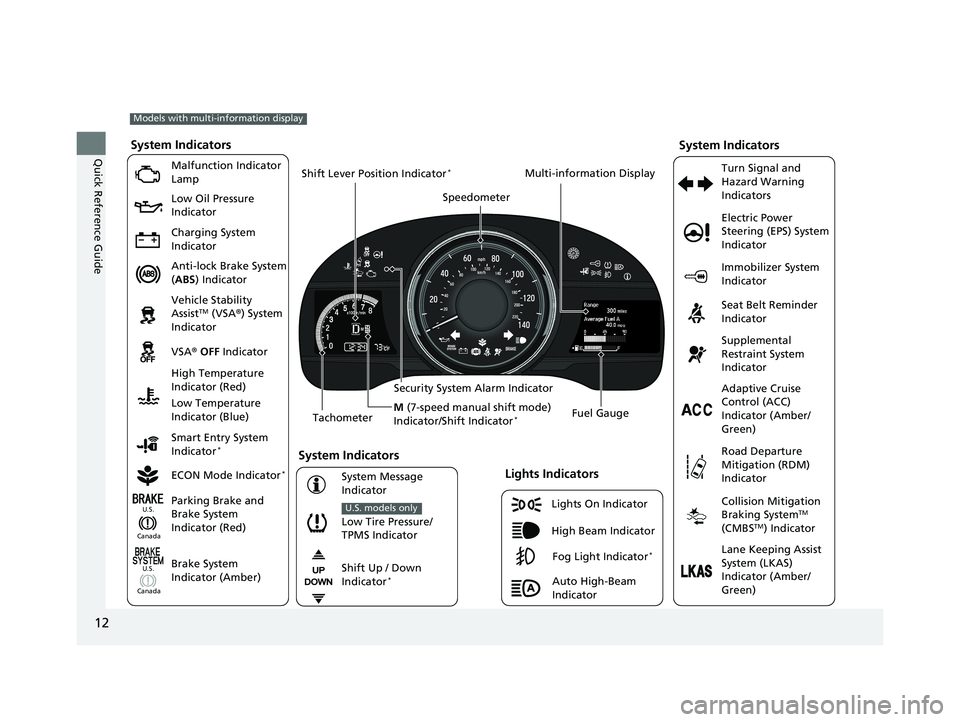

12
Quick Reference Guide
Lights On Indicator
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability
Assist
TM (VSA ®) System
Indicator
VSA ® OFF Indicator
Low Tire Pressure/
TPMS Indicator
U.S. models only
Electric Power
Steering (EPS) System
Indicator
Seat Belt Reminder
Indicator
System Indicators
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Tachometer Speedometer
Fuel Gauge
Security System Alarm Indicator
Shift Lever Position Indicator
*
Immobilizer System
Indicator
ECON Mode Indicator
*
Turn Signal and
Hazard Warning
Indicators
Models with multi-information display
Brake System
Indicator (Amber)
System Indicators
High Temperature
Indicator (Red)
Low Temperature
Indicator (Blue)
Lights Indicators
High Beam Indicator
Fog Light Indicator*
Adaptive Cruise
Control (ACC)
Indicator (Amber/
Green)
System Message
Indicator Collision Mitigation
Braking System
TM
(CMBSTM) Indicator
Road Departure
Mitigation (RDM)
Indicator
Lane Keeping Assist
System (LKAS)
Indicator (Amber/
Green)
Smart Entry System
Indicator
*
U.S.
Canada
Canada U.S.
Shift Up / Down
Indicator*
Multi-information Display
Auto High-Beam
Indicator
M
(7-speed manual shift mode)
Indicator/Shift Indicator
*
20 FIT-31T5A6500.book 12 ページ ２０１９年９月２６日　木曜日　午後４時４１分

13
Quick Reference Guide
Controls (P121)
Clock (P122)
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
The clock in the information display is
automatically updated along with the audio
system’s clock display.
Models with navigation system
Models without navigation system
Clock
aSelect the (HOME) icon, then select
Settings .
bSelect System , Clock/Info , then Clock
Adjustment .
cTouch the / icon to adjust the
numbers up or down.
dSelect OK.
Models with display audio system
34
aPress and hold the MENU/CLOCK
button.
bRotate to change hour, then press .
cRotate to change minute, then
press .
dSelect SET, then press .
These indications are used to show how to
operate the LIST/SELECT (List/Selector) knob.
•Rotate to select.
•Press to enter.
Models with color audio system
* Not available on all models
20 FIT-31T5A6500.book 13 ページ ２０１９年９月２６日　木曜日　午後４時４１分

14
Quick Reference Guide
Engine START/STOP
Button
* (P155)
Press the button to change the vehicle’s
power mode.
Turn Signals (P159)
Lights (P160)
Turn Signal Control Lever
Right
Left
U.S. models
Light Control Switches
Low Beam High Beam
Flashing
Canadian models
Low BeamHigh Beam
Flashing
Wipers and Washers
(P168)
Wiper/Washer Control Lever
MIST
OFF
INT: Low speed with intermittent
LO : Low speed wipe
HI: High speed wipe Pull toward
you to spray
washer fluid.
Adjustment Ring*
: Lower speed, fewer sweeps
: High speed, more sweeps
20 FIT-31T5A6500.book 14 ページ ２０１９年９月２６日　木曜日　午後４時４１分
