2020 HONDA FIT Owner's Manual (in English)

399
Driving
This chapter discusses driving and refueling.
Before DrivingDriving Preparation .............................. 400
Maximum Load Limit............................ 403
Towing a Trailer .................................... 405
Towing Your Vehicle ............................ 406
When Driving
Starting the Engine .............................. 409
Starting the Engine .............................. 411
Precautions While Driving..................... 415
Continuously Variable Transmission
*.... 416
Shifting ................................................ 417
Models without smart entry system
Models with smart entry system
Continuously variable transmission models
without paddle shifters
Shifting................................................ 419
Shifting................................................ 423
ECON Button
*..................................... 427
Cruise Control*................................... 428
Front Sensor Camera*......................... 431
Adaptive Cruise Control (ACC)*........... 433Road Departure Mitigation (RDM) System*.... 447Lane Keeping Assist System (LKAS)*.... 452Vehicle Stability AssistTM (VSA®), aka Electronic
Stability Control (ESC), System ............... 459
LaneWatchTM*...................................... 461
Tire Pressure Monitoring System (TPMS)..... 463
Continuously variable transmission models
with paddle shifters
Manual transmission models
Tire Pressure Monitoring System (TPMS) - Required Federal Explanation .............. 467
Braking Brake System ........................................ 469
Anti-lock Brake System (ABS) ................ 471
Brake Assist System .............................. 472
Collision Mitigation Braking SystemTM (CMBSTM)*... 473Parking Your VehicleWhen Stopped ..................................... 481
Multi-View Rear Camera ....................... 482
Refueling
Fuel Information ................................... 484
How to Refuel ...................................... 485
Fuel Economy and CO
2 Emissions
Improving Fuel Economy and Reducing CO2
Emissions ............................................. 487
* Not available on all models
20 FIT-31T5A6500.book 399 ページ ２０１９年９月２６日　木曜日　午後４時４１分

400
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on the windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheels, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressure and check fo r damage and excessive wear.
2Checking and Maintaining Tires P. 524
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the engine and exhaust can ignite
flammable material s left under the hood, causing a
fire. If you've parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.
20 FIT-31T5A6500.book 400 ページ ２０１９年９月２６日　木曜日　午後４時４１分

Continued401
uuBefore Driving uDriving Preparation
Driving

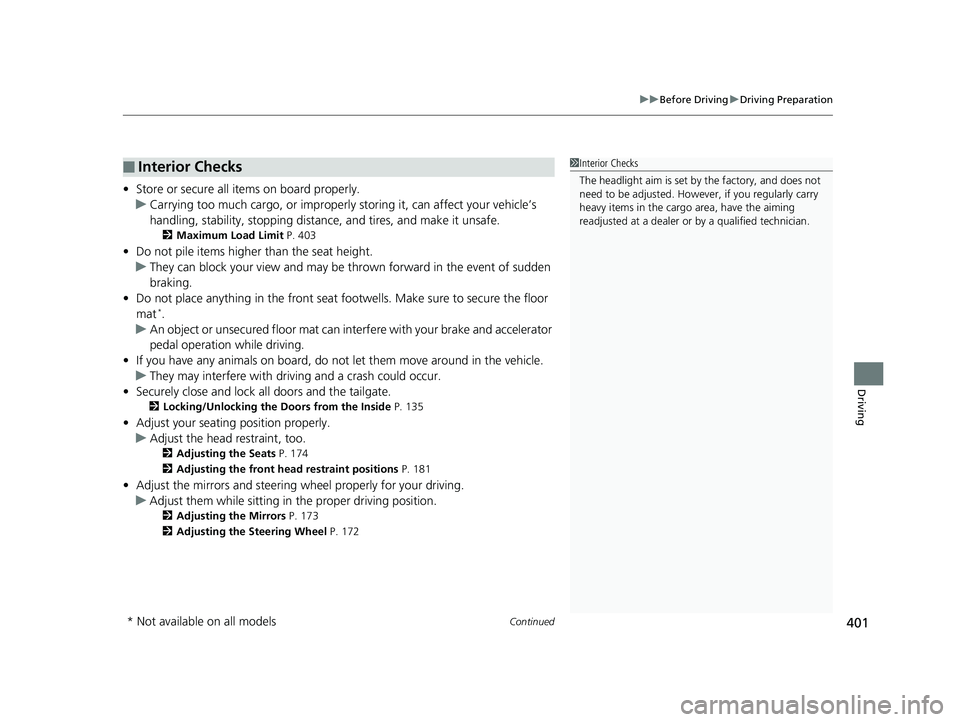

• Store or secure all items on board properly.
u Carrying too much cargo, or improperly storing it, can affect your vehicle’s
handling, stability, sto pping distance, and tires, and make it unsafe.
2Maximum Load Limit P. 403
•Do not pile items higher than the seat height.
u They can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the front seat footwells. Make sure to secure the floor
mat
*.
u An object or unsecured floor mat can in terfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
u They may interfere with driving and a crash could occur.
• Securely close and lock al l doors and the tailgate.
2Locking/Unlocking the Doors from the Inside P. 135
•Adjust your seating position properly.
u Adjust the head restraint, too.
2Adjusting the Seats P. 174
2 Adjusting the front head restraint positions P. 181
•Adjust the mirrors and steering wh eel properly for your driving.
u Adjust them while sitting in the proper driving position.
2 Adjusting the Mirrors P. 173
2 Adjusting the Steering Wheel P. 172
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area, have the aiming
readjusted at a dealer or by a qualified technician.
* Not available on all models
20 FIT-31T5A6500.book 401 ページ ２０１９年９月２６日　木曜日　午後４時４１分

402
uuBefore Driving uDriving Preparation
Driving
• Be sure items placed on the floor behind the front seats cannot roll under the
seats.
u They can interfere with the driver’s ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belts.
2Fastening a Seat Belt P. 40
•Make sure that the indicators in the ins trument panel come on when you start the
vehicle, and go off soon after.
u Always have a dealer check the vehicle if a problem is indicated.
2 Indicators P. 76
20 FIT-31T5A6500.book 402 ページ ２０１９年９月２６日　木曜日　午後４時４１分

403
uuBefore Driving uMaximum Load Limit
Continued
Driving

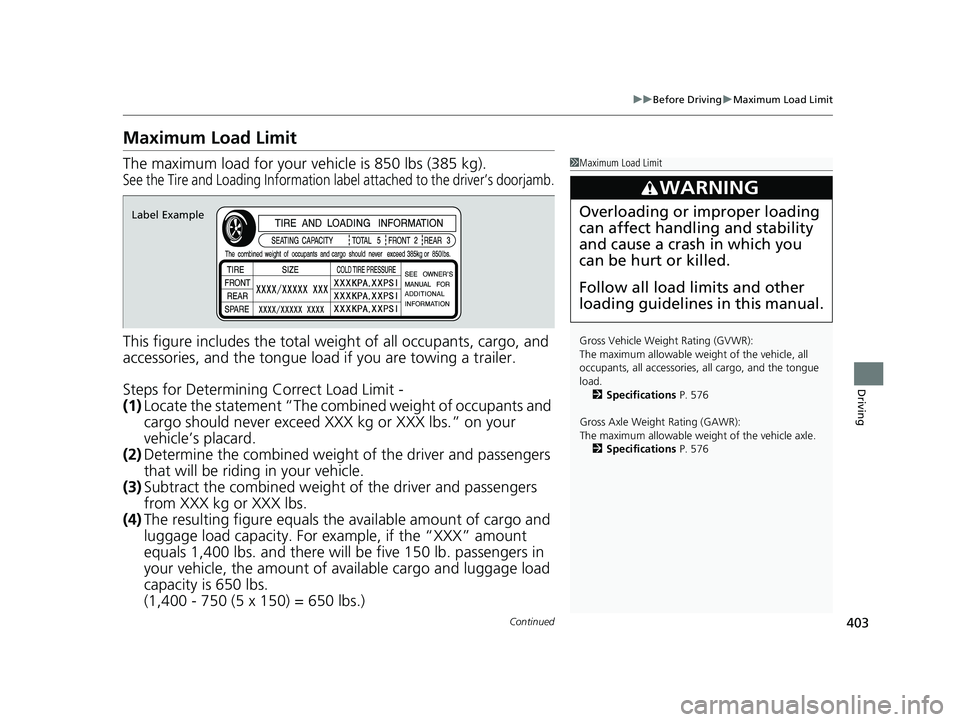

Maximum Load Limit
The maximum load for your ve hicle is 850 lbs (385 kg).
See the Tire and Loading Information label attached to the driver’s doorjamb.
This figure includes the total weig ht of all occupants, cargo, and
accessories, and the tongue load if you are towing a trailer.
Steps for Determining Correct Load Limit -
(1) Locate the statement “The comb ined weight of occupants and
cargo should never exceed XXX kg or XXX lbs.” on your
vehicle’s placard.
(2) Determine the combined weight of the driver and passengers
that will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers
from XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and
luggage load capacity. For example, if the “XXX” amount
equals 1,400 lbs. and there will be five 150 lb. passengers in
your vehicle, the am ount of available cargo and luggage load
capacity is 650 lbs.
(1,400 - 750 (5 x 150) = 650 lbs.)
1 Maximum Load Limit
Gross Vehicle Weight Rating (GVWR):
The maximum allowable weight of the vehicle, all
occupants, all a ccessories, all cargo, and the tongue
load. 2 Specifications P. 576
Gross Axle Weight Rating (GAWR):
The maximum allowable weight of the vehicle axle. 2 Specifications P. 576
3WARNING
Overloading or improper loading
can affect handling and stability
and cause a crash in which you
can be hurt or killed.
Follow all load limits and other
loading guidelines in this manual.Label Example
20 FIT-31T5A6500.book 403 ページ ２０１９年９月２６日　木曜日　午後４時４１分

uuBefore Driving uMaximum Load Limit
404
Driving
(5) Determine the combined weight of luggage and cargo being
loaded on the vehicle. That we ight may not safely exceed the
available cargo and luggage load capacity calculated in step 4.
(6) If your vehicle will be towing a tra iler, load from your trailer will
be transferred to your vehicl e. Consult this manual to
determine how this reduces the available cargo and luggage
load capacity of your vehicle.
In addition, the total weight of the vehicle, all occupants,
accessories, cargo, and trailer tongue load must not exceed the
Gross Vehicle Weight Rating (GVW R) or the Gross Axle Weight
Rating (GAWR). Both are on a label on the driver’s doorjamb.1 Maximum Load Limit
Towing a Trailer:
See Towing a Trailer to determine whether your
vehicle is designed to tow a trailer.
2 Towing a Trailer P. 405
Load Limits Example
Example1
Max Load 850 lbs
(385 kg) Passenger Weight
150 lbs x 2 = 300 lbs (68 kg x 2 = 136 kg) Cargo Weight
550 lbs
(249 kg)
Example2
Max Load 850 lbs
(385 kg) Passenger Weight
150 lbs x 5 = 750 lbs (68 kg x 5 = 340 kg) Cargo Weight
100 lbs
(45 kg)
20 FIT-31T5A6500.book 404 ページ ２０１９年９月２６日　木曜日　午後４時４１分

405
Driving

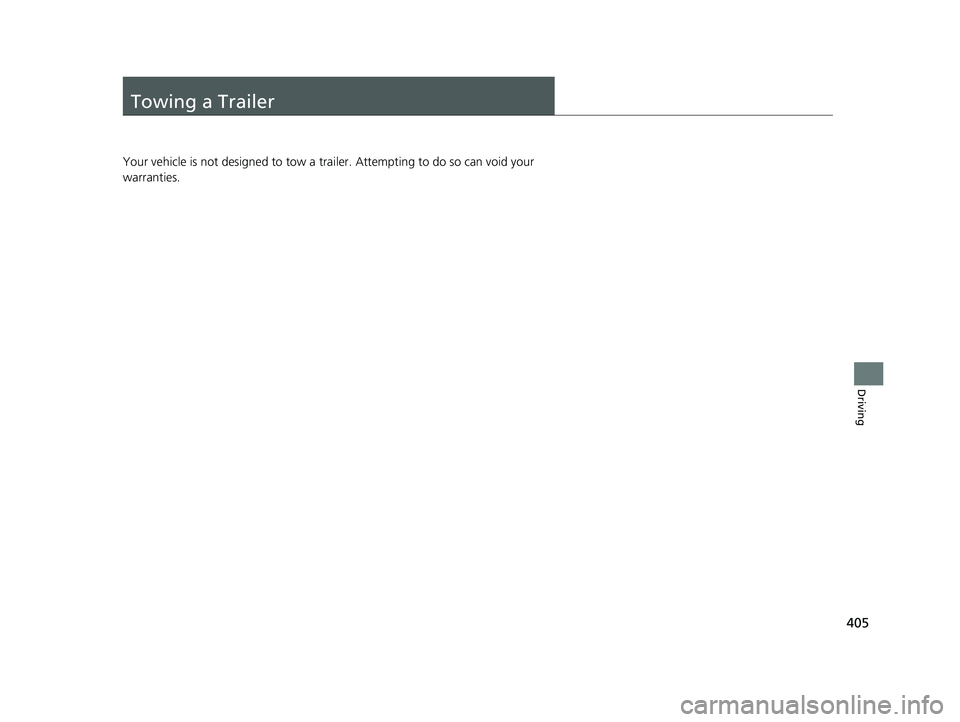

Towing a Trailer
Your vehicle is not designed to tow a trailer. Attempting to do so can void your
warranties.
20 FIT-31T5A6500.book 405 ページ ２０１９年９月２６日　木曜日　午後４時４１分

406
uuTowing a Trailer uTowing Your Vehicle
Driving
Towing Your Vehicle
Your vehicle is not designed to be towed be hind a motorhome. If your vehicle needs
to be towed in an emergency, refe r to the emergency towing information.
2Emergency Towing P. 571
Your vehicle can be towed behind a motorhome.
Perform the following procedure before towing your vehicle.
1. Shift to
(N.
2. Release the parking brake.
3. Turn the ignition sw itch to ACCESSORY
(q*1.
u Make sure the steering wheel does not lock.
4. Turn off all the electric devices. Do not use any accessory power sockets.
u This can prevent the battery from running down.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
■When Your Vehicle is Towed Behind a Motorhome
1Towing Your Vehicle
Do not exceed 65 mph (100 km/h).
Consult your towing parts sales or rental agency if
any other items are recommended or required for
your towing situation.Continuously variable transmission models
Manual transmission models
20 FIT-31T5A6500.book 406 ページ ２０１９年９月２６日　木曜日　午後４時４１分
