2020 HONDA FIT child seat

Contents
Child Safety P. 60Exhaust Gas Hazard P. 73Safety Labels P. 74
Opening and Closing the Tailgate P. 145 Security System P. 148
Opening and Closing the Moonroof* P. 153
Adjusting the Mirrors P. 173 Adjusting the Seats P. 174
Heating and Cooling System
* P. 196 Climate Control System* P. 199
Audio Error Messages P. 312General Information on the Audio System P. 317
When Driving P. 409 Braking P. 469Parking Your Vehicle P. 481
Refueling P. 484 Fuel Economy and CO
2 Emissions P. 487
Maintenance Under the Hood P. 501 Replacing Light Bulbs P. 513
Checking and Maintaining Tires P. 524 Battery P. 534 Remote Transmitter Care P. 536
Cleaning P. 539 Accessories and Modifications P. 544
Engine Does Not Start P. 554Jump Starting P. 557 Shift Lever Does Not Move P. 559
Emergency Towing P. 571 When You Cannot Open the Tailgate P. 572
Devices that Emit Radio Waves P. 579 Reporting Safety Defects P. 580
Authorized Manuals P. 585 Customer Service Information P. 586
Quick Reference GuideP. 4
Safe DrivingP. 31
Instrument PanelP. 75
ControlsP. 121
FeaturesP. 205
DrivingP. 399
MaintenanceP. 489
Handling the UnexpectedP. 545
InformationP. 575
IndexP. 588
20 FIT-31T5A6500.book 3 ページ ２０１９年９月２６日　木曜日　午後４時４１分

7

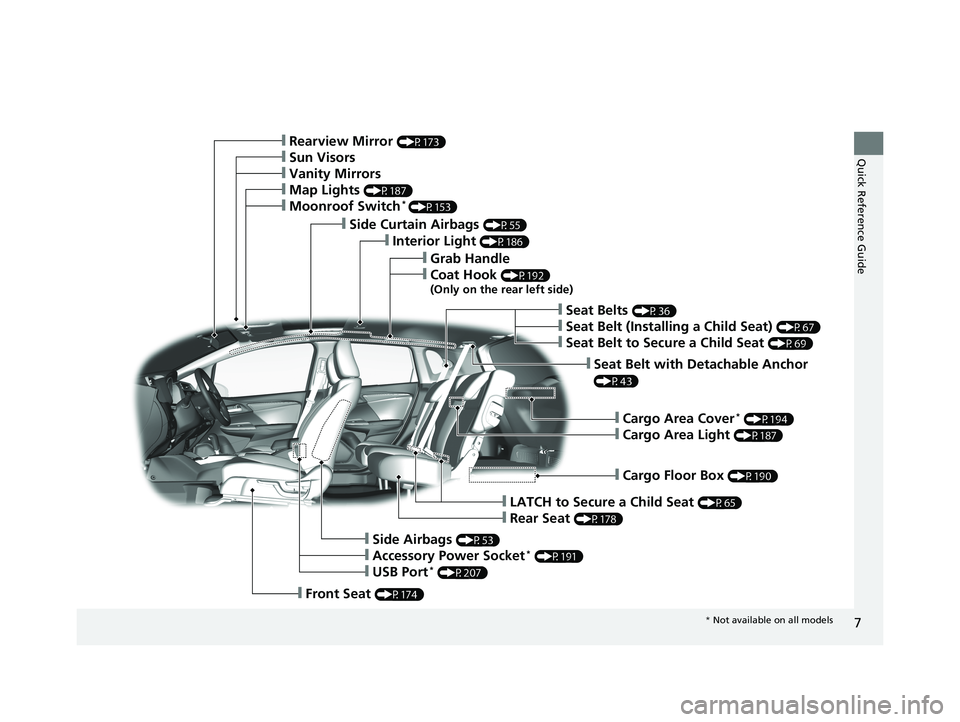

Quick Reference Guide
❙Grab Handle
❙Coat Hook (P192)
(Only on the rear left side)
❙Interior Light (P186)
❙Side Curtain Airbags (P55)
❙Rearview Mirror (P173)
❙Sun Visors
❙Vanity Mirrors
❙Map Lights (P187)
❙Moonroof Switch* (P153)
❙Cargo Floor Box (P190)
❙Cargo Area Cover* (P194)
❙Cargo Area Light (P187)
❙LATCH to Secure a Child Seat (P65)
❙Rear Seat (P178)
❙Side Airbags (P53)
❙Accessory Power Socket* (P191)
❙USB Port* (P207)
❙Front Seat (P174)
❙Seat Belts (P36)
❙Seat Belt (Installing a Child Seat) (P67)
❙Seat Belt to Secure a Child Seat (P69)
❙Seat Belt with Detachable Anchor
(P43)
* Not available on all models
20 FIT-31T5A6500.book 7 ページ ２０１９年９月２６日　木曜日　午後４時４１分

10
Quick Reference Guide
Safe Driving (P 31)
Airbags (P46)
● Your vehicle is fitted with ai rbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P60)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restrained in a forward-facing child seat.
● Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P73)
● Your vehicle emits dangerous exhaust gases that contain
carbon monoxide. Do not run the engine in confined spaces
where carbon monoxide gas can accumulate.
Before Driving Checklist (P400)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P36)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
20 FIT-31T5A6500.book 10 ページ ２０１９年９月２６日　木曜日　午後４時４１分

28
Quick Reference Guide
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in the
lock position. If so, open the rear door
with the outside door handle.
To cancel this function, push the lever
to the unlock position.
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:●The exterior lights are left on.
●The key is left in the ignition switch.
●The power mode is in ACCESSORY.
Why does a beeper sound
when I walk away from the
vehicle after I close the
door?The beeper sounds if you move outside the walk away auto
door lock operating range before the door completely closes.
2Locking the vehicle (Walk away auto lock) (P129)
Why does the beeper
sound when I start driving?The beeper sounds when:
●Driver and/or front passenger are not wearing their seat belts.
●The parking brake lever is not fully released.
Models without smart entry system
Models with smart entry system
20 FIT-31T5A6500.book 28 ページ ２０１９年９月２６日　木曜日　午後４時４１分

31
Safe Driving
You can find many safety recommendations throughout this chapter, and throughout this manual.
For Safe DrivingImportant Safety Precautions ............. 32
Your Vehicle’s Safety Features............ 34
Seat Belts About Your Seat Belts ........................ 36
Fastening a Seat Belt .......................... 40
Seat Belt Inspection............................ 45
Airbags Airbag System Components ............... 46
Types of Airbags ................................ 49
Front Airbags (SRS) ............................ 49
Side Airbags....................................... 53 Side Curtain Airbags .......................... 55
Airbag System Indicators.................... 57
Airbag Care ....................................... 59
Child Safety Protecting Child Passengers ............... 60
Safety of Infants and Small Children .... 62
Safety of Larger Children ................... 71
Exhaust Gas Hazard Carbon Monoxide Gas ....................... 73
Safety Labels Label Locations .................................. 74
20 FIT-31T5A6500.book 31 ページ ２０１９年９月２６日　木曜日　午後４時４１分

32
Safe Driving
For Safe Driving
The following pages explain your vehicle’s safety features and how to use them
properly. The safety precauti ons below are ones that we consider to be among the
most important.
Important Safety Precautions
■Always wear your seat belt
A seat belt is your best protection in all types of collisions. Airbags are designed to
supplement seat belts, not replace them. So even though your vehicle is equipped
with airbags, make sure you and your passe ngers always wear your seat belts, and
wear them properly.
■Restrain all children
Children ages 12 and under should ride properly restrained in a back seat, not the
front seat. Infants and small children shoul d be restrained in a child seat. Larger
children should use a booster seat and a lap/shoulder seat belt until they can use the
belt properly without a booster seat.
■Be aware of airbag hazards
While airbags can save lives, they can cause serious or fatal injuries to occupants
who sit too close to them, or are not prop erly restrained. Infants, young children,
and short adults are at the greatest risk. Be sure to follow all instructions and
warnings in this manual.
■Don’t drink and drive
Alcohol and driving don’t mix. Even one dr ink can reduce your ability to respond to
changing conditions, and your reaction time gets worse with every additional drink.
So don’t drink and drive, and don’t let your friends drink and drive, either.
1Important Safety Precautions
Some states, provinces and territories prohibit the use
of cell phones other than hands-free devices by the
driver while driving.
20 FIT-31T5A6500.book 32 ページ ２０１９年９月２６日　木曜日　午後４時４１分

35
uuFor Safe Driving uSafety Checklist
Safe Driving

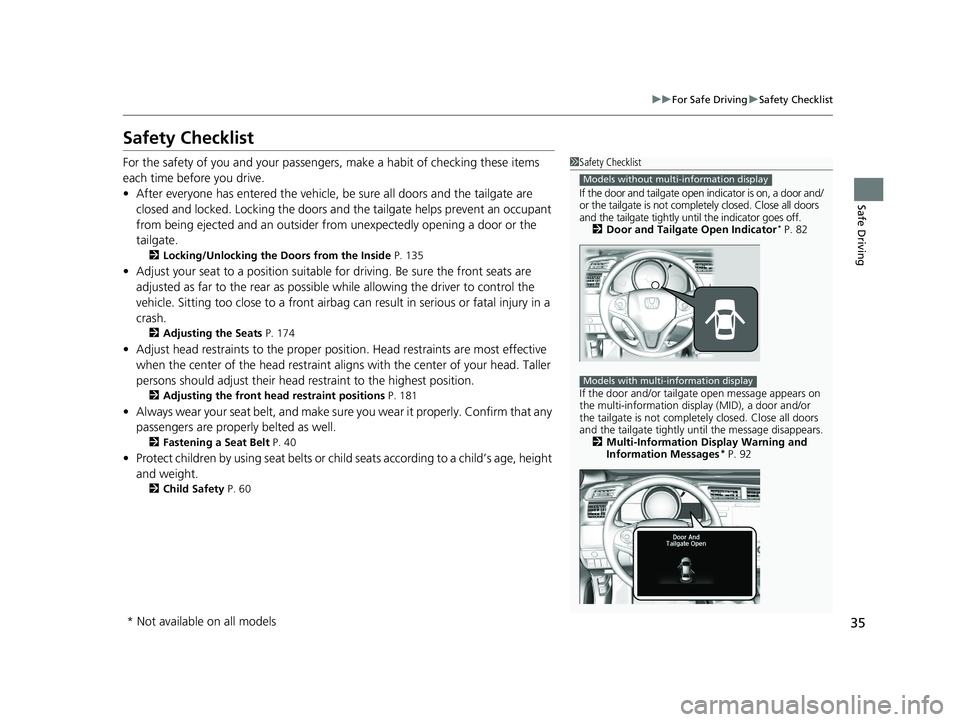

Safety Checklist
For the safety of you and your passengers, make a habit of checking these items
each time before you drive.
• After everyone has entered the vehicle, be sure all doors and the tailgate are
closed and locked. Locking the doors and the tailgate helps prevent an occupant
from being ejected and an outsider from unexpectedly opening a door or the
tailgate.
2 Locking/Unlocking the Doors from the Inside P. 135
•Adjust your seat to a position suitable for driving. Be sure the front seats are
adjusted as far to the rear as possible while allowing the driver to control the
vehicle. Sitting too close to a front airbag can result in serious or fatal injury in a
crash.
2 Adjusting the Seats P. 174
•Adjust head restraints to the proper position. Head restraints are most effective
when the center of the head restraint aligns with the center of your head. Taller
persons should adjust their head restraint to the highest position.
2 Adjusting the front head restraint positions P. 181
•Always wear your seat belt, and make sure you wear it properly. Confirm that any
passengers are properly belted as well.
2 Fastening a Seat Belt P. 40
•Protect children by using seat belts or chil d seats according to a child’s age, height
and weight.
2 Child Safety P. 60
1Safety Checklist
If the door and tailgate open indicator is on, a door and/
or the tailgate is not comple tely closed. Close all doors
and the tailgate tightly unt il the indicator goes off.
2 Door and Tailgate Open Indicator
* P. 82
If the door and/or tailga te open message appears on
the multi-information display (MID), a door and/or
the tailgate is not completely closed. Close all doors
and the tailgate tightly unt il the message disappears.
2 Multi-Information Display Warning and
Information Messages
* P. 92
Models without multi-information display
Models with multi-information display
* Not available on all models
20 FIT-31T5A6500.book 35 ページ ２０１９年９月２６日　木曜日　午後４時４１分

36
Safe Driving
Seat Belts
About Your Seat Belts
Seat belts are the single most effective safety device because they keep you
connected to the vehicle so that you can take advantage of many built-in safety
features. They also help keep you from be ing thrown against the inside of the
vehicle, against any passenger s, or out of the vehicle. When worn properly, seat
belts also keep your body pr operly positioned in a crash so that you can take full
advantage of the additional protec tion provided by the airbags.
In addition, seat belts help protect you in almost every type of crash, including:
- frontal impacts
- side impacts
- rear impacts
- rollovers
■Lap/shoulder seat belts
All five seating positions are equipped with lap/shoulder seat belts with emergency
locking retractors. In normal driving the re tractor lets you move freely while keeping
some tension on the belt. During a collision or sudden stop the retractor locks to
restrain your body. The front passenger’s an d rear seat belts also have a lockable
retractor for use with child seats.
2 Installing a Child Seat with a Lap/Shoulder Seat Belt P. 67
1About Your Seat Belts
If a rear seat passenger moves around and extends
the seat belt, the lockable retractor may activate. If
this happens, release the retractor by unfastening the
seat belt and allow the belt to retract completely.
Then refasten the belt.
If you extend the seat belt t oo quickly, it will lock in
place. If this happens, sli ghtly retract the seat belt,
then extend it slowly.
Seat belts cannot complete ly protect you in every
crash. But in most cases, seat belts can reduce your
risk of serious injury.
Most states and all Canadian provinces and territories
require you to w ear seat belts.
3WARNING
Not wearing a seat belt properly increases
the chance of serious injury or death in a
crash, even though your vehicle has
airbags.
Be sure you and your passengers always
wear seat belts and wear them properly.
20 FIT-31T5A6500.book 36 ページ ２０１９年９月２６日　木曜日　午後４時４１分
