2020.25 OPEL VIVARO C Manual user

Storage87Document tray in the centre
seatback
The front centre passenger seat
backrest can contain a document
tray.
Fold down the tray. The document
tray contains a storage compartment
and a swivelling shelf.
Return the swivelling shelf to its
original position before raising the tray.
Table
Multifunctional table
The multifunctional table can be
positioned in second or third row.
To move the multifunctional table pull the handle in the front without going
beyond the point of resistance. Slide
the multifunctional table forwards or
backwards. Release the handle when it is in the desired position. Make sure
that the multifunctional table is
securely engaged.

88StorageStorage compartment in the
multifunctional table
Press the cover to open the storage
compartment.
The maximum permitted load is 3 kg.
Unfolding
To unfold the multifunctional table pull
the handle on the top. Pull the rear
part to the vertical position until it
engages.
On the two sides there are tables
located. Pull the table fully up and
then move it into the horizontal
position.
Each table can bear a maximum load of 10 kg.
Caution
To avoid damaging the table tops
never unfold the table when it is
between individual seats.

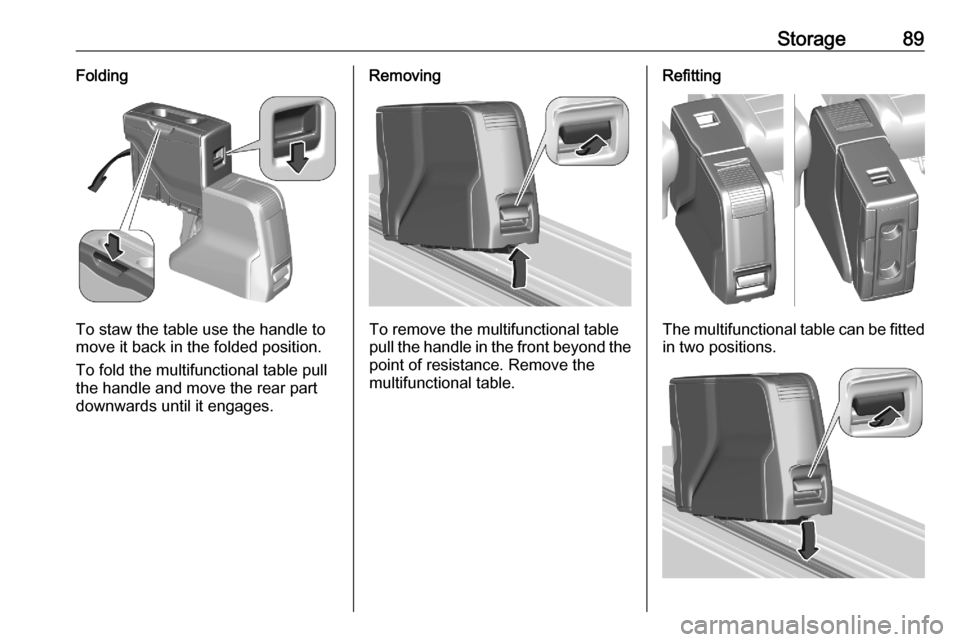

Storage89Folding
To staw the table use the handle to
move it back in the folded position.
To fold the multifunctional table pull
the handle and move the rear part
downwards until it engages.
Removing
To remove the multifunctional table
pull the handle in the front beyond the point of resistance. Remove the
multifunctional table.
Refitting
The multifunctional table can be fitted in two positions.

90StorageThe handle in the front has to be in the
tightened position. Place the rear of
the multifunctional table on the rail
and tip the front down. Slide the
multifunctional table until it engages.9 Warning
Never use the multifunctional table
in the unfolded position while thevehicle is in motion. Any objects
on the table will turn into
projectiles in the event of a sudden stop or collision.
Ensure that the multifunctional
table is correctly folded before
moving or removing it.
Never use the tables as seats or
lean on them.
Check that there is no object
obstructing the rail and preventing locking.
Roof rack system
Roof rackFor safety reasons and to avoid
damage to the roof, the vehicle
approved roof rack system is
recommended. For further
information contact your workshop.
Follow the installation instructions
and remove the roof rack when not in
use.
The roof load is the combined weight
of the roof rack and the load.
Loading information 3 91.
Mounting
Fasten the roof rack according to the
installation instructions delivered with the roof rack.
The number and location of the
mounting points may vary depending
on the vehicle:Vehicles with glass panel
Mount two roof bars using the
mounting points marked in the
picture.
Permissible roof load L1, L2, L3 max.
100 kg.

Storage91Vehicles without glass panel
Mount three roof bars using the
mounting points marked in the
picture.
Permissible roof load L1, L2, L3 max.
150 kg.
Mount the roof rack using the
mounting points marked in the
picture.
Permissible roof load L1 max.
140 kg.
Permissible roof load L2, L3 max.
170 kg.
Vehicle dimensions 3 270
Loading information
● Heavy objects in the load
compartment should be placed
against the seat backrests. Make
sure that the backrests are
securely engaged. If objects can
be stacked, heavier objects
should be placed at the bottom.
● Prevent sliding of loose objects by securing them with straps
attached to the lashing eyes.
Lashing eyes 3 82.
● Do not allow the load to protrude above the upper edge of the
backrests.

92Storage● Do not place any objects on therear luggage cover or the
instrument panel, and do not cover the sensor on top of the
instrument panel.
● The load must not obstruct the operation of the pedals, parking
brake and gear selector, or
hinder the freedom of movement
of the driver. Do not place any
unsecured objects in the interior.
● Do not drive with an open load compartment.9Warning
Always make sure that the load in
the vehicle is securely stowed.
Otherwise objects can be thrown
around inside the vehicle and
cause personal injury or damage
to the load or car.
● The payload is the difference between the permitted gross
vehicle weight (see identification
plate) and the EC kerb weight.
Identification plate 3 264.
To calculate the payload, enter
the data for your vehicle in the
weights table at the front of this
manual.
The EC kerb weight includes
weights for the driver (68 kg),
luggage (7 kg) and all fluids (fuel
tank 90% full).
Optional equipment and
accessories increase the kerb
weight.
● Driving with a roof load increases
the sensitivity of the vehicle to
cross-winds and has a
detrimental effect on vehicle
handling due to the vehicle's
higher centre of gravity.
Distribute the load evenly and secure it properly with retaining
straps. Adjust the tyre pressure
and vehicle speed according to
the load conditions. Check and
retighten the straps frequently.
Do not drive faster
than 120 km/h.

Instruments and controls93Instruments and
controlsControls ....................................... 94
Steering wheel adjustment ........94
Steering wheel controls .............94
Horn ........................................... 95
Steering column controls ...........95
Windscreen wiper and washer ..95
Rear window wiper and washer ...................................... 97
Outside temperature ..................97
Clock ......................................... 98
Power outlets ............................. 98
Warning lights, gauges and indi‐ cators ......................................... 101
Instrument cluster ....................101
Speedometer ........................... 105
Odometer ................................ 106
Trip odometer .......................... 106
Tachometer ............................. 107
Fuel gauge .............................. 107
Engine coolant temperature gauge ..................................... 108
Engine oil level monitor ...........109
Service display ........................ 109
Control indicators ....................110Turn lights................................ 110
Seat belt reminder ...................110
Airbag and belt tensioners .......111
Airbag deactivation ..................111
Charging system .....................111
Malfunction indicator light ........111
Service vehicle soon ...............112
Stop engine ............................. 112
System check .......................... 112
Brake system ........................... 112
Parking brake .......................... 112
Antilock brake system (ABS) ...112
Gear shifting ............................ 113
Lane departure warning ..........113
Electronic Stability Control and Traction Control system .........113
Engine coolant temperature ....113
Preheating ............................... 113
Exhaust filter ............................ 113
AdBlue ..................................... 114
Deflation detection system ......114
Engine oil pressure ..................114
Low fuel ................................... 114
Autostop .................................. 115
Exterior light ............................ 115
Low beam ................................ 115
High beam ............................... 115
High beam assist .....................115
LED headlights ........................ 115
Front fog lights ......................... 115Rear fog light........................... 115
Rain sensor ............................. 115
Cruise control .......................... 115
Adaptive cruise control ............115
Vehicle detected ahead ...........115
Side blind spot alert .................116
Active emergency braking .......116
Speed limiter ........................... 116
Door open ................................ 116
Displays ..................................... 116
Driver Information Centre ........116
Info Display .............................. 120
Head-up display ......................121
Vehicle messages ......................123
Warning chimes .......................123
Vehicle personalisation ..............124
Telematics services ...................128
Opel Connect .......................... 128

94Instruments and controlsControlsSteering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked.
Do not adjust steering wheel unless
vehicle is stationary and steering
wheel lock has been released.
Steering wheel controls
The menus and functions of the
Driver Information Centre can be
selected via the rotary knob on the left
steering wheel stalk.
Driver Information Centre 3 116.
Infotainment system can be operated
via the steering wheel controls.
Further information is available in the
Infotainment Manual.
Steering wheel paddles
On vehicles with automatic
transmission, gearshifting can be
operated via + or -.
Automatic transmission 3 165.
Manual mode 3 167.
