2019 TOYOTA TUNDRA Accessories, Audio & Navigation (in English)

SELECTING AN AUDIO
SOURCE
73
1. BASIC OPERATION
AUDIO SYSTEM
3
1Press the “AUDIO” button.
2Select “Source” on the audio screen
or press “AUDIO” button again.
3Select the desired source.
1Select “Reorder” .
2Select the desired audio source then
or to reorder.
3Select “OK”.
INFORMATION
●Dimmed screen buttons cannot be oper-
ated.
● When there are two pages, select or
to change the page.
REORDERING THE AUDIO
SOURCE

DISC SLOT
74
1. BASIC OPERATION
1Insert a disc into the disc slot.
After insertion, the disc is automatically
loaded.
1Press the button and remove the
disc.
USB/AUX PORT
1Open the cover and connect a device.
 Turn on the power, if applicable, of the
device if it is not turned on.
INSERTING A DISC
EJECTING A DISC
NOTICE
● Never try to disassemble or oil any part
of the CD player. Do not insert anything
other than a disc into the slot.
INFORMATION
● The player is intended for use with 4.7
in. (12 cm) discs only.
● When inserting a disc, gently insert the
disc with the label facing up.
INFORMATION
● The AUX port only supports audio input.

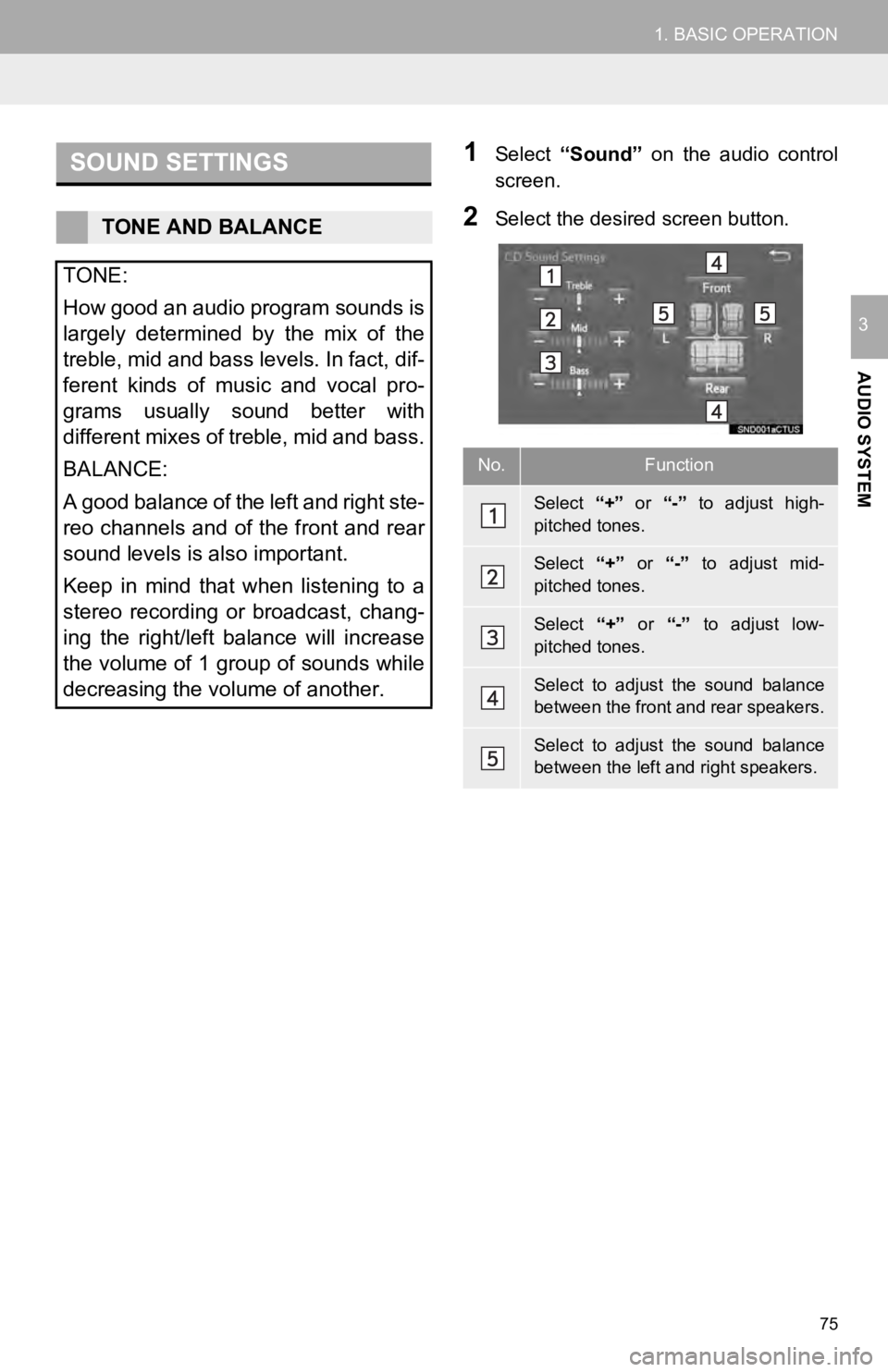

SOUND SETTINGS
75
1. BASIC OPERATION
AUDIO SYSTEM
3
1Select “Sound” on the audio control
screen.
2Select the desired screen button.TONE AND BALANCE
TONE:
How good an audio program sounds is
largely determined by the mix of the
treble, mid and bass levels. In fact, dif-
ferent kinds of music and vocal pro-
grams usually sound better with
different mixes of treble, mid and bass.
BALANCE:
A good balance of the left and right ste-
reo channels and of the front and rear
sound levels is also important.
Keep in mind that when listening to a
stereo recording or broadcast, chang-
ing the right/left balance will increase
the volume of 1 group of sounds while
decreasing the volume of another.
No.Function
Select “+” or “-” to adjust high-
pitched tones.
Select “+” or “-” to adjust mid-
pitched tones.
Select “+” or “-” to adjust low-
pitched tones.
Select to adjust the sound balance
between the front and rear speakers.
Select to adjust the sound balance
between the left and right speakers.

VOICE COMMAND SYSTEM
76
1. BASIC OPERATION
1Press this switch to operate the voice
command system.
 The voice command system and its list
of commands can be operated.
( P.124)

77
AUDIO SYSTEM
3

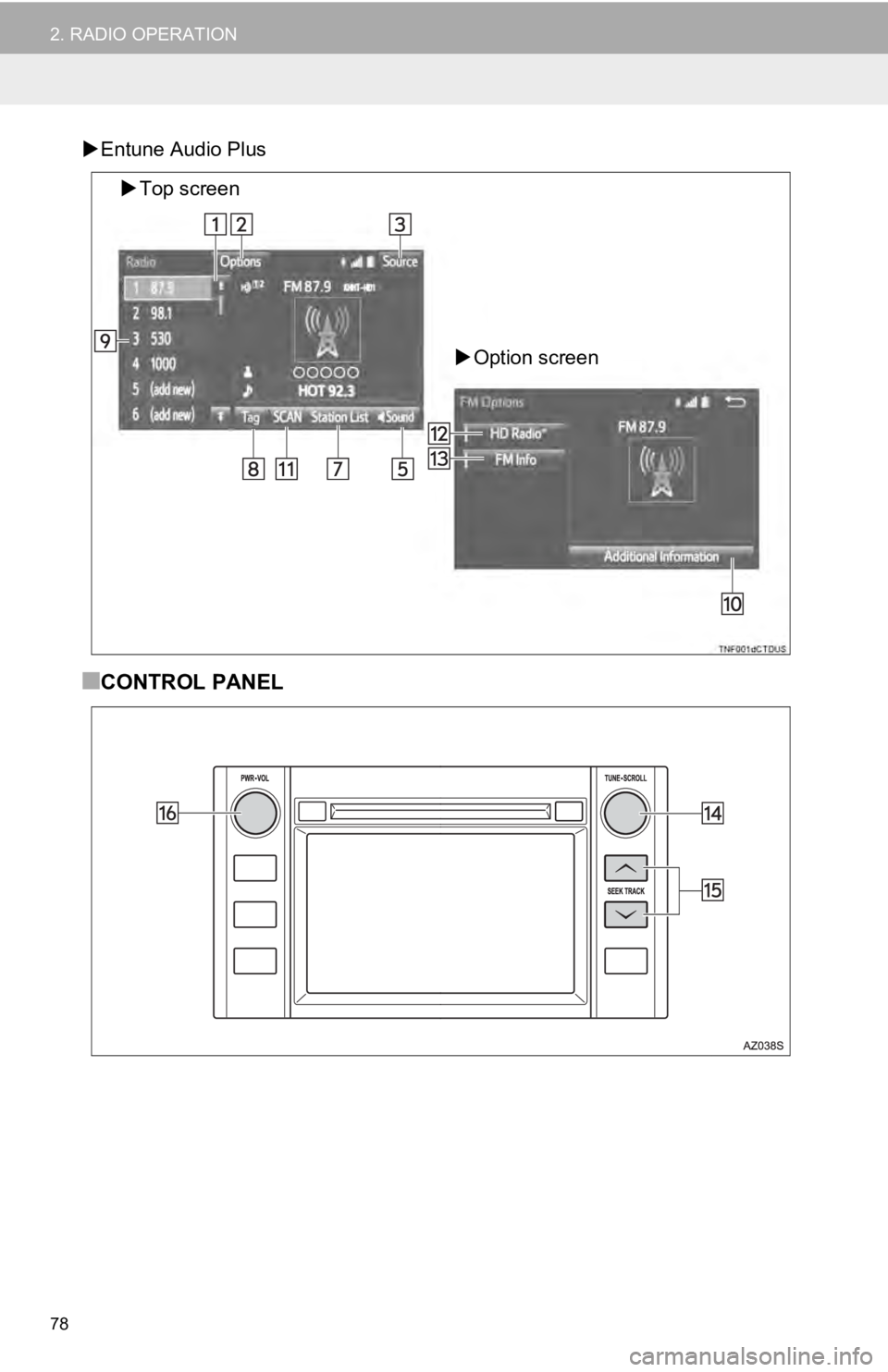

2. RADIO OPERATION
1. AM/FM RADIO
OVERVIEW■
CONTROL SCREEN
 Entune Premium Audio
Top screen
Option screen
Select “AM” or “FM” on the “Select Audio Source” screen. ( P.73)

78
2. RADIO OPERATION
Entune Audio Plus
Top screen
Option screen
■CONTROL PANEL

No.Function
Turn to step up/down frequencies.Turn to move up/down the list. Also, the knob can be used to en ter selections on the
list screens by pressing it.
 Press to select a preset station.Press and hold to seek for a station.
Turn to adjust volume.
 Press to turn the audio system on/of f.
 Press and hold to res tart the system.
●The radio automatically changes to stereo reception when a stereo broadcast is received.
● The radio automatically blends to an HD Radio signal in AM or F M where a
vailable.
79
2. RADIO OPERATION
AUDIO SYSTEM
3
Select to scroll the page of preset buttons.
Select to display the option screen.
Select to display the audio source selection screen.
Select to display the cache radio operation buttons. (P.81)
Select to display the sound setting screen.
Cache radio only: Select to play/pause.
Select to display a list of r eceivable stations/channels.
Select to store information o f the audio currently being broadc ast on the radio.
Select to tune to preset stations/channels.
Select to display the additional text information.
Select to scan for receivable stations/channels.
Select to turn HD Radio mode on/off.
When the “HD Radio” indicator is off, the station list shows only analog broadcasts.
Analog FM only: Select to dis play RBDS text messages.
INFORMATION

PRESETTING A STATION
80
2. RADIO OPERATION
1Tune in the desired station.
2Select “(add new)” .
To change the preset station to a different
one, select and hold the preset station.
3Select “Yes” on the confirmation
screen.
4Select “OK” after setting the new pre -
set station.
SELECTING A STATION
FROM THE LIST
1Select “Station List” .
2FM radio only: Select the desired pro -
gram genre.
3Select the desired station and select
“OK” .
Radio mode has a mix preset function,
which can store up to 36 stations (6
stations per page x 6 pages) from any
of the AM, FM or SAT bands.
INFORMATION
● The number of preset radio stations dis-
played on the screen can be changed.
( P. 1 1 3 )
A station list can be displayed.
