Supra Owner's Manual5-1. MOBILITY
1Unlocking sealant container
2Sealant container holder
3Tyre inflation pressure indicator
4Reduce tyre inflation pressure
button
5On/Off button
6Compressor
7Plug/cable for socket
8Connecting hose
• Park the vehicle on a firm sur-
face and as far away from mov-
ing traffic as possible.
• Switch on the hazard warning
lights.
• Apply the parking brake to pre-
vent the vehicle rolling away.
• Engage the steering wheel lock
with the wheels in the
straight-ahead position.
• Have all vehicle occupants get
out of the vehicle and guide them
out of the danger area, for exam-
ple behind the crash barrier.
• Set up the warning triangle an
appropriate distance away.1Shake the sealant container. Compressor
Safety measures
Filling with sealing com-
pound
Safety notes
WARNING
A blocked exhaust pipe or inadequate
ventilation can allow harmful exhaust
fumes to enter the vehicle. The
exhaust fumes contain pollutants
which are colourless and odourless.
In enclosed spaces, the exhaust
fumes can also build up outside the
vehicle. There is a danger of fatal
injury. Keep the exhaust pipe clear
and ensure sufficient ventilation.
NOTICE
The compressor can overheat if oper-
ated for too long. There is a danger of
damage to property. Do not let the
compressor run for longer than 10
minutes.
Filling

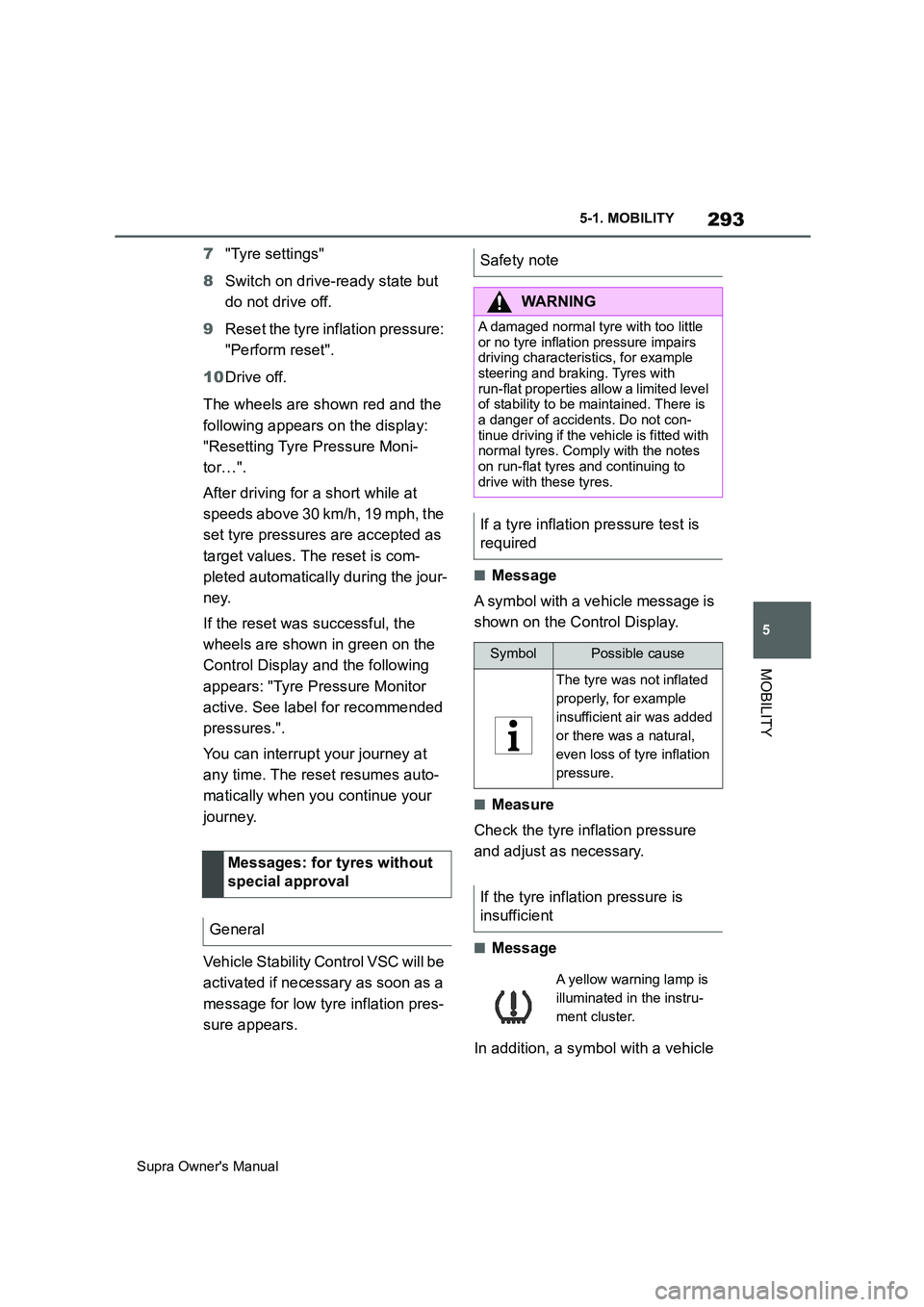

293
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
7"Tyre settings"
8Switch on drive-ready state but
do not drive off.
9Reset the tyre inflation pressure:
"Perform reset".
10Drive off.
The wheels are shown red and the
following appears on the display:
"Resetting Tyre Pressure Moni-
tor…".
After driving for a short while at
speeds above 30 km/h, 19 mph, the
set tyre pressures are accepted as
target values. The reset is com-
pleted automatically during the jour-
ney.
If the reset was successful, the
wheels are shown in green on the
Control Display and the following
appears: "Tyre Pressure Monitor
active. See label for recommended
pressures.".
You can interrupt your journey at
any time. The reset resumes auto-
matically when you continue your
journey.
Vehicle Stability Control VSC will be
activated if necessary as soon as a
message for low tyre inflation pres-
sure appears.
■Message
A symbol with a vehicle message is
shown on the Control Display.
■Measure
Check the tyre inflation pressure
and adjust as necessary.
■Message
In addition, a symbol with a vehicle Messages: for tyres without
special approval
General
Safety note
WARNING
A damaged normal tyre with too little
or no tyre inflation pressure impairs
driving characteristics, for example
steering and braking. Tyres with
run-flat properties allow a limited level
of stability to be maintained. There is
a danger of accidents. Do not con-
tinue driving if the vehicle is fitted with
normal tyres. Comply with the notes
on run-flat tyres and continuing to
drive with these tyres.
If a tyre inflation pressure test is
required
SymbolPossible cause
The tyre was not inflated
properly, for example
insufficient air was added
or there was a natural,
even loss of tyre inflation
pressure.
If the tyre inflation pressure is
insufficient
A yellow warning lamp is
illuminated in the instru-
ment cluster.

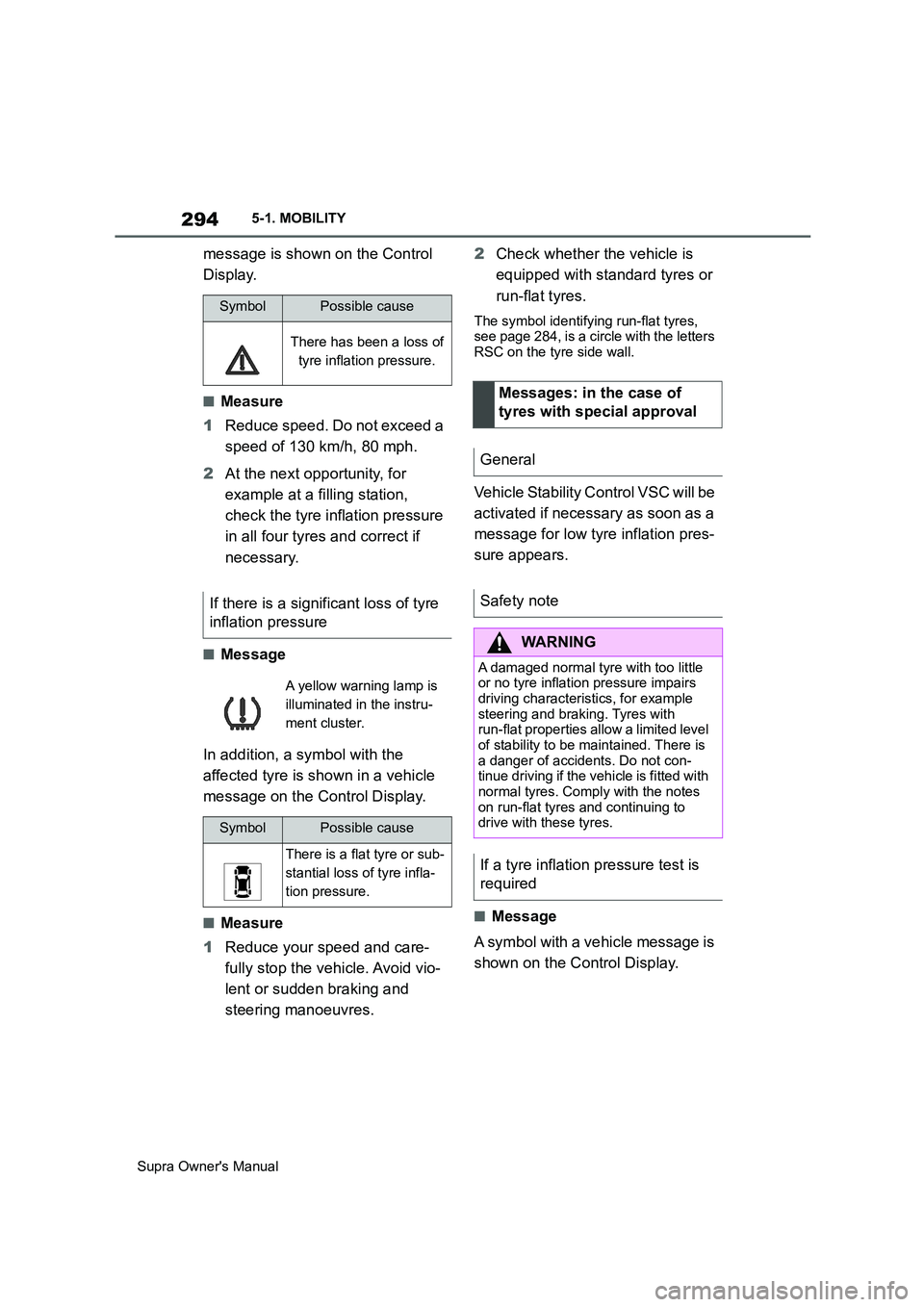

294
Supra Owner's Manual5-1. MOBILITY
message is shown on the Control
Display.
■Measure
1Reduce speed. Do not exceed a
speed of 130 km/h, 80 mph.
2At the next opportunity, for
example at a filling station,
check the tyre inflation pressure
in all four tyres and correct if
necessary.
■Message
In addition, a symbol with the
affected tyre is shown in a vehicle
message on the Control Display.
■Measure
1Reduce your speed and care-
fully stop the vehicle. Avoid vio-
lent or sudden braking and
steering manoeuvres.2Check whether the vehicle is
equipped with standard tyres or
run-flat tyres.
The symbol identifying run-flat tyres,
see page 284, is a circle with the letters
RSC on the tyre side wall.
Vehicle Stability Control VSC will be
activated if necessary as soon as a
message for low tyre inflation pres-
sure appears.
■Message
A symbol with a vehicle message is
shown on the Control Display.
SymbolPossible cause
There has been a loss of
tyre inflation pressure.
If there is a significant loss of tyre
inflation pressure
A yellow warning lamp is
illuminated in the instru-
ment cluster.
SymbolPossible cause
There is a flat tyre or sub-
stantial loss of tyre infla-
tion pressure.
Messages: in the case of
tyres with special approval
General
Safety note
WARNING
A damaged normal tyre with too little
or no tyre inflation pressure impairs
driving characteristics, for example
steering and braking. Tyres with
run-flat properties allow a limited level
of stability to be maintained. There is
a danger of accidents. Do not con-
tinue driving if the vehicle is fitted with
normal tyres. Comply with the notes
on run-flat tyres and continuing to
drive with these tyres.
If a tyre inflation pressure test is
required

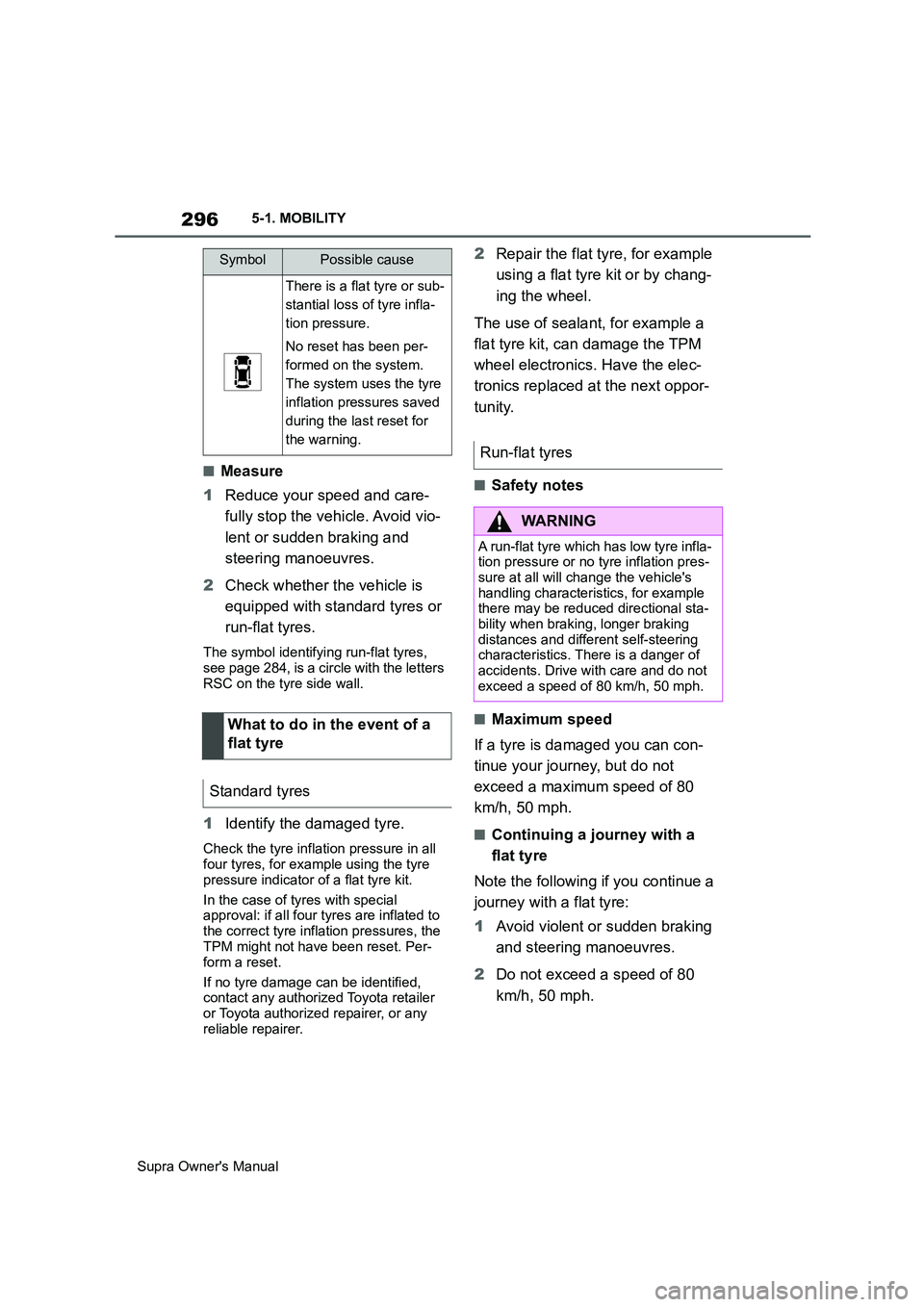

296
Supra Owner's Manual5-1. MOBILITY
■Measure
1Reduce your speed and care-
fully stop the vehicle. Avoid vio-
lent or sudden braking and
steering manoeuvres.
2Check whether the vehicle is
equipped with standard tyres or
run-flat tyres.
The symbol identifying run-flat tyres,
see page 284, is a circle with the letters
RSC on the tyre side wall.
1Identify the damaged tyre.
Check the tyre inflation pressure in all
four tyres, for example using the tyre
pressure indicator of a flat tyre kit.
In the case of tyres with special
approval: if all four tyres are inflated to
the correct tyre inflation pressures, the
TPM might not have been reset. Per-
form a reset.
If no tyre damage can be identified,
contact any authorized Toyota retailer
or Toyota authorized repairer, or any
reliable repairer.
2Repair the flat tyre, for example
using a flat tyre kit or by chang-
ing the wheel.
The use of sealant, for example a
flat tyre kit, can damage the TPM
wheel electronics. Have the elec-
tronics replaced at the next oppor-
tunity.
■Safety notes
■Maximum speed
If a tyre is damaged you can con-
tinue your journey, but do not
exceed a maximum speed of 80
km/h, 50 mph.
■Continuing a journey with a
flat tyre
Note the following if you continue a
journey with a flat tyre:
1Avoid violent or sudden braking
and steering manoeuvres.
2Do not exceed a speed of 80
km/h, 50 mph.
SymbolPossible cause
There is a flat tyre or sub-
stantial loss of tyre infla-
tion pressure.
No reset has been per-
formed on the system.
The system uses the tyre
inflation pressures saved
during the last reset for
the warning.
What to do in the event of a
flat tyre
Standard tyres
Run-flat tyres
WARNING
A run-flat tyre which has low tyre infla-
tion pressure or no tyre inflation pres-
sure at all will change the vehicle's
handling characteristics, for example
there may be reduced directional sta-
bility when braking, longer braking
distances and different self-steering
characteristics. There is a danger of
accidents. Drive with care and do not
exceed a speed of 80 km/h, 50 mph.

297
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
3As soon as there is an opportu-
nity, check the tyre inflation
pressure in all four tyres.
In the case of tyres with special
approval: if all four tyres are inflated to
the correct tyre inflation pressures, the
Tyre Pressure Monitor might not have
been reset. Perform a reset.
■Possible driving distance with
a deflated tyre
The possible driving distance varies
depending on the load and stresses
the vehicle is subjected to, for
example speed, road properties,
outside temperature. The driving
distance can be shorter or, if the
driving style is more careful, longer.
If the vehicle is moderately loaded
and used under favourable condi-
tions, it is possible to travel up to 80
km, 50 miles.
■Driving properties with dam-
aged tyres
On a journey with damaged tyres,
handling characteristics change
and may result in the following situ-
ations, for example:
• The vehicle losing traction more
quickly.
• Longer braking distances.
• Different self-steering character-
istics.
Adapt your driving style. Avoid
abrupt steering or driving over
obstacles, for example kerbs or
potholes.
■Final tyre failure
Vibration or loud noises during the journey may be an indication that
the tyre has finally failed.
Reduce your speed and stop the
vehicle. Parts of the tyre could
detach, which might lead to an acci-
dent.
Do not continue driving, but contact
any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer.
The tyre inflation pressure depends
on the temperature of the tyre.
The tyre inflation pressure
increases as the tyre temperature
increases, for example during driv-
ing or due to exposure to sunlight.
Tyre inflation pressure decreases if
the tyre temperature drops.
Through this behaviour, a warning
may be triggered if there are major
temperature drops, due to the given
warning limits.
After a temperature-related warn-
ing, the specified pressures are dis-
played again on the Control Display
after a short distance.
No warning can be given by the
system of extreme, sudden tyre fail-
ure caused by external factors.System limits
Temperature
Sudden loss of tyre inflation pres-
sure

303
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
two wheel studs crosswise until
finger-tight.
If non-original light alloy wheels not
from the vehicle manufacturer are fit-
ted, the wheel studs belonging to the
wheels may also have to be used.
4Tighten the remaining wheels
tuds until finger-tight and then
tighten all the wheel studs
crosswise.
5Turn the jack crank anticlock-
wise to retract the jack and
lower the vehicle.
6Remove the jack and stow it
securely.
1Tighten the wheel studs cross-
wise. The tightening torque
is140 Nm, approximately 101 lb
ft.
2Stow the faulty wheel in the
boot, if necessary.
Due to its size, the faulty wheel cannot
be accommodated under the boot floor.
3Check tyre inflation pressure at
the next opportunity and correct
as necessary.
4Reset the Tyre Pressure Monitor
(TPM).
5Check the tight fit of the wheel
studs using a calibrated torque
wrench.
6Drive to the nearest any author-
ized Toyota retailer or Toyota
authorized repairer, or any relia-ble repairer to have the dam-
aged tyre replaced.
In case of a flat tyre, the emergency
wheel can be used as a replace-
ment for the defective tyre. The
emergency wheel is intended for
short-term use until the defective
wheel has been replaced.
Only fit one emergency wheel at
most.
Additionally, regularly check the
tyre inflation pressure of the emer-
gency wheel in the boot and correct
the pressure if necessary. After changing the wheel
Emergency wheel
Principle
General
Safety note
WARNING
The emergency wheel has special
dimensions. When driving with an
emergency wheel, the driving proper-
ties may change, for example
reduced directional stability when
braking, longer braking distance and
modified self-steering behaviour in
the limit range. There is a danger of
accidents. Drive with care and do not
exceed a speed of 80 km/h, 50 mph.

321
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
NOTE:
Replace both the engine oil and oil filter when the engine oil warning light
appears, even if 12 months have not passed or when driven less than
12000 km (7200 miles) since the last oil change.
Maintenance operations:
I = Inspect, correct or replace as necessary
R = Replace, change or lubricate
20Steering compo-
nentsII48
21Road safety and per-
forming a test driveII48
22Micro filterRRRR24
SERVICE
INTERVAL:ODOMETER READING
MONTHS(Odometer read-
ing or months,
whichever
comes first.)x1000
km1224364860728496
x1000
miles7.214.421.628.83643.250.457.6
Maintenance schedule (for Korea, Mexico and South Africa)
SERVICE INTER-
VA L :ODOMETER READING
MONTHS(Odometer read-
ing or months,
whichever comes
first.)x1000
km20406080100120
x1000
miles122436486072
BASIC ENGINE COMPONENTS
1
Engine oil (Include
engine oil filter) < note.>>
RRRRRR18
IGNITION SYSTEM
2Spark plugsRR54
FUEL AND EMISSION CONTROL SYSTEMS
3Air filterRR54

323
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
NOTE:
Replace both the engine oil and oil filter when the engine oil warning light
appears, even if 18 months have not passed or when driven less than
20000 km (12000 miles) since the last oil change.
Maintenance operations:
I = Inspect, correct or replace as necessary
R = Replace, change or lubricate
19
Vehicle underbody
and all other visible
components
II36
20Steering componentsII36
21Road safety and per-
forming a test driveII36
22Micro filterRRRRRR18
SERVICE INTER-
VA L :ODOMETER READING
MONTHS(Odometer read-
ing or months,
whichever comes
first.)x1000
km20406080100120
x1000
miles122436486072
Maintenance schedule (for Russia and Turkey)
SERVICE INTER-
VA L :ODOMETER READING
MONTHS(Odometer read-
ing or months,
whichever comes
first.)x1000
km153045607590
x1000
miles91827364554
BASIC ENGINE COMPONENTS
1
Engine oil (Include
engine oil filter) < note.>>
RRRRRR18
IGNITION SYSTEM
2Spark plugsRR54
