2019 TOYOTA SUPRA ESP

315
5

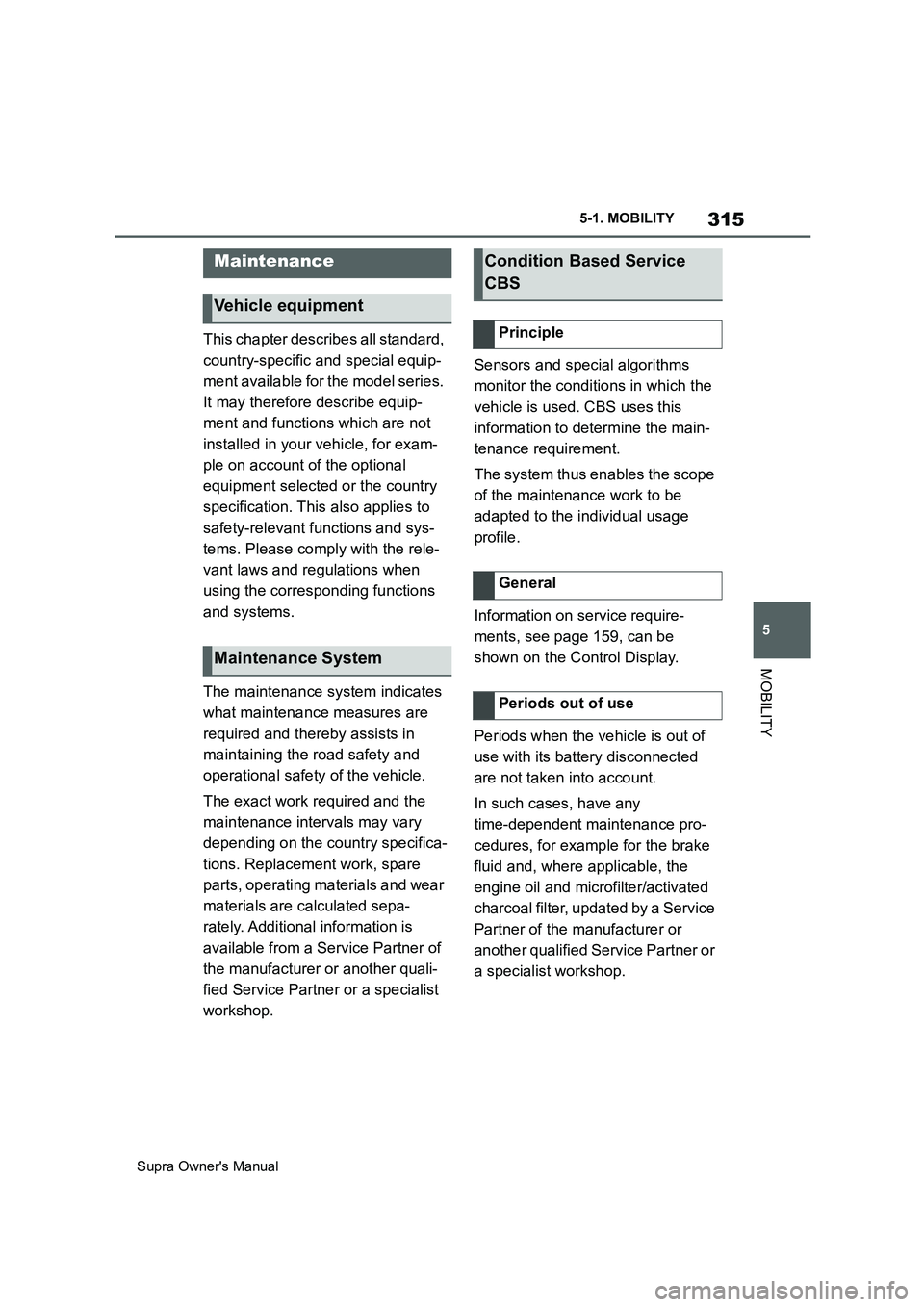

Supra Owner's Manual5-1. MOBILITY
MOBILITY
This chapter describes all standard,
country-specific and special equip-
ment available for the model series.
It may therefore describe equip-
ment and functions which are not
installed in your vehicle, for exam-
ple on account of the optional
equipment selected or the country
specification. This also applies to
safety-relevant functions and sys-
tems. Please comply with the rele-
vant laws and regulations when
using the corresponding functions
and systems.
The maintenance system indicates
what maintenance measures are
required and thereby assists in
maintaining the road safety and
operational safety of the vehicle.
The exact work required and the
maintenance intervals may vary
depending on the country specifica-
tions. Replacement work, spare
parts, operating materials and wear
materials are calculated sepa-
rately. Additional information is
available from a Service Partner of
the manufacturer or another quali-
fied Service Partner or a specialist
workshop.Sensors and special algorithms
monitor the conditions in which the
vehicle is used. CBS uses this
information to determine the main-
tenance requirement.
The system thus enables the scope
of the maintenance work to be
adapted to the individual usage
profile.
Information on service require-
ments, see page 159, can be
shown on the Control Display.
Periods when the vehicle is out of
use with its battery disconnected
are not taken into account.
In such cases, have any
time-dependent maintenance pro-
cedures, for example for the brake
fluid and, where applicable, the
engine oil and microfilter/activated
charcoal filter, updated by a Service
Partner of the manufacturer or
another qualified Service Partner or
a specialist workshop.
Maintenance
Vehicle equipment
Maintenance System
Condition Based Service
CBS
Principle
General
Periods out of use

326

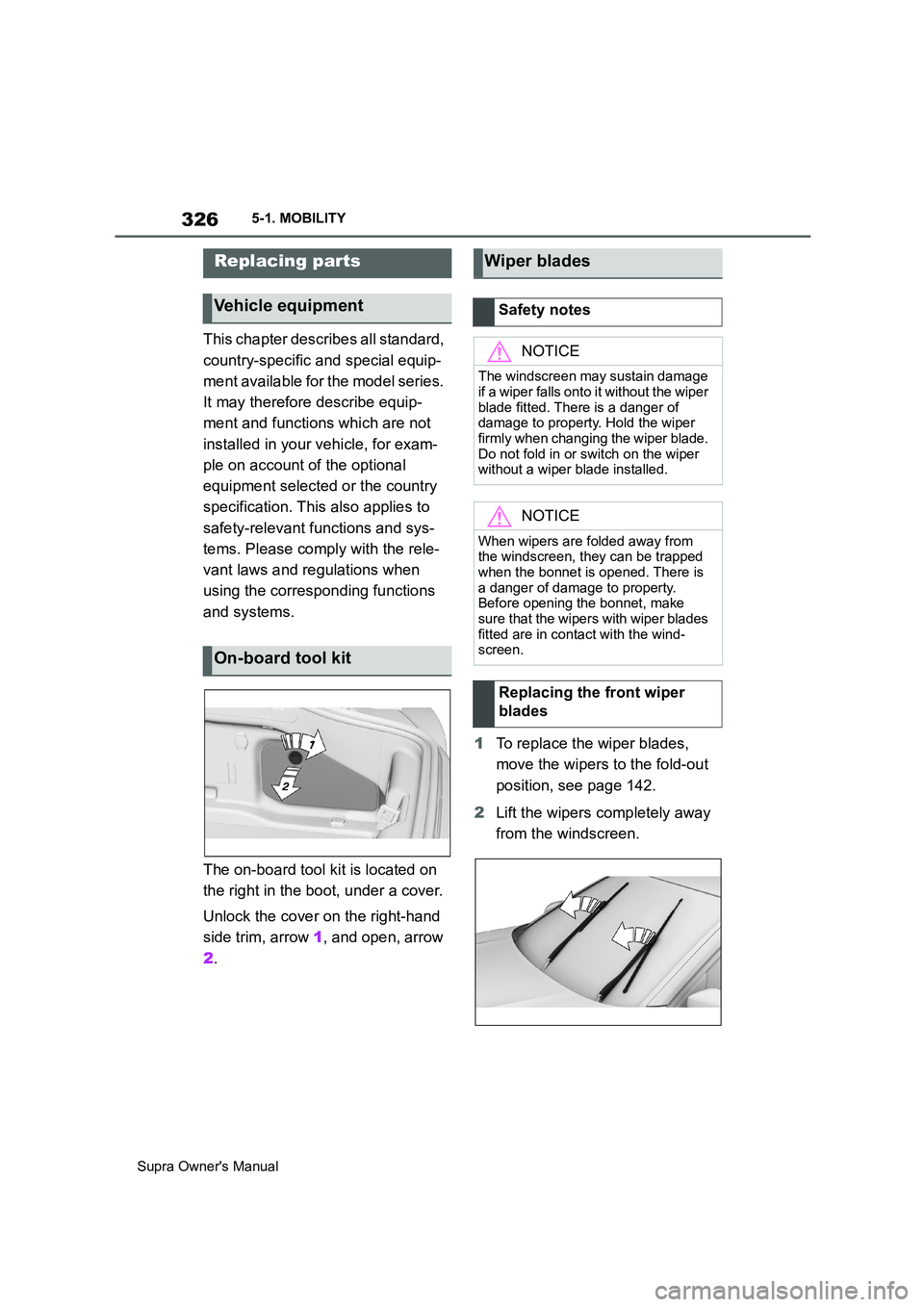

Supra Owner's Manual5-1. MOBILITY
This chapter describes all standard,
country-specific and special equip-
ment available for the model series.
It may therefore describe equip-
ment and functions which are not
installed in your vehicle, for exam-
ple on account of the optional
equipment selected or the country
specification. This also applies to
safety-relevant functions and sys-
tems. Please comply with the rele-
vant laws and regulations when
using the corresponding functions
and systems.
The on-board tool kit is located on
the right in the boot, under a cover.
Unlock the cover on the right-hand
side trim, arrow 1, and open, arrow
2.1To replace the wiper blades,
move the wipers to the fold-out
position, see page 142.
2Lift the wipers completely away
from the windscreen.
Replacing parts
Vehicle equipment
On-board tool kit
Wiper blades
Safety notes
NOTICE
The windscreen may sustain damage
if a wiper falls onto it without the wiper
blade fitted. There is a danger of
damage to property. Hold the wiper
firmly when changing the wiper blade.
Do not fold in or switch on the wiper
without a wiper blade installed.
NOTICE
When wipers are folded away from
the windscreen, they can be trapped
when the bonnet is opened. There is
a danger of damage to property.
Before opening the bonnet, make
sure that the wipers with wiper blades
fitted are in contact with the wind-
screen.
Replacing the front wiper
blades

327
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
3Press the button, arrow 1, and
pull out wiper blade, arrow 2.
4Insert the new wiper blade and
press into the holder until it
engages.
5Fold in the wipers.
Lights and bulbs are an important
aspect of driving safety.
All headlights and other lights use
LED or laser technology.
Some equipment versions have
light-emitting diodes behind a cover
as a light source. These light-emit-
ting diodes are similar to conven-
tional lasers and are classified by
legislation as Class 1 light-emitting
diodes.
In the case of a defect, the manu-
facturer of the vehicle recom-
mends having respective work
carried out by any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.During cool or humid weather, the
headlight glass can mist over on
the inside. When driving with the
lights switched on, the condensa-
tion disappears after a short time.
There is no need to replace the
headlight glass.
If moisture increasingly forms, for
example if there are water droplets
in the lamp despite the headlights
being switched on, have the head-
lights checked.
The battery is maintenance-free.
Bulbs and lights
General
Safety notes
WARNING
Concentrated laser light can cause
irritation or lasting damage to the ret-
ina of the eye. There is a danger of
injury. The manufacturer of your vehi-
cle recommends having work on the
lighting system, including bulb
replacement, performed by any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
WARNING
Intense brightness can irritate or harm
the retina of the eye. There is a dan-
ger of injury. Do not look directly into
the headlights or other light sources.
Do not remove covers from LEDs.
Headlight glass
Vehicle battery
General

329
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY

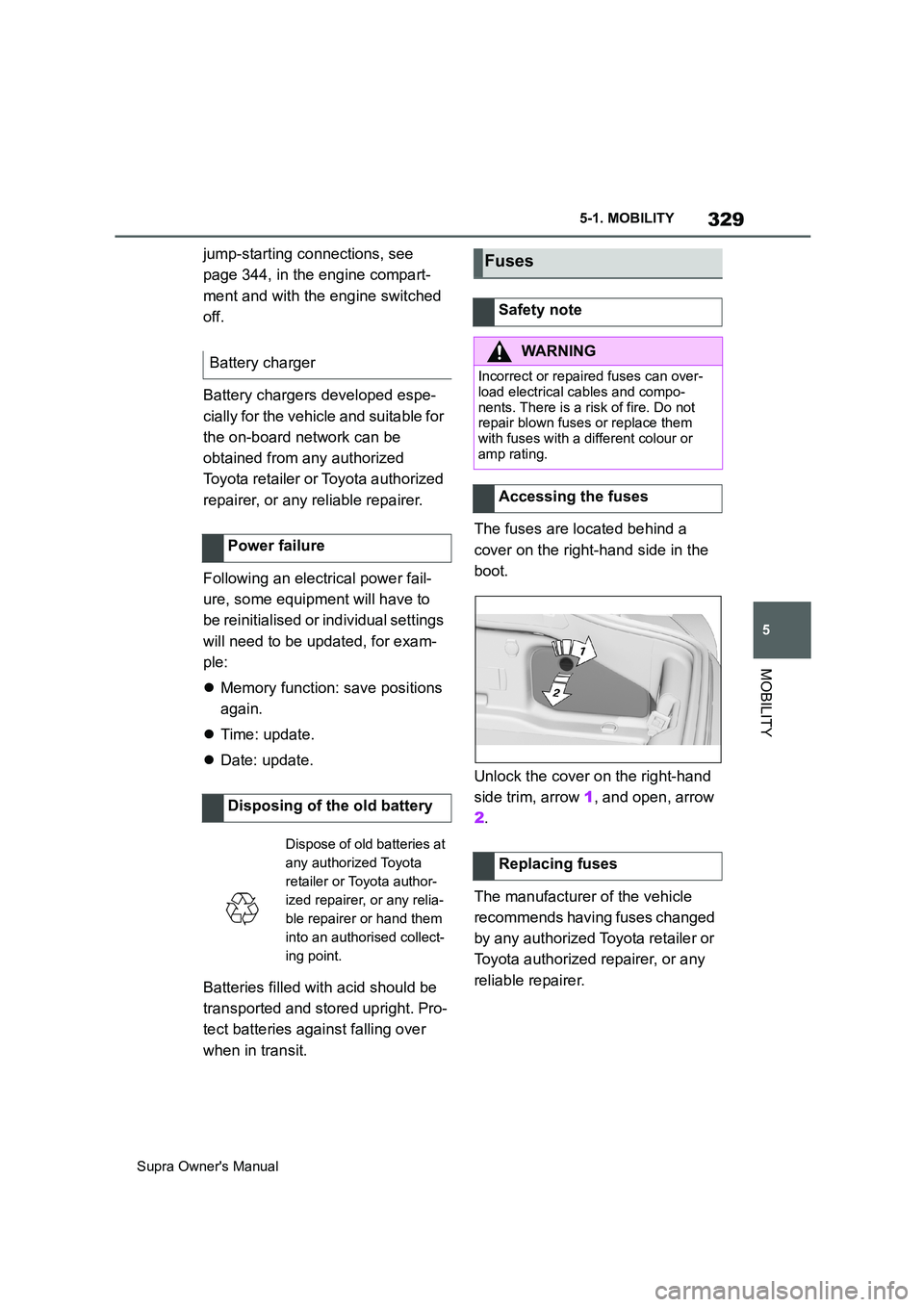

jump-starting connections, see
page 344, in the engine compart-
ment and with the engine switched
off.
Battery chargers developed espe-
cially for the vehicle and suitable for
the on-board network can be
obtained from any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Following an electrical power fail-
ure, some equipment will have to
be reinitialised or individual settings
will need to be updated, for exam-
ple:
Memory function: save positions
again.
Time: update.
Date: update.
Batteries filled with acid should be
transported and stored upright. Pro-
tect batteries against falling over
when in transit.The fuses are located behind a
cover on the right-hand side in the
boot.
Unlock the cover on the right-hand
side trim, arrow 1, and open, arrow
2.
The manufacturer of the vehicle
recommends having fuses changed
by any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer. Battery charger
Power failure
Disposing of the old battery
Dispose of old batteries at
any authorized Toyota
retailer or Toyota author-
ized repairer, or any relia-
ble repairer or hand them
into an authorised collect-
ing point.
Fuses
Safety note
WARNING
Incorrect or repaired fuses can over-
load electrical cables and compo-
nents. There is a risk of fire. Do not
repair blown fuses or replace them
with fuses with a different colour or
amp rating.
Accessing the fuses
Replacing fuses

333
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
This chapter describes all standard,
country-specific and special equip-
ment available for the model series.
It may therefore describe equip-
ment and functions which are not
installed in your vehicle, for exam-
ple on account of the optional
equipment selected or the country
specification. This also applies to
safety-relevant functions and sys-
tems. Please comply with the rele-
vant laws and regulations when
using the corresponding functions
and systems.
Controller (Toyota Supra
Command)
Electric fan (air cooler), Con-
trolled differential lock
12 V socket, Cigarette
lighter
Interior lights in the boot
Door lock, Exterior door
handle electronics, Telem-
atic Communication Box
Electronic gear box control
Telematic Communication
Box, Exterior door handle
electronics
Electric fan, Rear Power dis-
tributor
Engine control
Switching center column,
Light switch element, Body
Domain Controller
Control panels centre con-
sole, Interior light in the
glove box, Interior light, Inte-
rior light in the sunvisor,
Exterior mirror, Selector
lever
Telematic Communication
Box, Exterior door handle
electronics passenger side
Switcher block driver's door,
Exterior mirror
SymbolMeaningBreakdown Assist
Vehicle equipment
If a malfunction occurs
while driving
WARNING
If a malfunction occurs while driving,
immediately stop the vehicle in a safe
place.

335
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY

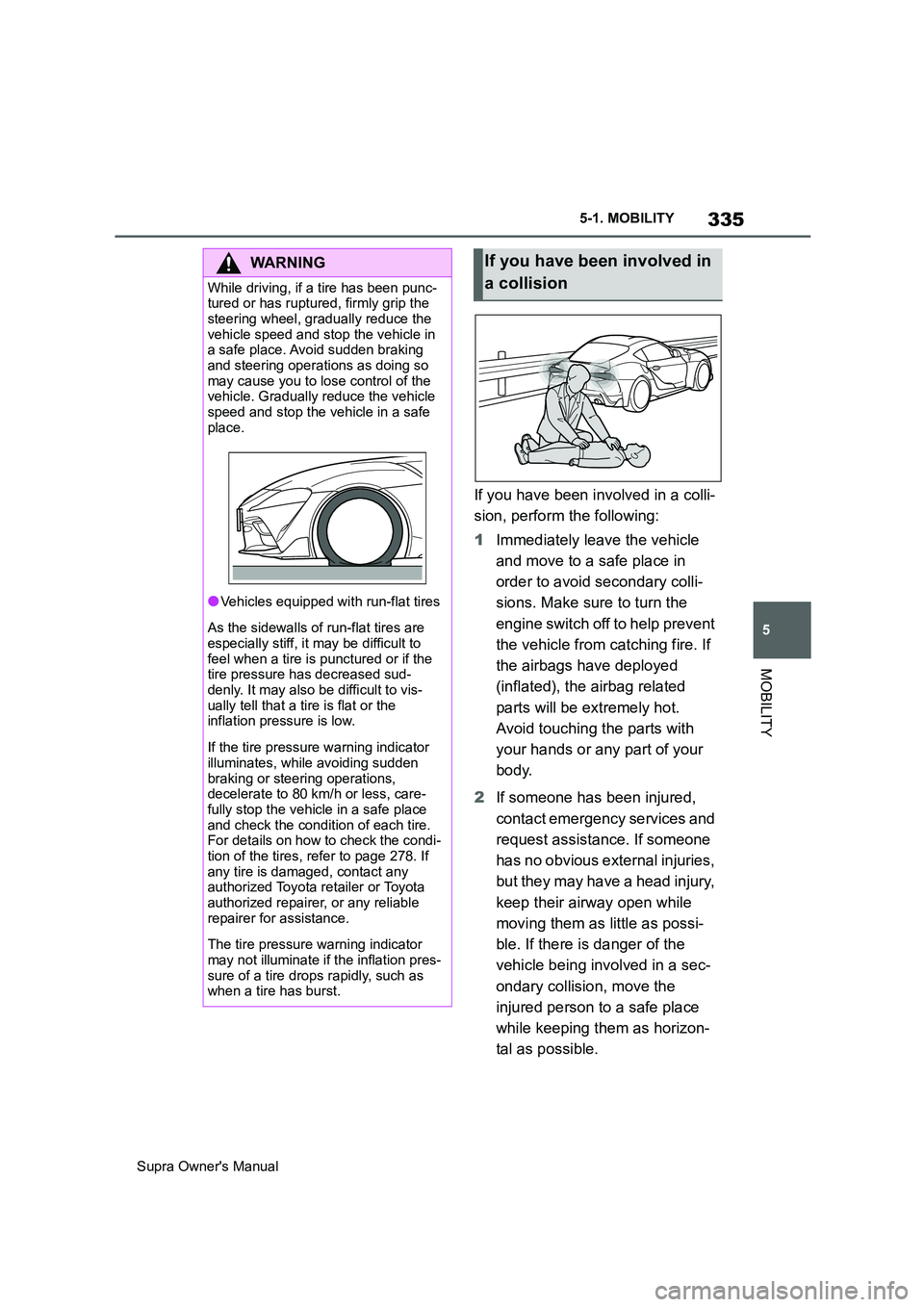

If you have been involved in a colli-
sion, perform the following:
1Immediately leave the vehicle
and move to a safe place in
order to avoid secondary colli-
sions. Make sure to turn the
engine switch off to help prevent
the vehicle from catching fire. If
the airbags have deployed
(inflated), the airbag related
parts will be extremely hot.
Avoid touching the parts with
your hands or any part of your
body.
2If someone has been injured,
contact emergency services and
request assistance. If someone
has no obvious external injuries,
but they may have a head injury,
keep their airway open while
moving them as little as possi-
ble. If there is danger of the
vehicle being involved in a sec-
ondary collision, move the
injured person to a safe place
while keeping them as horizon-
tal as possible.
WARNING
While driving, if a tire has been punc-
tured or has ruptured, firmly grip the
steering wheel, gradually reduce the
vehicle speed and stop the vehicle in
a safe place. Avoid sudden braking
and steering operations as doing so
may cause you to lose control of the
vehicle. Gradually reduce the vehicle
speed and stop the vehicle in a safe
place.
●Vehicles equipped with run-flat tires
As the sidewalls of run-flat tires are
especially stiff, it may be difficult to
feel when a tire is punctured or if the
tire pressure has decreased sud-
denly. It may also be difficult to vis-
ually tell that a tire is flat or the
inflation pressure is low.
If the tire pressure warning indicator
illuminates, while avoiding sudden
braking or steering operations,
decelerate to 80 km/h or less, care-
fully stop the vehicle in a safe place
and check the condition of each tire.
For details on how to check the condi-
tion of the tires, refer to page 278. If
any tire is damaged, contact any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer for assistance.
The tire pressure warning indicator
may not illuminate if the inflation pres-
sure of a tire drops rapidly, such as
when a tire has burst.
If you have been involved in
a collision

337
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY

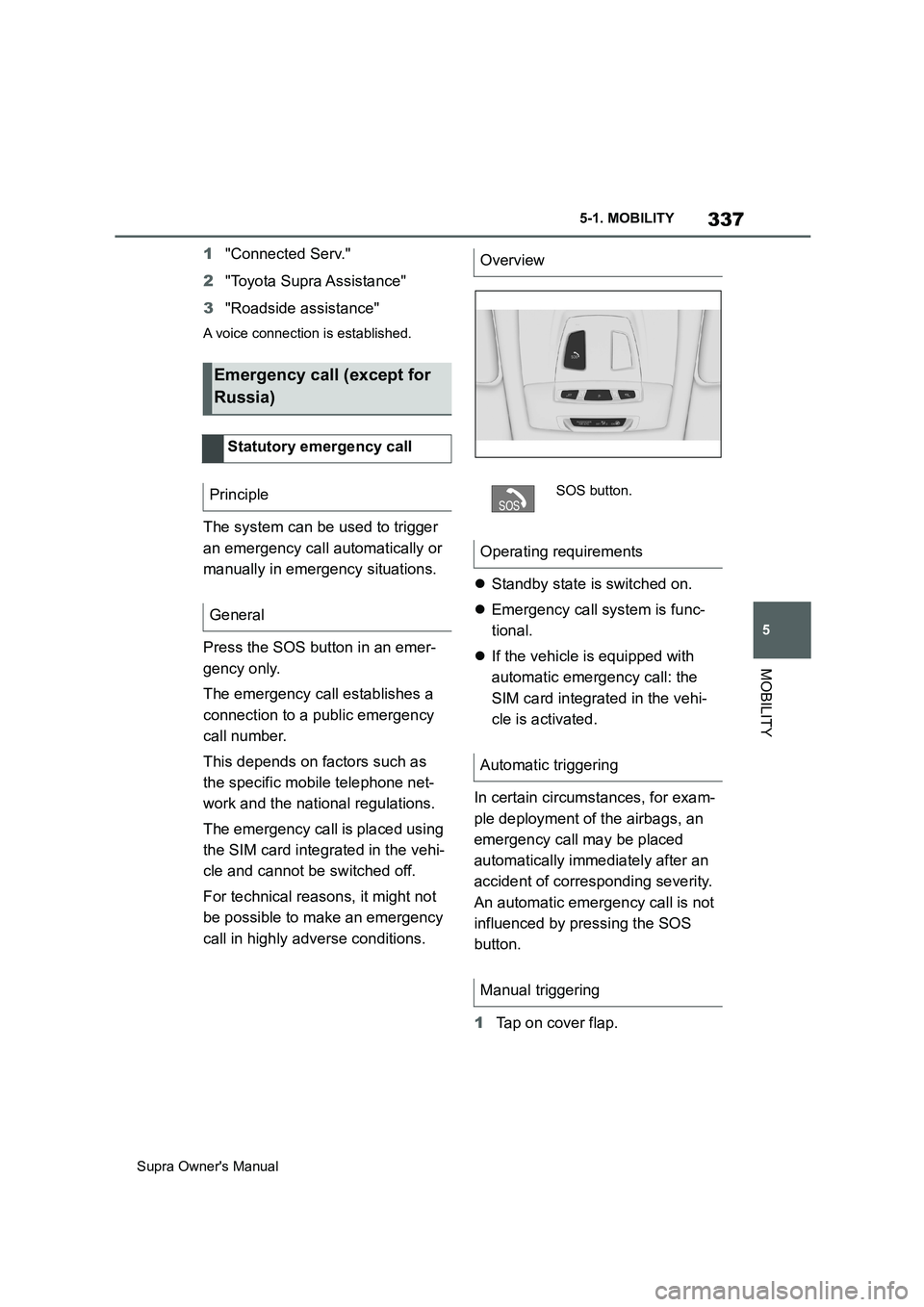

1"Connected Serv."
2"Toyota Supra Assistance"
3"Roadside assistance"
A voice connection is established.
The system can be used to trigger
an emergency call automatically or
manually in emergency situations.
Press the SOS button in an emer-
gency only.
The emergency call establishes a
connection to a public emergency
call number.
This depends on factors such as
the specific mobile telephone net-
work and the national regulations.
The emergency call is placed using
the SIM card integrated in the vehi-
cle and cannot be switched off.
For technical reasons, it might not
be possible to make an emergency
call in highly adverse conditions.Standby state is switched on.
Emergency call system is func-
tional.
If the vehicle is equipped with
automatic emergency call: the
SIM card integrated in the vehi-
cle is activated.
In certain circumstances, for exam-
ple deployment of the airbags, an
emergency call may be placed
automatically immediately after an
accident of corresponding severity.
An automatic emergency call is not
influenced by pressing the SOS
button.
1Tap on cover flap.
Emergency call (except for
Russia)
Statutory emergency call
Principle
General
Overview
SOS button.
Operating requirements
Automatic triggering
Manual triggering

339
5

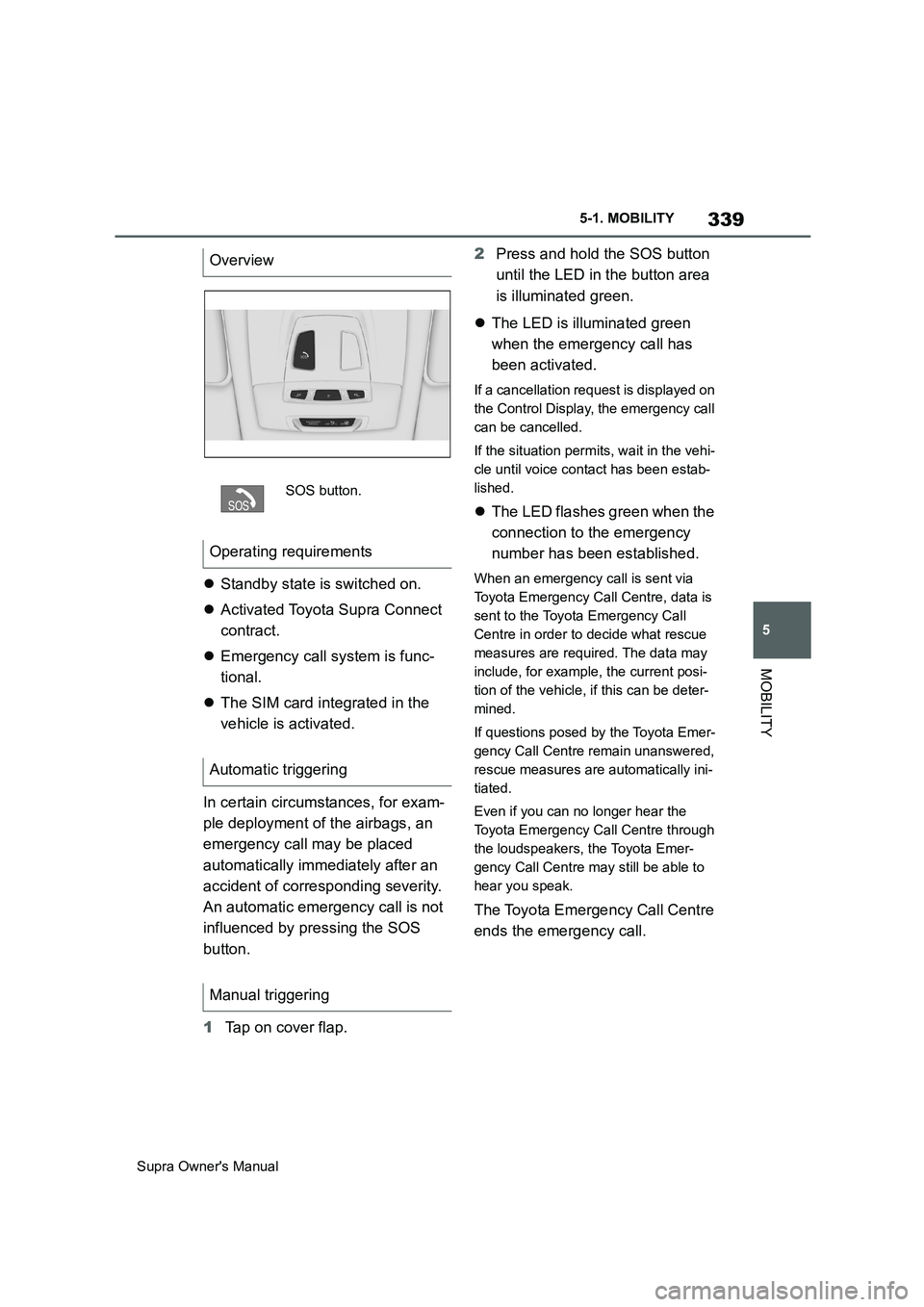

Supra Owner's Manual5-1. MOBILITY
MOBILITY
Standby state is switched on.
Activated Toyota Supra Connect
contract.
Emergency call system is func-
tional.
The SIM card integrated in the
vehicle is activated.
In certain circumstances, for exam-
ple deployment of the airbags, an
emergency call may be placed
automatically immediately after an
accident of corresponding severity.
An automatic emergency call is not
influenced by pressing the SOS
button.
1Tap on cover flap.2Press and hold the SOS button
until the LED in the button area
is illuminated green.
The LED is illuminated green
when the emergency call has
been activated.
If a cancellation request is displayed on
the Control Display, the emergency call
can be cancelled.
If the situation permits, wait in the vehi-
cle until voice contact has been estab-
lished.
The LED flashes green when the
connection to the emergency
number has been established.
When an emergency call is sent via
Toyota Emergency Call Centre, data is
sent to the Toyota Emergency Call
Centre in order to decide what rescue
measures are required. The data may
include, for example, the current posi-
tion of the vehicle, if this can be deter-
mined.
If questions posed by the Toyota Emer-
gency Call Centre remain unanswered,
rescue measures are automatically ini-
tiated.
Even if you can no longer hear the
Toyota Emergency Call Centre through
the loudspeakers, the Toyota Emer-
gency Call Centre may still be able to
hear you speak.
The Toyota Emergency Call Centre
ends the emergency call. Overview
SOS button.
Operating requirements
Automatic triggering
Manual triggering
