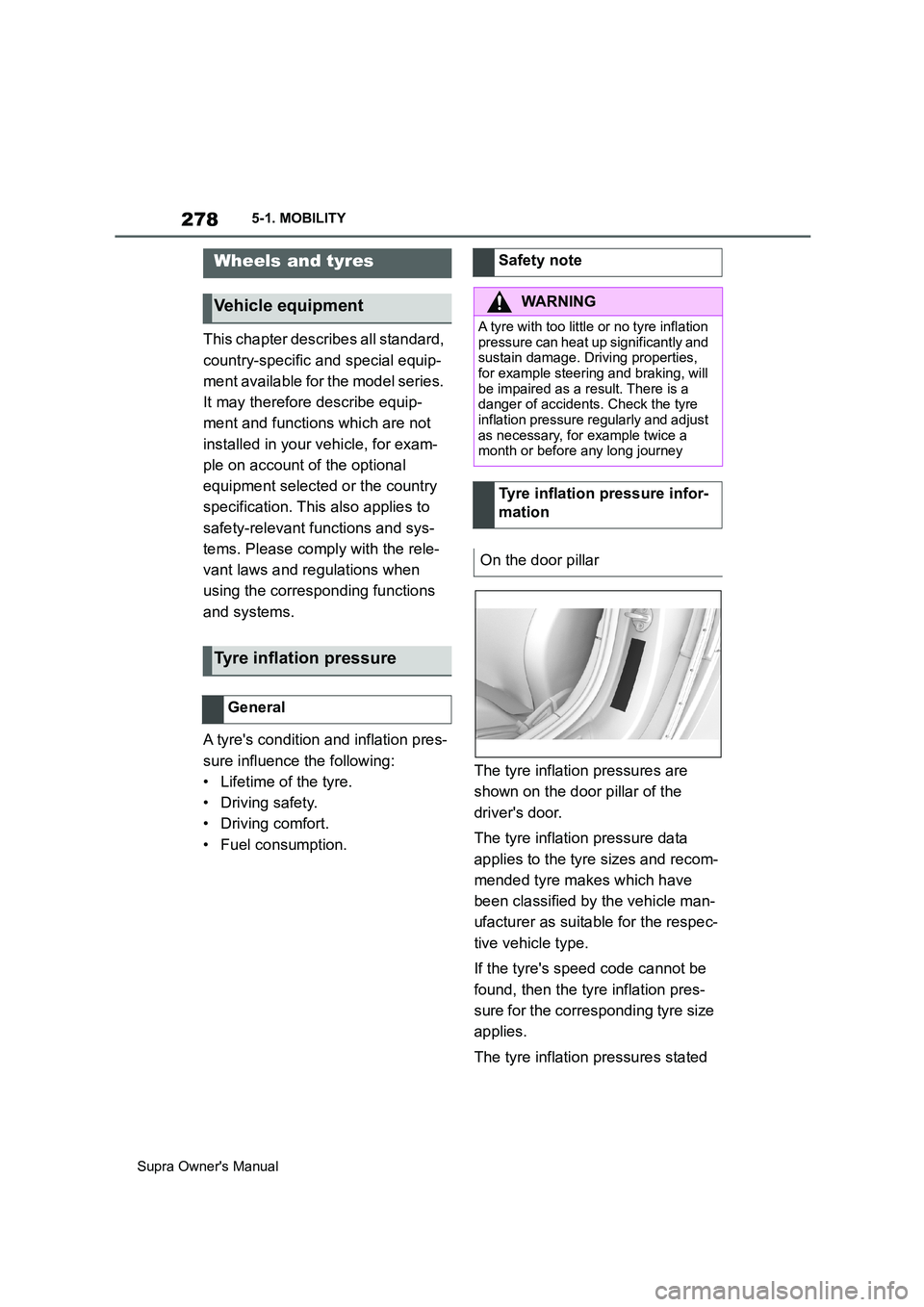

278
Supra Owner's Manual5-1. MOBILITY
This chapter describes all standard,
country-specific and special equip-
ment available for the model series.
It may therefore describe equip-
ment and functions which are not
installed in your vehicle, for exam-
ple on account of the optional
equipment selected or the country
specification. This also applies to
safety-relevant functions and sys-
tems. Please comply with the rele-
vant laws and regulations when
using the corresponding functions
and systems.
A tyre's condition and inflation pres-
sure influence the following:
• Lifetime of the tyre.
• Driving safety.
• Driving comfort.
• Fuel consumption.The tyre inflation pressures are
shown on the door pillar of the
driver's door.
The tyre inflation pressure data
applies to the tyre sizes and recom-
mended tyre makes which have
been classified by the vehicle man-
ufacturer as suitable for the respec-
tive vehicle type.
If the tyre's speed code cannot be
found, then the tyre inflation pres-
sure for the corresponding tyre size
applies.
The tyre inflation pressures stated
Wheels and tyres
Vehicle equipment
Tyre inflation pressure
General
Safety note
WARNING
A tyre with too little or no tyre inflation
pressure can heat up significantly and
sustain damage. Driving properties,
for example steering and braking, will
be impaired as a result. There is a
danger of accidents. Check the tyre
inflation pressure regularly and adjust
as necessary, for example twice a
month or before any long journey
Tyre inflation pressure infor-
mation
On the door pillar

279
5

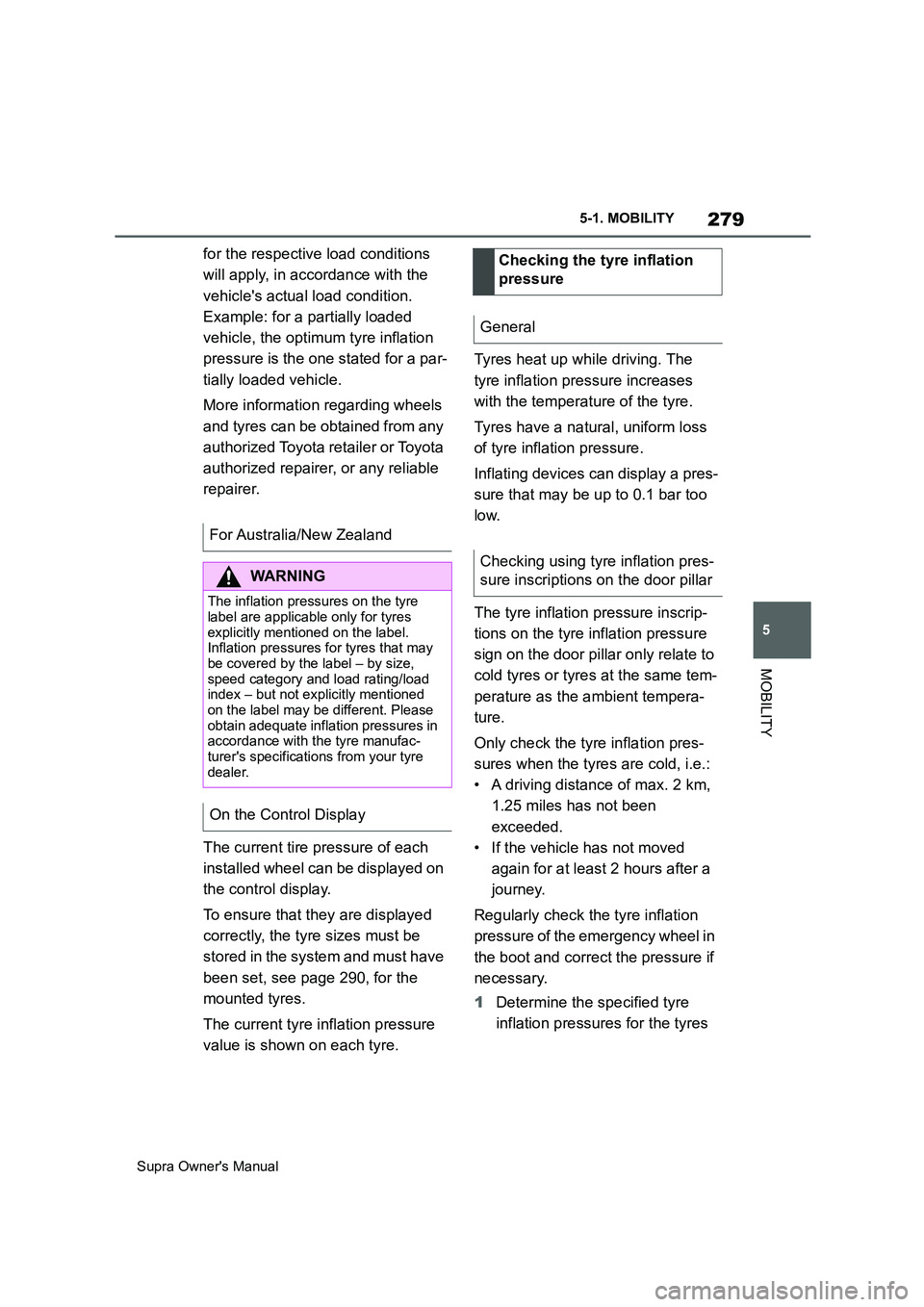

Supra Owner's Manual5-1. MOBILITY
MOBILITY
for the respective load conditions
will apply, in accordance with the
vehicle's actual load condition.
Example: for a partially loaded
vehicle, the optimum tyre inflation
pressure is the one stated for a par-
tially loaded vehicle.
More information regarding wheels
and tyres can be obtained from any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
The current tire pressure of each
installed wheel can be displayed on
the control display.
To ensure that they are displayed
correctly, the tyre sizes must be
stored in the system and must have
been set, see page 290, for the
mounted tyres.
The current tyre inflation pressure
value is shown on each tyre.Tyres heat up while driving. The
tyre inflation pressure increases
with the temperature of the tyre.
Tyres have a natural, uniform loss
of tyre inflation pressure.
Inflating devices can display a pres-
sure that may be up to 0.1 bar too
low.
The tyre inflation pressure inscrip-
tions on the tyre inflation pressure
sign on the door pillar only relate to
cold tyres or tyres at the same tem-
perature as the ambient tempera-
ture.
Only check the tyre inflation pres-
sures when the tyres are cold, i.e.:
• A driving distance of max. 2 km,
1.25 miles has not been
exceeded.
• If the vehicle has not moved
again for at least 2 hours after a
journey.
Regularly check the tyre inflation
pressure of the emergency wheel in
the boot and correct the pressure if
necessary.
1Determine the specified tyre
inflation pressures for the tyres For Australia/New Zealand
WARNING
The inflation pressures on the tyre
label are applicable only for tyres
explicitly mentioned on the label.
Inflation pressures for tyres that may
be covered by the label – by size,
speed category and load rating/load
index – but not explicitly mentioned
on the label may be different. Please
obtain adequate inflation pressures in
accordance with the tyre manufac-
turer's specifications from your tyre
dealer.
On the Control Display
Checking the tyre inflation
pressure
General
Checking using tyre inflation pres-
sure inscriptions on the door pillar

282

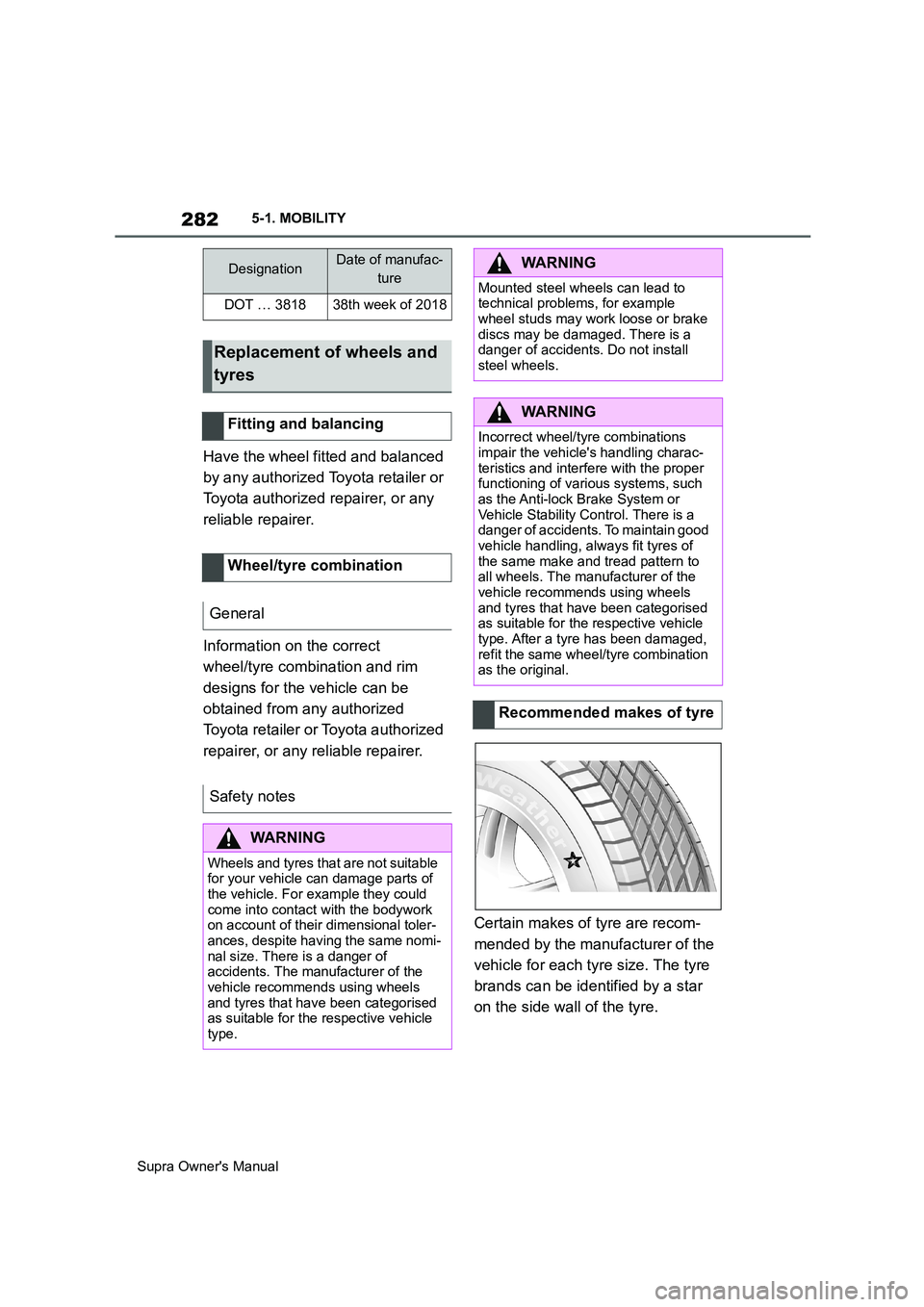

Supra Owner's Manual5-1. MOBILITY
Have the wheel fitted and balanced
by any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer.
Information on the correct
wheel/tyre combination and rim
designs for the vehicle can be
obtained from any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Certain makes of tyre are recom-
mended by the manufacturer of the
vehicle for each tyre size. The tyre
brands can be identified by a star
on the side wall of the tyre.
DesignationDate of manufac-
ture
DOT … 381838th week of 2018
Replacement of wheels and
tyres
Fitting and balancing
Wheel/tyre combination
General
Safety notes
WARNING
Wheels and tyres that are not suitable
for your vehicle can damage parts of
the vehicle. For example they could
come into contact with the bodywork
on account of their dimensional toler-
ances, despite having the same nomi-
nal size. There is a danger of
accidents. The manufacturer of the
vehicle recommends using wheels
and tyres that have been categorised
as suitable for the respective vehicle
type.
WARNING
Mounted steel wheels can lead to
technical problems, for example
wheel studs may work loose or brake
discs may be damaged. There is a
danger of accidents. Do not install
steel wheels.
WARNING
Incorrect wheel/tyre combinations
impair the vehicle's handling charac-
teristics and interfere with the proper
functioning of various systems, such
as the Anti-lock Brake System or
Vehicle Stability Control. There is a
danger of accidents. To maintain good
vehicle handling, always fit tyres of
the same make and tread pattern to
all wheels. The manufacturer of the
vehicle recommends using wheels
and tyres that have been categorised
as suitable for the respective vehicle
type. After a tyre has been damaged,
refit the same wheel/tyre combination
as the original.
Recommended makes of tyre

290

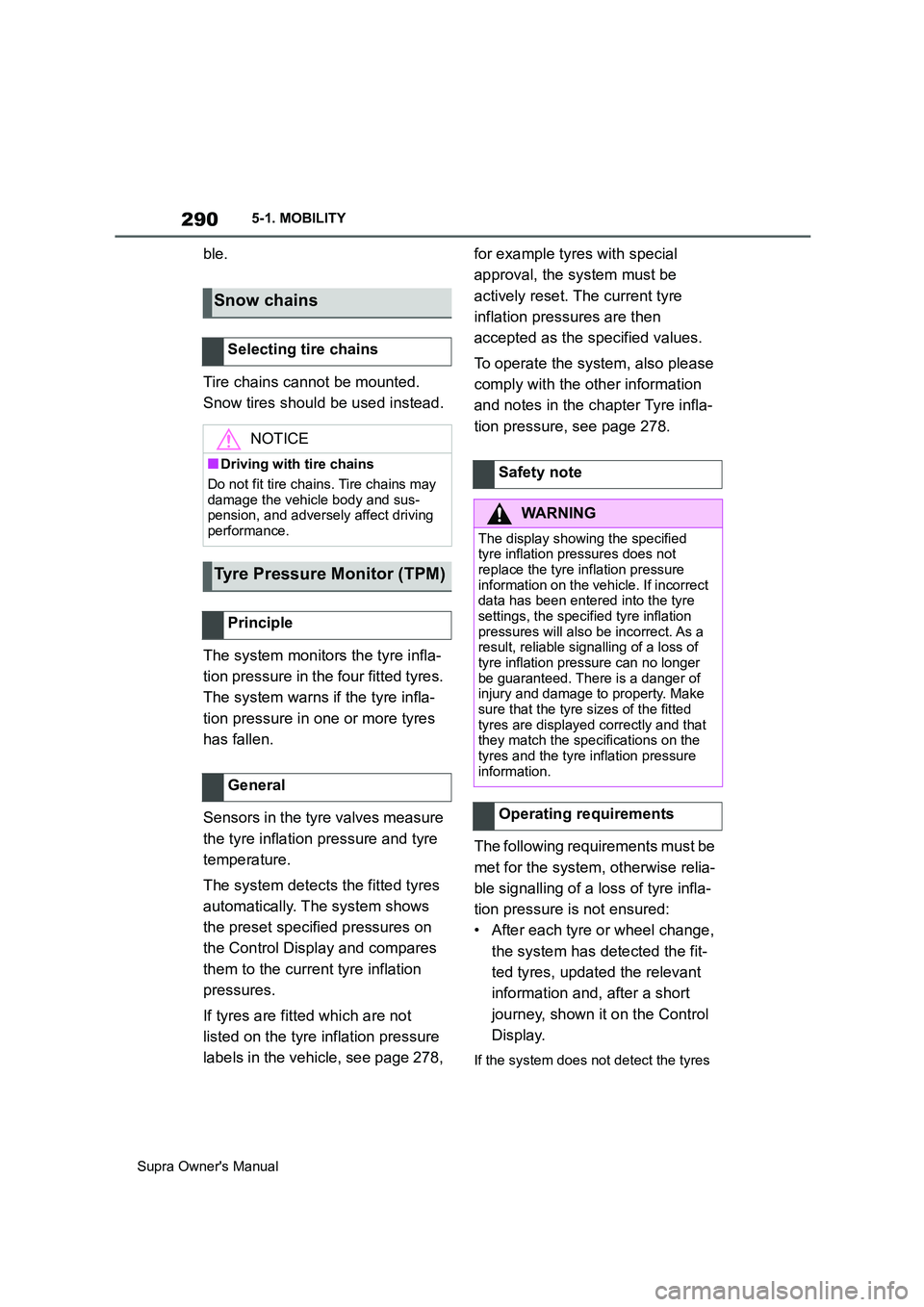

Supra Owner's Manual5-1. MOBILITY
ble.
Tire chains cannot be mounted.
Snow tires should be used instead.
The system monitors the tyre infla-
tion pressure in the four fitted tyres.
The system warns if the tyre infla-
tion pressure in one or more tyres
has fallen.
Sensors in the tyre valves measure
the tyre inflation pressure and tyre
temperature.
The system detects the fitted tyres
automatically. The system shows
the preset specified pressures on
the Control Display and compares
them to the current tyre inflation
pressures.
If tyres are fitted which are not
listed on the tyre inflation pressure
labels in the vehicle, see page 278, for example tyres with special
approval, the system must be
actively reset. The current tyre
inflation pressures are then
accepted as the specified values.
To operate the system, also please
comply with the other information
and notes in the chapter Tyre infla-
tion pressure, see page 278.
The following requirements must be
met for the system, otherwise relia-
ble signalling of a loss of tyre infla-
tion pressure is not ensured:
• After each tyre or wheel change,
the system has detected the fit-
ted tyres, updated the relevant
information and, after a short
journey, shown it on the Control
Display.
If the system does not detect the tyres
Snow chains
Selecting tire chains
NOTICE
■Driving with tire chains
Do not fit tire chains. Tire chains may
damage the vehicle body and sus-
pension, and adversely affect driving
performance.
Tyre Pressure Monitor (TPM)
Principle
General
Safety note
WARNING
The display showing the specified
tyre inflation pressures does not
replace the tyre inflation pressure
information on the vehicle. If incorrect
data has been entered into the tyre
settings, the specified tyre inflation
pressures will also be incorrect. As a
result, reliable signalling of a loss of
tyre inflation pressure can no longer
be guaranteed. There is a danger of
injury and damage to property. Make
sure that the tyre sizes of the fitted
tyres are displayed correctly and that
they match the specifications on the
tyres and the tyre inflation pressure
information.
Operating requirements

291
5

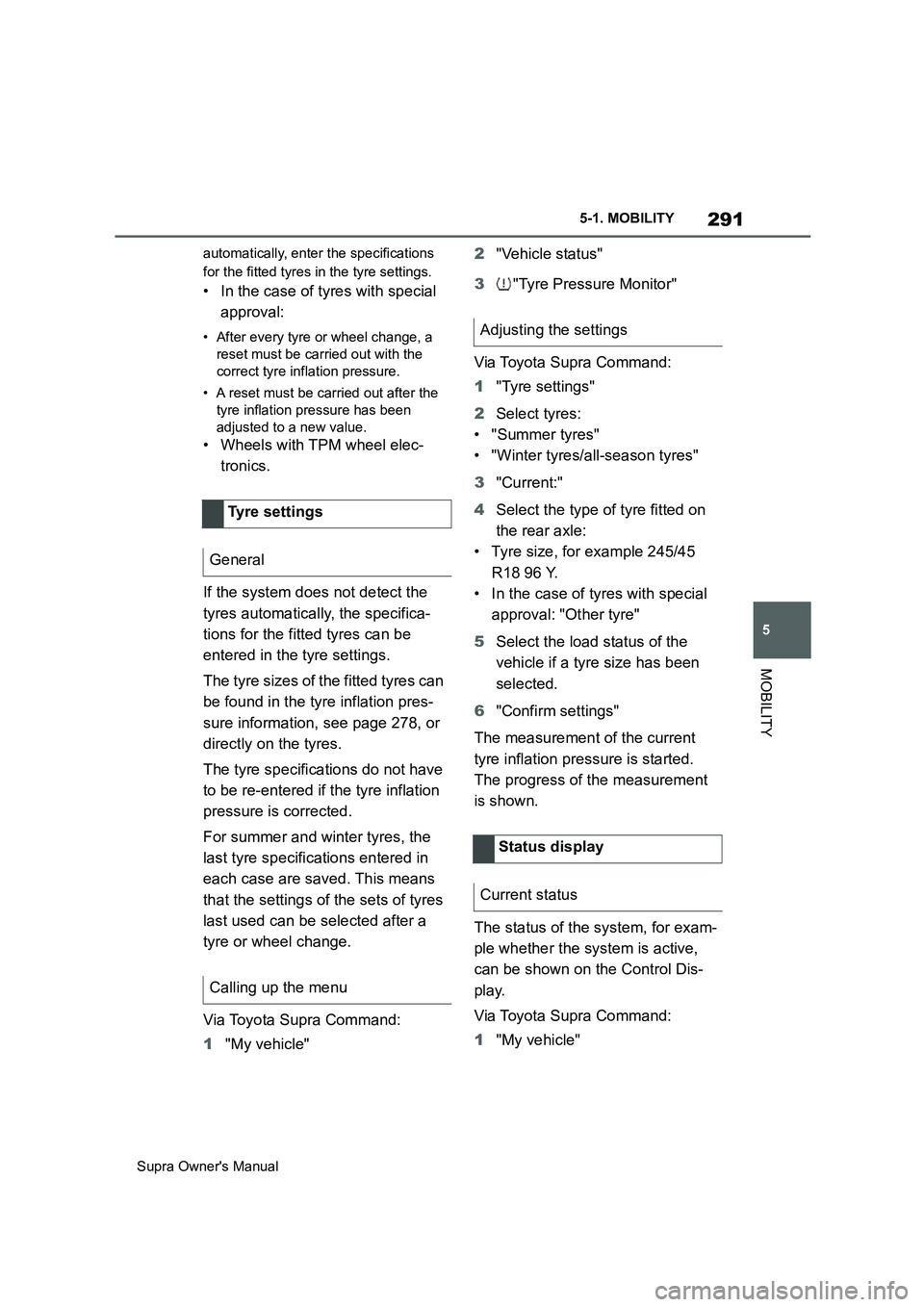

Supra Owner's Manual5-1. MOBILITY
MOBILITY
automatically, enter the specifications
for the fitted tyres in the tyre settings.
• In the case of tyres with special
approval:
• After every tyre or wheel change, a
reset must be carried out with the
correct tyre inflation pressure.
• A reset must be carried out after the
tyre inflation pressure has been
adjusted to a new value.
• Wheels with TPM wheel elec-
tronics.
If the system does not detect the
tyres automatically, the specifica-
tions for the fitted tyres can be
entered in the tyre settings.
The tyre sizes of the fitted tyres can
be found in the tyre inflation pres-
sure information, see page 278, or
directly on the tyres.
The tyre specifications do not have
to be re-entered if the tyre inflation
pressure is corrected.
For summer and winter tyres, the
last tyre specifications entered in
each case are saved. This means
that the settings of the sets of tyres
last used can be selected after a
tyre or wheel change.
Via Toyota Supra Command:
1"My vehicle"2"Vehicle status"
3"Tyre Pressure Monitor"
Via Toyota Supra Command:
1"Tyre settings"
2Select tyres:
• "Summer tyres"
• "Winter tyres/all-season tyres"
3"Current:"
4Select the type of tyre fitted on
the rear axle:
• Tyre size, for example 245/45
R18 96 Y.
• In the case of tyres with special
approval: "Other tyre"
5Select the load status of the
vehicle if a tyre size has been
selected.
6"Confirm settings"
The measurement of the current
tyre inflation pressure is started.
The progress of the measurement
is shown.
The status of the system, for exam-
ple whether the system is active,
can be shown on the Control Dis-
play.
Via Toyota Supra Command:
1"My vehicle" Tyre settings
General
Calling up the menu
Adjusting the settings
Status display
Current status

303
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
two wheel studs crosswise until
finger-tight.
If non-original light alloy wheels not
from the vehicle manufacturer are fit-
ted, the wheel studs belonging to the
wheels may also have to be used.
4Tighten the remaining wheels
tuds until finger-tight and then
tighten all the wheel studs
crosswise.
5Turn the jack crank anticlock-
wise to retract the jack and
lower the vehicle.
6Remove the jack and stow it
securely.
1Tighten the wheel studs cross-
wise. The tightening torque
is140 Nm, approximately 101 lb
ft.
2Stow the faulty wheel in the
boot, if necessary.
Due to its size, the faulty wheel cannot
be accommodated under the boot floor.
3Check tyre inflation pressure at
the next opportunity and correct
as necessary.
4Reset the Tyre Pressure Monitor
(TPM).
5Check the tight fit of the wheel
studs using a calibrated torque
wrench.
6Drive to the nearest any author-
ized Toyota retailer or Toyota
authorized repairer, or any relia-ble repairer to have the dam-
aged tyre replaced.
In case of a flat tyre, the emergency
wheel can be used as a replace-
ment for the defective tyre. The
emergency wheel is intended for
short-term use until the defective
wheel has been replaced.
Only fit one emergency wheel at
most.
Additionally, regularly check the
tyre inflation pressure of the emer-
gency wheel in the boot and correct
the pressure if necessary. After changing the wheel
Emergency wheel
Principle
General
Safety note
WARNING
The emergency wheel has special
dimensions. When driving with an
emergency wheel, the driving proper-
ties may change, for example
reduced directional stability when
braking, longer braking distance and
modified self-steering behaviour in
the limit range. There is a danger of
accidents. Drive with care and do not
exceed a speed of 80 km/h, 50 mph.

445

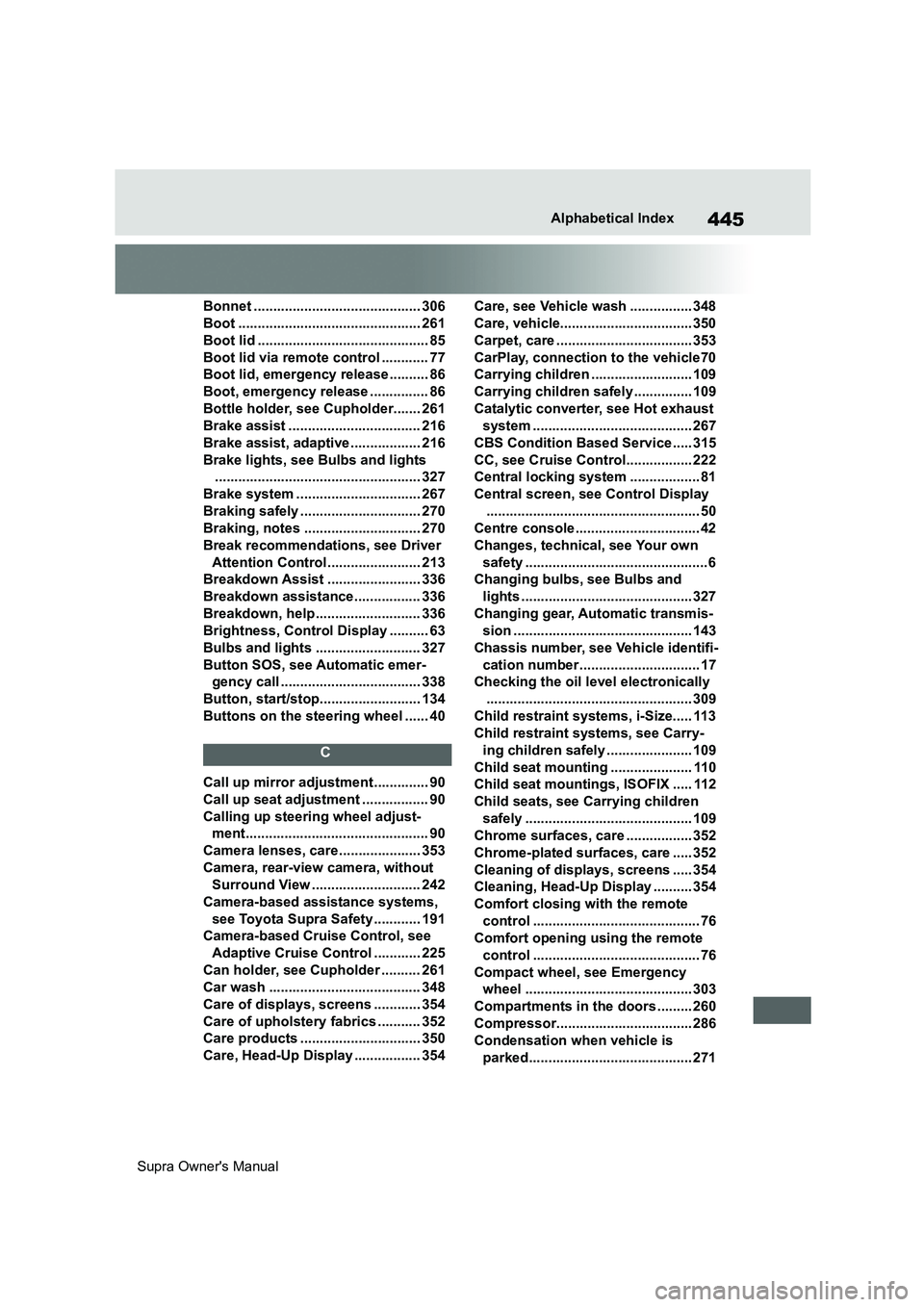

Supra Owner's ManualAlphabetical Index
Bonnet ........................................... 306
Boot ............................................... 261
Boot lid ............................................ 85
Boot lid via remote control ............ 77
Boot lid, emergency release .......... 86
Boot, emergency release ............... 86
Bottle holder, see Cupholder....... 261
Brake assist .................................. 216
Brake assist, adaptive .................. 216
Brake lights, see Bulbs and lights
..................................................... 327
Brake system ................................ 267
Braking safely ............................... 270
Braking, notes .............................. 270
Break recommendations, see Driver
Attention Control........................ 213
Breakdown Assist ........................ 336
Breakdown assistance................. 336
Breakdown, help........................... 336
Brightness, Control Display .......... 63
Bulbs and lights ........................... 327
Button SOS, see Automatic emer-
gency call .................................... 338
Button, start/stop.......................... 134
Buttons on the steering wheel ...... 40
C
Call up mirror adjustment .............. 90
Call up seat adjustment ................. 90
Calling up steering wheel adjust-
ment............................................... 90
Camera lenses, care..................... 353
Camera, rear-view camera, without
Surround View ............................ 242
Camera-based assistance systems,
see Toyota Supra Safety ............ 191
Camera-based Cruise Control, see
Adaptive Cruise Control ............ 225
Can holder, see Cupholder .......... 261
Car wash ....................................... 348
Care of displays, screens ............ 354
Care of upholstery fabrics ........... 352
Care products ............................... 350
Care, Head-Up Display ................. 354Care, see Vehicle wash ................ 348
Care, vehicle.................................. 350
Carpet, care ................................... 353
CarPlay, connection to the vehicle70
Carrying children .......................... 109
Carrying children safely ............... 109
Catalytic converter, see Hot exhaust
system ......................................... 267
CBS Condition Based Service ..... 315
CC, see Cruise Control................. 222
Central locking system .................. 81
Central screen, see Control Display
....................................................... 50
Centre console ................................ 42
Changes, technical, see Your own
safety ...............................................6
Changing bulbs, see Bulbs and
lights ............................................ 327
Changing gear, Automatic transmis-
sion .............................................. 143
Chassis number, see Vehicle identifi-
cation number............................... 17
Checking the oil level electronically
..................................................... 309
Child restraint systems, i-Size..... 113
Child restraint systems, see Carry-
ing children safely ...................... 109
Child seat mounting ..................... 110
Child seat mountings, ISOFIX ..... 112
Child seats, see Carrying children
safely ........................................... 109
Chrome surfaces, care ................. 352
Chrome-plated surfaces, care ..... 352
Cleaning of displays, screens ..... 354
Cleaning, Head-Up Display .......... 354
Comfort closing with the remote
control ........................................... 76
Comfort opening using the remote
control ........................................... 76
Compact wheel, see Emergency
wheel ........................................... 303
Compartments in the doors ......... 260
Compressor................................... 286
Condensation when vehicle is
parked.......................................... 271

449
Supra Owner's ManualAlphabetical Index
Inflation pressure check, see Tyre
Pressure Monitor........................ 290
Inflation pressure, tyres............... 278
Information on no passing .......... 160
Initialising, Tyre Pressure Monitor
TPM.............................................. 293
Instrument cluster ........................ 151
Instrument cluster switch, see Wiper
system ......................................... 140
Instrument lighting ....................... 177
Integrated key ................................. 79
Intended use ..................................... 6
Interior light .................................. 177
Interior light when unlocking ........ 75
Interior light with the vehicle locked
....................................................... 77
Interior movement detector ........... 92
Interval Display, see Service require-
ments........................................... 159
i-Size child restraint systems ...... 113
ISOFIX, child seat mountings...... 112
J
Joystick, Automatic transmission
..................................................... 143
Jump starting, see Starting assis-
tance ............................................ 343
Jump-starting connections ......... 344
Junction warning, see Front-end col-
lision warning with light braking
function ....................................... 193
K
Key switch for front passenger
airbags ........................................ 188
Key, mechanical.............................. 79
Key, see Remote control ................ 74
Keyless Go, see Smart Key System
....................................................... 82
Kick-down, Automatic transmission
..................................................... 143
Knee airbag ................................... 180
L
Labelling of recommended tyres 282
Labelling of run-flat tyres............. 284
Lane boundary, warning .............. 203
Lane Departure Warning .............. 203
Language, setting on the Control
Display........................................... 61
Lashing eyes in the boot.............. 262
Lashing straps, see Lashing eyes in
the boot ....................................... 262
Launch Control ............................. 148
Laying up the vehicle ................... 354
Laying up, vehicle......................... 354
Leather care .................................. 351
Left-hand traffic, light setting ...... 176
Light alloy wheels, care ............... 352
Light in exterior mirror, see Crossing
traffic warning............................. 246
Light in the exterior mirror, see Blind
spot monitor ............................... 207
Light switch ................................... 171
Lighting.......................................... 171
Lights ............................................. 171
LIM button, see Manual Speed Lim-
iter ................................................ 220
List of all messages........................ 64
Loading .......................................... 261
Loading the boot, see Stowing and
securing a transported load ...... 262
Locking settings ............................. 89
Locking with the remote control ... 76
Locking, automatic ......................... 90
Locking, see Opening and closing74
Low-beam headlights ................... 173
Luggage compartment lid, see Boot
lid ................................................... 85
Lumbar support .............................. 98
M
Maintenance .................................. 315
Scheduled maintenance............. 319
Maintenance requirement, see CBS
Condition Based Service ........... 315
