2019 TOYOTA PROACE VERSO Owners Manual

48
Power door locking*
Power door locking renders the exterior and interior door controls inoperative.It also deactivates the manual central control button.Therefore, never leave anyone inside the vehicle when it is power door locked.
To power door lock the vehicle:F Turn the key to the rear of the vehicle.F Then within five seconds, turn the key to the rear again.
Depending on version, the door mirrors fold at the same time.
Using the remote control
To lock the vehicle:
F Press this button.
F Then within five seconds after locking, press this button again.
If your vehicle is not fitted with an alarm, power door locking is signalled by the fixed illumination of the direction indicators for about two seconds.
To power door lock the vehicle:Using the key
Ensure that no person or object could prevent the correct closing of the windows.Be particularly aware of children when operating the windows.
If fitted to your vehicle, pressing and holding this button allows the windows to be closed. The window stops when you release the button.
* If equipped.
Access

49
Electronic engine immobiliser
The remote control contains an electronic chip which has a special code. When the ignition is switched on, this code must be recognised in order for starting to be possible.This electronic engine immobiliser locks the engine management system a few moments after the ignition is switched off and prevents
starting of the engine by anyone who does not have the key.
F Press this button
Locating your vehicle
This function allows you to identify your vehicle from a distance, particularly in poor light. Your vehicle must have been locked for more than five seconds.
This switches on the courtesy lamps and the
direction indicators flash for about ten seconds.
Remote operation of lighting
A short press on this button switches on the lighting remotely (sidelamps, dipped beam headlamps and number plate lamps).
A second press on this button before the end of the timed period cancels the remote lighting.
Anti-theft protection
In the event of a fault, you are informed by illumination of this warning lamp, an audible signal and a message in the screen.
Keep safely, away from your vehicle, the label attached to the keys given to you on acquisition of the vehicle.
In this case, your vehicle will not start; contact an authorized Toyota dealer or repairer, or another duly qualified and equipped professional as soon as possible.
If fitted to your vehicle.
2
Access

50

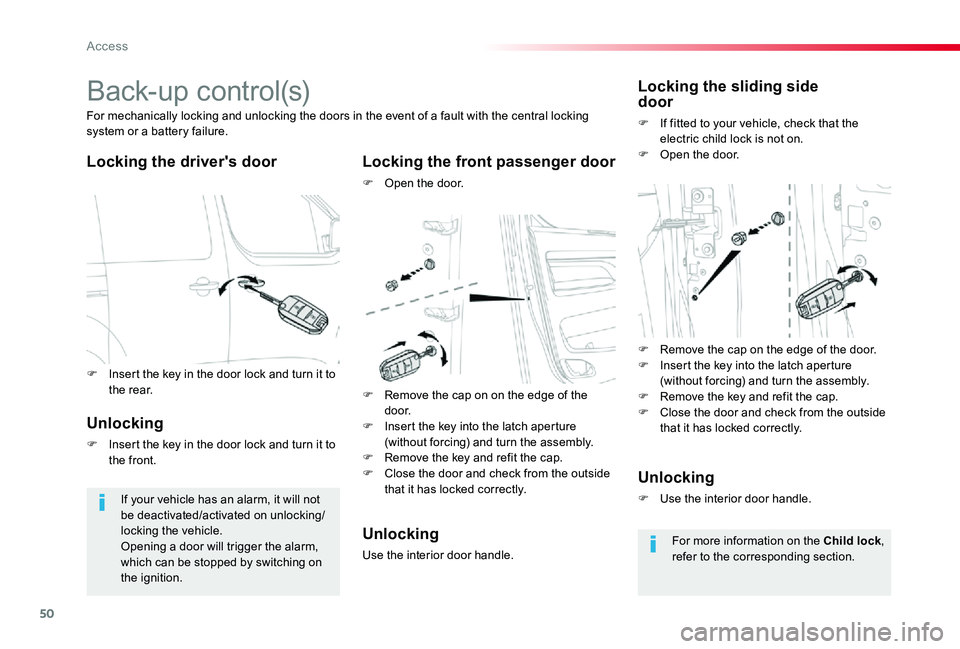

Back-up control(s)
Locking the driver's doorLocking the front passenger door
F Open the door.
For mechanically locking and unlocking the doors in the event of a fault with the central locking system or a battery failure.
If your vehicle has an alarm, it will not be deactivated/activated on unlocking/locking the vehicle.Opening a door will trigger the alarm, which can be stopped by switching on the ignition.
Locking the sliding side door
F If fitted to your vehicle, check that the electric child lock is not on.F Open the door.
Unlocking
F Insert the key in the door lock and turn it to the front.
Unlocking
Use the interior door handle.
Unlocking
F Use the interior door handle.
For more information on the Child lock, refer to the corresponding section.
F Remove the cap on the edge of the door.F Insert the key into the latch aperture (without forcing) and turn the assembly.F Remove the key and refit the cap.F Close the door and check from the outside that it has locked correctly.
F Remove the cap on on the edge of the d o o r.F Insert the key into the latch aperture (without forcing) and turn the assembly.F Remove the key and refit the cap.F Close the door and check from the outside that it has locked correctly.
F Insert the key in the door lock and turn it to the rear.
Access

51
Changing the battery
Do not throw the remote control batteries away, they contain metals which are harmful to the environment.Take them to an approved collection point.
If the battery is flat, you are informed by lighting of this warning lamp in the instrument panel, an audible signal and a message in the screen.
Reinitialisation
Locking the rear wing doors with glass windows
F If fitted to your vehicle, check that the electric child lock is not on.F Open the left-hand door.
Battery ref.: CR1620 / 3 volts.
F Lock the driver's door using the key.F Press one of the remote control buttons.
F Turn the key to position 2 (Ignition on).F Switch off the ignition and remove the key from the ignition switch.The remote control is fully operational again.
Unlocking
F Use the interior door handle.
Remote control problem
Following disconnection of the vehicle battery, replacement of the remote control battery or in the event of a remote control malfunction, you can no longer unlock, lock or locate your vehicle.F First of all, use the key in the lock to unlock or lock your vehicle.F Then reinitialise the remote control.If the problem persists, contact an authorized
Toyota dealer or repairer, or another duly qualified and equipped professional as soon as possible.
F Insert the key into the latch aperture on the edge of the door (without forcing) and slide the assembly upward.F Remove the key.F Close the door and check from the outside that it has locked correctly.
F Unclip the cover using a screwdriver in the cut-out.F Remove the cover.F Extract the flat battery from its location.F Place the new battery into its location obser ving the original direction.F Clip the cover in place.
2
Access

52
"Smart Entry & Start
System"
It allows the central locking or unlocking of the vehicle from a distance.It is also used to locate and start the vehicle, as well as providing protection against theft.
Remote control
Locking
Ensure that no person or object could prevent the correct closing of the windows.Be particularly aware of children when operating the windows.
If a door is not correctly shut (except the right-hand door with rear wing doors with glass windows):- vehicle stationary and the engine running, this warning lamp comes on, accompanied by an alert message for a few seconds,- vehicle moving (speed above 6 mph (10 km/h)), this warning lamp comes on, accompanied by an audible signal and an alert message for a few seconds.
F To totally lock the vehicle, press this button.F To unlock the vehicle, press this button.
With electric sliding door(s)
F To unlock the vehicle and open the side door, press and hold this button until the door has opened
Unlocking is signalled by the rapid flashing of the direction indicators for about two seconds.Depending on version, the door mirrors unfold at the same time.
Unlocking
If fitted to your vehicle, pressing and holding this button allows the windows to be closed. The window stops when you release the button.
Access

53
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in the event of an emergency.As a safety measure (children on board), never leave the vehicle without your remote control, even for a short period.
If your vehicle is not fitted with an alarm, locking is signalled by the fixed illumination of the direction indicators for about two seconds.Depending on version, the door mirrors fold at the same time.
If one of the doors remains open, the central locking does not take place.If the vehicle is inadvertently unlocked, it will automatically lock itself again after about thirty seconds, if no door is opened.And if fitted to your vehicle, the alarm is reactivated (with volumetric monitoring, even if you had deactivated it).
If fitted to your vehicle, pressing and holding this button allows the windows to be closed. The window stops when you release the button.

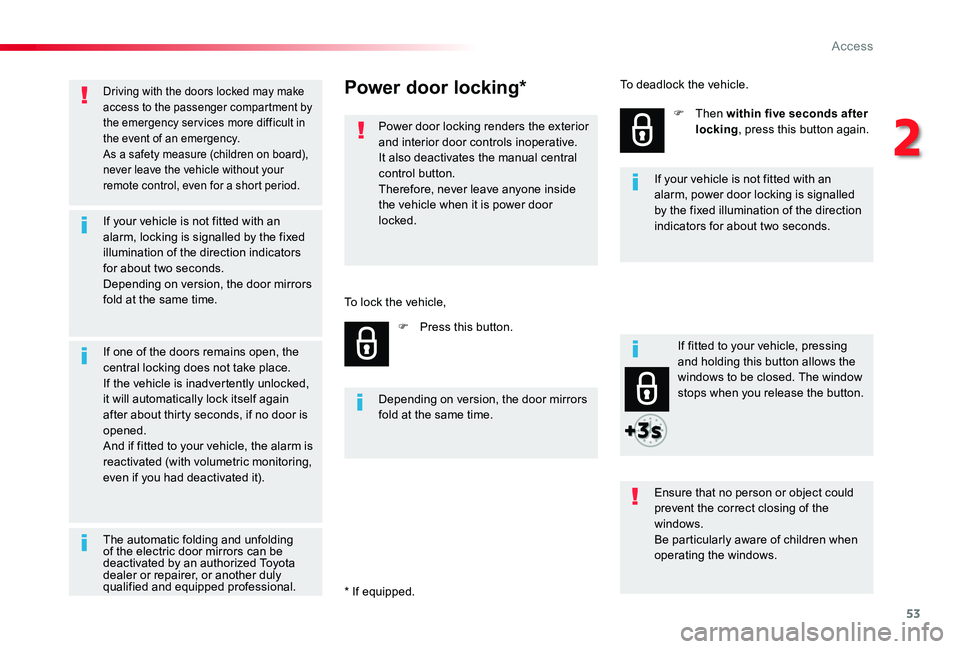

Power door locking*
Power door locking renders the exterior and interior door controls inoperative.It also deactivates the manual central control button.Therefore, never leave anyone inside the vehicle when it is power door locked.
F Press this button.
F Then within five seconds after locking, press this button again.
Ensure that no person or object could prevent the correct closing of the windows.Be particularly aware of children when
operating the windows.
Depending on version, the door mirrors fold at the same time.
If your vehicle is not fitted with an alarm, power door locking is signalled by the fixed illumination of the direction indicators for about two seconds.
To lock the vehicle,
To deadlock the vehicle.
The automatic folding and unfolding of the electric door mirrors can be deactivated by an authorized Toyota dealer or repairer, or another duly qualified and equipped professional.* If equipped.
2
Access

54
The unlocking, locking or power door locking does not take place:- if the ignition is on,- if one of the doors or the boot is still open,- if the key for the Smart Entry & Start System has been left inside the vehicle.When the vehicle is locked (with the remote control or Smart Entry & Start System), if it is unlocked inadvertently, it will lock itself again automatically after about thirty seconds unless a door has been opened.And if your vehicle has an alarm, this will be reactivated (with volumetric monitoring, even if this had been deactivated).
"Smart Entry & Start
System" on your person
This allows the unlocking, locking and starting the vehicle while keeping the remote control on your person.
As a safety measure (children on board), never leave the vehicle without taking your Smart Entry & Start System remote control, even for a short period.Guard against theft when the Smart Entry & Start System remote control is in the recognition zone with the vehicle unlocked.In order to preser ve the charge of the cell battery in the remote control, the "hands-free" functions go into extended stand-by after 21 days of non-use.To restore these functions, press one of the remote control buttons or start the engine with the remote control at the reader.
The folding and unfolding of the door mirrors by the remote control can be deactivated by an authorized Toyota dealer or repairer, or another duly qualified and equipped professional.
In the ignition on (accessories) position, with the "START/STOP" button, the hands-free function is deactivated.For more information on "Smar t Entr y & Star t System" and in particular the "ignition on" position, refer to the corresponding section.
Access

55

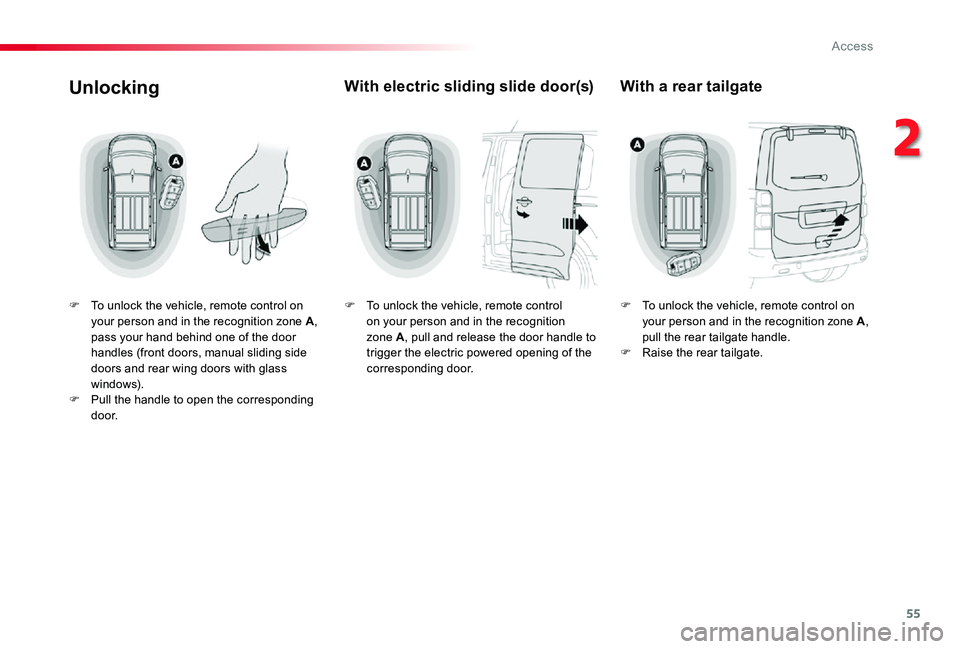

Unlocking
F To unlock the vehicle, remote control on your person and in the recognition zone A, pass your hand behind one of the door handles (front doors, manual sliding side doors and rear wing doors with glass windows).F Pull the handle to open the corresponding d o o r.
With electric sliding slide door(s)
F To unlock the vehicle, remote control on your person and in the recognition zone A, pull and release the door handle to trigger the electric powered opening of the corresponding door.
With a rear tailgate
F To unlock the vehicle, remote control on your person and in the recognition zone A, pull the rear tailgate handle.F Raise the rear tailgate.
2
Access
