2019 TOYOTA AYGO Owners Manual (in English)

3296-1. Using the air conditioning system and defogger
6
Interior features
AYGO_OM_Europe_OM99R19E
■Location of air outlets
Air outlets and air volume
changes according to the
selected airflow mode.
*: Some models
■Adjusting the position of and opening and closing the air out-
lets
Direct air flow to the left or right,
up or down.
Open the vent
Close the vent
The outlets does not make com-
plete revolutions.
Air outlets
*
*
1
2

3306-1. Using the air conditioning system and defogger
AYGO_OM_Europe_OM99R19E
■Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and
the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow
immediately after is pressed.
■ Fogging up of the windows
● The windows will easily fog up when the humidity in the vehicle is high.
Turning on will dehumidify the air from the outlets and defog the wind-
shield effectively.
● If you turn off, the windows may fog up more easily.
● The windows may fog up if the recirculated air mode is used.
■ Outside/recirculated air mode
● When driving on dusty roads such as tunnels or in heavy traffic, set the out-
side/recirculated air mode button to the recirculated air mode. This is effec-
tive in preventing outside air from entering the vehicle interior. During
cooling operation, setting the recirculat ed air mode will also cool the vehicle
interior effectively.
● Outside/recirculated air mode may automatically switch depending on the
temperature setting or the inside temperature.
■ When the outside temperature falls to nearly 0C (32F)
The dehumidification function may not operate even when is selected.
■ Ventilation and air conditioning odors
● To let fresh air in, set the air conditioning system to the outside air mode.
● During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to
be emitted from the vents.
● To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time
immediately after the air conditioning system is started in automatic
mode.
■ An odor comes from the air conditioning system due to the Stop & Start
system operation (vehicles with a Stop & Start system)
When the engine is stopped due to the Stop & Start system, an odor caused
by moisture may be detected. This does not indicate a malfunction.
■ Air conditioning filter
 P. 382

3316-1. Using the air conditioning system and defogger
6
Interior features
AYGO_OM_Europe_OM99R19E
WARNING
■To prevent the windshield from fogging up
● Do not use during cool air operation in extremely humid weather.
The difference between the temperature of the outside air and that of the
windshield can cause the outer surface of the windshield to fog up, block-
ing your vision.
■ To prevent burns (vehicles with outside rear view mirror defoggers)
Do not touch the rear view mirror surfaces when the outside rear view mirror
defoggers are on.
NOTICE
■ To prevent battery discharge
Do not leave the air conditioning syst em on longer than necessary when the
engine is stopped.
● Do not place anything on the instrument
panel which may cover the air outlets.
Otherwise, air flow may be obstructed,
preventing the windshield defoggers to
defog.

3326-1. Using the air conditioning system and defogger
AYGO_OM_Europe_OM99R19E
Seat heaters
Turns seat heater on
The indicator light comes on.
■The seat heaters can be used when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■ When not in use
Turn the seat heater off by pressing the switch. The indicator light turns off.
: If equipped

3336-1. Using the air conditioning system and defogger
6
Interior features
AYGO_OM_Europe_OM99R19E
WARNING
■Burns
● Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
● Do not use the seat heater more than necessary. Doing so may cause
minor burns or overheating.
NOTICE
■ To prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp
objects (needles, nails, etc.) into the seat.
■ To prevent battery discharge
Turn the seat heaters off when the engine is not running.

3346-2. Using the interior lights
AYGO_OM_Europe_OM99R19E
Interior lights list
Interior light (P. 334)
On
Off
Door position
Vehicles without a smart entry &
start system: The interior light
come on when a side door is open.
They turn off when the side doors
are closed.
Vehicles with a smart entry & start
system: The interior light come on
when a door is opened. They turn
off when the doors are closed.
■ To prevent battery discharge
If the interior light is left on when the engine switch is turned to the “LOCK”
position (vehicles without a smart entry & start system) or off (vehicles with a
smart entry & start system), the lights will go off automatically after 20 min-
utes.
Interior light
1
1
2
3

3356-3. Using the storage features
6
Interior features
AYGO_OM_Europe_OM99R19E
List of storage features
Bottle holders (P. 337)
Card holders ( P. 336)
Glove box ( P. 336)
Cup holders ( P. 336)
WARNING
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
● Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
● Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
■ When driving or when the storage compartments are not in use
Keep the lids closed.
In the event of sudden braking or sudden swerving, an accident may occur
due to an occupant being struck by an open lid or the items stored inside.
1
2
3
4

3366-3. Using the storage features
AYGO_OM_Europe_OM99R19E

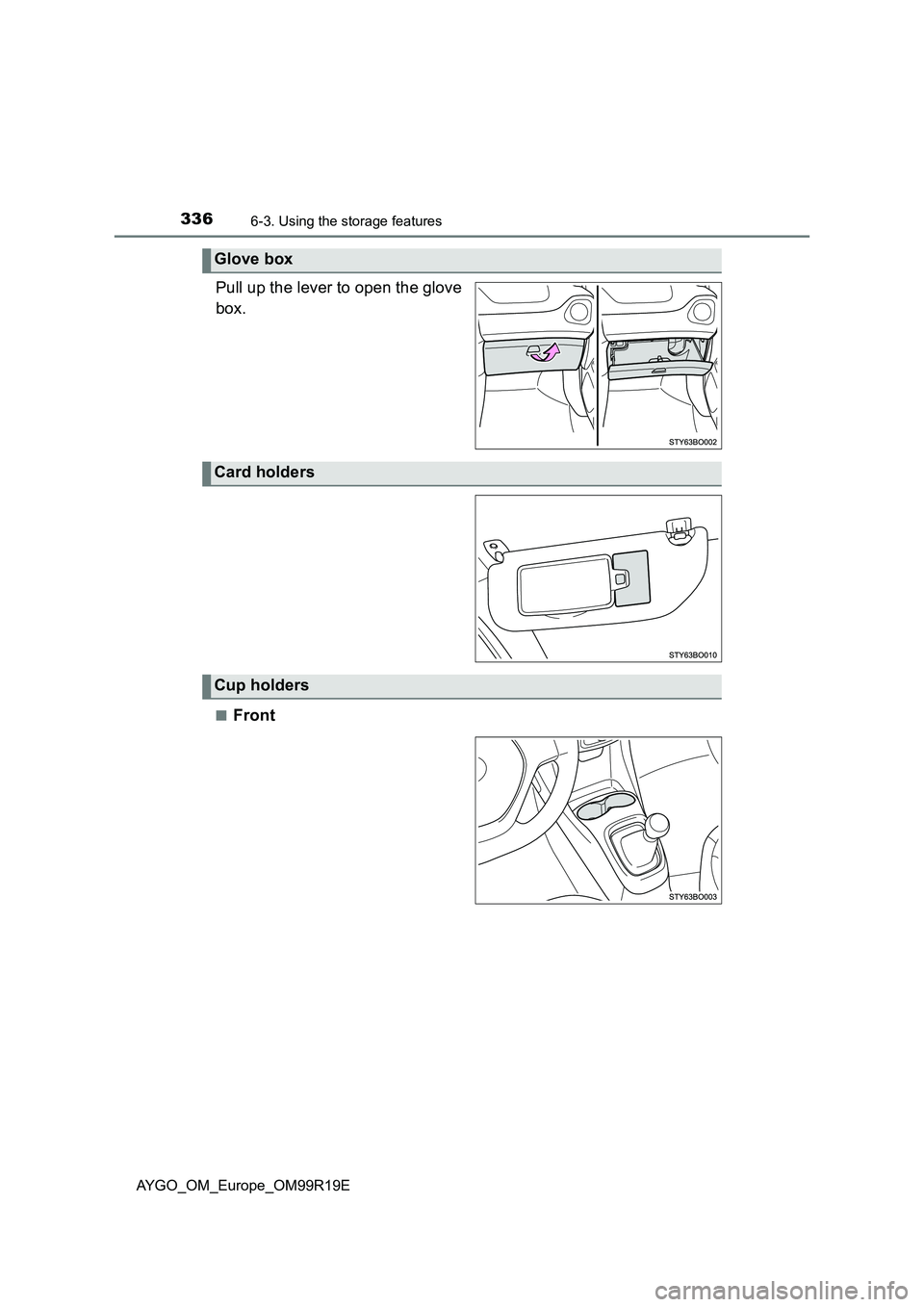

Pull up the lever to open the glove
box.
■Front
Glove box
Card holders
Cup holders
