2019 TOYOTA AYGO Owners Manual (in English)

1533-3. Adjusting the seats
3
Operation of each component
AYGO_OM_Europe_OM99R19E
■After passengers have entered the vehicle (3-door models)
Slide the seat backward and then lift the seatback. The seat will be set and
locked to its previous position automatically. If the seat cannot be slid back to
the previous position due to the rear passenger or luggage, the seat will be
locked in that position, disabling the seat position memory system.
To recall the previous position, lift the seatback lock release lever after remov-
ing the luggage, or after having the passenger get out or sit properly so that
the seat can be slid back to the previous position. However, if you slide the
seat further backwards than previous position using the seat position adjust-
ment lever, the memory of previous position will be overwritten.
WARNING
■ When adjusting the seat position
● Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
● Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.
■ Seat adjustment
● To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
● After adjusting the seat, make sure that the seat is locked in position.
● 3-door models: Never allow anyone to touch seatback lock release levers
while the vehicle is moving.

1543-3. Adjusting the seats
AYGO_OM_Europe_OM99R19E
Rear seats
Stow the seat belts using the seat belt hangers.
Insert the tab of the rear seat belt as shown in the illustration.
Lower the head restraints to the
lowest position.
Vehicles with a non-split rear seat
Pull both seatback lock release
straps at the same time and
fold the seatback down.
The seatbacks of the rear seats can be folded down.
Folding down the rear seatbacks
3-door models5-door models

1553-3. Adjusting the seats
3
Operation of each component
AYGO_OM_Europe_OM99R19E
Vehicles with a split rear seats
Pull the seatback lock release
strap and fold the seatback
down.
Each seatback may be folded sep-
arately.
■ After returning the rear seatback
Remove the rear seat belts from the seat belt hangers.
WARNING
■ When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, set the parking brake and shift the shift
lever to E, M or R (multi-mode manual transmission) or N (manual trans-
mission).
● Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
● Do not allow children to enter the luggage compartment.
● Be careful not to get your hands caught when folding the rear seatbacks.
● Adjust the position of the front seat before folding down the rear seatbacks
so that the front seat does not interf ere with the rear seatbacks when fold-
ing down the rear seatbacks.
■ After returning the rear seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Make sure the seatback is securely locked by pushing it forward and rear-
ward on the top.
● Check that the seat belts are not twisted or caught in the seatback.
NOTICE
■Stowing the seat belts
The seat belts must be stowed before you fold down the rear seatback.

1563-3. Adjusting the seats
AYGO_OM_Europe_OM99R19E
Head restraints
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
■Removing the rear head restraints
■ Installing the rear head restraints
Head restraints are provided for rear seats.
Lock release
button
1
2
Pull the head restraint up while pressing
the lock release button.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
Lock release button
Lock release button

1573-3. Adjusting the seats
3
Operation of each component
AYGO_OM_Europe_OM99R19E
■ Adjusting the rear head restraints
Always raise the head restraint one level from the stowed position when
using.
■ Front head restraints
The front head restraints do not have adjusted function.
WARNING
■ Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
● Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.

1583-4. Adjusting the steering wheel and mirrors
AYGO_OM_Europe_OM99R19E
Steering wheel
The steering wheel can be adjusted to a comfortable position.
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel verti-
cally.
After adjustment, pull the lever up
to secure the steering wheel.
To sound the horn, press on or
close to the mark.
■ After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
Adjustment procedure
Horn

1593-4. Adjusting the steering wheel and mirrors
3
Operation of each component
AYGO_OM_Europe_OM99R19E
WARNING
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.
■ After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident and resulting in death or serious injury.

1603-4. Adjusting the steering wheel and mirrors
AYGO_OM_Europe_OM99R19E

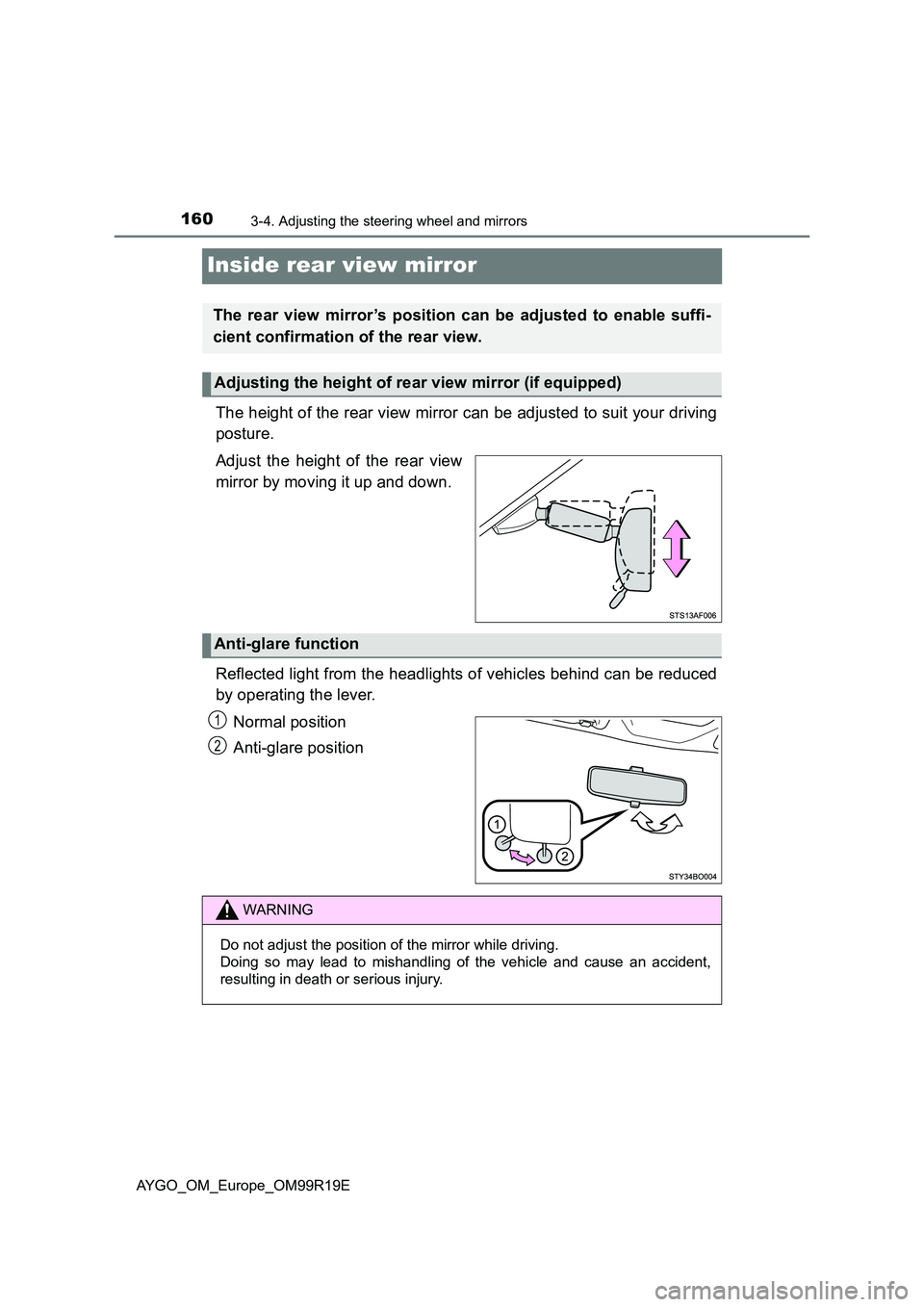

Inside rear view mirror
The height of the rear view mirror can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.
Reflected light from the headlights of vehicles behind can be reduced
by operating the lever.
Normal position
Anti-glare position
The rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.
Adjusting the height of rear view mirror (if equipped)
Anti-glare function
1
2
WARNING
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.
