4Driving
AYGO_OM_Europe_OM99R19E
4-1. Before driving
Driving the vehicle ............. 170
Cargo and luggage ............ 180
Trailer towing ..................... 181
4-2. Driving procedures
Engine (ignition) switch
(vehicles without a smart
entry & start system)........ 182
Engine (ignition) switch
(vehicles with a smart
entry & start system)........ 185
Multi-mode manual
transmission .................... 190
Manual transmission.......... 195
Turn signal lever ................ 197
Parking brake .................... 198
4-3. Operating the lights
and wipers
Headlight switch................. 199
Fog light switch .................. 203
Windshield wiper
and washer ...................... 205
Rear window wiper
and washer ...................... 207
4-4. Refueling
Opening the fuel tank
cap ................................... 209
4-5. Toyota Safety Sense
Toyota Safety Sense ......... 213
PCS (Pre-Collision
system) ............................ 219
LDA (Lane Departure
Alert) ................................ 232
4-6. Using the driving support
systems
Speed limiter ...................... 237
Stop & Start system ........... 240
Driving assist systems ....... 247
4-7. Driving tips
Winter driving tips .............. 253

1704-1. Before driving
AYGO_OM_Europe_OM99R19E
Driving the vehicle
P. 182, 185
Multi-mode manual transmission
With the brake pedal depressed, shift the shift lever to E or M.
( P. 190)
When shifting the shift lever to E: Make sure that the display of the gear
position indicator shows E.
When shifting the shift lever to M: Make sure that the display of the gear
position indicator shows 1.
Release the parking brake. ( P. 198)
Gradually release the brake pedal and gently depress the accelera-
tor pedal to accelerate the vehicle.
Manual transmission
While depressing the clutch pedal, shift the shift lever to 1.
( P. 195)
Release the parking brake. ( P. 198)
Gradually release the clutch pedal. At the same time, depress the
accelerator pedal to accelerate the vehicle.
The following procedures should be observed to ensure safe
driving:
Starting the engine
Driving

1714-1. Before driving
4
Driving
AYGO_OM_Europe_OM99R19E
Multi-mode manual transmission
With the shift lever in E or M, depress the brake pedal.
If necessary, set the parking brake. ( P. 198)
If the vehicle is to be stopped for an extended period of time, shift the shift
lever to N. ( P. 190)
Manual transmission
While depressing the clutch pedal, depress the brake pedal.
If necessary, set the parking brake. ( P. 198)
If the vehicle is to be stopped for an extended period of time, shift
the shift lever to N. ( P. 195)
Vehicles with a Stop & Start system: If the Stop & Start system is
enabled, shifting the shift lever to N and releasing the clutch pedal
will stop the engine. ( P. 240)
Multi-mode manual transmission
With the shift lever in E or M, depress the brake pedal.
Set the parking brake. ( P. 198)
Shift the shift lever to E, M or R. ( P. 190)
If parking on a hill, block the wheels as needed.
Vehicles without a smart entry & start system:
Turn the engine switch to the “LOCK” position to stop the engine.
Vehicles with a smart entry & start system:
Press the engine switch to stop the engine.
Make sure that the display of the gear position indicator shows 1 or R.
Lock the door, making sure that you have the key on your person.
Stopping
Parking the vehicle

1724-1. Before driving
AYGO_OM_Europe_OM99R19E
Manual transmission
While depressing the clutch pedal, depress the brake pedal.
Set the parking brake. ( P. 198)
Shift the shift lever to N. ( P. 195)
If parking on a hill, shift the shift lever to 1 or R and block the wheels as
needed.
Vehicles without a smart entry & start system:
Turn the engine switch to the “LOCK” position to stop the engine.
Vehicles with a smart entry & start system:
Press the engine switch to stop the engine.
Lock the door, making sure that you have the key on your person.
Multi-mode manual transmission
With the brake pedal depressed, firmly set the parking brake and
shift the shift lever to E or M.
When shifting the shift lever to E: Make sure that the display of the gear
position indicator shows E.
When shifting the shift lever to M: Make sure that the display of the gear
position indicator shows 1.
Gently depress the accelerator pedal.
Release the parking brake.
Manual transmission
With the parking brake firmly set and the clutch pedal fully
depressed, shift the shift lever to 1.
Lightly depress the accelerator pedal at the same time as gradually
releasing the clutch pedal.
Release the parking brake.
Starting off on a steep uphill

1734-1. Before driving
4
Driving
AYGO_OM_Europe_OM99R19E
■When starting off on a uphill (vehicles with a hill-start assist control)
The hill-start assist control will activate. ( P. 247)
■ Driving in the rain
● Drive carefully when it is raining, because visibility will be reduced, the win-
dows may become fogged-up, and the road will be slippery.
● Drive carefully when it starts to rain, because the road surface will be espe-
cially slippery.
● Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road sur-
face, preventing the steering and brakes from operating properly.
■ Restraining the engine output (Brake Override System)
When the accelerator and brake pedals are depressed at the same time, the
engine output may be restrained.
■ Breaking in your new Toyota
To extend the life of the vehicle, observing the following precautions is recom-
mended:
● For the first 300 km (200 miles):
Avoid sudden stops.
● For the first 1000 km (600 miles):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in low gears.
• Do not drive at a constant speed for extended periods.
■ Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability
of the correct fuel. ( P. 483)

1744-1. Before driving
AYGO_OM_Europe_OM99R19E
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When starting the vehicle (vehicles with a multi-mode manual trans-
mission)
Always keep your foot on the brake pedal while stopped with the engine
running. This prevents the vehicle from moving unexpectedly.
■ When driving the vehicle
● Do not drive if you are unfamiliar with the location of the brake and accel-
erator pedals to avoid depressing the wrong pedal.
• Accidentally depressing the accelerator pedal instead of the brake
pedal will result in sudden acceleration that may lead to an accident.
• When backing up, you may twist your body around, leading to difficulty
in operating the pedals. Make su re to operate the pedals properly.
• Make sure to keep a correct driving posture even when moving the
vehicle only slightly. This allows you to depress the brake and accelera-
tor pedals properly.
• Depress the brake pedal using your right foot. Depressing the brake
pedal using your left foot may delay response in an emergency, result-
ing in an accident.
● Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust system and exhaust gases can be extremely hot. These hot
parts may cause a fire if there is any flammable material nearby.
● During normal driving, do not turn off the engine. Turning the engine off
while driving will not cause loss of steering or braking control, but the
power assist to these systems will be lost. This will make it more difficult to
steer and brake, so you should pull over and stop the vehicle as soon as it
is safe to do so.
However, in the event of an emergency, such as if it becomes impossible
to stop the vehicle in the normal way: P. 407
● Use engine braking (downshift) to maintain a safe speed when driving
down a steep hill.
Using the brakes continuously may cause the brakes to overheat and lose
effectiveness. ( P. 190, 195)
● Do not adjust the positions of the steering wheel, the seat, or the inside or
outside rear view mirrors while driving.
Doing so may result in a loss of vehicle control.
● Always check that all passengers’ arms, heads or other parts of their body
are not outside the vehicle.

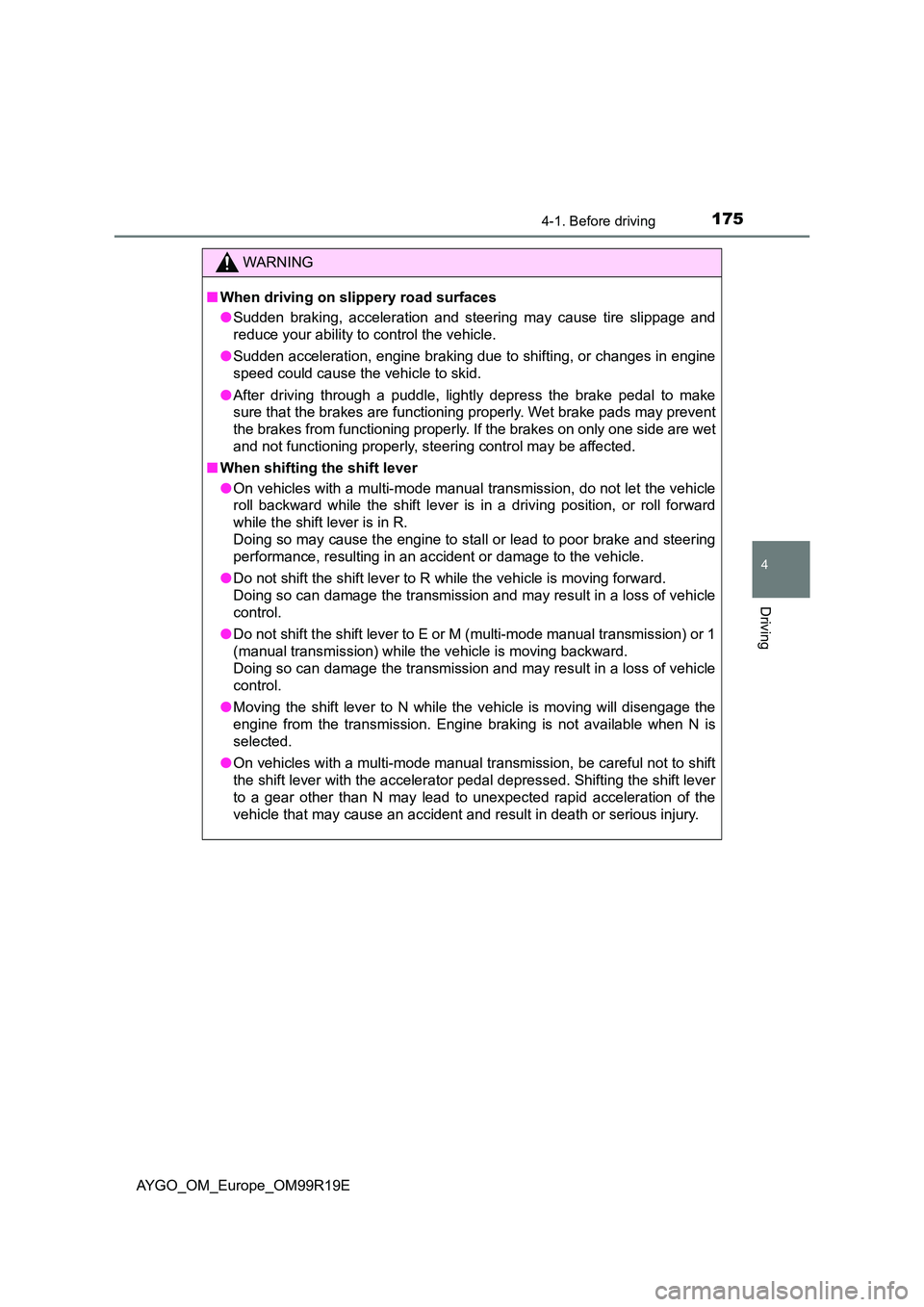

1754-1. Before driving
4
Driving
AYGO_OM_Europe_OM99R19E
WARNING
■When driving on slippery road surfaces
●Sudden braking, acceleration and steering may cause tire slippage and
reduce your ability to control the vehicle.
● Sudden acceleration, engine braking due to shifting, or changes in engine
speed could cause the vehicle to skid.
● After driving through a puddle, lightly depress the brake pedal to make
sure that the brakes are functioning properly. Wet brake pads may prevent
the brakes from functioning properly. If the brakes on only one side are wet
and not functioning properly, steering control may be affected.
■ When shifting the shift lever
●On vehicles with a multi-mode manual transmission, do not let the vehicle
roll backward while the shift lever is in a driving position, or roll forward
while the shift lever is in R.
Doing so may cause the engine to stall or lead to poor brake and steering
performance, resulting in an accident or damage to the vehicle.
● Do not shift the shift lever to R while the vehicle is moving forward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
● Do not shift the shift lever to E or M (multi-mode manual transmission) or 1
(manual transmission) while the vehicle is moving backward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
● Moving the shift lever to N while the vehicle is moving will disengage the
engine from the transmission. Engine braking is not available when N is
selected.
● On vehicles with a multi-mode manual transmission, be careful not to shift
the shift lever with the accelerator pedal depressed. Shifting the shift lever
to a gear other than N may lead to unexpected rapid acceleration of the
vehicle that may cause an accident and result in death or serious injury.

1764-1. Before driving
AYGO_OM_Europe_OM99R19E
WARNING
■When the vehicle is stopped
● Do not race the engine.
If the vehicle is in any gear other than N, the vehicle may accelerate sud-
denly and unexpectedly, causing an accident.
● On vehicles with a multi-mode manual transmission, in order to prevent
accidents due to the vehicle rolling away, always keep depressing the
brake pedal while the engine is running, and apply the parking brake as
necessary.
● If the vehicle is stopped on an incline, in order to prevent accidents caused
by the vehicle rolling forward or backward, always depress the brake pedal
and securely apply the parking brake as needed.
● Avoid revving or racing the engine.
Running the engine at high speed while the vehicle is stopped may cause
the exhaust system to overheat, which could result in a fire if combustible
material is nearby.
■ When the vehicle is parked
● Do not leave glasses, cigarette lighters, spray cans, or soft drink cans in
the vehicle when it is in the sun.
Doing so may result in the following:
• Gas may leak from a cigarette lighter or spray can, and may lead to a
fire.
• The temperature inside the vehicle may cause the plastic lenses and
plastic material of glasses to deform or crack.
• Soft drink cans may fracture, causing the contents to spray over the
interior of the vehicle, and may also cause a short circuit in the vehicle’s
electrical components.
● Do not leave cigarette lighters in the vehicle. If a cigarette lighter is in a
place such as the glove box or on the floor, it may be lit accidentally when
luggage is loaded or the seat is adjusted, causing a fire.
● Do not attach adhesive discs to the windshield or windows. Do not place
containers such as air fresheners on the instrument panel or dashboard.
Adhesive discs or containers may act as lenses, causing a fire in the vehi-
cle.
● Do not leave a door or window open if the curved glass is coated with a
metallized film such as a silver-colored one. Reflected sunlight may cause
the glass to act as a lens, causing a fire.
