Table of Contents
2-5 Getting Started

6-7 Instrument Panel

8-11 Gauges

12-13 Personalize

14-21 Controls

22-23 While Operating

24-25 Safety/In Case of Emergency

26-28 Additional Information
3645634_19b_Subaru_Legacy_QG_082818.indd 58/28/18 1:25 PM

2
1 Lock/Arm
• Press to lock all doors and trunk and
activate the security alarm.
• If any of the doors or the trunk are
not fully closed, five rapid chirps
will sound and the hazard lights will
flash to alert you that the doors or
the trunk are not properly closed.
• To activate the vehicle finder function,
press three times (within five seconds).
If you are within 30 feet of the vehicle,
the horn will sound one time and the
hazard lights will flash three times.
2 Unlock/Disarm
• Press once to unlock the driver’s door.
• Press twice (within five seconds) to
unlock all doors.
• When the “Unlock/Disarm” button is
pressed, the dome and map lights will
illuminate if the dome light switch is in
the middle position.
3 Opening the Trunk Lid
• Press and hold to unlock the trunk lid.
An electronic chirp will sound twice
and the hazard lights will flash twice.
4 Panic Alarm
• Press once and the horn will sound
and the hazard lights will flash.
• Press any button on the remote
to deactivate.

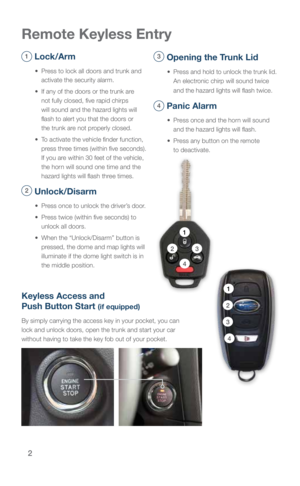

Remote Keyless Entry
Keyless Access and
Push Button Start
(if equipped)
By simply carrying the access key in your pocket, you can
lock and unlock doors, open the trunk and start your car
without having to take the key fob out of your pocket.
1
2
3
4
1
23
4
3645634_19b_Subaru_Legacy_QG_082818.indd 28/28/18 1:25 PM

3
Seating
Getting
Started
Power Driver’s Seat (if equipped)
Do not adjust the seat while driving.
1 Forward/Backward,
Angle and Height

Move the switch toward the front
or rear to move the seat forward
or backward. Pull the switch up
or push down on the front of the
switch to adjust the angle of the
seat cushion. Pulling the switch
straight up or pushing the switch
straight down will adjust the height
of the entire seat cushion.
2 Seatback

Move the switch in the
corresponding direction to adjust
the angle of the seatback.
3 Lumbar Support

Press the front part of the switch
to increase lumbar support;
press the rear part of the switch
to decrease lumbar support.
3
2
1
Memory Driver’s Seat (if equipped)
While pressing the “SET” button, press and hold the desired button “1” or “2”.
A beep sounds when the seat position is registered. Press button “1” or “2” to
retrieve the seat positions.
3645634_19b_Subaru_Legacy_QG_082818.indd 38/28/18 1:25 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

4
Heated Seats (if equipped)
Press the front seat heater switch. Each time you press the switch, the mode will change as
follows: High, Mid, Low, Off.
Seat Controls
Do not adjust the seat while driving.
1 Forward/Backward
Pull up on the lever below the front
of the driver’s seat to move the seat
forward or backward.
2 Raise/Lower Seat Cushion
To adjust the height of the driver’s seat,
pull up or push down the seat height
adjustment lever, located on the lower
left front of the seat.
3 Recline Seatback
To adjust the seatback to the desired position, pull up on the recline lever, located on the
lower left rear of the driver’s seat or lower right rear of the passenger’s seat.
Seating
1
23
3645634_19b_Subaru_Legacy_QG_082818.indd 48/28/18 1:26 PM

5
Rear Seat Release Lever
Open the trunk lid. Pull the release lever on the seat side that you want to fold down.
To return the seatback to its original position, raise the seatback until it loc\
ks into
place, making sure that it is securely locked.
Getting
Started
Rear Seat Heater (if equipped)
Press the rear seat heater switch. Each time
you press the switch, the mode will change
as follows: High, Low, Off.
3645634_19b_Subaru_Legacy_QG_082818.indd 58/28/18 1:26 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

6
Instrument Panel
8-1121
20 1314, 19PAGE
