2019 SUBARU LEGACY Quick Guide

15
Windshield Wipers
To turn on the wipers, press the wiper control lever down one level for intermittent,
two levels for low, or three levels for high speed. Return the lever to the “OFF”
position to stop the wipers. For a single wipe, move the lever up. To spray washer
fluid, pull and hold the lever toward you. Rotate the dial to adjust the intermittent
wiper speed.
Daytime Running Lights
Daytime running lights are standard on your vehicle. Only the front daytime
running lights will be automatically turned on when the engine has started,
the parking brake is fully released and the light switch is in the “OFF”,
“AUTO” or “
” position. The brightness of the illumination of the high
beam headlights is reduced by the daytime running light system. You must
always switch on your headlights when it is dark outside by turning the light
switch to the “
” position or have the switch in the “AUTO” position.
1
2
3
INT.
LOW
HIGH OFF
Controls
3645634_19b_Subaru_Legacy_QG_082818.indd 158/28/18 1:27 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

16
Controls
5
2
316
4
7
Manual Climate Control (if equipped)
1 Fan Speed Control Dial
Rotate the fan speed control dial to
select the desired fan speed.
2 Air Conditioning Button
Press the “A/C” button to activate the air
conditioning. Press it again to turn off the
air conditioning.
3 Air Flow Mode Selection Button
Press the “MODE” button to select the
desired air flow mode. The selected air
flow mode – either ventilation, bi-level,
heat or heat-defrost – is shown on
the display.
4 Recirculated/Outside Air Button
Press the air inlet selection button to
prevent outside air from being drawn
into the passenger compartment. If the
button is pushed in, press it again to draw
outside air into the compartment.
TO PREVENT WINDSHIELD
FOGGING, DO NOT REMAIN IN THE
RECIRCULATED MODE FOR AN
EXTENDED PERIOD OF TIME.



5 Temperature Control Dial
Rotate the temperature control dial from
blue for cool, to red for warm. Rotate the
dial all the way left for MAX A/C.
6 Defrost/Defog
To clear the windshield and front
door windows of fog or frost, press
the defrost button, set the temperature
control to the red position, and set the fan
speed control to the fastest speed.
While in defrost mode, the air inlet
selection and A/C will operate
automatically (although the A/C indicator
will illuminate if the button was depressed
prior to or during defrost mode).
7 Rear Window Defogger Button
Press the rear window defogger button
to turn on the defogger. The defogger
will automatically shut off after about
15 minutes. If the window clears before
that time, you can press the button again
to turn it off.
3645634_19b_Subaru_Legacy_QG_082818.indd 168/28/18 1:27 PM

17
122
3
457
89106
Dual Zone Automatic Climate Control System (if equipped)
1 Automatic On and Off
This system automatically controls
outlet air temperature, fan speed,
air flow distribution, air inlet control,
and air conditioner compressor
operation. Press “AUTO” to activate.
Press “OFF” to turn off the system.
2 Temperature Control Dial
Rotate the dial clockwise to increase
the temperature or rotate the dial
counterclockwise to decrease the
temperature. The temperature is
displayed digitally on the screen.
Separate temperature settings can
be adjusted for the driver’s side and
passenger’s side.
3 SYNC Button
Press the button to synchronize both
the driver’s side and passenger’s
side temperatures using the driver’s
side temperature control.
Operation in Manual Mode
4 Air Conditioner Button
Press the “A/C” button to activate
the air conditioning. Press it again to
turn off the air conditioning.
5 MAX Air Conditioner Button
For quicker cooling, press the MAX
A/C button.
6
Air Flow Mode Selection Button
Press the button to select the
desired air flow mode. The selected
air flow mode – either ventilation,
bi-level, heat, heat-defrost or
defrost – is shown on the display.

7 Fan Speed Control Buttons
Press the fan speed control buttons
to select the desired fan speed.

8 Recirculated/Outside Air Button
Press the air inlet selection button to
prevent outside air from being drawn
into the passenger compartment.
Press the button again to allow
outside air into the compartment.
TO PREVENT WINDSHIELD
FOGGING, DO NOT REMAIN IN
THE RECIRCULATED MODE FOR
AN EXTENDED PERIOD OF TIME.

9 Defroster Button
Press the button to defrost or
dehumidify the windshield and front
door windows.

10 Rear Window Defogger Button
Press the button to turn on the
defogger. It will automatically shut
off after about 15 minutes. If the
window clears before that time, you
can press the button again to turn
it off. If equipped, the outside mirror
defogger and windshield wiper
deicer will also activate.
Controls
3645634_19b_Subaru_Legacy_QG_082818.indd 178/28/18 1:27 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

18
Controls

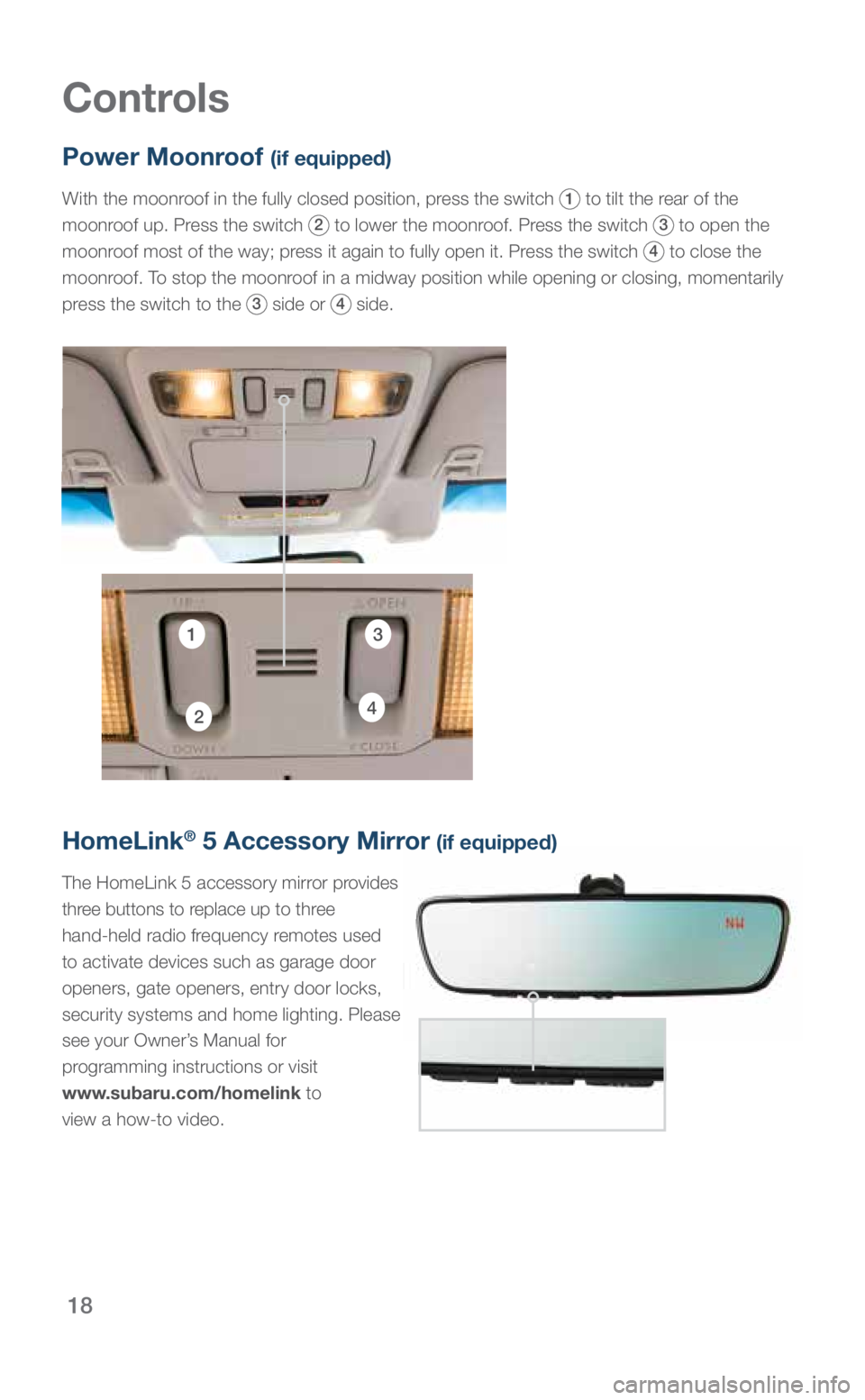

Power Moonroof (if equipped)
With the moonroof in the fully closed position, press the switch 1 to tilt the rear of the
moonroof up. Press the switch
2 to lower the moonroof. Press the switch 3 to open the
moonroof most of the way; press it again to fully open it. Press the switch
4 to close the
moonroof. To stop the moonroof in a midway position while opening or closing, momentarily
press the switch to the
3 side or 4 side.
2
1
4
3
HomeLink® 5 Accessory Mirror (if equipped)
The HomeLink 5 accessory mirror provides
three buttons to replace up to three
hand-held radio frequency remotes used
to activate devices such as garage door
openers, gate openers, entry door locks,
security systems and home lighting. Please
see your Owner’s Manual for
programming instructions or visit
www.subaru.com/homelink to
view a how-to video.
3645634_19b_Subaru_Legacy_QG_082818.indd 188/28/18 1:27 PM

19
Controls
Instrument Panel Switches (lower left)
Please refer to your Owner’s Manual for details on these switches.

1 Trunk lid opener switch

2 Vehicle Dynamics Control OFF switch
3 Blind Spot Detection/Rear Cross Traffic Alert OFF switch (if equipped)
4 Lane Departure Warning OFF switch (if equipped)
5 Pre-Collision Braking System OFF switch (if equipped)
1
5342
3645634_19b_Subaru_Legacy_QG_082818.indd 198/28/18 1:27 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

20
Auxiliary Input Jack
The 3.5mm auxiliary input jack is located in the
front of the center console. You can connect a
portable music player to the auxiliary jack and
hear the music stored on it through the vehicle
speakers. Press the “SOURCE” button located
on the audio system to select the auxiliary mode.
USB Port
The USB port(s) is/are located in the front of the center console. You can connect a
USB-equipped portable music player to the USB port and hear the music st\
ored on it
through the vehicle speakers. Press the “SOURCE” button located on the audio system
repeatedly until the USB mode is selected.
Controls
Steering Wheel Audio Controls (if equipped)
Voice recognition switch;
please refer to your SUBARU
STARLINK
™ Owner’s Manual.
Press the button to select the
desired audio mode – FM, AM,
SXM, CD, AUX, MEDIA. With any of the radio modes
selected, press the left or
right arrow button to toggle
through your presets. In CD
mode, press the buttons to
skip forward or back a track.
Push the switch
up (+) to increase
volume or down (–)
to decrease volume.
3645634_19b_Subaru_Legacy_QG_082818.indd 208/28/18 1:27 PM

21
Controls
Adaptive Cruise Control
RES/+ Switch
Press to resume set speed or increase
set speed while in either Adaptive
or Conventional Cruise Control. SET/– Switch
Press to set current speed or decrease
set speed while in either Adaptive
or Conventional Cruise Control. Press to activate or
deactivate Adaptive Cruise
Control function.
Press to decrease following distance
setting while using Adaptive Cruise
Control. Press and hold to switch
to Conventional Cruise Control. Press to activate
or deactivate
Lane Keep Assist.

Press to increase following
distance setting while using
Adaptive Cruise Control.
Press and hold to switch to
Conventional Cruise Control.
RES/+ switch
SET/– switch
3645634_19b_Subaru_Legacy_QG_082818.indd 218/28/18 1:27 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

22
Electronic Parking Brake
To apply, depress the brake pedal and pull up the
parking brake switch. The brake system warning light
on the instrument panel and the indicator light on the
parking brake switch will illuminate.
To release, make sure all doors are closed and your
seatbelt is fastened, then gently push the accelerator
pedal. Or, while the ignition switch is in the ON position
and the brake pedal is depressed in, push down the
parking brake switch.
Hill Holder™ Function
To activate, press the Hill Holder switch. To deactivate,
press the Hill Holder switch again. When the Hill
Holder function is activated, the parking brake will be
automatically applied when stopped on an uphill or
downhill slope with the brake pedal pushed down.
The brake system warning light on the instrument
panel and the indicator light on the parking brake
switch will illuminate.
While Operating
Paddle Shift Control Switches (if equipped)
• Temporary use: Even when the selector is in the
“D” (Drive) position, you can temporarily shift the
gear by pulling the “+” or “–” paddle shift control
switch. The transmission will automatically
switch back to Normal Mode.
• When the selector lever is in Manual Mode, shift to the next higher gear\
by pulling the “+”
paddle shift control switch on the steering wheel. Pull the “–” paddle shift cont\
rol switch
to shift into the next lower gear.
Manual Shifting Operation

Arrow-shaped lights in the center of the instrument panel show whether an u\
pshift is possible
and whether a downshift is possible.
