2019 Ram 2500 key

2
INTRODUCTION
INTRODUCTION .............................................................. 13
 HOW TO USE THIS MANUAL ....................................... 14
Essential Information .................................................... 14
Symbols ........................................................................... 14
 WARNINGS AND CAUTIONS ....................................... 15
 VAN CONVERSIONS/CAMPERS ................................ 15
 VEHICLE MODIFICATIONS/ALTERATIONS ........... 15
GETTING TO KNOW YOUR VEHICLE
VEHICLE USER GUIDE — IF EQUIPPED...................... 16
 KEYS ..................................................................................... 18
Key Fob ........................................................................... 18
 IGNITION SWITCH ......................................................... 25
Keyless Push Button Ignition....................................... 25
 REMOTE START — IF EQUIPPED .................................. 27
How To Use Remote Start ............................................ 27
Remote Start Abort Message........................................ 28
To Enter Remote Start Mode........................................ 28
To Exit Remote Start Mode Without Driving The
Vehicle ............................................................................ 29

To Exit Remote Start Mode And Drive The Vehicle ..... 29

Remote Start Comfort Systems — If Equipped......... 29
General Information ..................................................... 29 
SENTRY KEY .......................................................................30
Key Programming ........................................................30
Replacement Keys ........................................................31
General Information .....................................................31
 VEHICLE SECURITY ALARM .......................................32
To Arm The System .......................................................32
To Disarm The System ..................................................32
Rearming Of The System ..............................................33
Security System Manual Override ..............................33
 DOORS .................................................................................33
Manual Door Locks .......................................................33
Power Door Locks — If Equipped .............................35
Power Side Steps — If Equipped ..............................35
Keyless Enter-N-Go — Passive Entry ........................36
Automatic Door Locks — If Equipped .....................39
Child-Protection Door Lock ........................................39
 SEATS ................................................................................40
Manual Front Seat Adjustment....................................41
Manual Rear Seat Adjustment .....................................42
Power Driver Seat Adjustment — If Equipped .........43
Driver Memory Seats — If Equipped .......................45
Heated Seats — If Equipped ........................................49
Ventilated Seats — If Equipped...................................50

4
CLIMATE CONTROLS ..................................................... 79
Climate Controls Without A Touchscreen
Overview ...................................................................... 79
Climate Controls With A Touchscreen Overview .... 83
Climate Control Functions ........................................... 90
Automatic Temperature Control (ATC) ................... 91
Operating Tips .............................................................. 91
 WINDOWS .......................................................................... 94
Power Windows ........................................................... 94
Wind Buffeting .............................................................. 97
 POWER SUNROOF — IF EQUIPPED ........................... 97
Single Pane Power Sunroof — If Equipped ............. 97
 HOOD ............................................................................. 101
To Open The Hood ..................................................... 101
To Close The Hood...................................................... 102
 TAILGATE ......................................................................... 102
Opening ........................................................................ 102
Closing .......................................................................... 103
Bed Step — If Equipped ............................................. 103
 GARAGE DOOR OPENER — IF EQUIPPED ............ 104
Before You Begin Programming HomeLink ........... 105
Canadian/Gate Operator Programming ................. 108
Using HomeLink ......................................................... 110
Security ......................................................................... 110
Troubleshooting Tips .................................................. 110
General Information .................................................... 110 
INTERNAL EQUIPMENT ...............................................111
Storage ...........................................................................111
Cupholders ..................................................................122
Electrical Power Outlets ............................................124
Power Inverter — If Equipped ................................. 126
Wireless Charging Pad — If Equipped ...................129
Overhead Sunglass Storage........................................130
 PICKUP BOX .....................................................................130
Cargo Camera — If Equipped ...................................132
 RAMBOX — IF EQUIPPED .............................................134
RamBox Integrated Box Side Storage Bins............... 134
RamBox Safety Warning .............................................137
Bed Divider — If Equipped........................................138
Bed Rail Tie-Down System .......................................142
 SLIDE-IN CAMPERS .......................................................144
Camper Applications ..................................................144
 EASY-OFF TAILGATE ....................................................144
Disconnecting The Rear Camera And Remote
Keyless Entry ................................................................144
Removing The Tailgate ...............................................146
Locking Tailgate........................................................... 146
 TRI-FOLD TONNEAU COVER — IF EQUIPPED ....... 147
Tri-Fold Tonneau Cover Removal.............................147
Tri-Fold Tonneau Cover Installation ........................ 153
Tri-Fold Tonneau Cover Cleaning ............................159

6
STARTING AND OPERATING
STARTING THE ENGINE .............................................. 290
Automatic Transmission ............................................ 291
Tip Start Feature ......................................................... 291
Keyless Enter-N-Go — Ignition................................. 291
Normal Starting Using ENGINE START/STOP
Button ......................................................................... 292

Cold Weather Operation (Below –22°F Or −30°C) ..... 296

After Starting................................................................ 296
 ENGINE BLOCK HEATER — IF EQUIPPED .............. 297
 ENGINE BREAK-IN RECOMMENDATIONS ............ 297
 PARKING BRAKE ........................................................... 298
 AUTOMATIC TRANSMISSION ................................... 299
Ignition Park Interlock ................................................ 301
Brake/Transmission Shift Interlock System ........... 301
Eight-Speed Automatic Transmission .................... 301
 ACTIVE NOISE CANCELLATION ............................... 308
 FOUR-WHEEL DRIVE OPERATION —
IF EQUIPPED .................................................................... 309
Four-Position Electronically Shifted Transfer
Case — If Equipped ................................................... 309
Manually Shifted Transfer Case — If Equipped ..... 314 
AIR SUSPENSION SYSTEM (2500/3500 MODELS) —
IF EQUIPPED .....................................................................317
Description.................................................................... 317
Air Suspension Modes ................................................318
Instrument Cluster Display Messages ......................320
Operation ......................................................................320
 AXLE LOCKER SYSTEM — POWER WAGON
MODELS ONLY (IF EQUIPPED)....................................320
 STABILIZER/SWAY BAR SYSTEM — POWER WAGON
ONLY ................................................................................322
 SAFE OFF-ROAD DRIVING — POWER WAGON
ONLY .................................................................................324
Off-Road Driving Tips And Vehicle
Characteristics ............................................................324
Driving In Snow, Mud And Sand .............................326
Crossing Obstacles (Rocks And Other High
Points)............................................................................327
Hill Climbing................................................................329
Driving Through Water ..............................................331
Airing Down For Off-Road Driving .........................332
Vehicle Recovery .........................................................333
After Driving Off-Road...............................................336
 LIMITED-SLIP DIFFERENTIAL ....................................337

18 GETTING TO KNOW YOUR VEHICLE
KEYS
Key Fob
Your vehicle uses a keyless ignition system. The ignition
system consists of a key fob with Remote Keyless Entry
(RKE) and a START/STOP push button ignition system. The
Remote Keyless Entry system consists of a key fob and
Keyless Enter-N-Go feature.
NOTE:
The key fob may not be found if it is located next to a mobile
phone, laptop or other electronic device; these devices may
block the key fob’s wireless signal.
The key fob allows you to lock or unlock all doors, tailgate,
and the RamBox (if equipped) as well as activate the Panic
Alarm from distances up to approximately 66 ft (20 m) using
a handheld key fob. The key fob does not need to be pointed
at the vehicle to activate the system.
NOTE:
• In the ON/RUN position, all key fob buttons will workuntil the vehicle reaches 3 mph (5 km/h).
• The key fob should not be placed next to the wireless charging pad (if equipped). Key Fob
In case the ignition switch does not change with the push of
a button, the key fob may have a low or fully depleted
battery. A low key fob battery can be verified by referring to
the instrument cluster, which will display directions to
follow.
1 — Emergency Key
2 — Unlock
3 — Lock
4 — Remote Start
5 — PANIC

GETTING TO KNOW YOUR VEHICLE 19
In a situation where the battery is low or fully depleted, a
back up method can be used to operate the ignition switch.
Put the nose side of the key fob (side opposite of the Emer-
gency Key) against the ENGINE START/STOP button and
push to operate the ignition switch.
To Unlock The Doors And Tailgate
Push and release the unlock button on the key fob once to
unlock the driver’s door. Push the unlock button twice
within five seconds to unlock all doors, the tailgate and the
RamBox (if equipped). The turn signal lights will flash to
acknowledge the unlock signal. The illuminated entry
system will also turn on.
NOTE:
The instrument cluster display or Uconnect Settings are
setup for driver door first, otherwise this will unlock all
doors.
To Lock The Doors And Tailgate
Push and release the lock button on the key fob to lock all
doors, the tailgate, and the RamBox (if equipped). The turn
signal lights will flash and the horn will chirp to acknowl -
edge the signal. Sound Horn With Remote Key Lock
This feature will cause the horn to chirp when the doors are
locked with the key fob. This feature can be turned on or
turned off.
NOTE:
Pushing the lock button on the key fob while you are in the
vehicle will activate the vehicle security alarm system.
Opening a door with the vehicle security alarm system acti
-
vated will cause the alarm to sound. Push the unlock button
to deactivate the vehicle security alarm system.
Refer to “Instrument Cluster Display” in “Getting To Know
Your Instrument Panel” for further information.
Using The Panic Alarm
To turn the Panic Alarm feature on or off, push the Panic
button on the key fob. When the Panic Alarm is activated, the
turn signals will flash, the horn will pulse on and off, and the
interior lights will turn on.
2

20 GETTING TO KNOW YOUR VEHICLE
The Panic Alarm will stay on for three minutes unless you
turn it off by either pushing the Panic button a second time
or drive the vehicle at a speed of 15 mph (24 km/h) or
greater.
NOTE:
• The interior lights will turn off if you place the ignition inthe ACC or ON/RUN position while the Panic Alarm is
activated. However, the exterior lights and horn will
remain on.
• You may need to be less than 35 ft (11 m) from the vehicle when using the key fob to turn off the Panic Alarm due to
the radio frequency noises emitted by the system.
Air Suspension (Remote Lowering Of The Vehicle) — If
Equipped For easy entry and loading, your vehicle can be
lowered by pushing the key fob air suspension
lowering button two times. When key fob lowering
is requested, the vehicle will send a series of chirps and
flashes to alert the customer that the operation has begun
and will continue these alerts until it successfully lowers. The following conditions must be met for the vehicle to
lower remotely:
• The vehicle must not already be in Entry/Exit (Park) ride
height.
• The vehicle battery must be fully charged.
• All doors must be closed.
• The key fob must be out of the vehicle.
Canceling Remote Lowering
Vehicle lowering can be cancelled at anytime. When vehicle
lowering is canceled, the vehicle will raise up to the next
defined level and lock out the remote lowering feature until
the ignition has been cycled ON/OFF.
To cancel vehicle lowering, push the key fob air suspension
lowering button one time during the lowering process.
When vehicle lowering is canceled, the horn will chirp two
times and the turn signal lamps will flash four times. Once
raising is completed, the horn will chirp one time.
NOTE:
Refer to “Air Suspension System” in “Starting And Oper -
ating” for further information.

GETTING TO KNOW YOUR VEHICLE 21

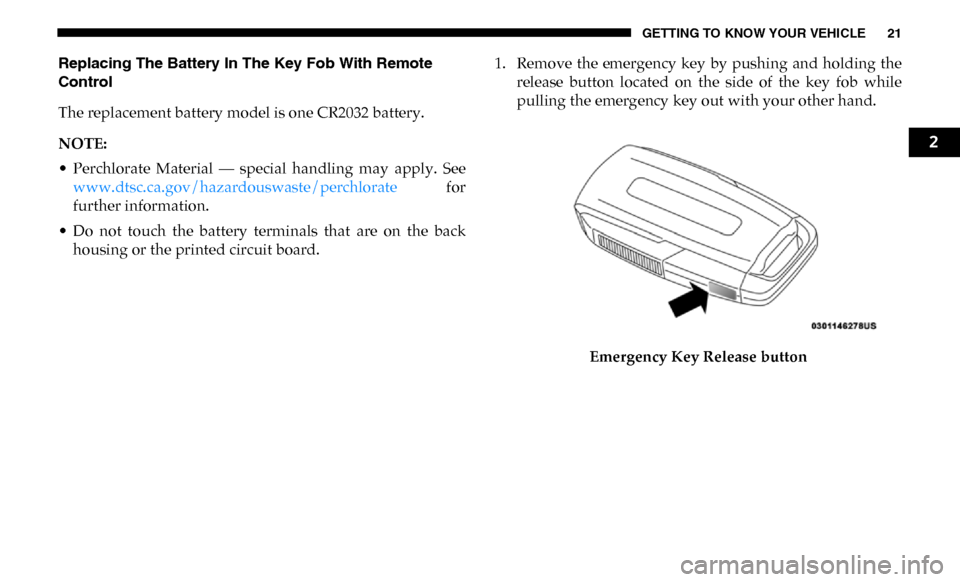

Replacing The Battery In The Key Fob With Remote
Control
The replacement battery model is one CR2032 battery.
NOTE:
• Perchlorate Material — special handling may apply. Seewww.dtsc.ca.gov/hazardouswaste/perchlorate for
further information.
• Do not touch the battery terminals that are on the back housing or the printed circuit board. 1. Remove the emergency key by pushing and holding the
release button located on the side of the key fob while
pulling the emergency key out with your other hand.
Emergency Key Release button
2

22 GETTING TO KNOW YOUR VEHICLE
2. Slightly remove the emergency key from the key fob,approximately 10 mm. The blade of the emergency key
should just become visible.
Emergency Key 3. Holding the key fob with the button side facing down,
use the emergency key to pry up the battery cover until
the cover releases from the key fob housing.
Key Fob Back Cover Removal
